Installation Procedure

  1. Install the 3-way catalytic converter pipe hangers.

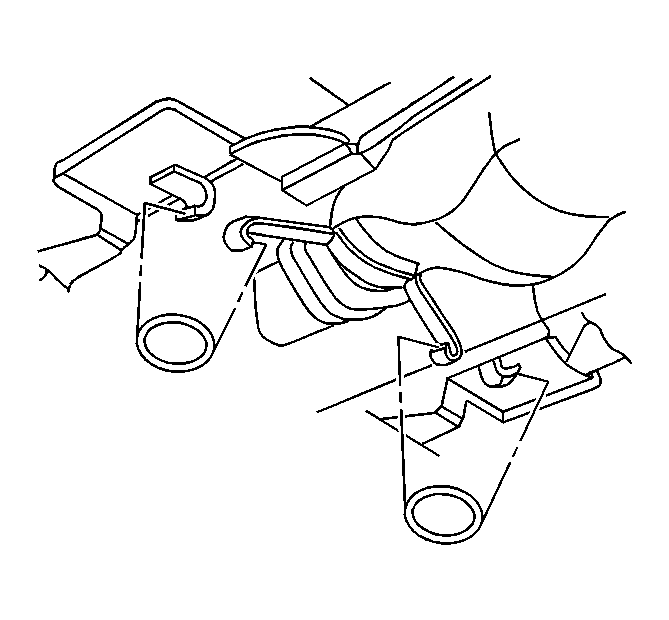

    2. Fig 1: View Of Catalytic Converter Hangers
    GM289493Courtesy of GENERAL MOTORS CORP.
  2. Remove the support from the exhaust system and the vehicle.
  3. Inspect the exhaust system for underbody contact.
  4. Lower the vehicle.
