Installation Procedure

  1. Install the boost control solenoid (2).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the boost control solenoid nut.

    Tighten:  Tighten the nut to 8 N.m (71 lb in).

  3. Connect the boost control solenoid electrical connector.
  4. Connect the boost source and signal hoses to the boost control solenoid (2).
  5. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 3.8L.

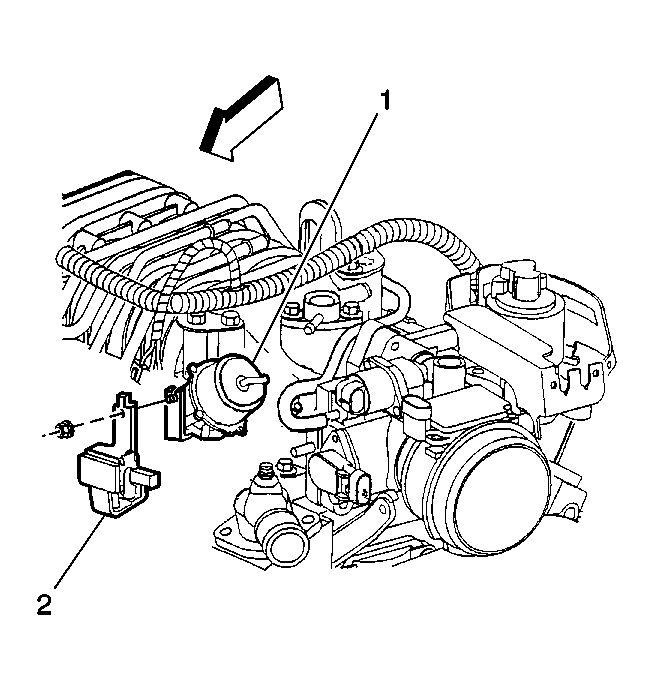

    6. Fig 1: Installing Boost Control Solenoid
    GM66407Courtesy of GENERAL MOTORS CORP.
