Removal Procedure

IMPORTANT: Always maintain cleanliness when servicing fuel system components.
  1. Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
  2. Disconnect the fuel level sensor electrical connector.
  3. Remove the fuel level sensor (5) from the fuel sender assembly.

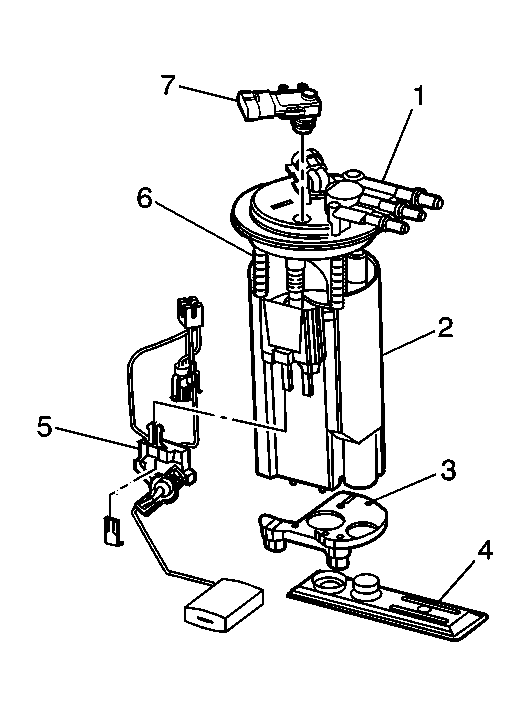

    4. Fig 1: Fuel Pump & Sender Assembly Component View
    GM50636Courtesy of GENERAL MOTORS CORP.
