Removal Procedure
CAUTION:
Relieve the fuel system pressure before servicing fuel system components in order to reduce the risk of fire and personal injury.
After relieving the system pressure, a small amount of fuel may be released when servicing the fuel lines or connections. In order to reduce the chance of personal injury, cover the regulator and the fuel line fittings with a shop towel before disconnecting. This will catch any fuel that may leak out. Place the towel in an approved container when the disconnection is complete.
After relieving the system pressure, a small amount of fuel may be released when servicing the fuel lines or connections. In order to reduce the chance of personal injury, cover the regulator and the fuel line fittings with a shop towel before disconnecting. This will catch any fuel that may leak out. Place the towel in an approved container when the disconnection is complete.
CAUTION:
Wear safety glasses when using compressed air, as flying dirt particles may cause eye injury.
CAUTION:
Place a dry chemical (Class B) fire extinguisher nearby before performing any on-vehicle service procedures. Failure to follow these precautions may result in personal injury.
NOTE:
Refer to Cover and Plug Openings Notice in Cautions and Notices.
IMPORTANT:
Always maintain cleanliness when servicing fuel system components.
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .

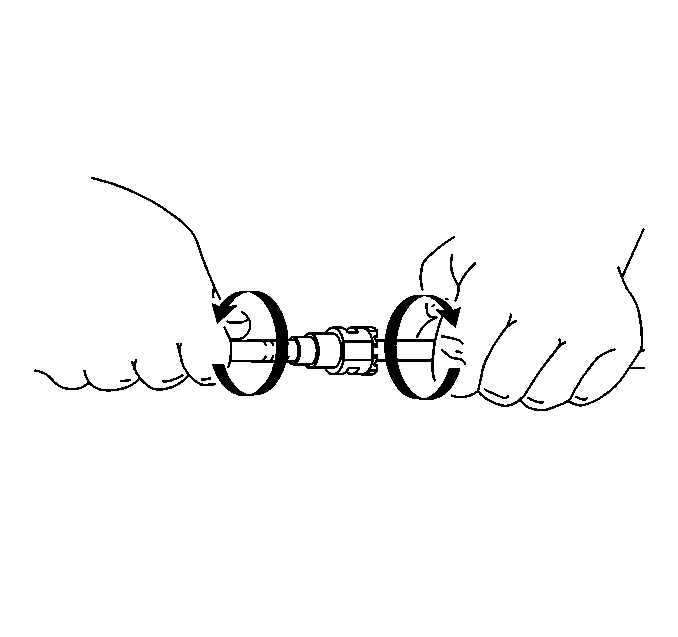

- Grasp both sides of the quick-connect fitting. Twist quick-connect fitting 1/4 turn in each direction to loosen any dirt within fitting.
- Repeat for other fuel pipe fitting.
- Use compressed air to blow out dirt from the quick-connect fittings at both ends.
- Squeeze plastic tabs of male end connector.
- Pull the connection apart.
Repeat the step for the other fitting.
- Wipe off the male pipe end using a clean shop towel.
- Clean or replace the components/assemblies, as required.
