Object Detection Connector End Views

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Object Sensor - LR Corner

GM655785Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15324398 (Delphi)

    1-967642-1 (Tyco)

  • Service: 15306313
  • 3-Way F MQS Sealed (BK)
Pin Wire Color Circuit No. Function
1 YE 2375 LR Corner Object Sensor Signal
2 GY 2379 Object Sensor Low Reference
3 D-BU 2374 Object Sensor Supply Voltage
Object Sensor - LR Middle

GM655785Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15324398 (Delphi)

    1-967642-1 (Tyco)

  • Service: 15306313
  • 3-Way F MQS Sealed (BK)
Pin Wire Color Circuit No. Function
1 OG 2376 LR Middle Object Sensor Signal
2 GY 2379 Object Sensor Low Reference
3 D-BU 2374 Object Sensor Supply Voltage
Object Sensor - RR Corner

GM655785Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15324398 (Delphi)

    1-967642-1 (Tyco)

  • Service: 15306313
  • 3-Way F MQS Sealed (BK)
Pin Wire Color Circuit No. Function
1 RD 2378 RR Corner Object Sensor Signal
2 GY 2379 Object Sensor Low Reference
3 D-BU 2374 Object Sensor Supply Voltage
Object Sensor - RR Middle

GM655785Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15324398 (Delphi)

    1-967642-1 (Tyco)

  • Service: 15306313
  • 3-Way F MQS Sealed (BK)
Pin Wire Color Circuit No. Function
1 D-GN 2377 RR Middle Object Sensor Signal
2 GY 2379 Object Sensor Low Reference
3 D-BU 2374 Object Sensor Supply Voltage
Rear Object Sensor Control Module

GM599191Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124957 (Delphi)

    927690-1 (AMP)

  • Service: 88987946
  • 26-Way F Modu IV Series (BK)
Pin Wire Color Circuit No. Function
1 YE 2375 LR Corner Object Sensor Signal
2 OG 2376 LR Middle Object Sensor Signal
3 D-GN 2377 RR Middle Object Sensor Signal
4 RD 2378 RR Corner Object Sensor Signal
5 D-BU 2374 Object Sensor Supply Voltage
6 GY 2379 Object Sensor Low Reference
7-11 - - Not Used
12 BK 550 Ground
13 PK 739 Ignition 1 Voltage
14 - - Not Used
15 L-GN 24 Backup Lamp Supply Voltage
16 L-GN 2525 Rear Parking Assist Diagnostic Signal
17 - - Not Used
18 D-GN 389 Vehicle Speed Signal
19-21 - - Not Used
22 L-GN 1845 Chime Control
23 WH 2370 Telltale Assembly Supply Voltage
24 GY 2373 Red Indicator Control
25 D-BU 2372 Center Amber Indicator Control
26 OG 2371 Left Amber Indicator Control
Rear Parking Assist (RPA) Display

GM130635Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12045813
  • Service: 12101889
  • 4-Way F Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A WH 2370 Telltale Assembly Supply Voltage
B OG 2371 Left Amber Indicator Control
C D-BU 2372 Center Amber Indicator Control
D GY 2373 Red Indicator Control

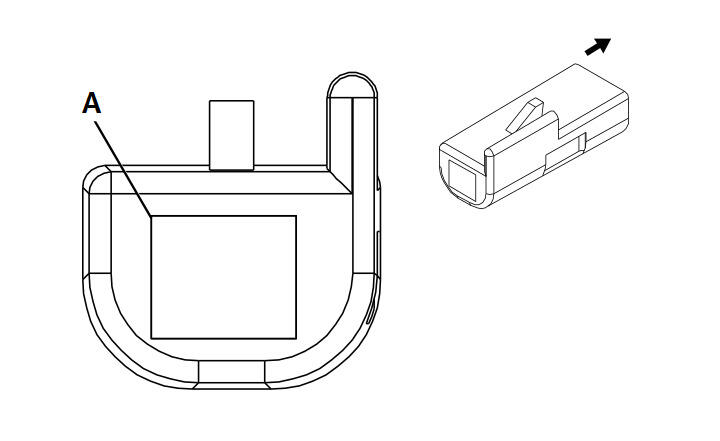

Rear Parking Assist (RPA) Diagnostic Connector

GM439818Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047682
  • Service: 12101850
  • 1-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A 2525 L-GN Rear Parking Assist Diagnostic Input
