Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

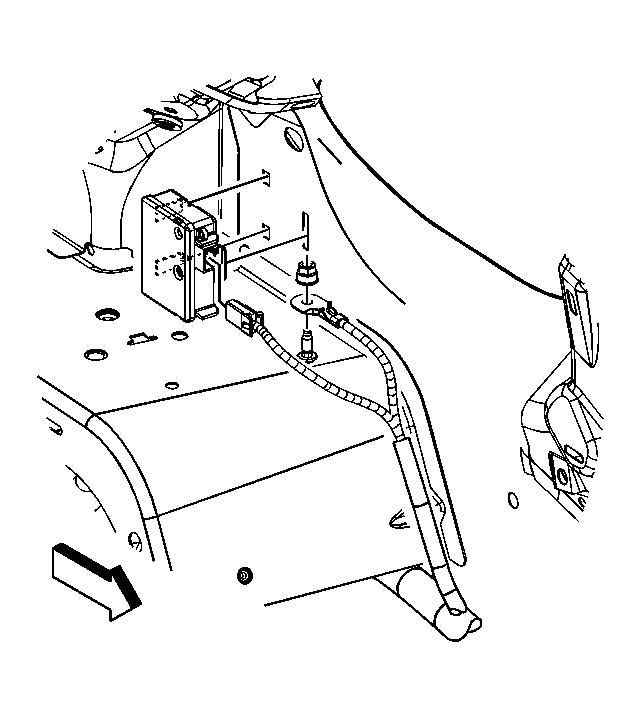

    Fig 1: Removing/Installing Receiver From Vehicle
    GM1250548Courtesy of GENERAL MOTORS CORP.
  1. Install the receiver to the vehicle.
  2. Connect the electrical connectors to the receiver.
  3. Install the rear quarter lower trim panel. Refer to Rear Quarter Lower Trim Panel Replacement .
  4. The transmitter will need to be programmed after replacement. Refer to Control Module References for programming and setup information.
