Installation Procedure

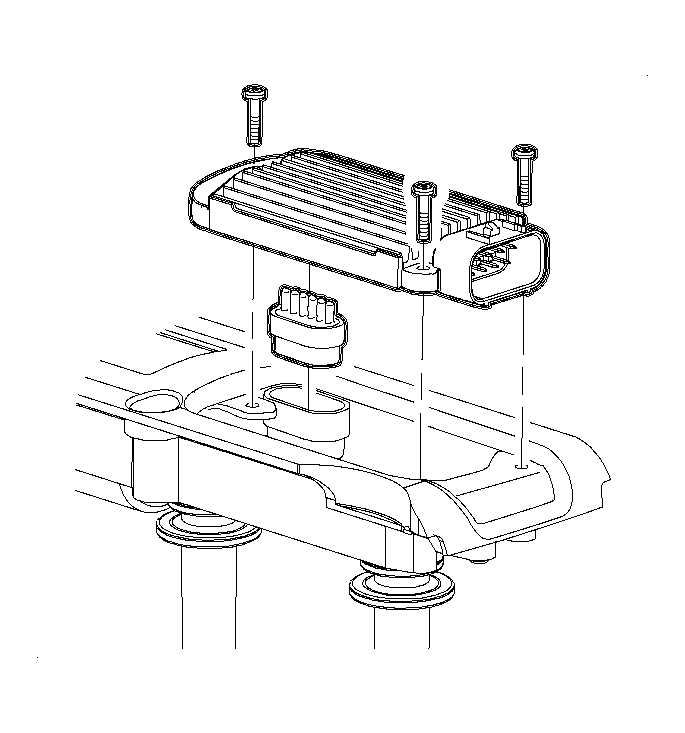

Fig 1: Installing EI Module And Attachment Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: Make sure the interconnect is lined up and the interconnect seal is in place before installing the attachment screws.

Install the EI module and the attachment screws.
Tighten: Tighten the EI module screws to 1.5 N.m (13 lb in).
Connect the module harness connector. Push in the connector until a click is heard, then pull back to confirm a positive engagement.
