Installation Procedure

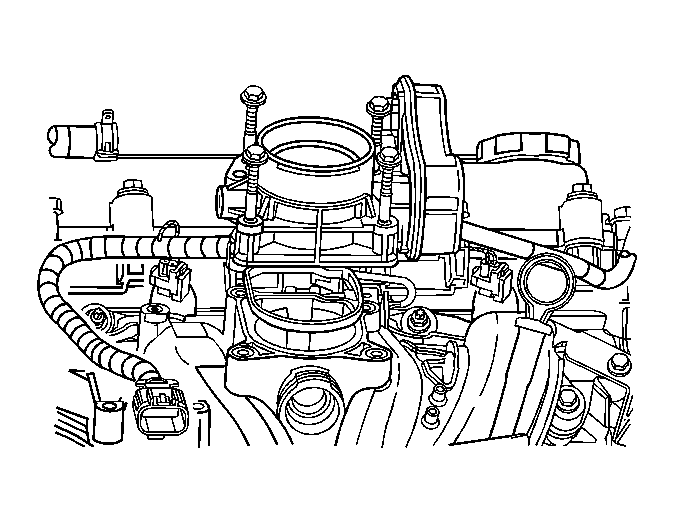

    Fig 1: Installing Throttle Body To Intake Manifold
    GM1238948Courtesy of GENERAL MOTORS CORP.
  1. Inspect the throttle body gasket and replace if necessary.
  2. Install the throttle body to the intake manifold.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the throttle body attaching bolts.

    Tighten:  Tighten the throttle body attaching bolts to 10 N.m (89 lb in).

  4. Connect the throttle body harness connector.
  5. Install the air cleaner resonator. Refer to Air Cleaner Outlet Resonator Replacement .
