Installation Procedure

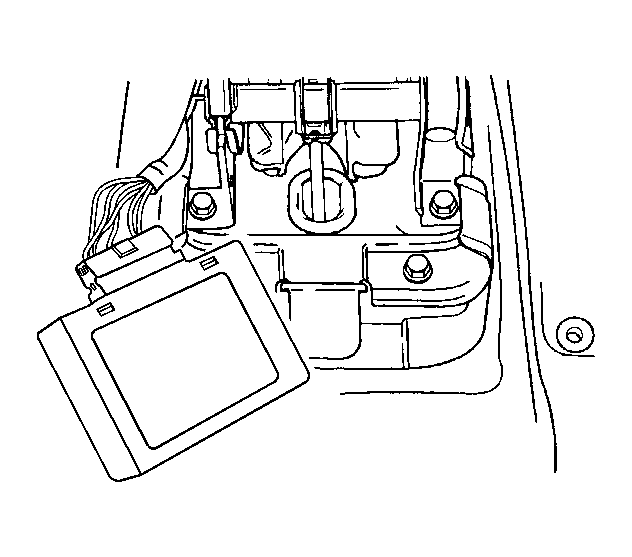

    Fig 1: View Of The Control Module/Receiver
    GM1309313Courtesy of GENERAL MOTORS CORP.
  1. Install the control module/receiver on its mounting bracket.
  2. Connect the control module/receiver electrical connector.
  3. Install the floor console. Refer to Front Floor Console Replacement in Instrument Panel, Gauges and Console.
  4. Connect the negative battery cable.
