Removal Procedure

    Fig 1: View Of Rear Window Defogger Electrical Connector
    GM1308960Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (Sedan) .
  3. Disconnect the rear window defogger electrical connector.

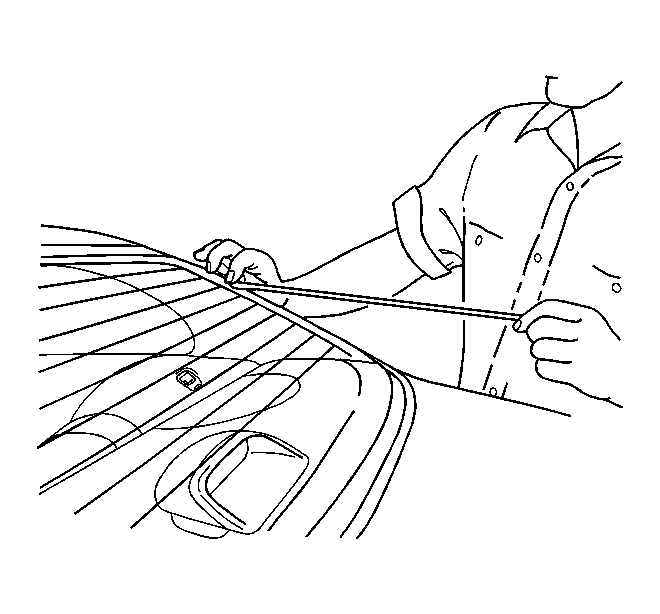

    4. Fig 2: View Of Rear Window Weatherstrip
    GM1256760Courtesy of GENERAL MOTORS CORP.
  4. Remove the weatherstrip around the rear window.

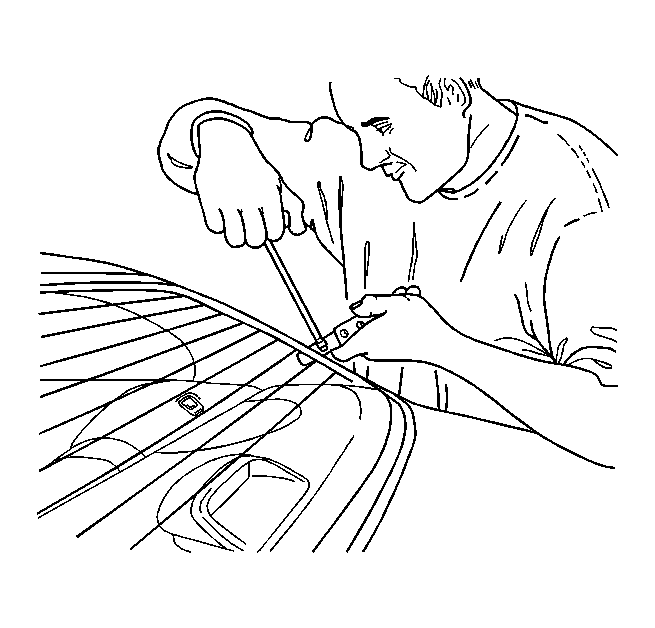

    5. Fig 3: Cutting Adhesive Using J 24402-A
    GM1256761Courtesy of GENERAL MOTORS CORP.
  5. Using the J 24402-A  (1), cut the adhesive around the rear window. See Special Tools .
    6. Fig 4: Removing Rear Window Adhesive With Knife
    GM1256752Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear window from the vehicle.
  7. Using a knife, remove the adhesive from the rear window.
  8. Using a knife, remove the adhesive from the rear window frame.
