Removal Procedure

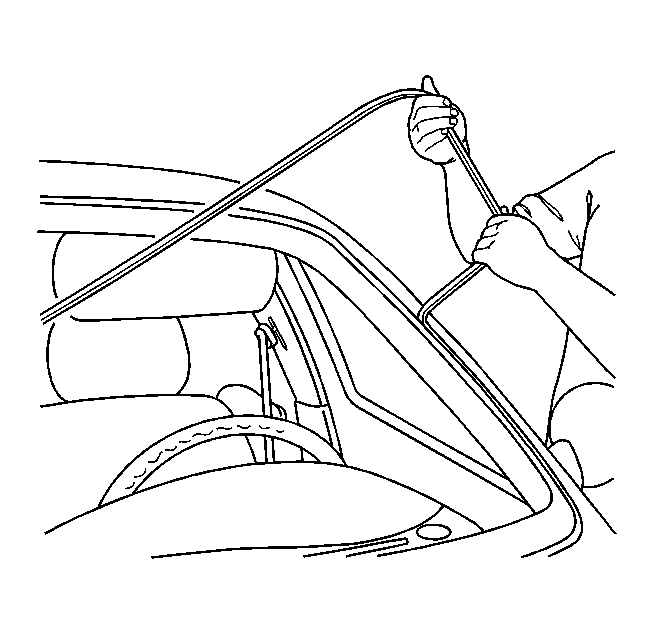

    Fig 1: View Of Windshield Weatherstrip
    GM1256749Courtesy of GENERAL MOTORS CORP.
  1. Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  2. Remove the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .
  3. Remove the weatherstrip around the windshield.

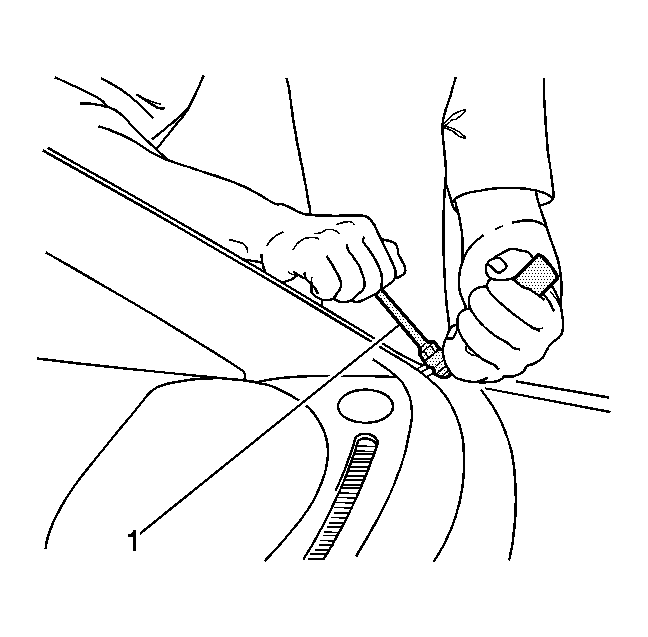

    4. Fig 2: Identifying J 24402-A Adhesive Cutter
    GM1256751Courtesy of GENERAL MOTORS CORP.
  4. Using the J 24402-A  (1), cut the adhesive around the windshield. See Special Tools .

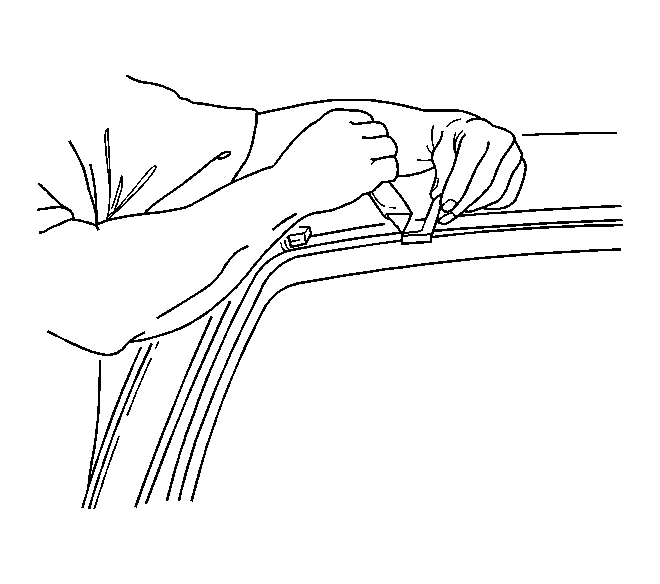

    5. Fig 3: Removing Rear Window Adhesive With Knife
    GM1256752Courtesy of GENERAL MOTORS CORP.
  5. Remove the windshield from the vehicle.
  6. Using a knife, remove the adhesive from the windshield.
  7. Using a knife, remove the adhesive from the windshield frame.
