Power Outlet Connector End Views

Cigar Lighter/Ashtray Lamp

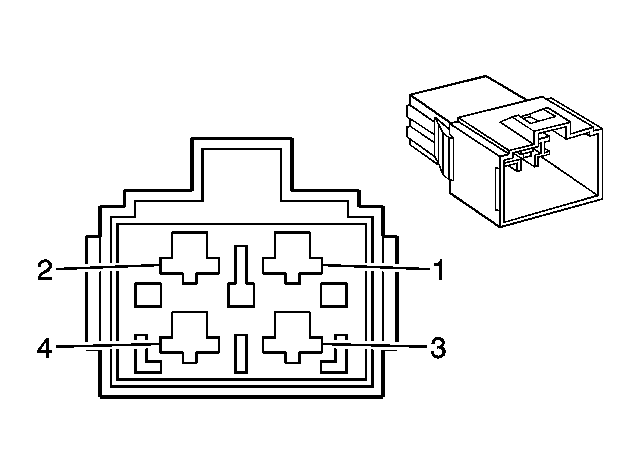

GM1467059Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 620046
  • 4-Way M 250 Series (WH)
Pin Wire Color Circuit No. Function
1 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal
2 BN/WH 309 Right Park Lamp Supply Voltage
3 YE 143 Accessory Voltage
4 BK 1050 Ground
Auxiliary Power Outlet

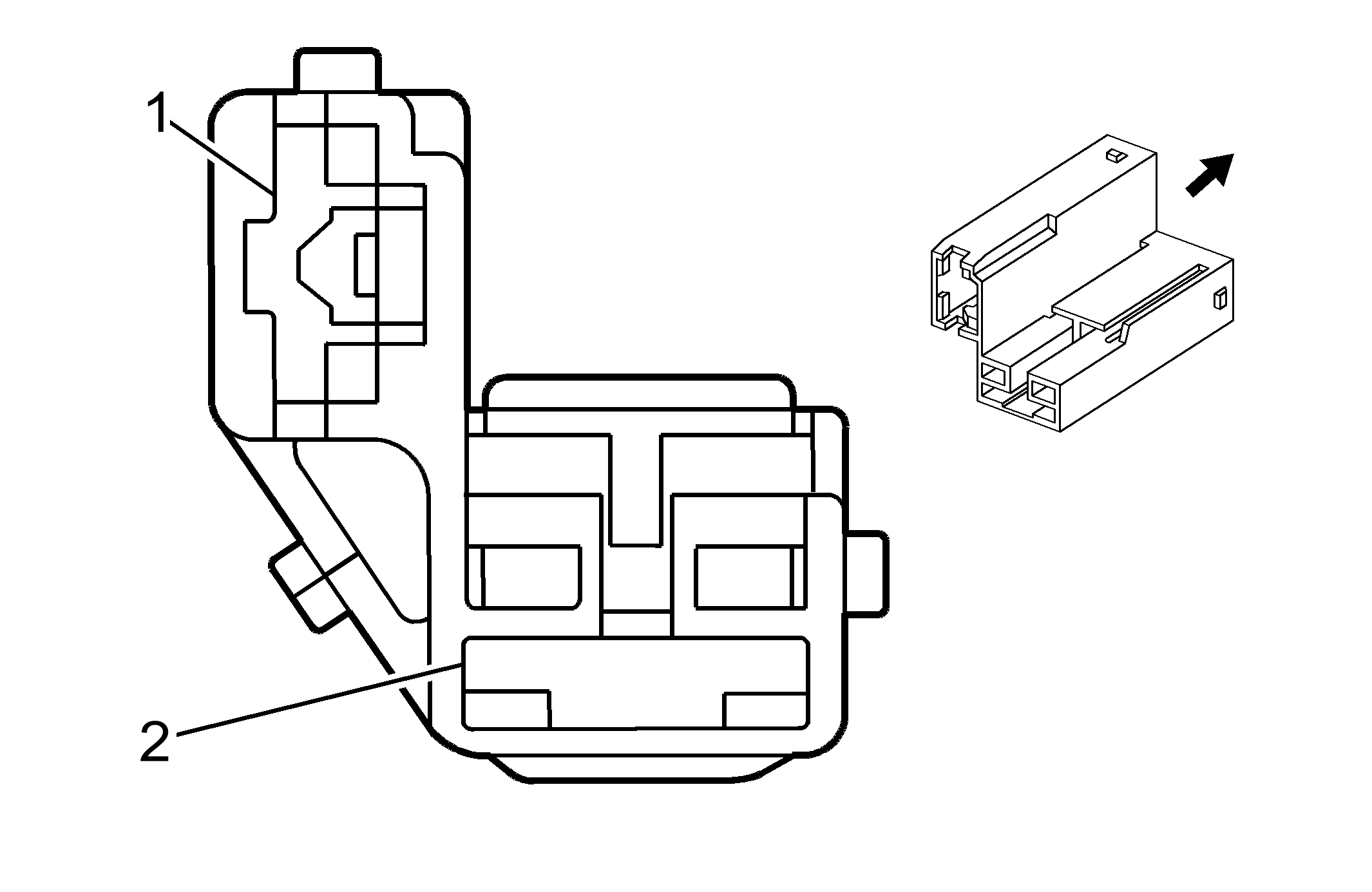

GM1467075Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630685-5
  • 2-Way F 250 Series (BK)
Pin Wire Color Circuit No. Function
1 YE 243 Ignition 3 Voltage
2 BK 1050 Ground
