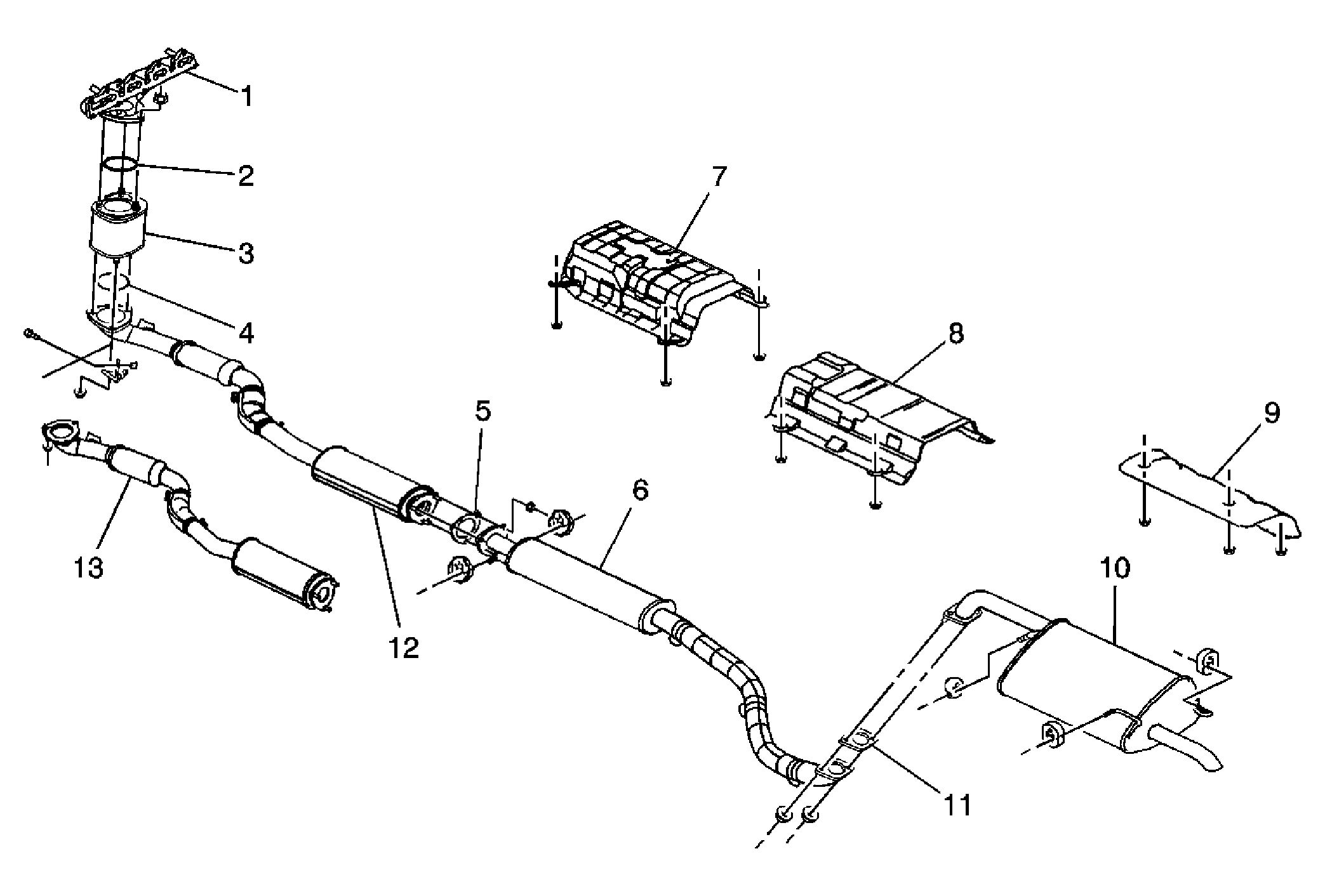

Engine Exhaust System Component Views
| Callout | Component Name |
|---|---|
| 1 | Exhaust Manifold |
| 2 | Exhaust Front Pipe Gasket |
| 3 | Catalytic Converter |
| 4 | Exhaust Pipe Front Gasket |
| 5 | Muffler Gasket |
| 6 | Exhaust Front Muffler |
| 7 | Catalytic Converter Protective Shield |
| 8 | Front Muffler Protective Shield |
| 9 | Rear Muffler Protective Shield |
| 10 | Exhaust Rear Muffler |
| 11 | Muffler Gasket |
| 12 | Exhaust Front Pipe-1.8L, 2.0L |
| 13 | Exhaust Front Pipe-1.6L |
