Removal Procedure

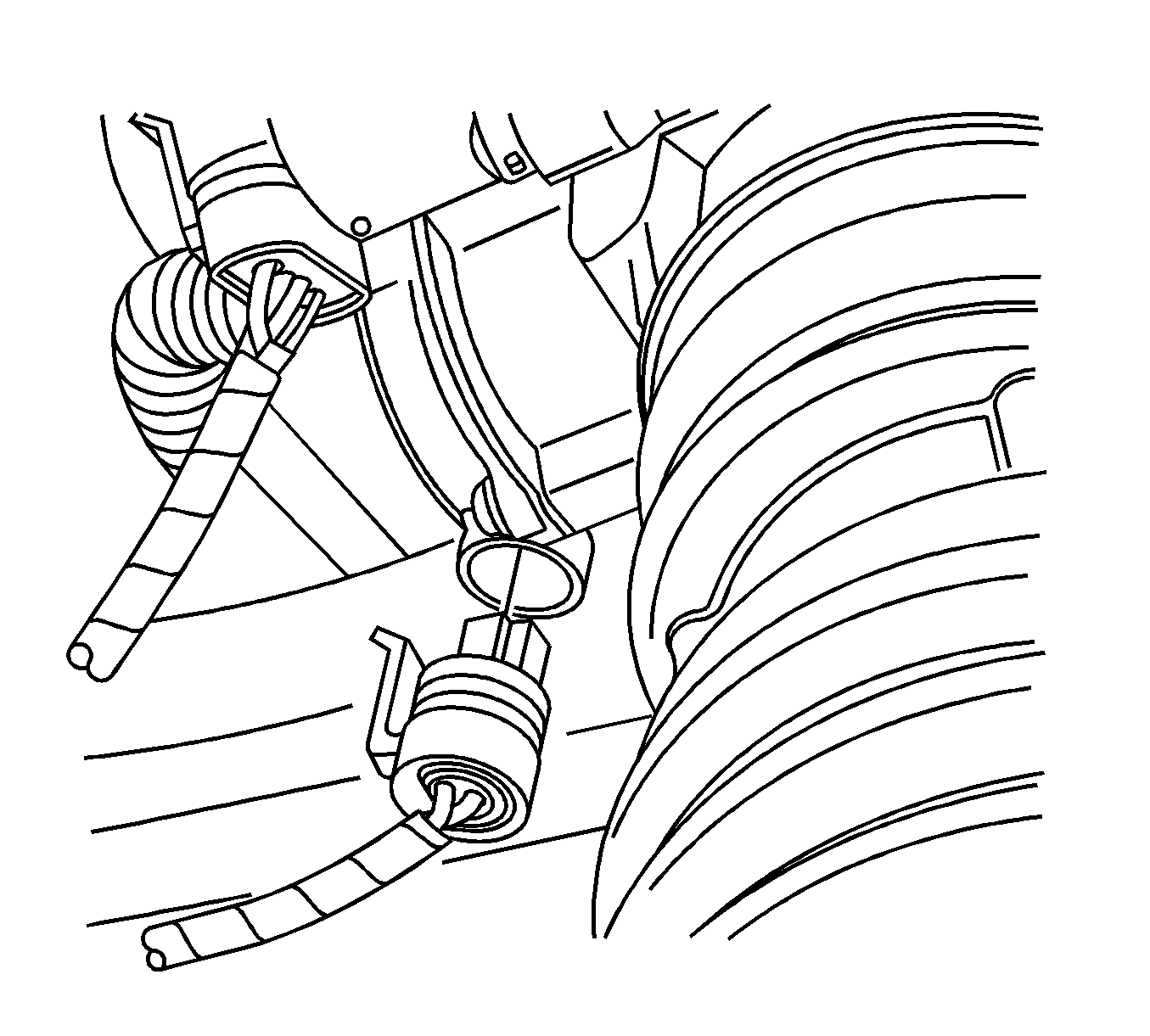

    Fig 1: View Of Throttle Position Sensor
    GM1241927Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the throttle position (TP) sensor connector.
  3. Remove the TP sensor retaining bolts and the TP sensor.
