Engine Controls Component Views

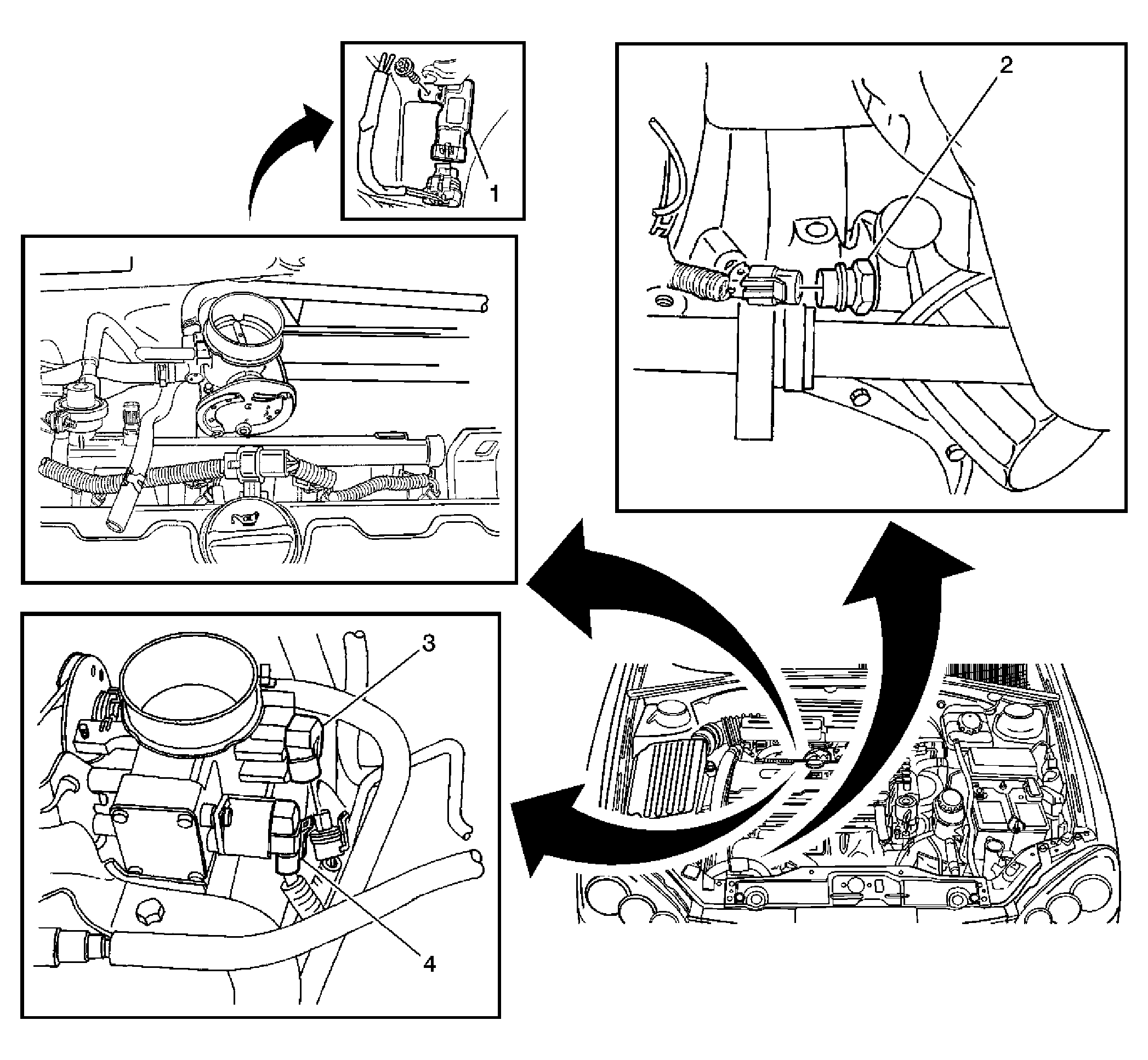

Fig 1: Identifying Manifold Absolute Pressure (MAP), Oil Pressure And Throttle Position (TP) Sensors (L79)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor
2	Engine Oil Pressure Switch
3	Throttle Position (TP) Sensor
4	Idle Air Control (IAC)

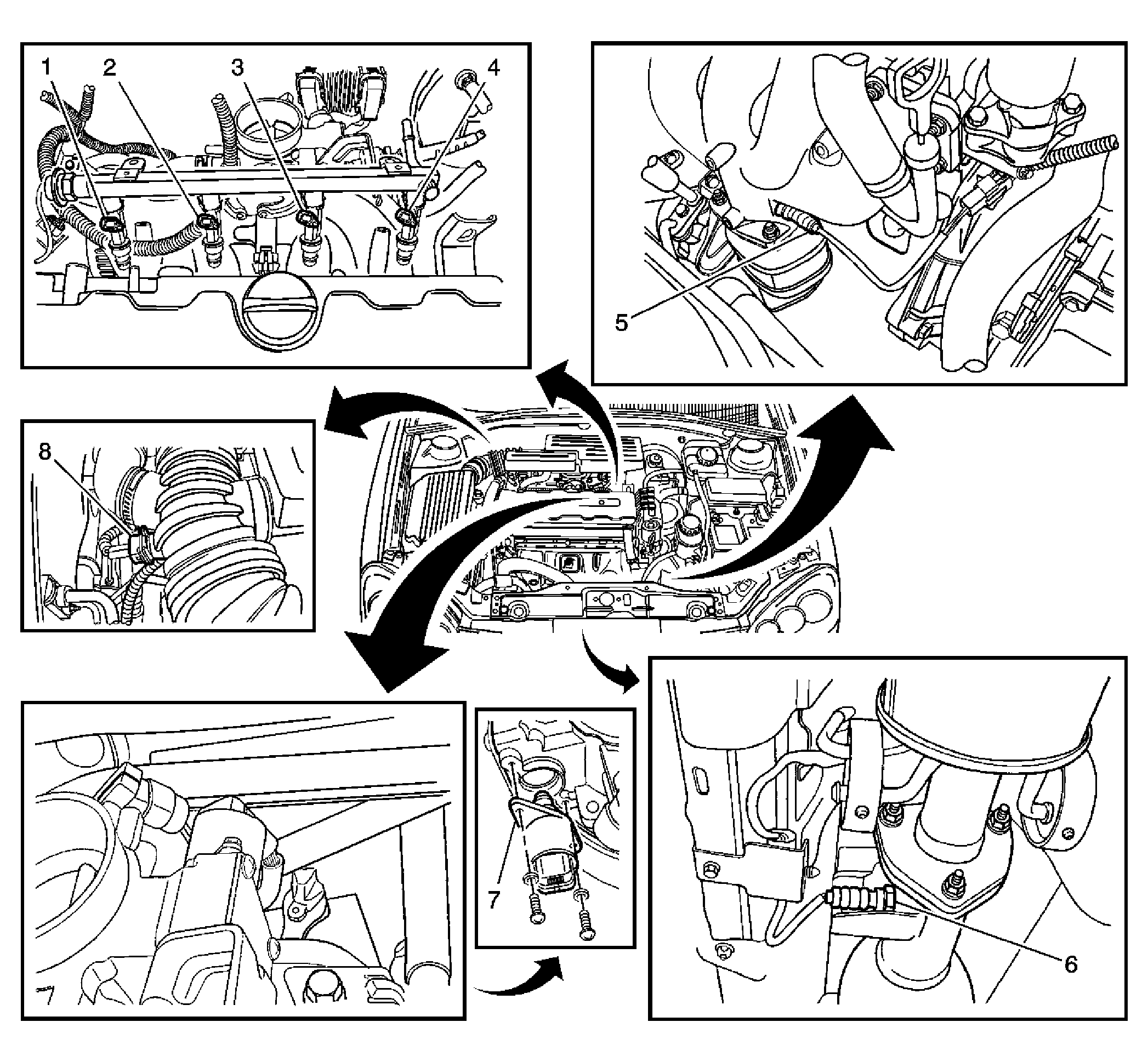

Fig 2: View Of Fuel Injectors, Heated Oxygen Sensor (HO2S) 1, Heated Oxygen Sensor (HO2S) 2, Idle Air Control (IAC) Valve And Intake Air Temperature (IAT) Sensor (L79)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 1
2	Fuel Injector 2
3	Fuel Injector 3
4	Fuel Injector 4
5	Heated Oxygen Sensor (HO2S) 1 (MR-140), Oxygen Sensor (HV-240)
6	Heated Oxygen Sensor (HO2S) 2 (MR-140)
7	Idle Air Control (IAC) Valve
8	Intake Air Temperature (IAT) Sensor

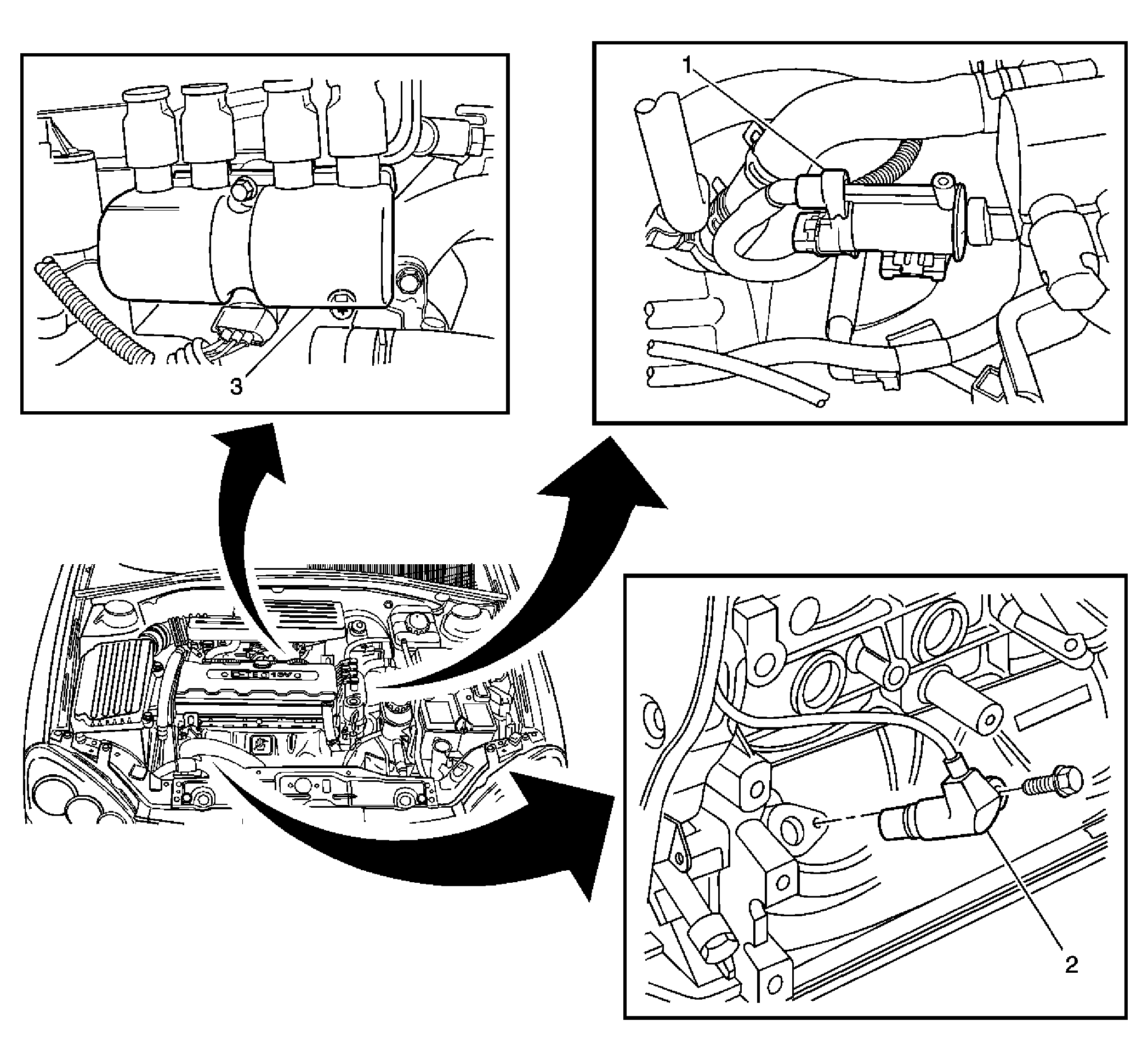

Fig 3: View Of Crankshaft Position (CKP) Sensors, EVAP Valve And Ignition Coil Modules (L79)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
2	Crankshaft Position (CKP) Sensor
3	Ignition Coil Modules

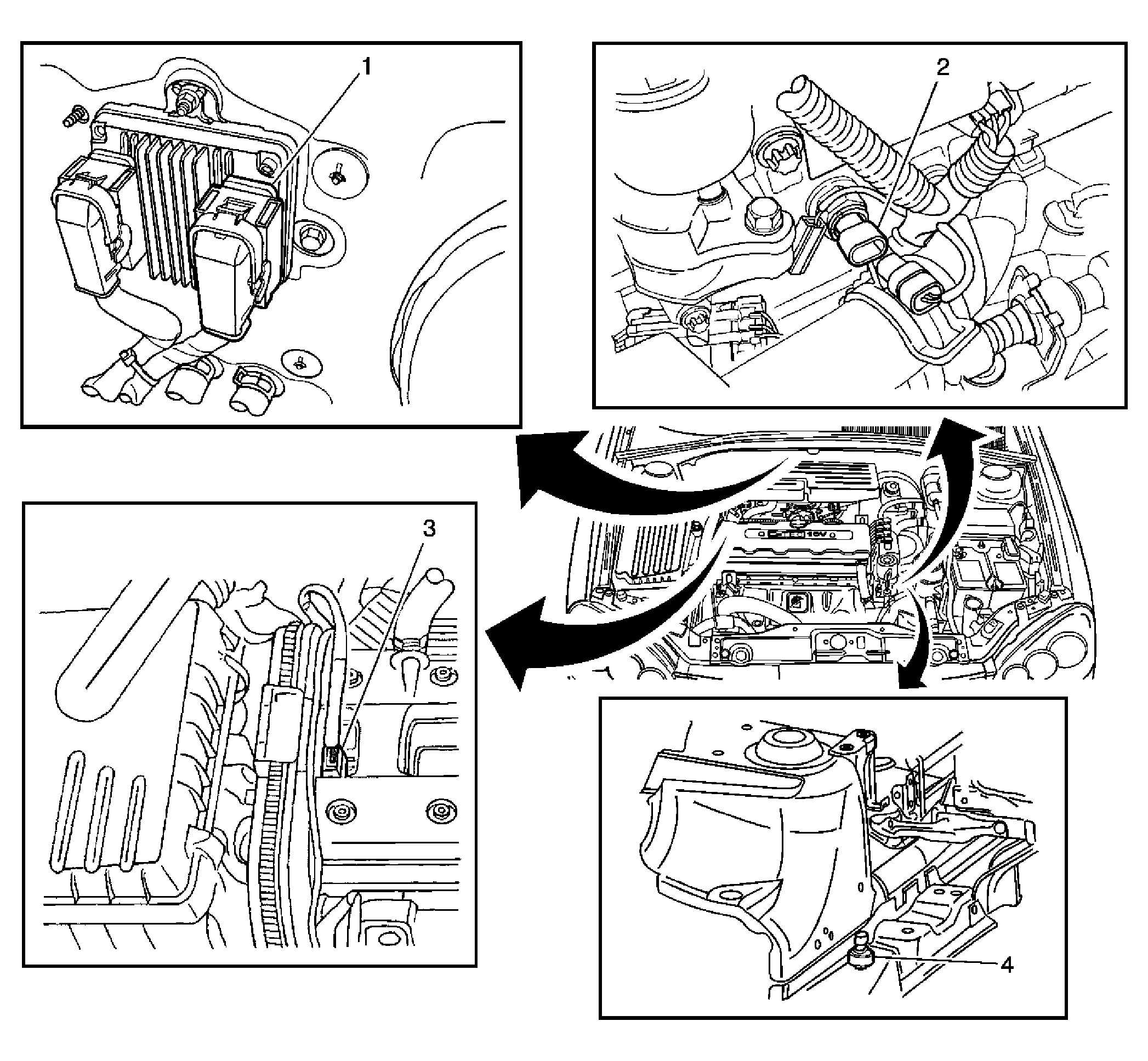

Fig 4: View Of Engine Control Module (ECM), Engine Coolant Temperature (ECT), Camshaft Position (CMP) And Rough Road Sensors (L79)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Control Module (ECM)
2	Engine Coolant Temperature (ECT) Sensor
3	Camshaft Position (CMP) Sensor
4	Rough Road Sensor

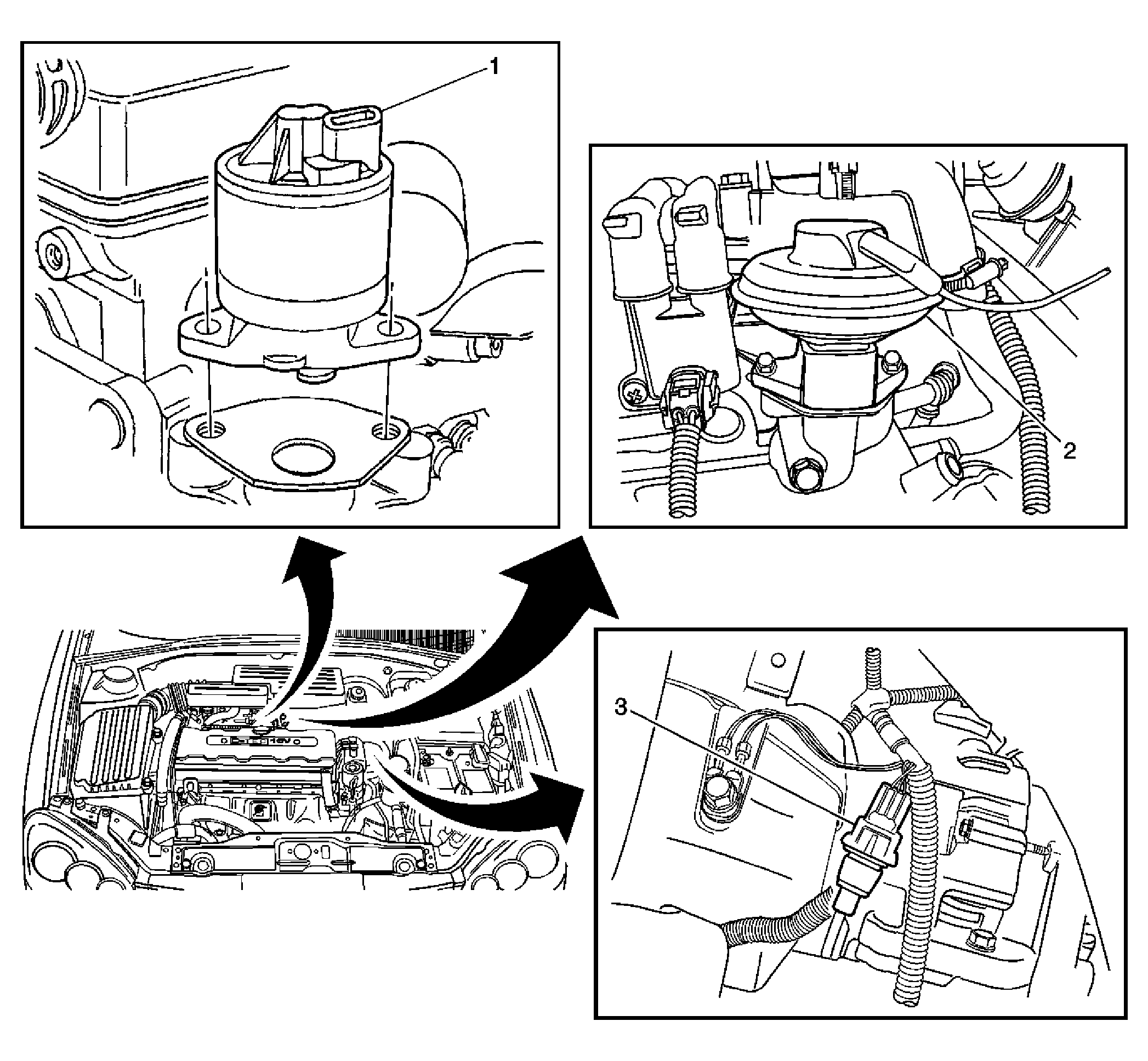

Fig 5: View Of Exhaust Gas Recirculation (EGR) Valve And Knock Sensor (KS) (L79)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve (Euro Emissions)
2	Knock Sensor (KS)
3	Exhaust Gas Recirculation (EGR) Valve (ECE 83 Emissions)
