Installation Procedure

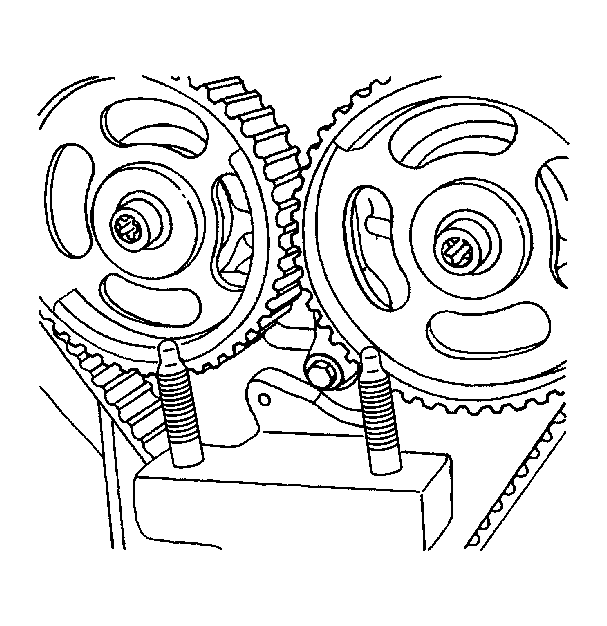

Fig 1: View Of Camshaft Position Sensor Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the CMP sensor and bolts.
Tighten: Tighten the CMP bolts to 8 N.m (71 lb in) .

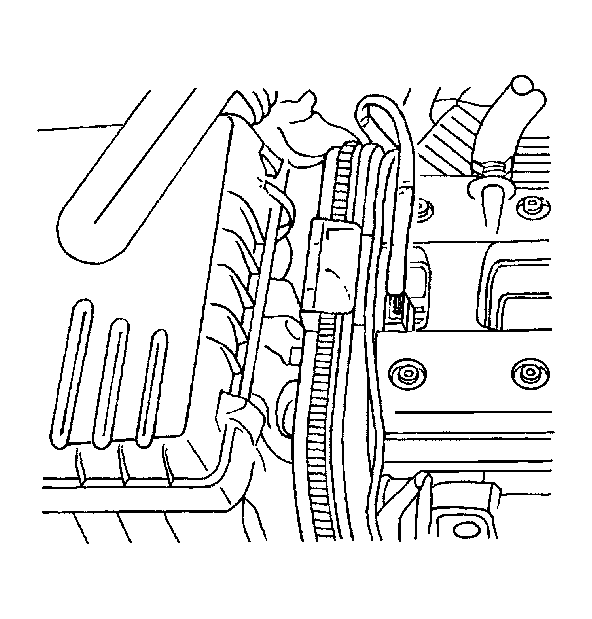

Fig 2: Identifying Camshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

Install the timing belt front cover, the crankshaft pulley, the accessory drive belt, and the air filter. Refer to Timing Belt Replacement .
Connect the sensor electrical connector.
Install the engine cover.
Connect the negative battery cable.
