Installation Procedure

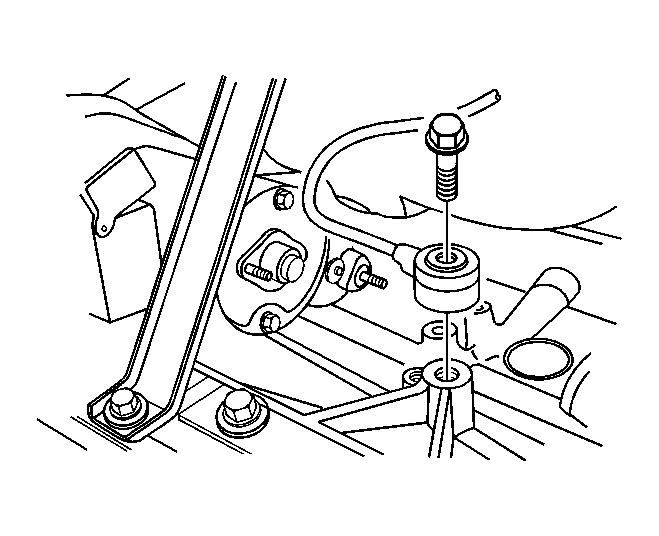

    Fig 1: View Of Knock Sensor And Mounting Bolt
    GM1256163Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the KS with the bolt.

    Tighten:  Tighten the KS bolt to 20 N.m (15 lb ft)  .

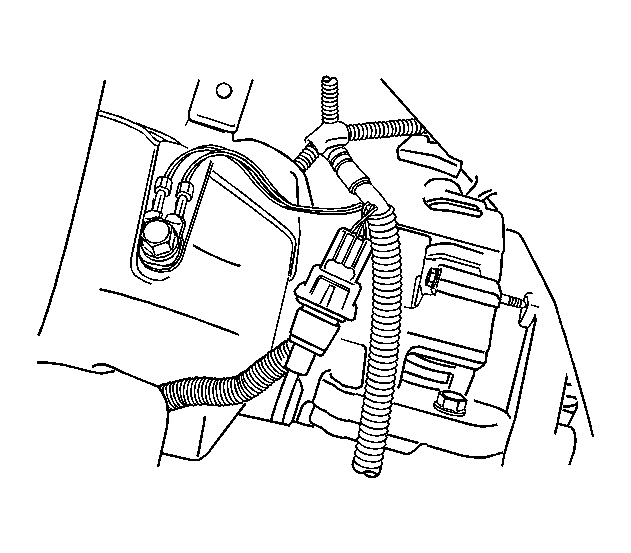

    2. Fig 2: View Of Knock Sensor And Electrical Connector
    GM1256162Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector at the KS.
  3. Lower the vehicle.
  4. Connect the negative battery cable.
