Seat Belt Connector End Views

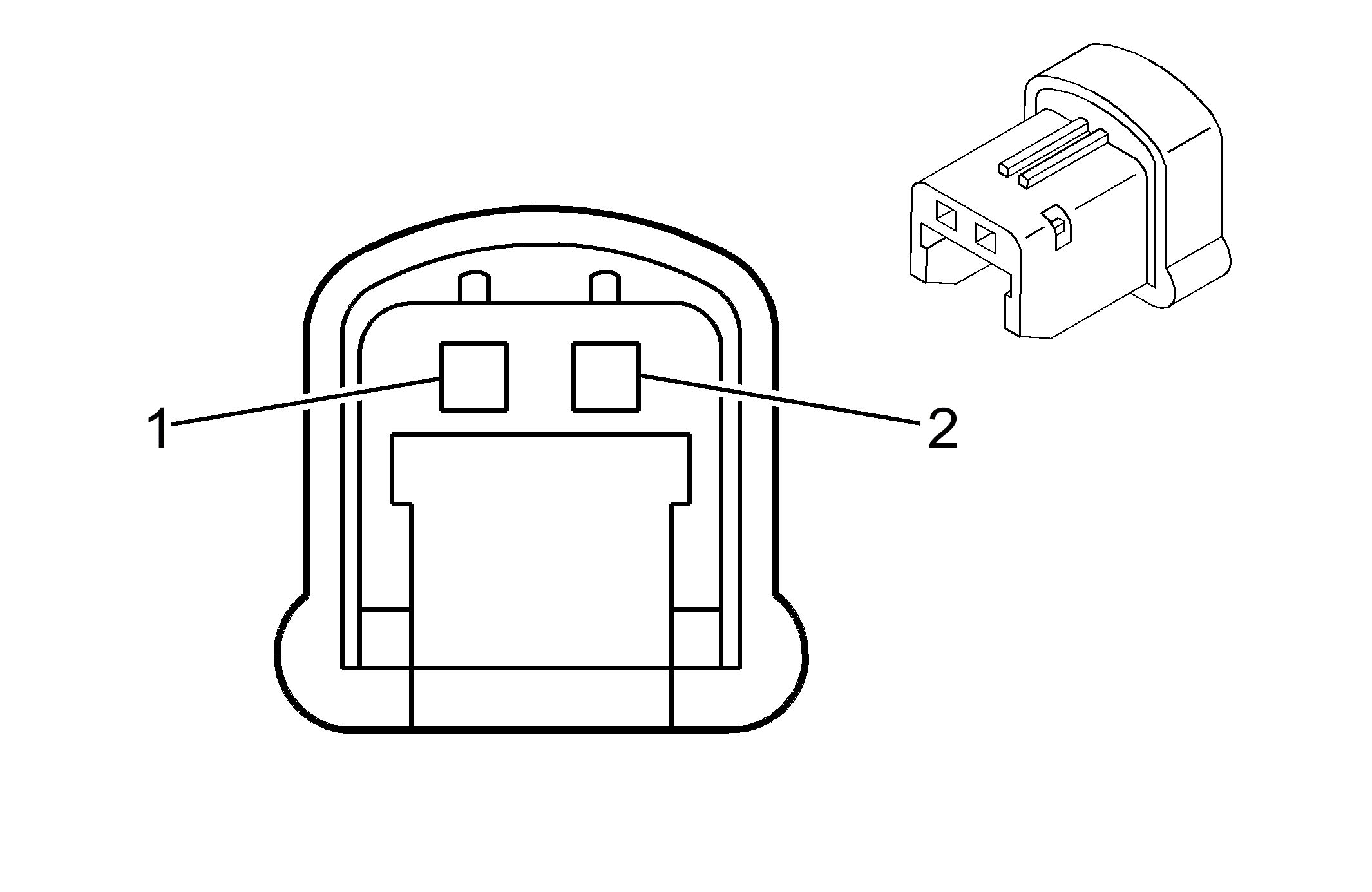

Seat Belt Pretensioner - Driver

GM1481290Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • V23540-M5302-Y22
  • 2-Way F Connector (GN)
Pin Wire Color Circuit No. Function
1 PU 1185 Seat Belt Pretensioner - Driver High Control
2 YE/BK 1184 Seat Belt Pretensioner Driver Low Control
Seat Belt Pretensioner - Passenger

GM1481290Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • V23540-M5302-Y22
  • 2-Way F Connector (GN)
Pin Wire Color Circuit No. Function
1 RD/BK 1187 Seat Belt Pretensioner - Passenger Low Control
2 D-BU/WH 1186 Seat Belt Pretensioner - Passenger High Control
Seat Belt Switch

GM1467036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610392
  • 2-Way F Sealed Series (WH)
Pin Wire Color Circuit No. Function
1 BK/WH 238 Seat Belt Switch - Left
2 BK 350 Ground
