Removal Procedure

    Fig 1: View Of Wiring Harness Connectors And Shift Control Lever
    GM1245816Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the floor console. Refer to Front Floor Console Replacement .
  3. Disconnect the wiring harness connectors from the shift control lever.
    4. Fig 2: View Of Control Cable Adjusting Nut
    GM1245812Courtesy of GENERAL MOTORS CORP.
  4. Loosen the control cable adjusting nut.
  5. Disconnect the control cable from the shift control lever assembly.
    6. Fig 3: Identifying Shift Control Lever Assembly And Mounting Bolts
    GM1913504Courtesy of GENERAL MOTORS CORP.
  6. Remove the shift control lever assembly mounting bolts.
  7. Remove the shift control lever assembly.

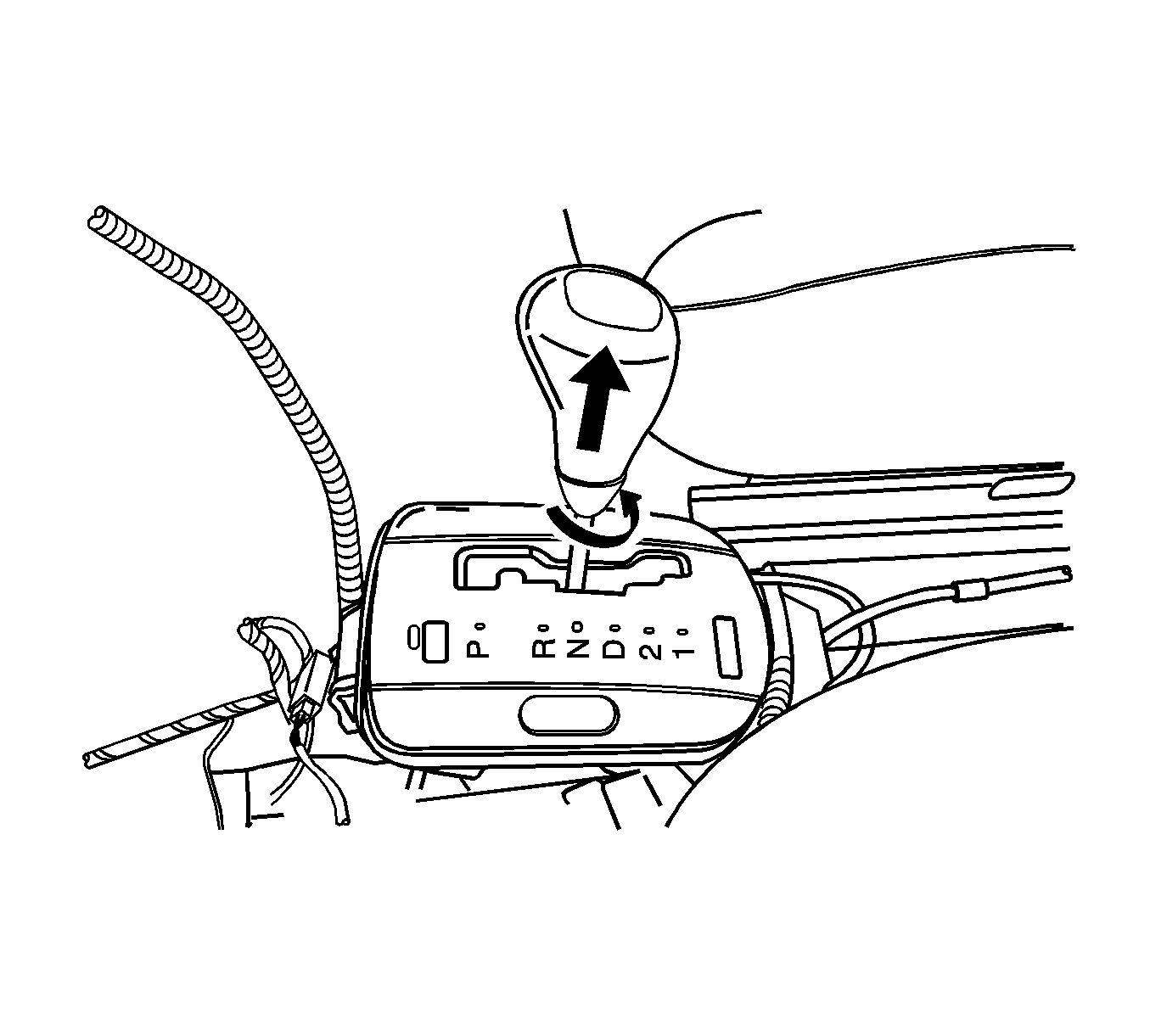

    8. Fig 4: View Of Shift Lever Knob
    GM1913507Courtesy of GENERAL MOTORS CORP.
  8. Remove the two shift lever control knob retaining screws, the then knob from the assembly.
  9. Carefully remove the shift select cover from the lever assembly.
    10. Fig 5: Locating Shift Lock Solenoid
    GM1872313Courtesy of GENERAL MOTORS CORP.
  10. Remove the shift lock solenoid retaining screws.
  11. Remove the solenoid from the assembly.
