Stationary Windows Connector End Views

Radio Antenna Module (Hatchback)

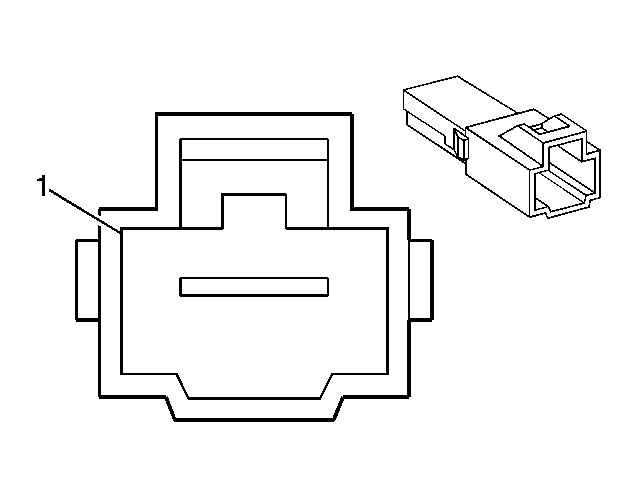

GM1467058Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 620040
  • 1-Way M 250 Series (WH)
Pin Wire Color Circuit Number Function
1 GY 161 Antenna Enable Signal
Radio Antenna Module (Notchback)

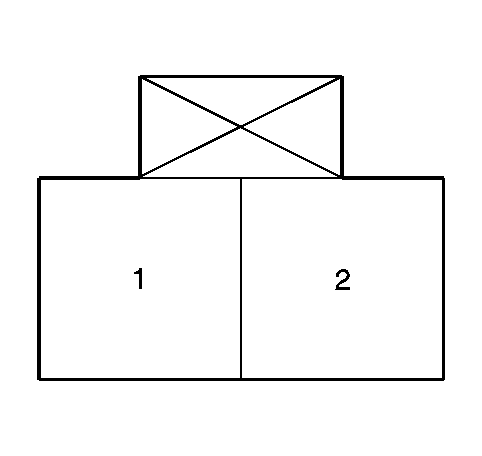

GM1289020Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 612544
  • 2-Way F (WH)
Pin Wire Color Circuit Number Function
1 GY 161 Antenna Enable Signal
2 PU 293 Rear Defog Element Supply Voltage
Rear Window Defogger C1

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092133
  • 1-Way F Metri-Pack 630 Series Self Lock (WH)
Pin Wire Color Circuit Number Function
A PU 293 Rear Defogger Element Supply Voltage
Rear Window Defogger C2

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092133
  • 1-Way F Metri-Pack 630 Series Self Lock (WH)
Pin Wire Color Circuit Number Function
A BK 750 Ground
