Installation Procedure

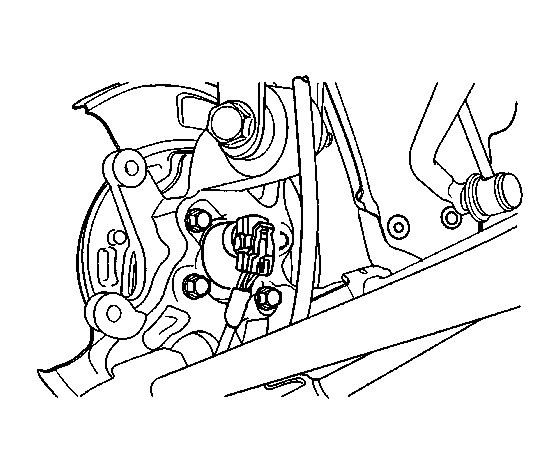

Fig 1: View Of Rear Wheel Speed Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the rear hub unit to the knuckle assembly.
Tighten: Tighten the rear hub unit to the knuckle assembly to 65 N.m (48 lb ft) .
Connect the rear wheel speed sensor electrical connector.
