Antilock Brake System Schematics

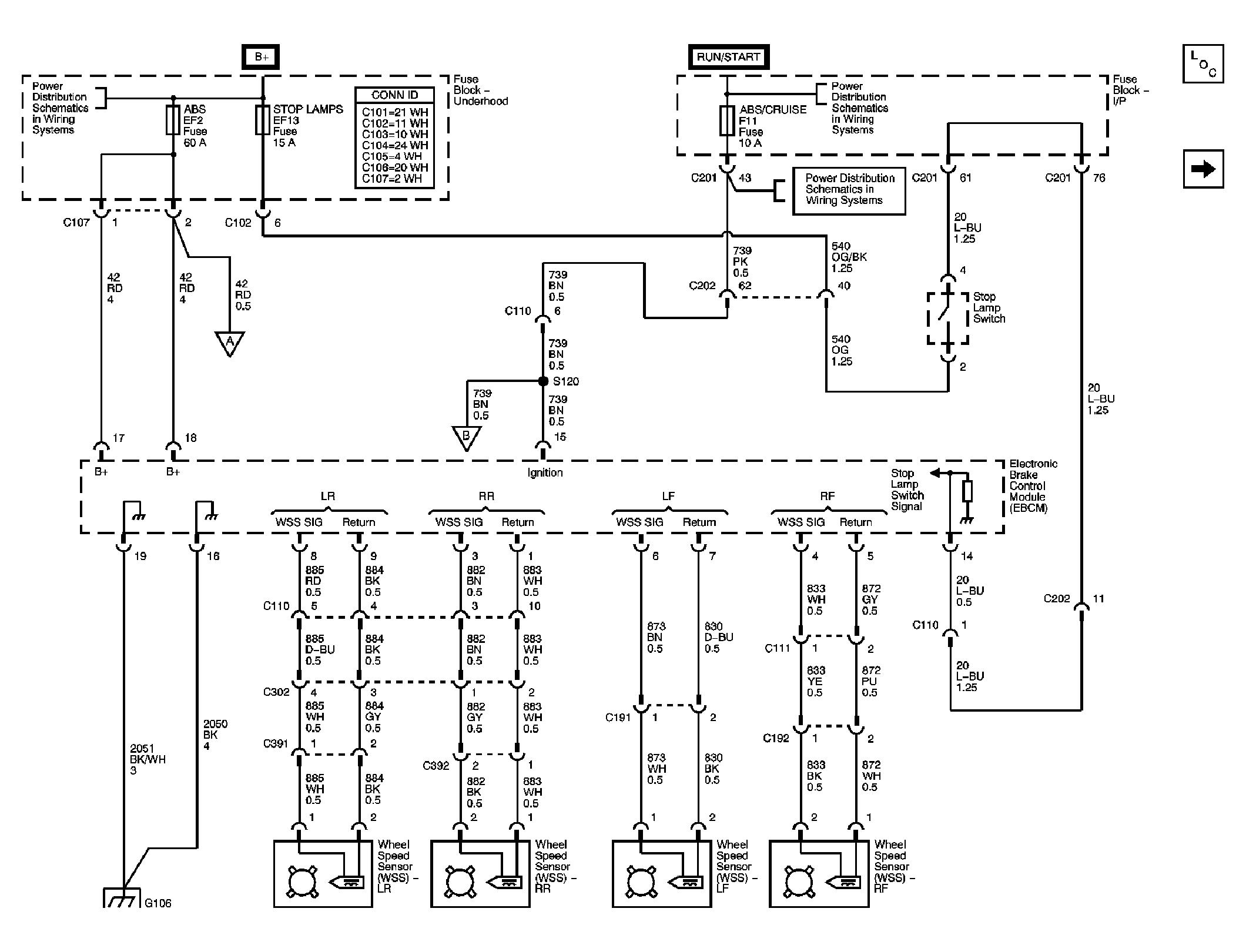

Fig 1: Powers, Grounds, Wheel Speed Sensors Schematic
GM1372171Courtesy of GENERAL MOTORS CORP.

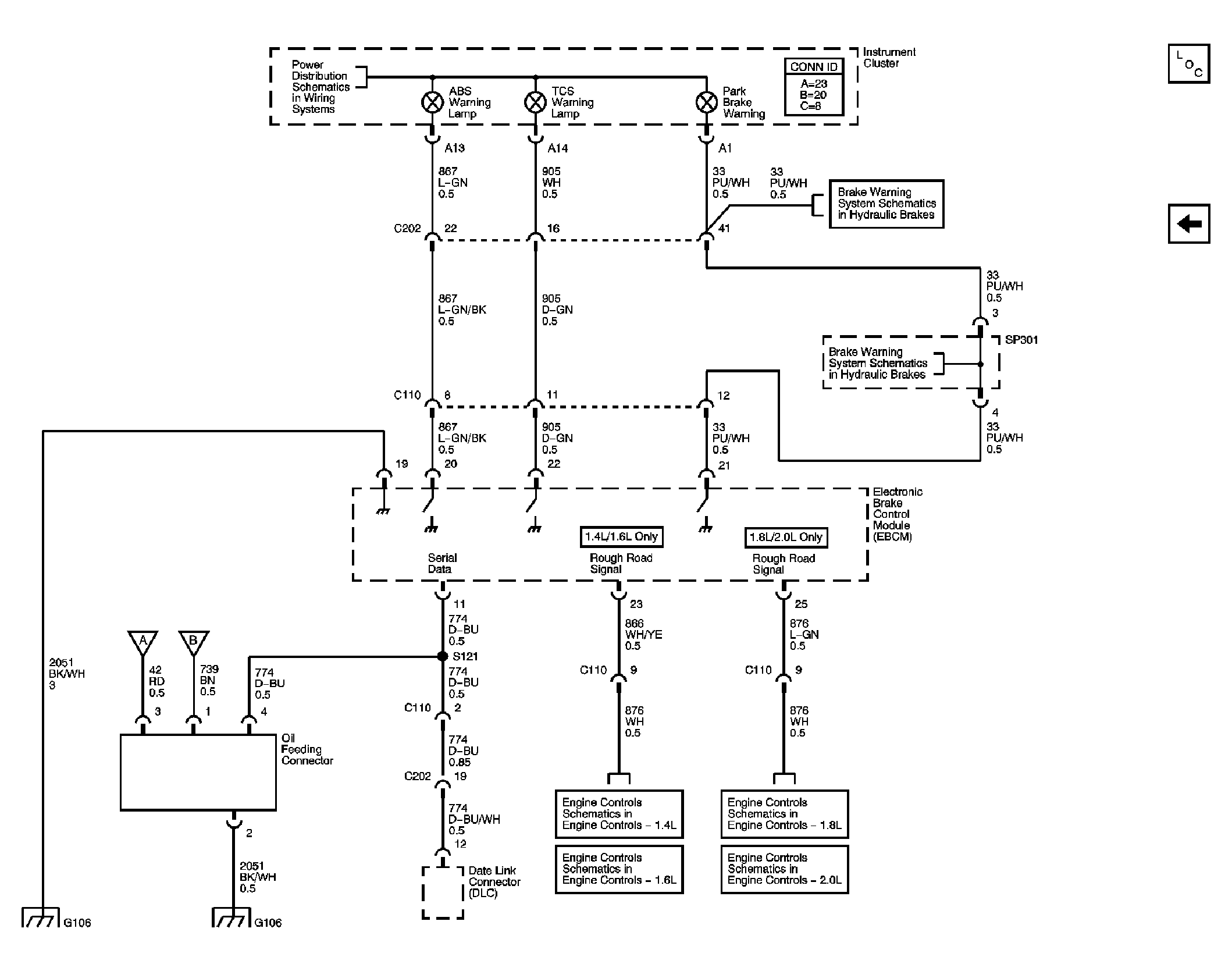

Fig 2: Warning Lamps, Serial Data, Rough Road Schematic
GM1455075Courtesy of GENERAL MOTORS CORP.
