Removal Procedure

    Fig 1: View Of Air Filter Housing Assembly And Bolts
    GM1290087Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Belt Dressing Notice .
  1. Remove the air filter housing assembly bolts and the air intake tube.
  2. Remove the air filter housing assembly from the vehicle.

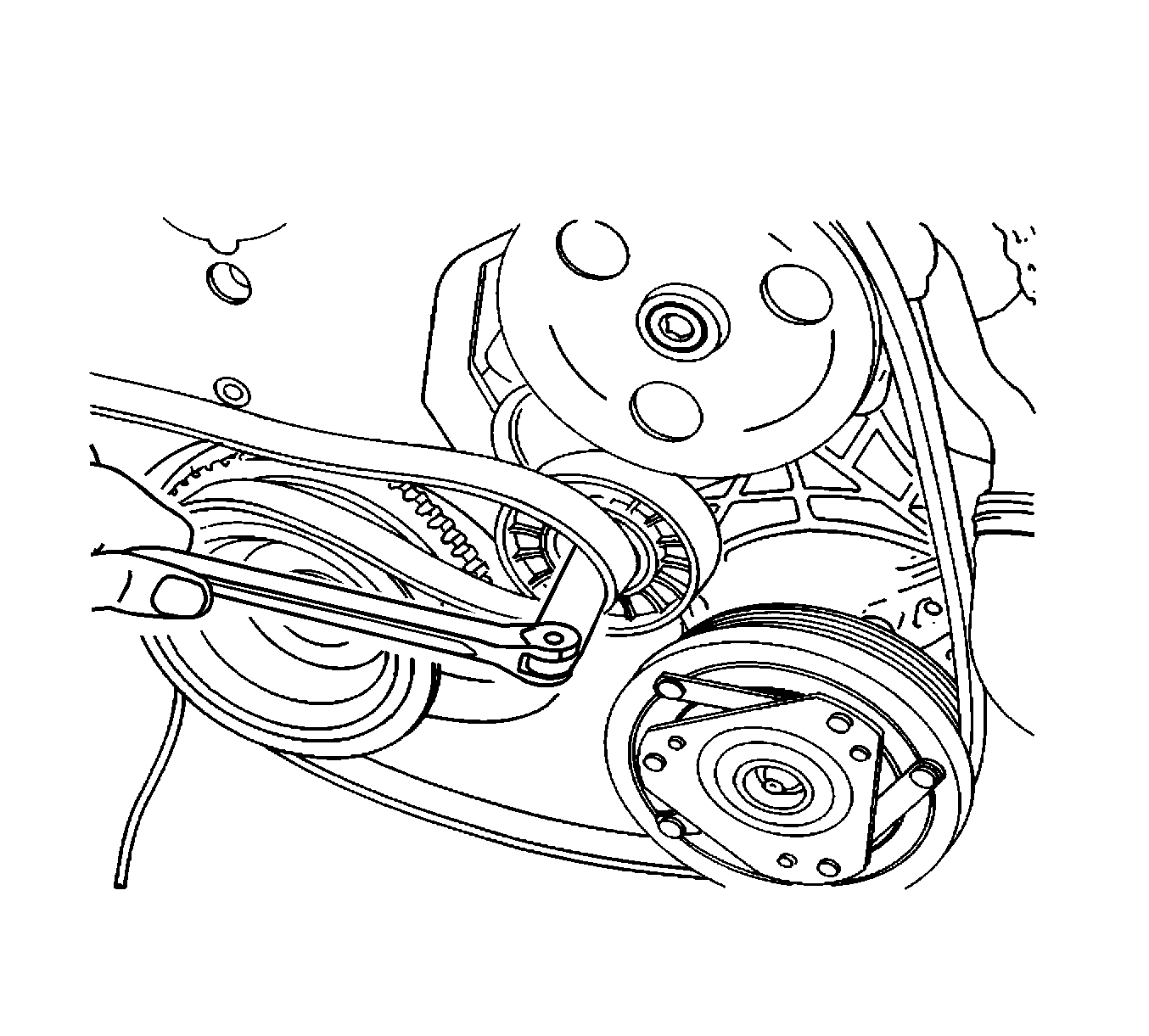

    3. Fig 2: View Of Wrench On Tensioner Bolt
    GM1290088Courtesy of GENERAL MOTORS CORP.
  3. Use a wrench to turn the tensioner bolt clockwise, compressing the tensioner and releasing the tension on the serpentine accessory drive belt.
    4. Fig 3: Identifying Serpentine Accessory Drive Belt
    GM1290089Courtesy of GENERAL MOTORS CORP.
  4. Remove the serpentine accessory drive belt.
