Installation Procedure

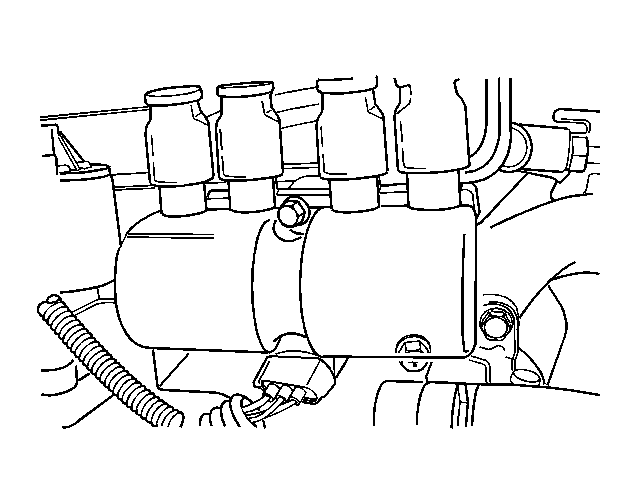

Fig 1: View Of Ignition Coil

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the EI system ignition coil into the mounting location and install the retaining bolts.
Tighten: Tighten the EI system ignition coil retaining bolts to 10 N.m (89 lb in) .
Connect the EI system ignition coil connector.
Install the ignition wires.
Connect the negative battery cable.
