Installation Procedure

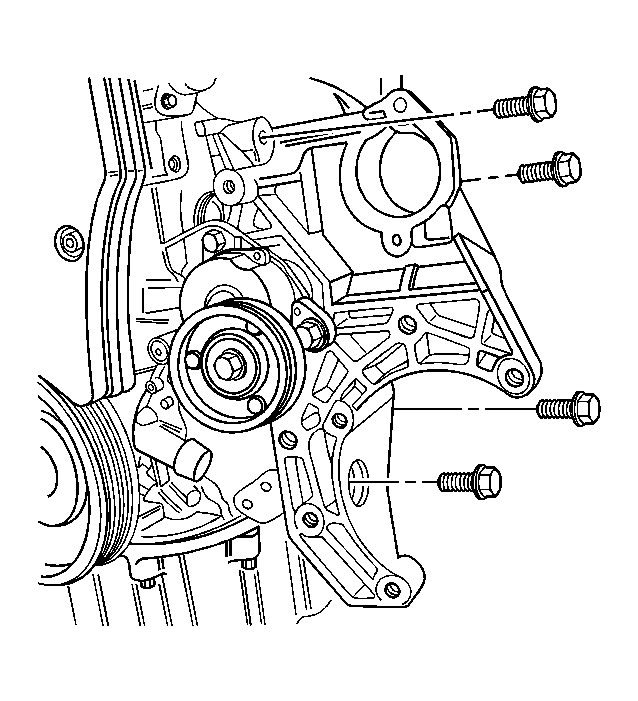

    Fig 1: View Of A/C Compressor Mounting Bracket And Bolts
    GM1256166Courtesy of GENERAL MOTORS CORP.
  1. Insert the CKP sensor into the engine block.
    2. NOTE: Refer to Fastener Notice .
  2. Install the CKP sensor retaining bolt.

    Tighten:  Tighten the CKP sensor retaining bolt to 8 N.m (71 lb in)  .

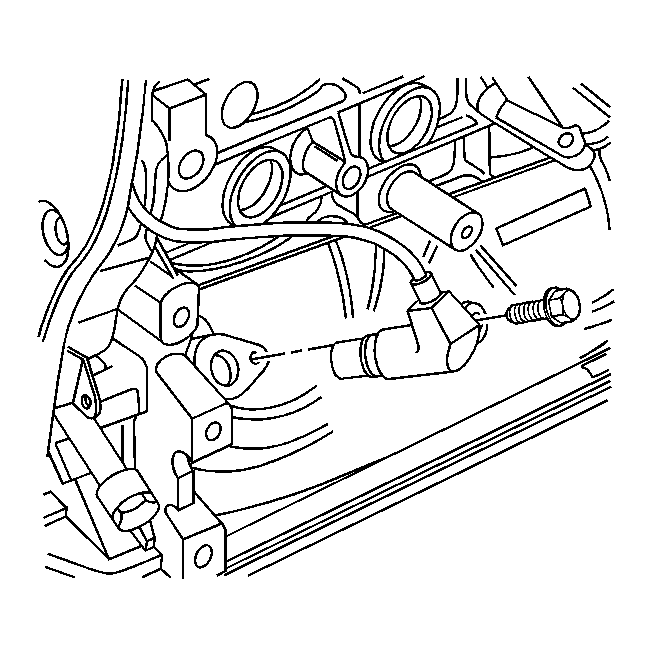

    3. Fig 2: View Of CKP Sensor And Retaining Bolt
    GM1256167Courtesy of GENERAL MOTORS CORP.
  3. Connect the CKP sensor connector.
  4. Install the accessory mounting bracket with the bolts.

    Tighten:  Tighten the accessory mounting bracket bolts to 27 N.m (37 lb ft)  .

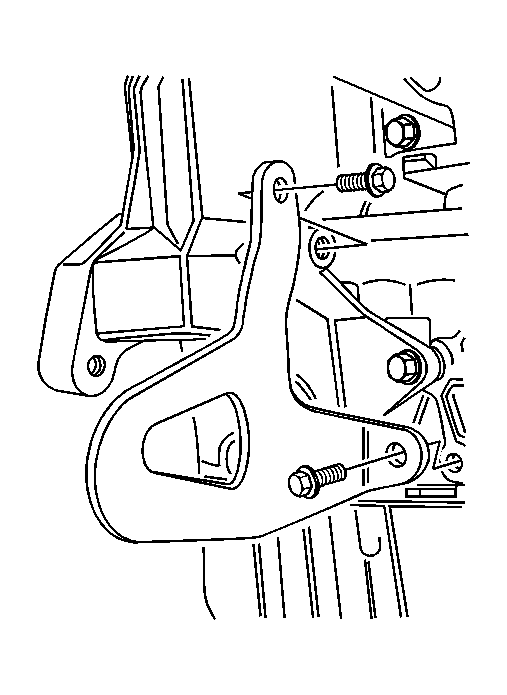

    5. Fig 3: View Of Rear A/C Mounting Bracket And Bolts
    GM1256169Courtesy of GENERAL MOTORS CORP.
  5. Install the rear A/C mounting bracket.

    Tighten:  Tighten the rear A/C mounting bracket bolts to 35 N.m (26 lb ft)  .

  6. Install the A/C compressor. Refer to Air Conditioning Compressor Replacement .
  7. Install the power steering pump. Refer to Power Steering Pump Replacement (Gasoline Engine) .
  8. Connect the negative battery cable.
