Installation Procedure

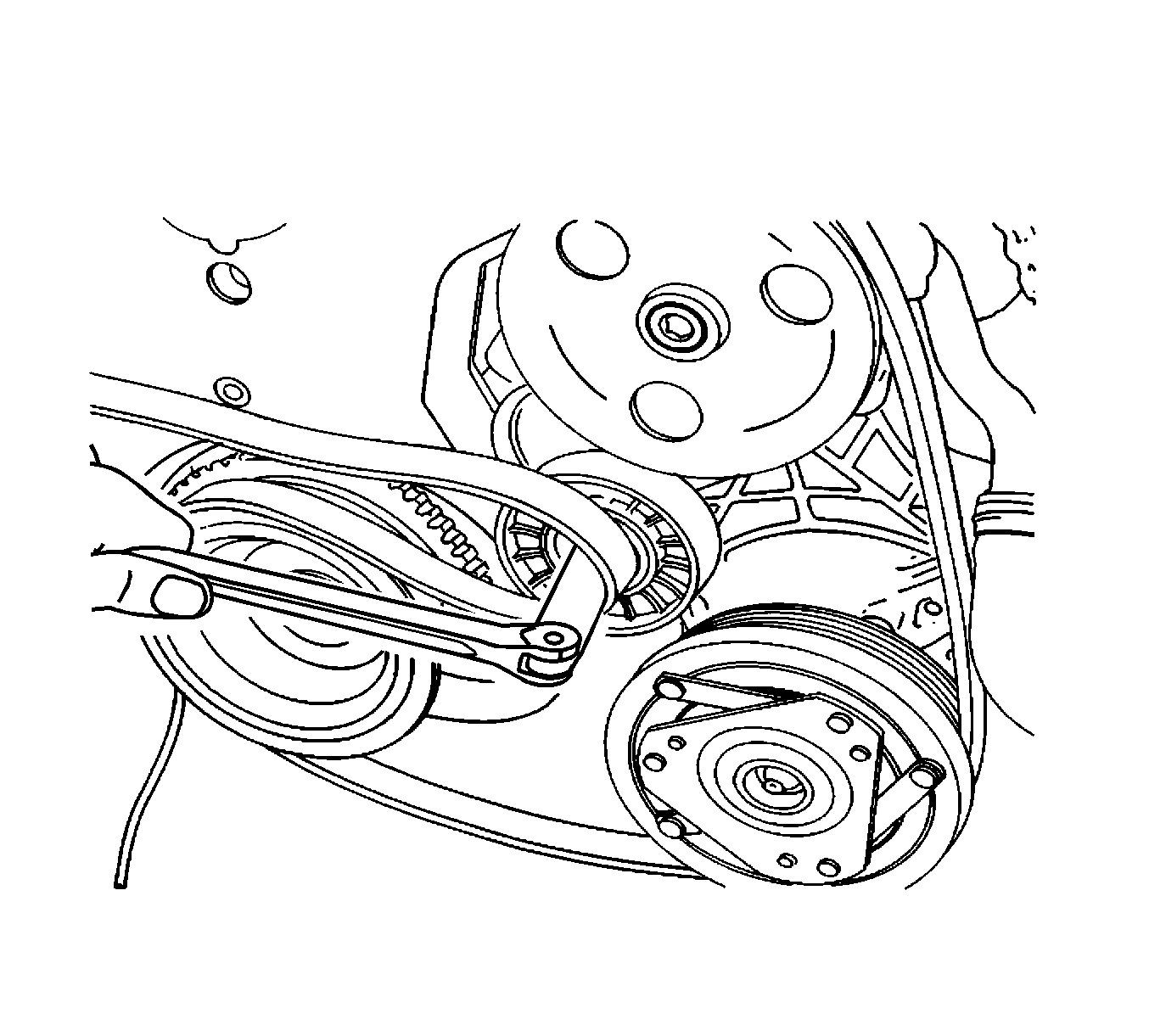

    Fig 1: Identifying Serpentine Accessory Drive Belt
    GM1290089Courtesy of GENERAL MOTORS CORP.
  1. Use a wrench to turn the tensioner bolt clockwise, compressing the tensioner and releasing the tension on the serpentine accessory drive belt.
  2. With the wrench in place on the tensioner bolt, loop the serpentine accessory drive belt loosely over the pulleys.
    3. Fig 2: View Of Belt And Tensioner
    GM1290090Courtesy of GENERAL MOTORS CORP.
  3. Slip the belt over the tensioner.
  4. Remove the wrench from the tensioner bolt and the belt will tighten itself.

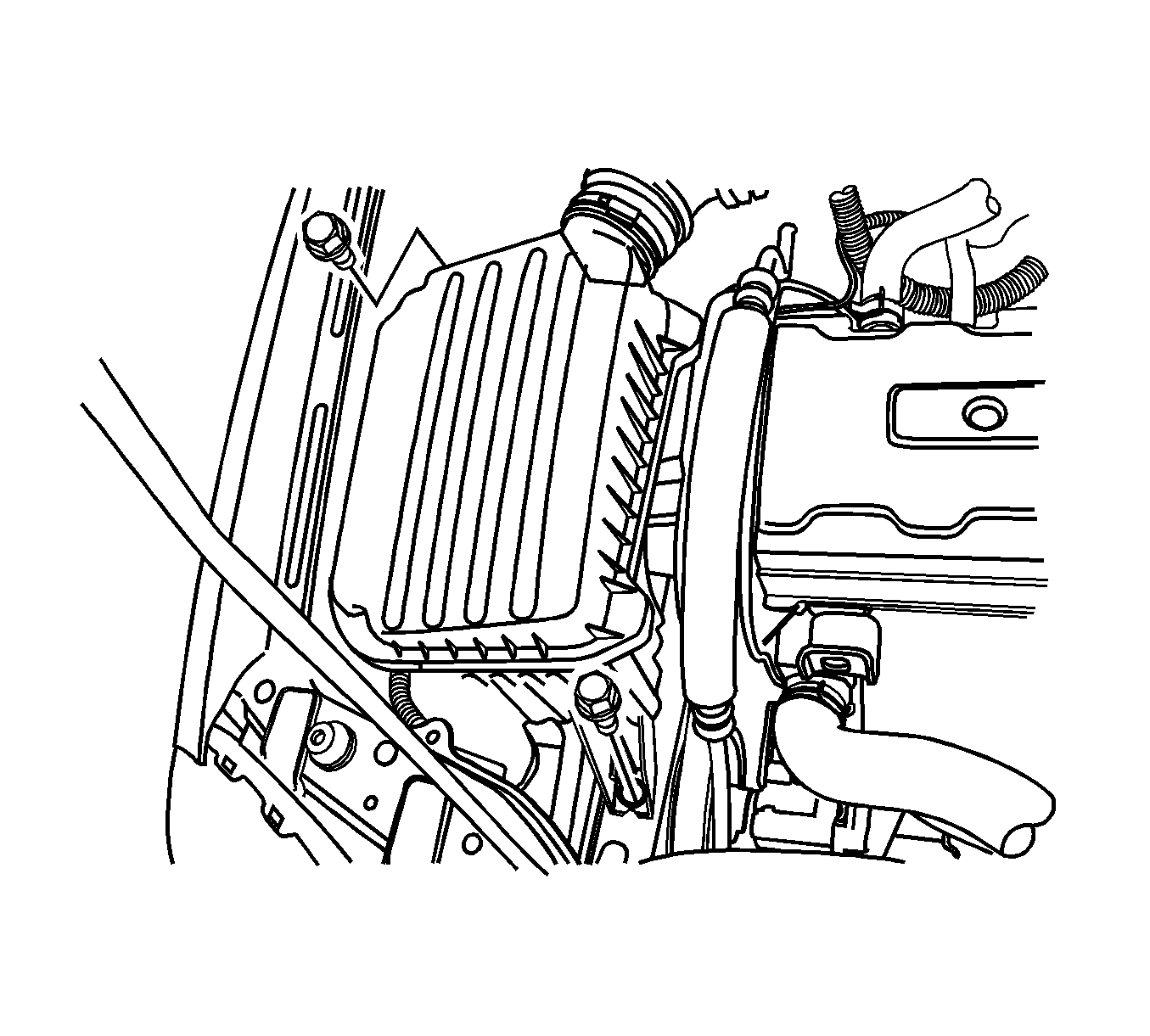

    5. Fig 3: View Of Air Filter Housing Assembly And Bolts
    GM1290087Courtesy of GENERAL MOTORS CORP.
  5. Install the air filter housing assembly into the vehicle
    6. NOTE: Refer to Fastener Notice .
  6. Install the air intake tube and the air filter housing assembly bolts.

    Tighten:  Tighten the air filter housing assembly bolts to 6 N.m (53 lb in)  .
