Removal Procedure

    Fig 1: Identifying Accelerator Cable/Throttle Body Lever
    GM325556Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement .
  2. Disconnect the accelerator cable from the throttle body.
    3. Fig 2: View Of Accelerator Control Cable Bracket
    GM616725Courtesy of GENERAL MOTORS CORP.
  3. Remove the accelerator cable from the accelerator control cable bracket.
    4. Fig 3: View Of Cable Routing Bracket
    GM616709Courtesy of GENERAL MOTORS CORP.
  4. Remove the accelerator cable from the cable routing bracket.
    5. Fig 4: Locating Accelerator Cable Bracket Clip
    GM616703Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the accelerator cable (1) from the bracket clip (2).
  6. Remove the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges, and Console.

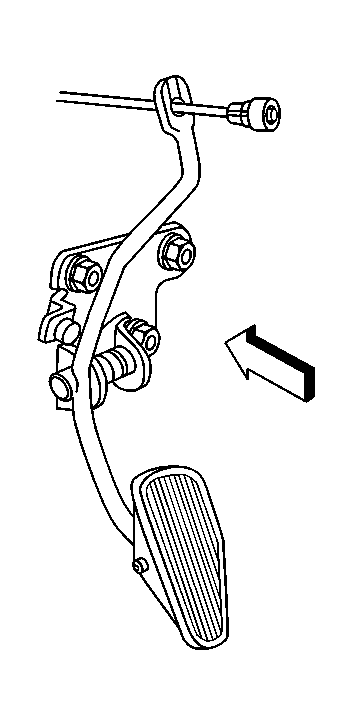

    7. Fig 5: View Of Accelerator Cable At Accelerator Pedal
    GM424544Courtesy of GENERAL MOTORS CORP.
  7. Remove the accelerator cable from the accelerator pedal.
    8. Fig 6: Locating Accelerator Cable Components
    GM616727Courtesy of GENERAL MOTORS CORP.
  8. Remove the accelerator cable panel insulator retainer (2) from the accelerator cable (1).
  9. Squeeze the accelerator cable tangs (3) and push the cable through the bulkhead (4).
  10. Remove the accelerator cable.
