Installation Procedure

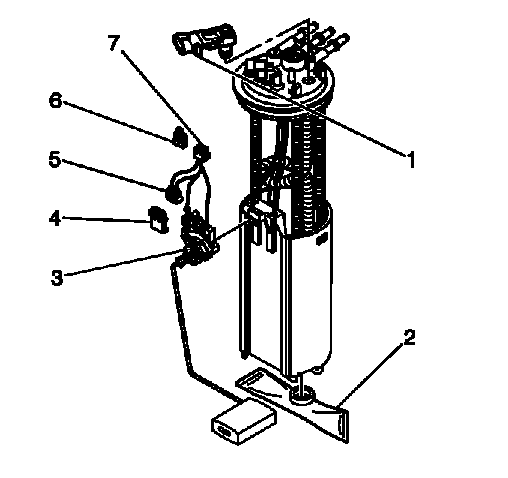

    Fig 1: Identifying Fuel Sender Assembly
    GM371000Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel level sensor (3).
  2. Install the fuel level sensor retaining clip (4).
  3. Connect the fuel level sensor electrical connector (7).
  4. Connect the fuel level sensor electrical connector retaining clip (6).
  5. Connect the fuel pump electrical connector (5).
  6. Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement (Utility/Crew Cab)  or Fuel Sender Assembly Replacement (Pick-Up) .
  7. Install the fuel tank. Refer to Fuel Tank Replacement (Pickup) , Fuel Tank Replacement (2-Door Utility)  or Fuel Tank Replacement (4-Door Utility) .
  8. Refill the fuel tank.
  9. Install the fuel filler cap.
  10. Connect the negative battery cable.
  11. Inspect for leaks.
    1. Turn ON the ignition for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition.
    4. Inspect for fuel leaks.
