Installation Procedure

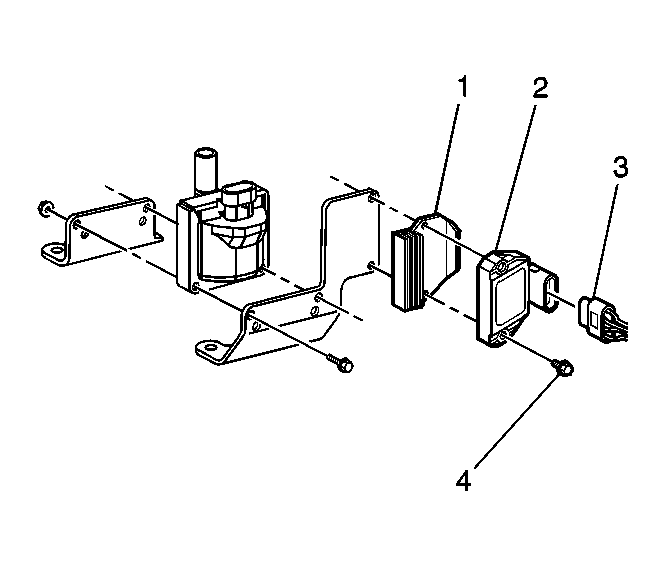

Fig 1: Locating Ignition Control Module Components

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the ignition control module (2) and the heat sink (1) on the bracket with the 2 screws (4).
Tighten: Tighten the screws to 3.5 N.m (31 lb in).
Reconnect the electrical connectors (3).
