Installation Procedure

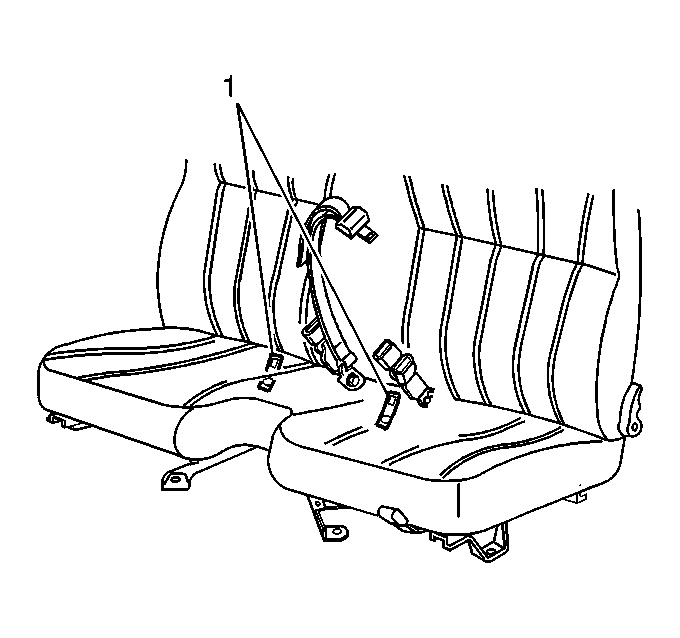

    Fig 1: Locating Tether Anchor Components
    GM613641Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the tether anchor (1) to the seat frame with the mounting bolt.

    Tighten:  Tighten the tether anchor bolt to 24 N.m (18 lb ft).

  2. Work the seat cover back to the original position.

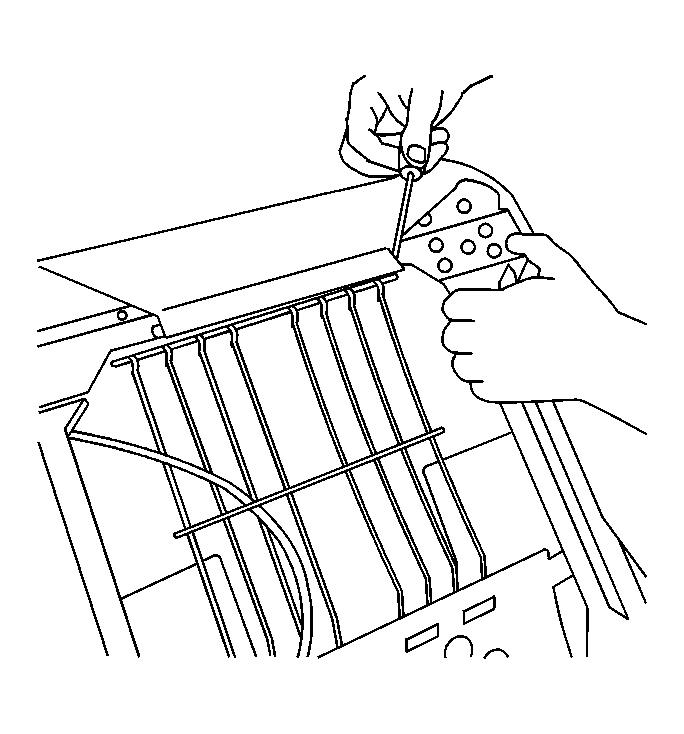

    3. Fig 2: View Of J-Strips
    GM298915Courtesy of GENERAL MOTORS CORP.
  3. Engage the J-strip to the seat bottom frame.
