Keyless Entry Connector End Views

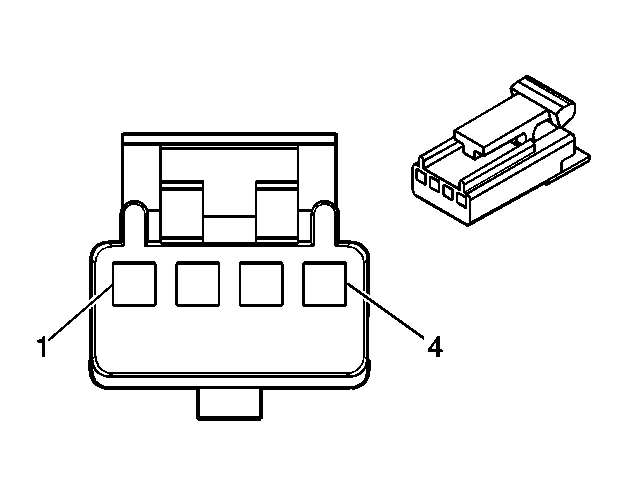

Remote Control Door Lock Receiver (RCDLR) Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12059162
- 4-Way F Micro-Pack 100 Series (BU)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
OG |
4440 |
Battery Positive Voltage |
| 2 |
PU |
1132 |
DLC Class 2 Serial Data |
| 3 |
- |
- |
Not Used |
| 4 |
BK/WH |
751 |
Signal Ground |
