Removal Procedure

Insert a small coin between the 2 halves of the transmitter case at the slot provided near the key ring hole.
Twist the coin in order to open the case.
Open the transmitter case.

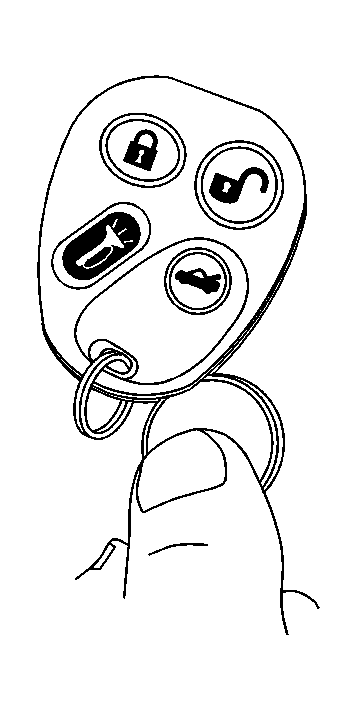

Fig 1: Opening Transmitter Case
Courtesy of GENERAL MOTORS CORP.

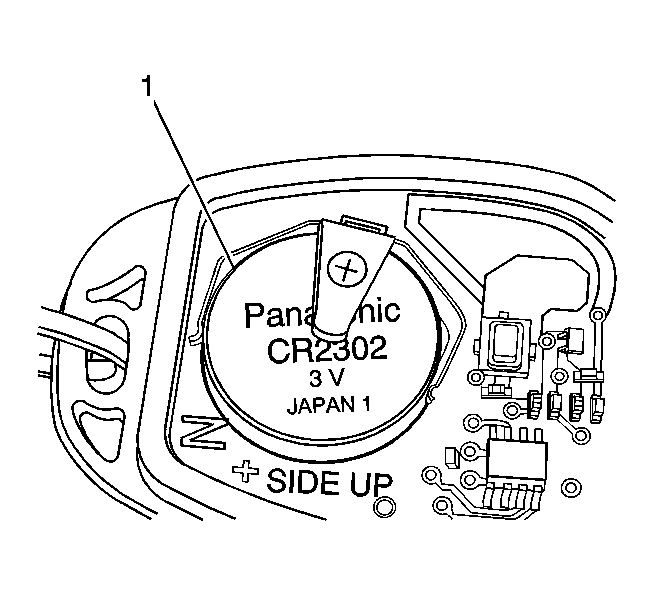

Fig 2: Identifying Battery

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Handling ESD Sensitive Parts Notice in Cautions and Notices.
