Power Door Systems Component Views

Fig 1: Driver Door Components (Premium Radio) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Speaker - LF Door Midrange
3	S501
4	C500
5	C501
6	S500
7	Outside Rearview Mirror - Driver
8	Speaker - LF Door
9	S502
10	Window Motor - Driver
11	Inflatable Restraint Side Impact Sensor (SIS) - Left
12	Door Latch Assembly - Driver

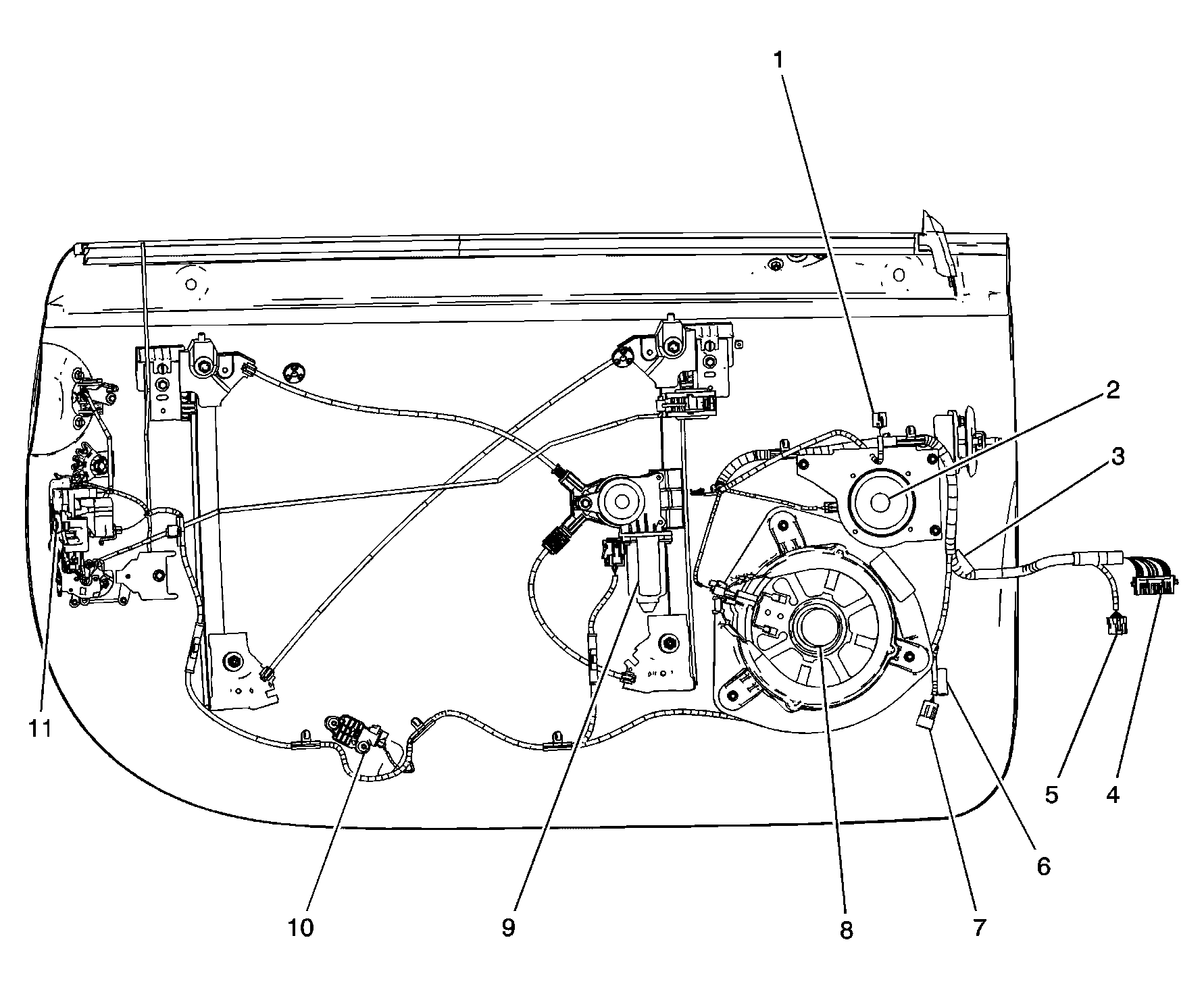

Fig 2: Passenger Door Components (Premium Radio) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door Midrange
2	Door Latch Assembly - Passenger
3	Passenger Door
4	Inflatable Restraint Side Impact Sensor (SIS) - Right
5	Window Motor - Passenger
6	S602
7	Speaker - RF Door
8	Outside Rearview Mirror - Passenger
9	S600
10	C601
11	C600
12	S601

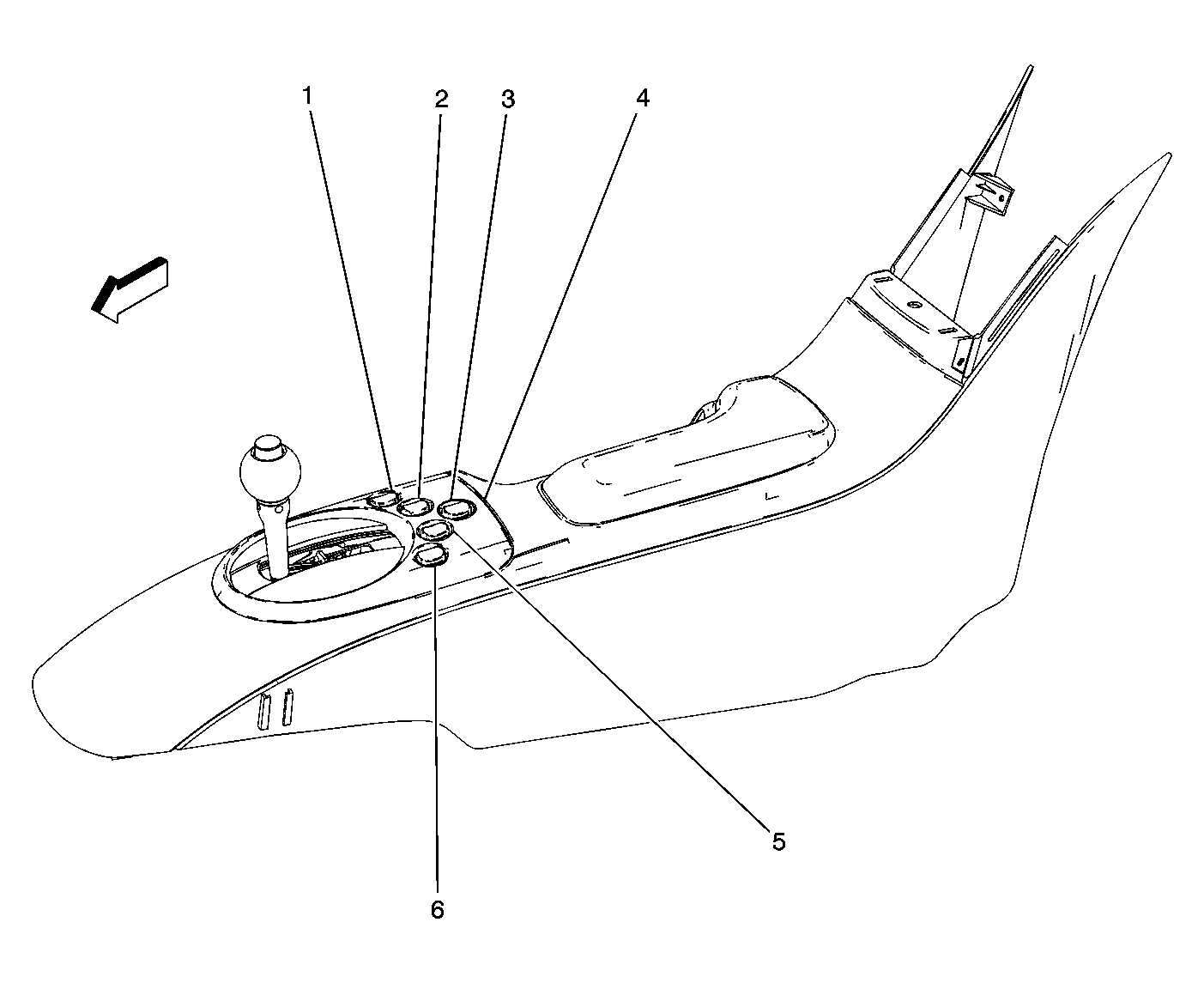

Fig 3: Center Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Window Switch
2	Door Lock/Unlock Switch
3	Folding Top Switch
4	Center Console Switch Assembly
5	Traction ON/OFF Switch
6	Driver Window Switch

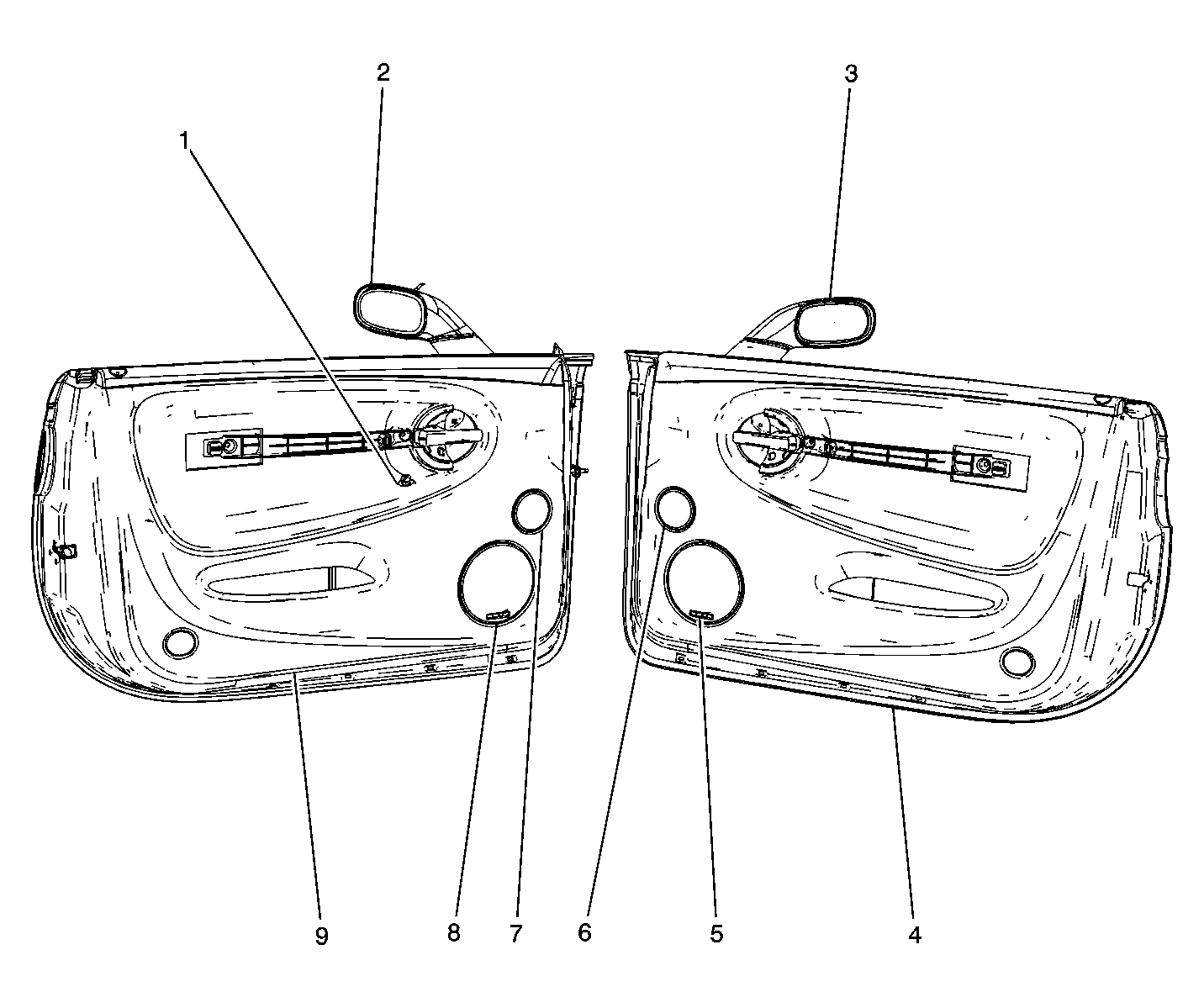

Fig 4: Power Mirror Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Outside Rearview Mirror - Driver
3	Outside Rearview Mirror - Passenger
4	Passenger Door
5	Speaker - RF Door
6	Speaker - RF Door Midrange
7	Speaker - LF Door Midrange
8	Speaker - RF Door
9	Driver Door
