Door Lock/Indicator Schematics

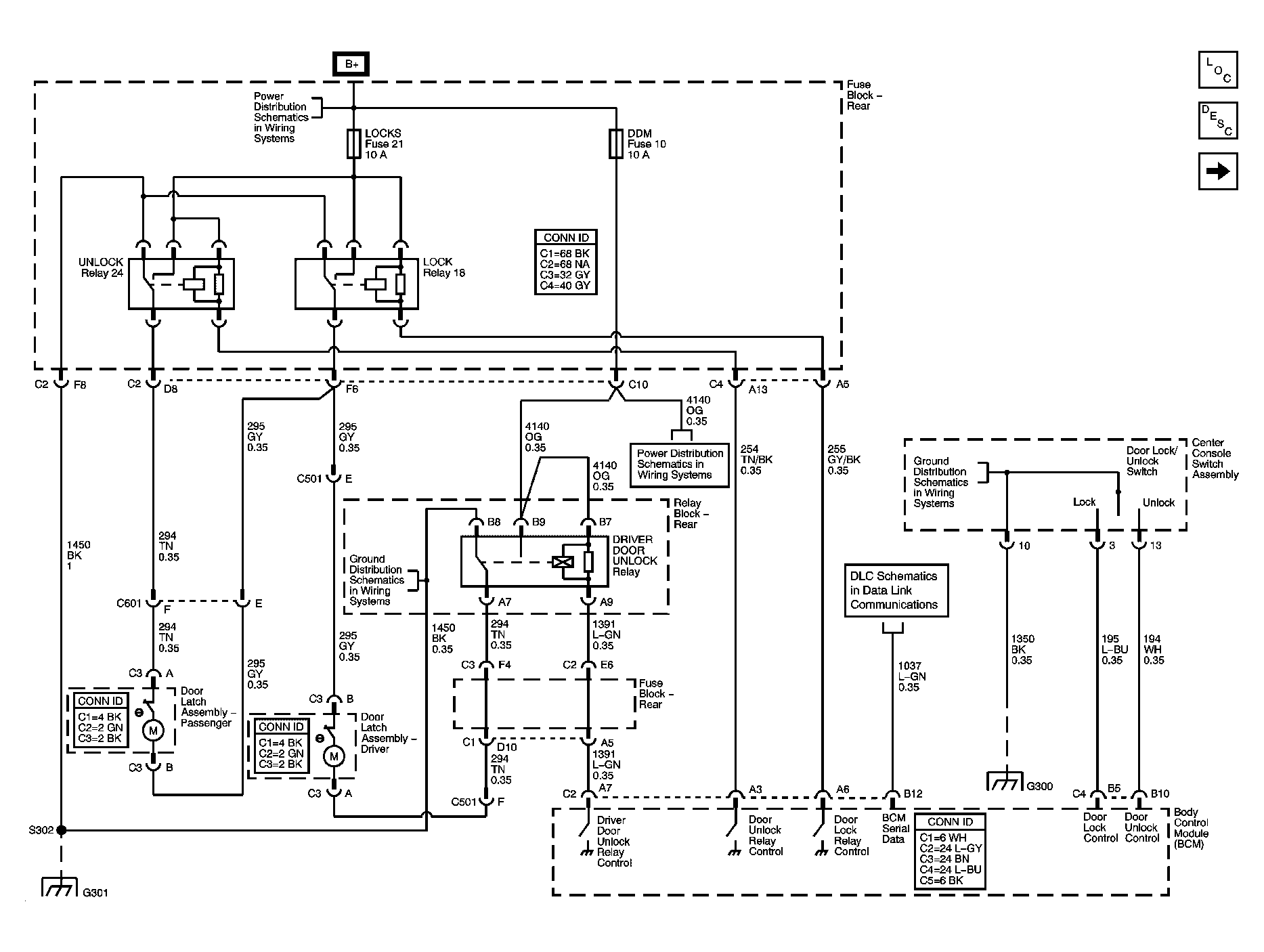

Fig 1: Power Door Locks Schematic
GM1219264Courtesy of GENERAL MOTORS CORP.

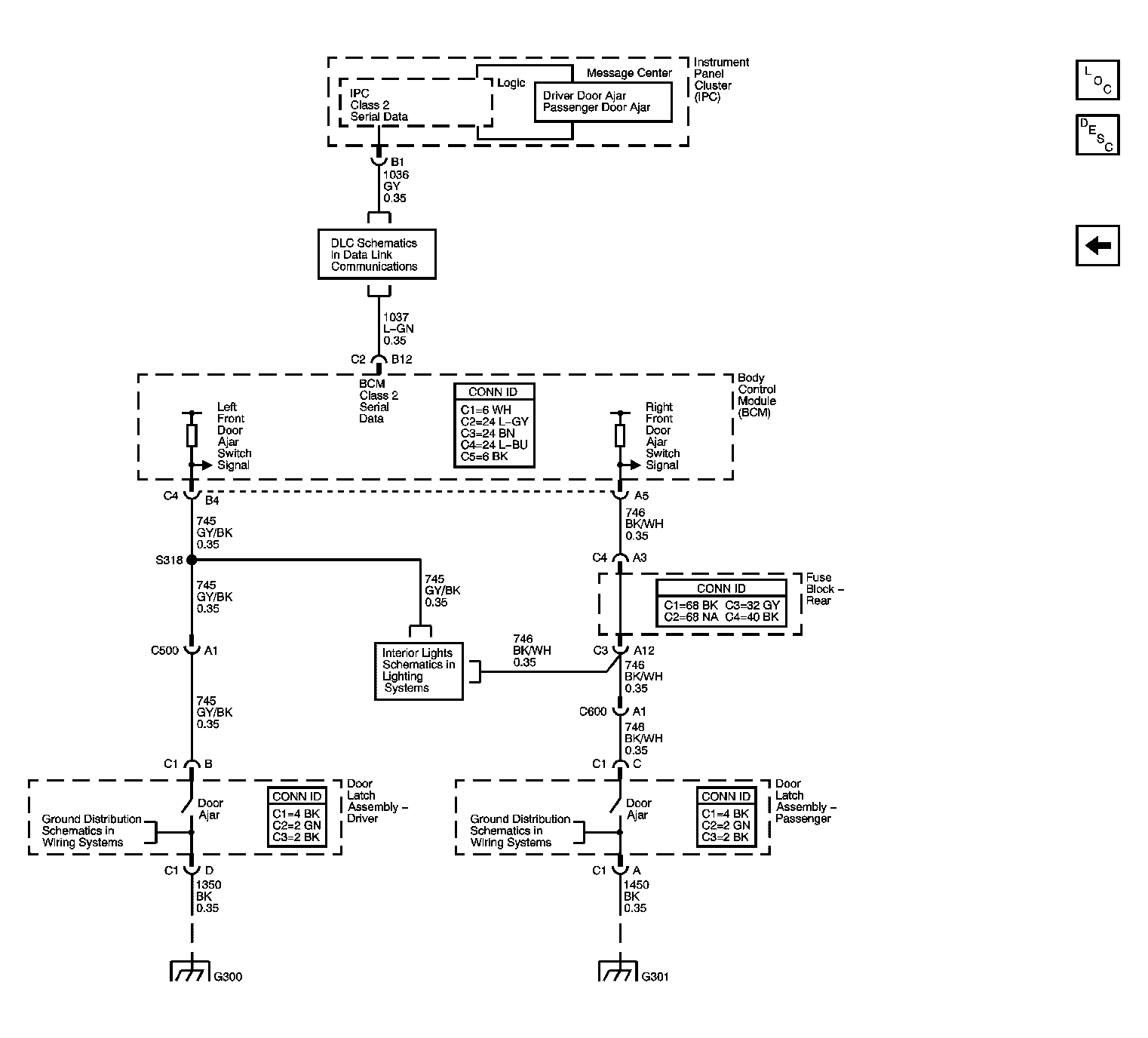

Fig 2: Door Ajar and Indicator Schematic
GM1219271Courtesy of GENERAL MOTORS CORP.
