Installation Procedure

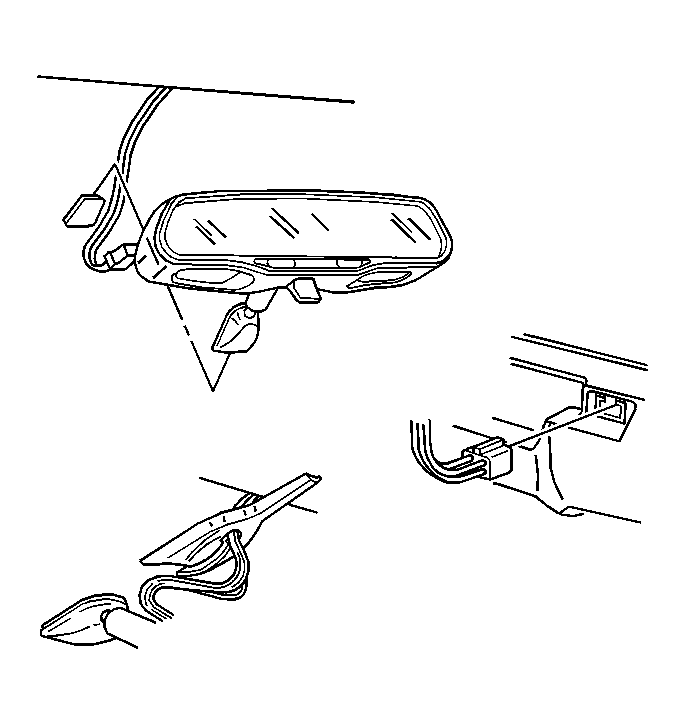

    Fig 1: View of Lighted Rearview Mirror Wire Harness
    GM293109Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the lighted rearview mirror, if equipped.
  2. Install the rearview mirror into the rearview mirror support.

    Ensure that the mirror is fully seated.

  3. Install the wire harness cover to the lighted rearview mirror, if equipped.
