Power Outlet Component Views

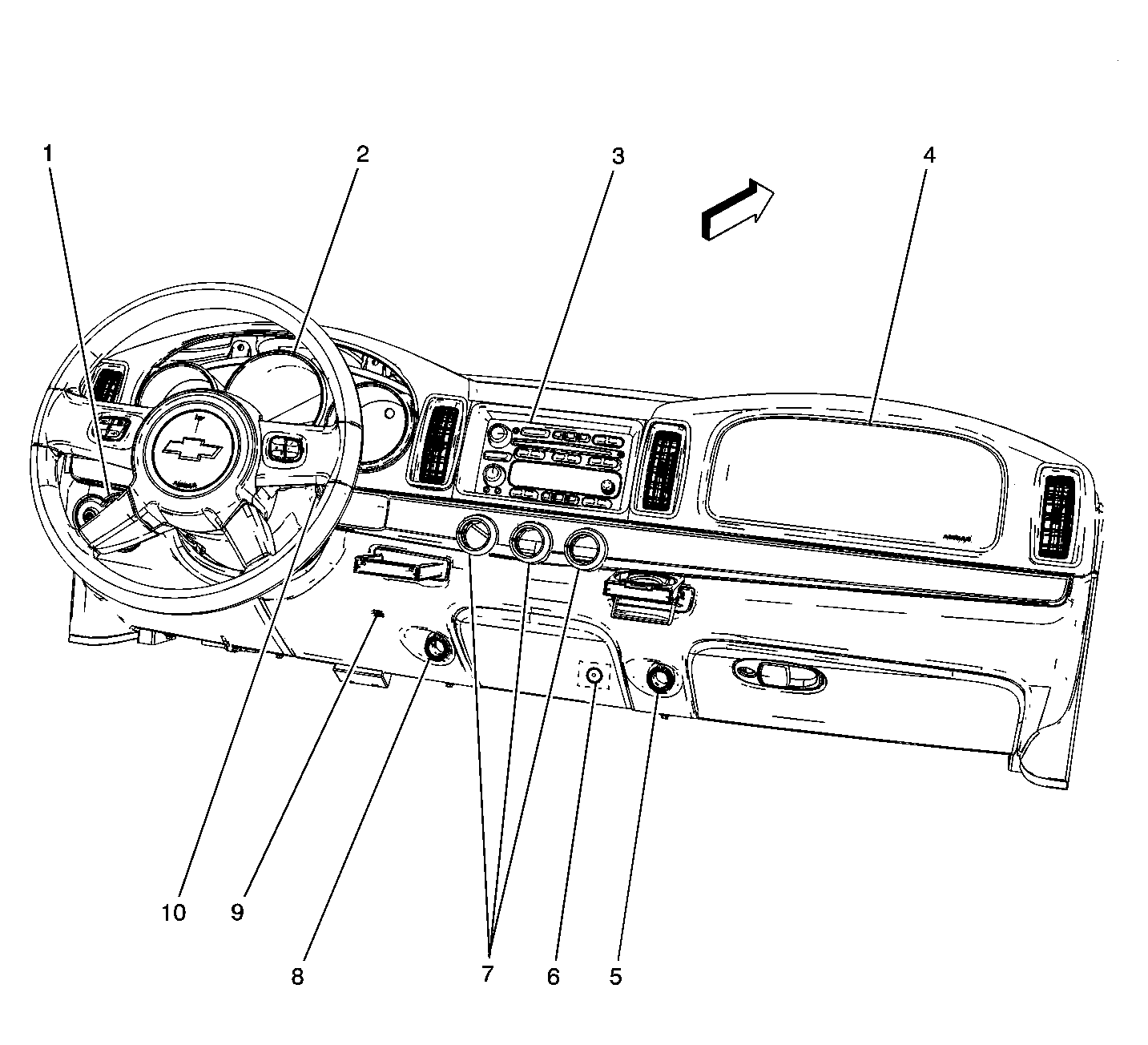

Fig 1: Instrument Panel Cluster Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Headlamp Switch
2
Instrument Panel Cluster (IPC)
3
Radio
4
Inflatable Restraint I/P Module
5
Auxiliary Power Outlet Front #2
6
Cigar Lighter
7
HVAC Control Module
8
Auxiliary Power Outlet Front #1
9
Noise Compensation Microphone
10
Ignition Switch
