Power Outlet Connector End Views

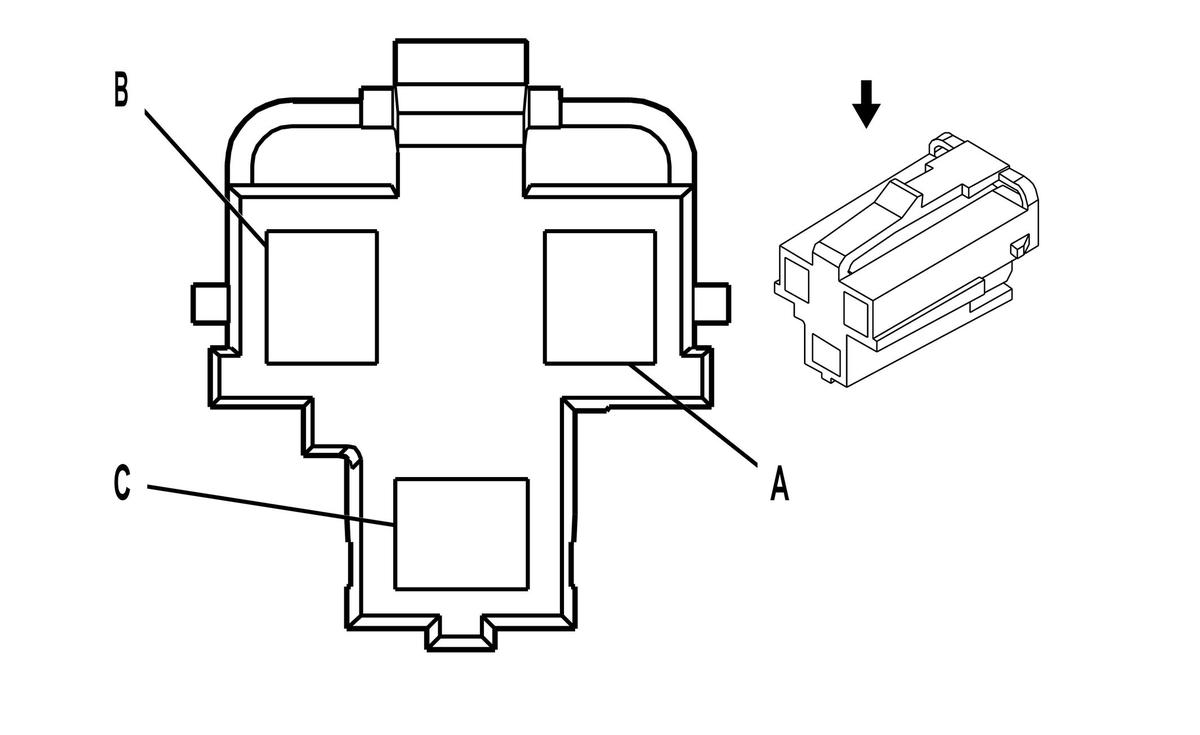

Auxiliary Power Outlet Connector End View - Front #1

GM320518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176446
  • 3-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit No. Function
A OG 1040 Battery Positive Voltage
B - - Not Used
C BK 2250 Ground
Auxiliary Power Outlet Connector End View - Front #2

GM320518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176446
  • 3-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit No. Function
A OG 1040 Battery Positive Voltage
B - - Not Used
C BK 2250 Ground
Auxiliary Power Outlet Connector End View - Rear

GM320518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176446
  • 3-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit No. Function
A OG 2040 Battery Positive Voltage
B - - Not Used
C BK 1550 Ground
Cigar Lighter Connector End View

GM365964Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176445
  • 2-Way M (NA)
Pin Wire Color Circuit No. Function
A OG 640 Battery Positive Voltage
B - - Not Used
C BK 2250 Ground
