Installation Procedure

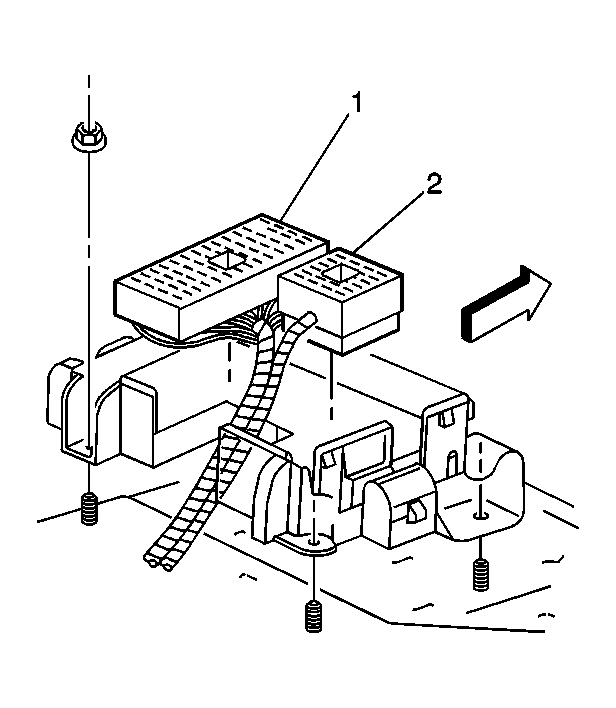

    Fig 1: Identifying Block Connectors
    GM684293Courtesy of GENERAL MOTORS CORP.
  1. Install the electrical center base to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the nuts retaining the electrical center base to the console bracket studs.

    Tighten:  Tighten the nuts to 10 N.m (88 lb in).

  3. Install all the block connectors including (1, 2) to the electrical center base.

    Ensure the connectors are fully seated.

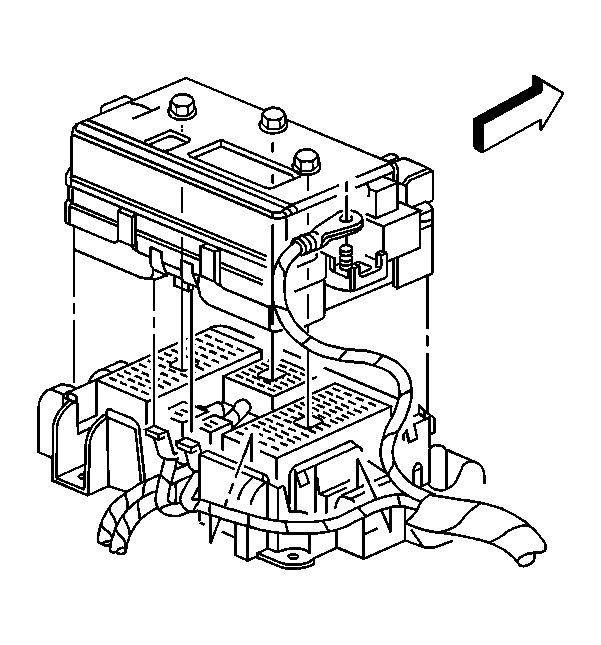

    4. Fig 2: View of Electrical Connector
    GM684301Courtesy of GENERAL MOTORS CORP.
  4. Install the electrical center to the base ensuring the 4 retaining tabs are fully seated.

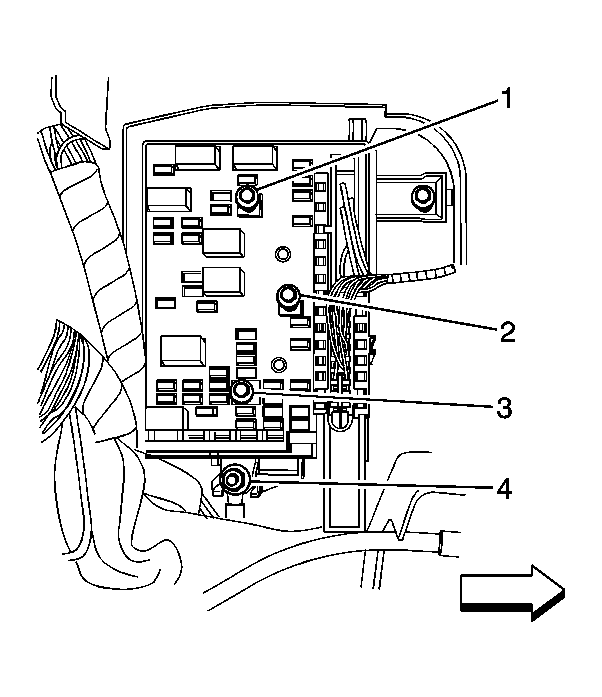

    5. Fig 3: Identifying Positive Battery Terminal to Electrical Center Nut & Bolts
    GM1343520Courtesy of GENERAL MOTORS CORP.
  5. Install the nut (4) retaining the positive battery terminal to the electrical center.

    Tighten:  Tighten the nut to 10 N.m (88 lb in).

  6. Tighten bolts (1, 2, 3).

    Tighten:  Tighten the bolts to 3.5 N.m (31 lb in).

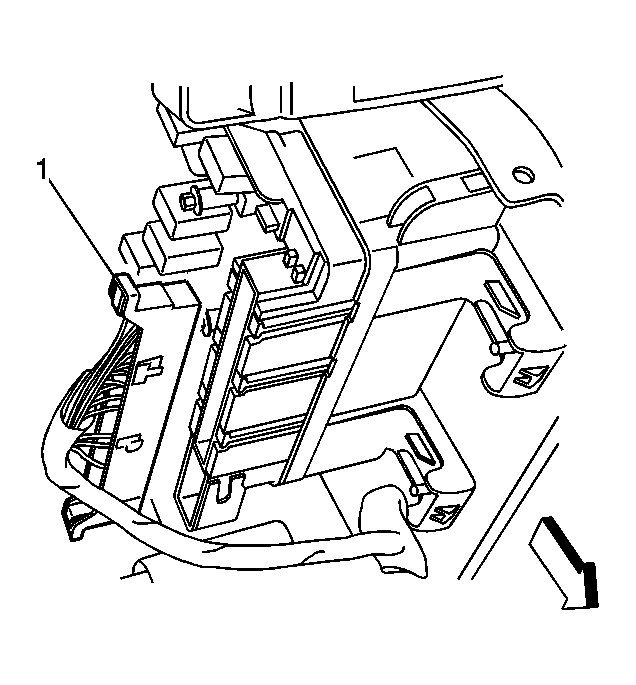

    7. Fig 4: Identifying Connector
    GM1343522Courtesy of GENERAL MOTORS CORP.
  7. Install the connector (1) to the electrical center.

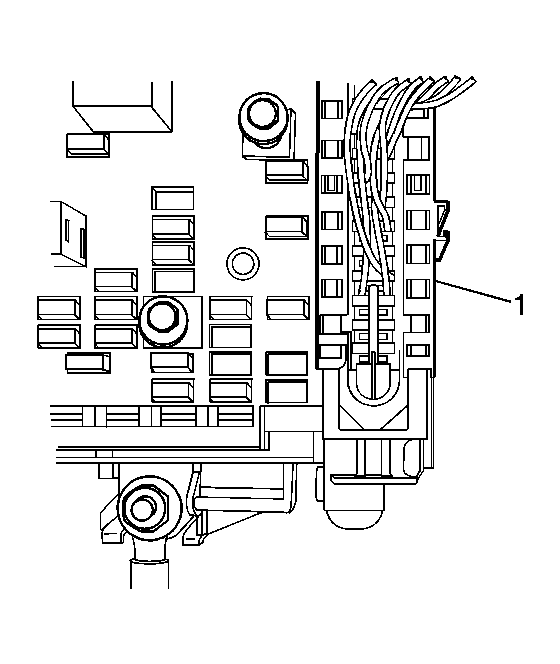

    8. Fig 5: Identifying Sliding Latch
    GM1343521Courtesy of GENERAL MOTORS CORP.
  8. Push the sliding latch (1) upward until fully seated, approximately 40 mm (1.6 in).
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  10. Move the passenger seat fully rearward.
  11. Install the floor console. Refer to Console Replacement in Instrument Panel, Gages, and Console.
  12. Install the rear upper garnish molding. Refer to Garnish Molding Replacement - Rear Upper in Interior Trim.
  13. Close the folding top.
