Ground Distribution Schematics

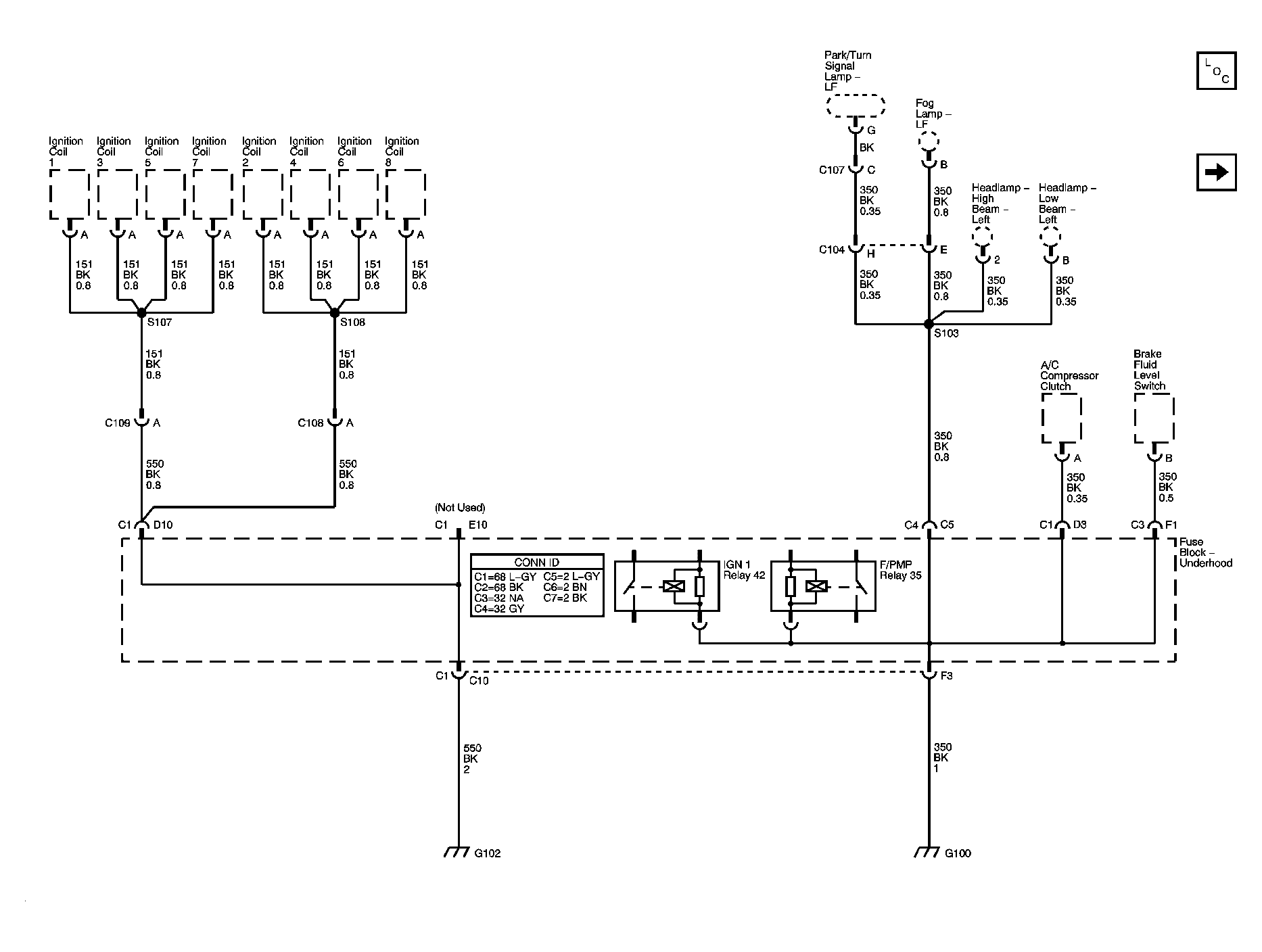

Fig 1: G100, G102 Schematic
GM1154940Courtesy of GENERAL MOTORS CORP.
Fig 2: G101 Schematic
GM1404585Courtesy of GENERAL MOTORS CORP.
Fig 3: G103, G104 Schematic
GM1428257Courtesy of GENERAL MOTORS CORP.
Fig 4: G105 Schematic
GM1155179Courtesy of GENERAL MOTORS CORP.

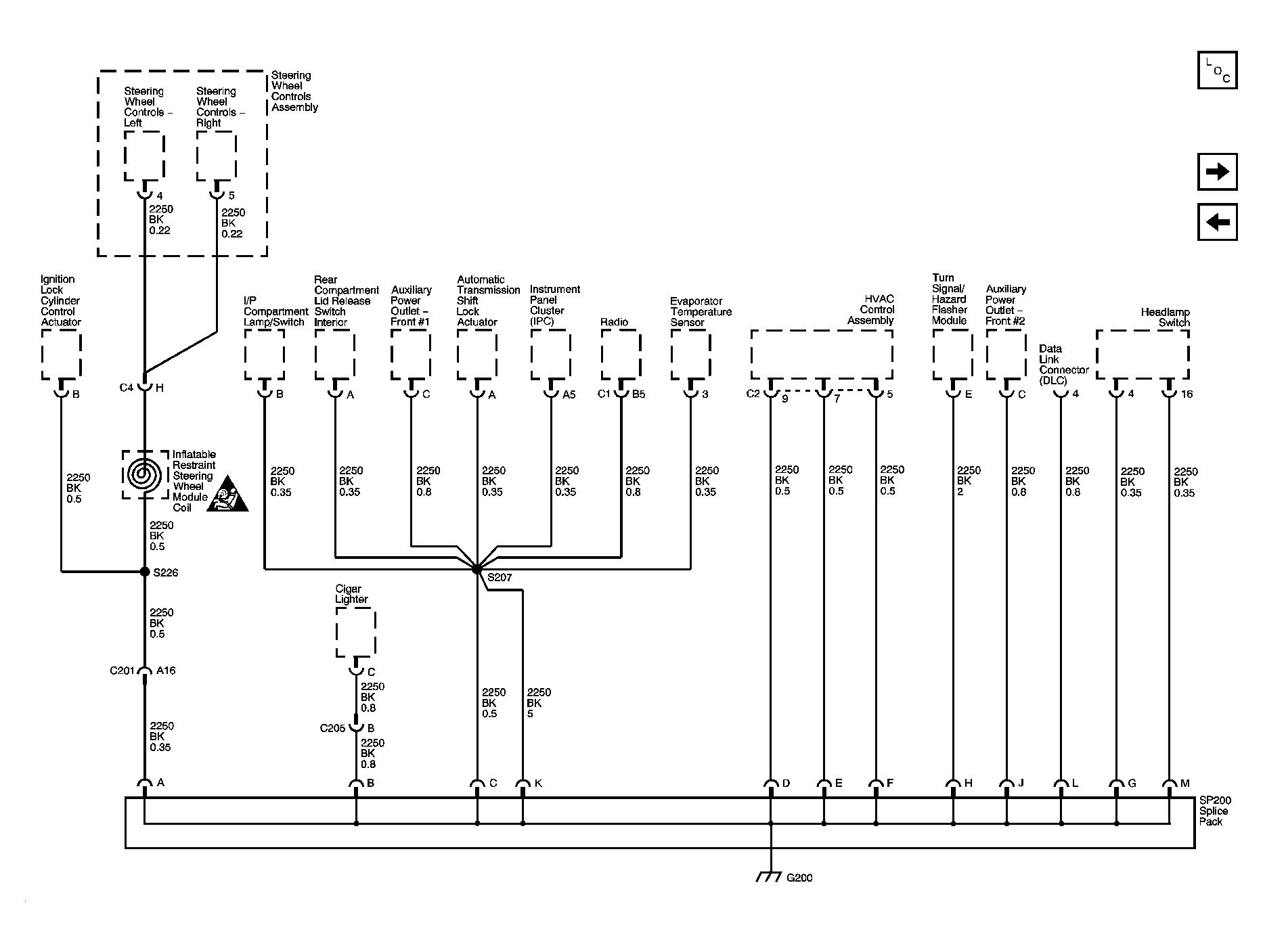

Fig 5: G200 Schematic
GM1155254Courtesy of GENERAL MOTORS CORP.
Fig 6: G300 Schematic
GM1420155Courtesy of GENERAL MOTORS CORP.

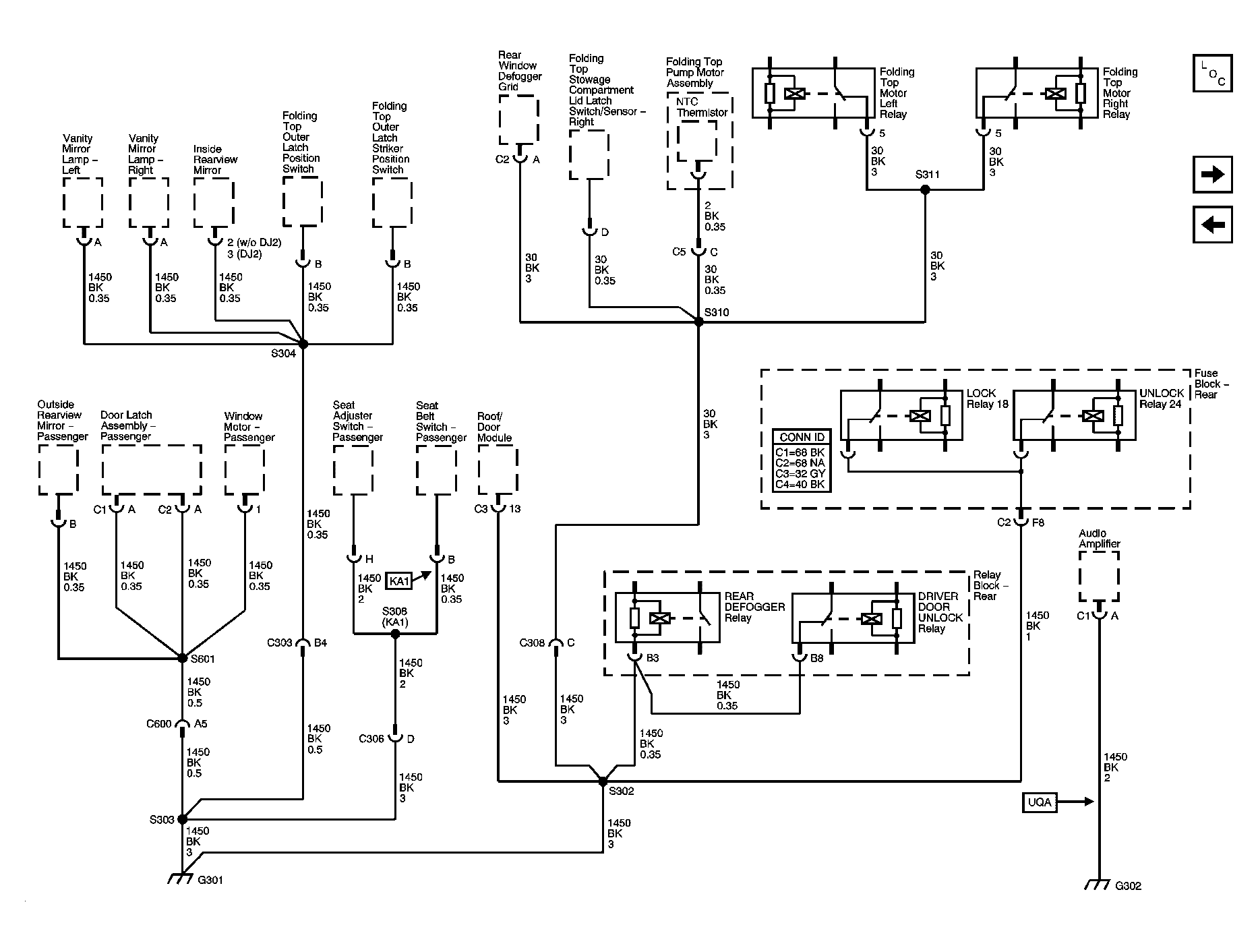

Fig 7: G301, G302 Schematic
GM1420159Courtesy of GENERAL MOTORS CORP.

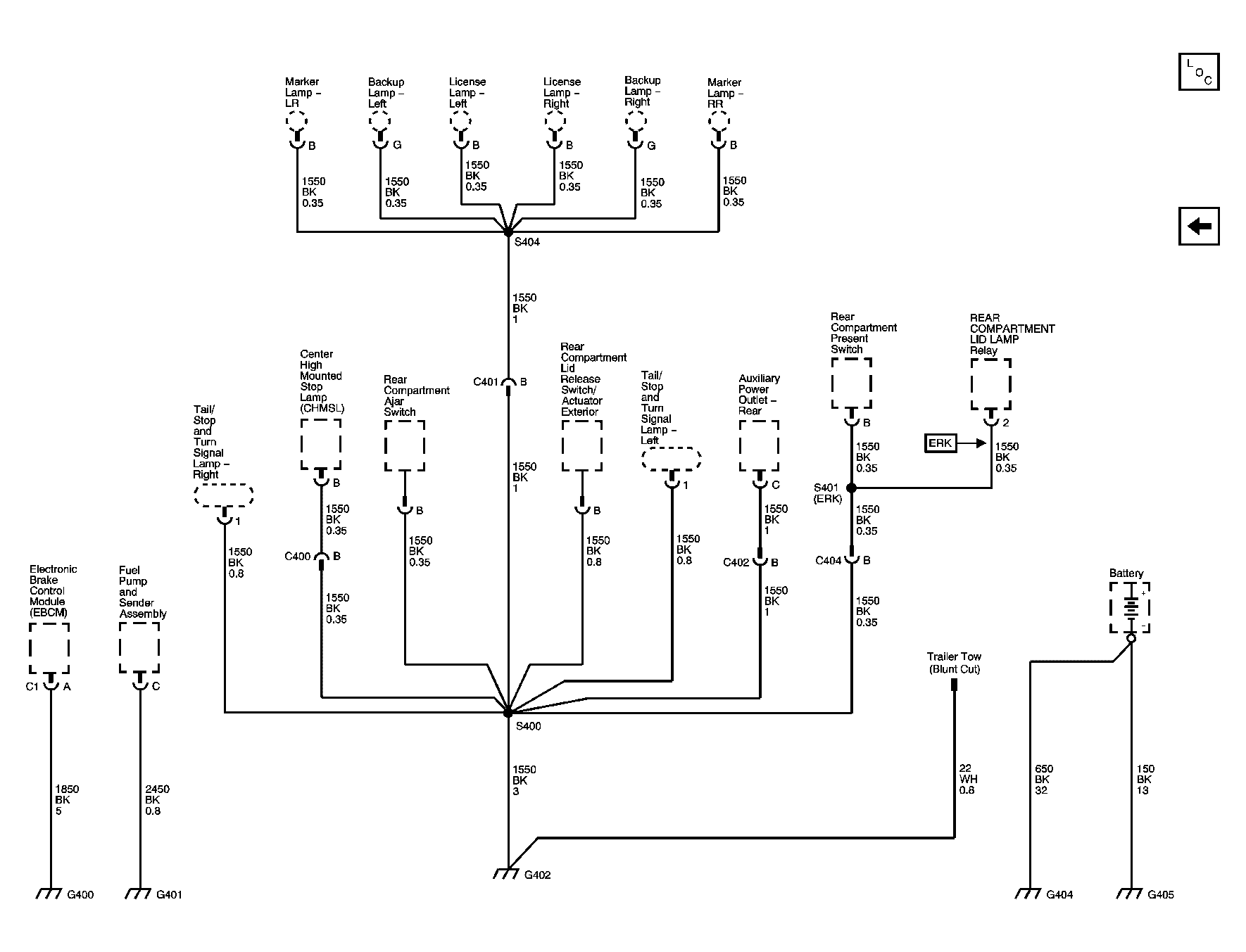

Fig 8: G400, G401, G402, G403, G404, G405 Schematic
GM1420161Courtesy of GENERAL MOTORS CORP.
