Installation Procedure

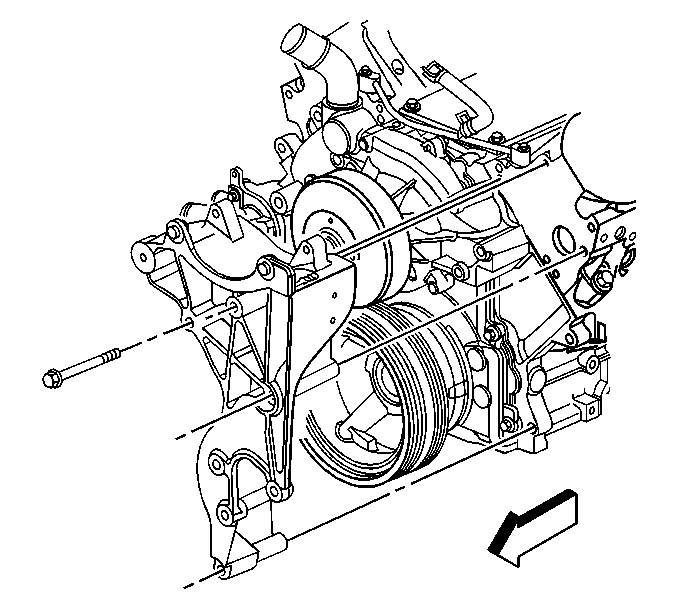

    Fig 1: View of Generator
    GM663649Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the generator bracket.
  2. Install the generator bracket bolts.

    Tighten:  Tighten the generator bracket bolts to 50 N.m (37 lb ft).

  3. Install the power steering pump. Refer to Power Steering Pump Replacement (5.3L) in Power Steering System.
  4. Install the generator. Refer to Generator Replacement .
