Installation Procedure

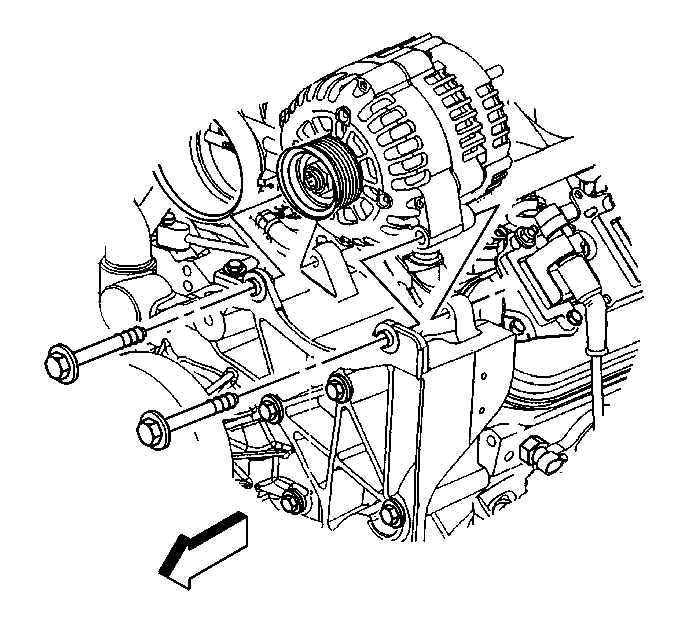

Fig 1: Identifying Generator Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the generator.
Install the generator bolts.
Tighten: Tighten the generator bolts to 50 N.m (37 lb ft).

Fig 2: View Of Generator Cable & Nut

Courtesy of GENERAL MOTORS CORP.

Install the generator cable to the generator, perform the following:
1. Install the generator cable.
2. Install the generator cable nut to the terminal stud.
  Tighten: Tighten the generator cable nut to 9 N.m (80 lb in).
3. Slide the boot over the terminal stud.

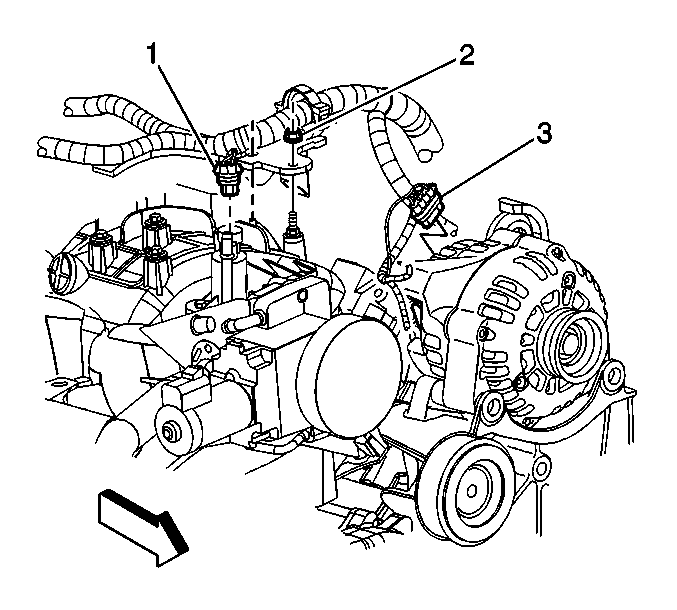

Fig 3: Identifying Purge Solenoid Electrical Connector, Wiring Harness Nut & Generator Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the generator electrical connector (3).
If necessary, install the engine sight shield. Refer to Engine Sight Shield Replacement in Engine Mechanical - 4.8L, 5.3L, and 6.0L.
Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory in Engine Mechanical - 4.8L, 5.3L, and 6.0L.
Raise vehicle.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
Lower Vehicle.
