Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

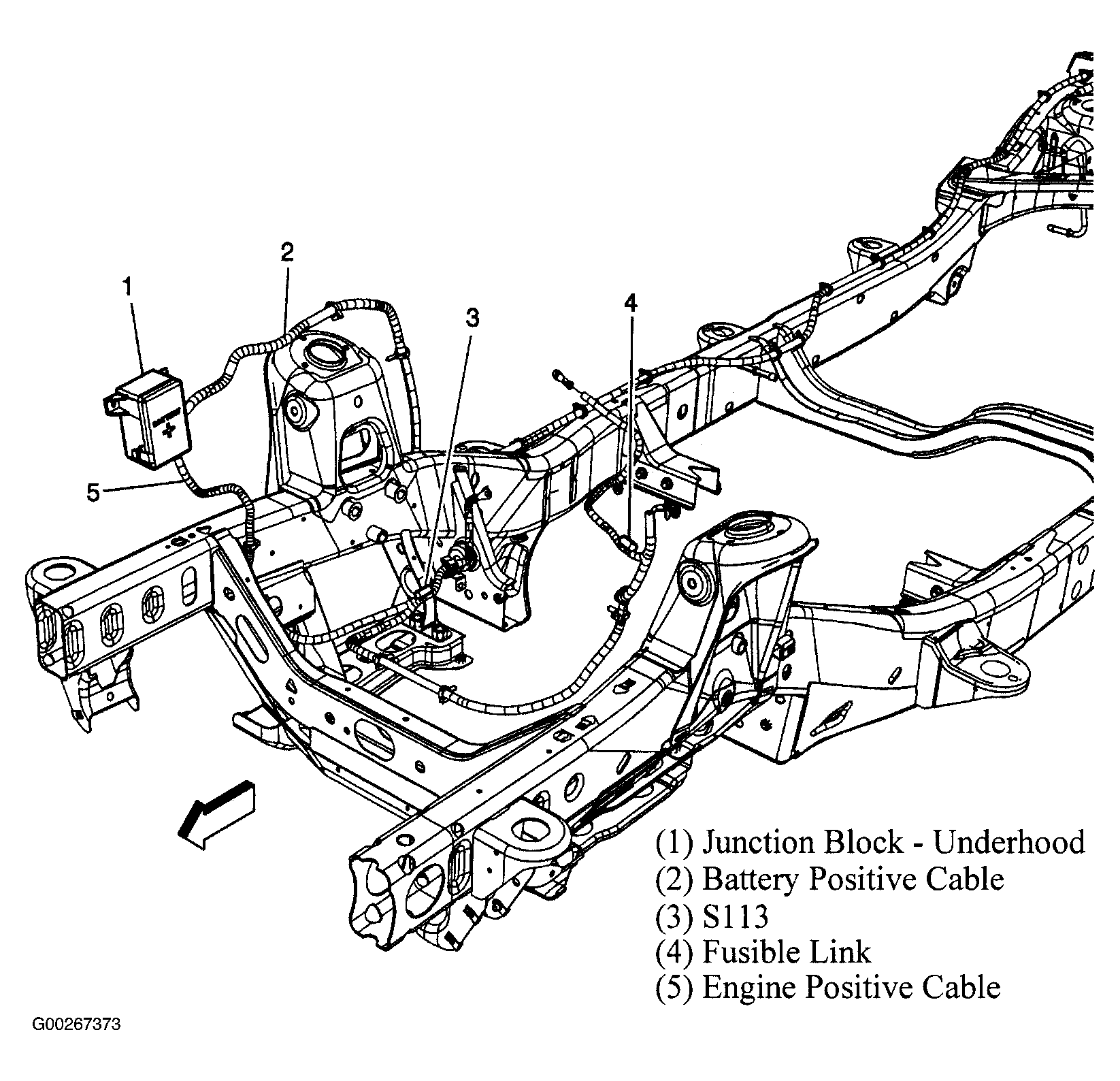

Fusible Link In battery harness. See Figure .

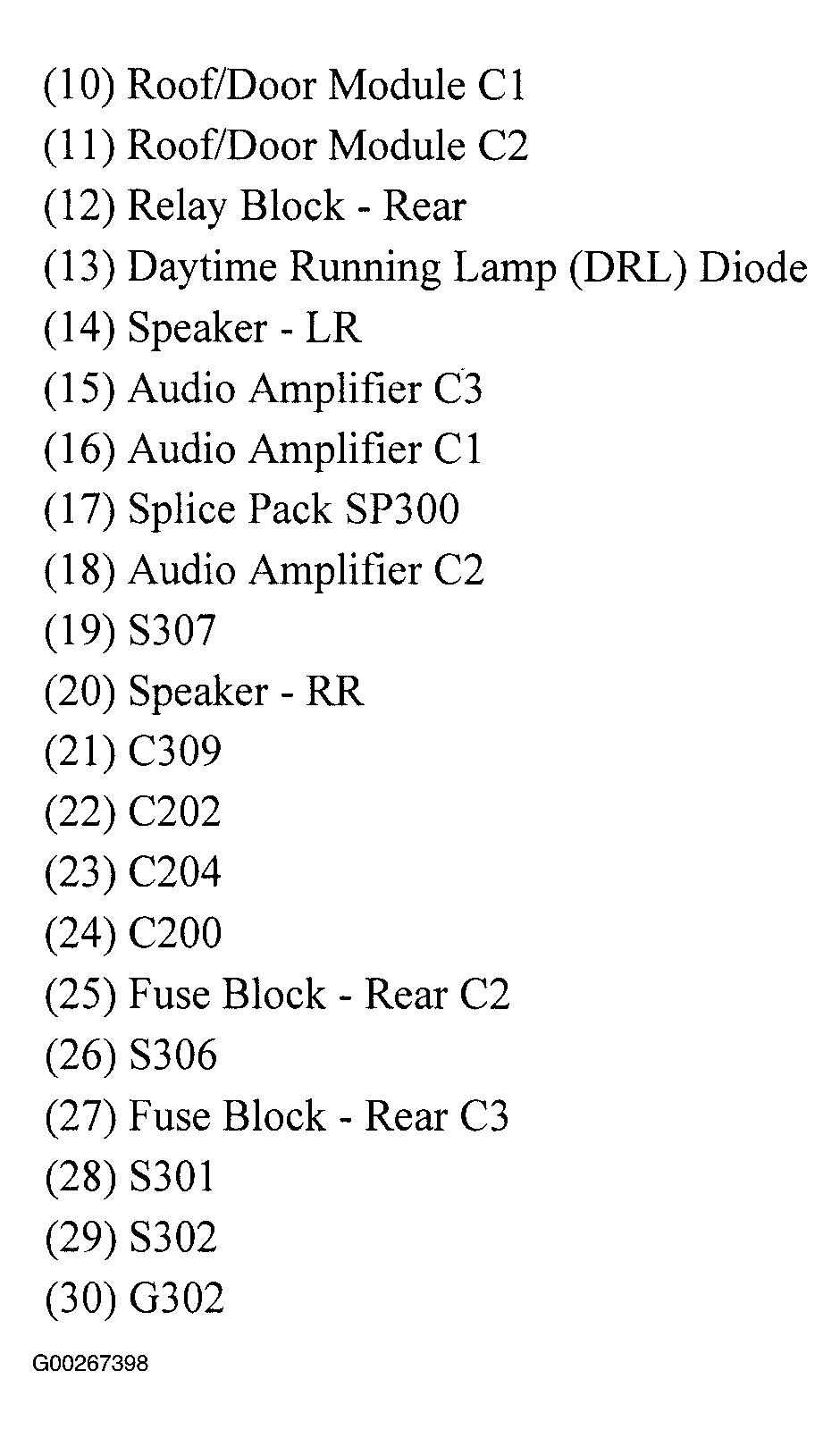

Rear Fuse Block Rear center of passenger compartment. See Figure .
Rear Relay Block Rear center of passenger compartment. See Figure .

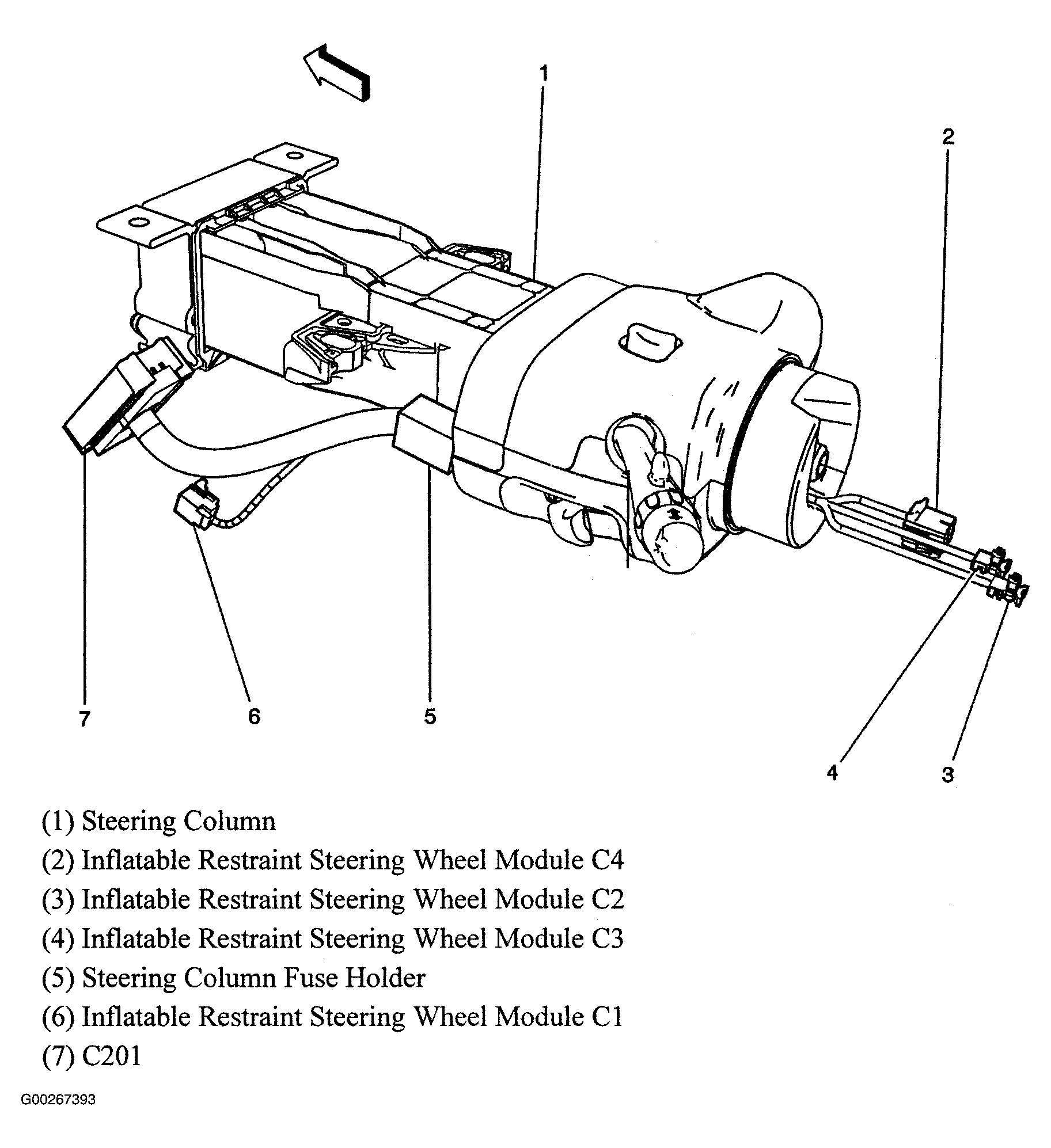

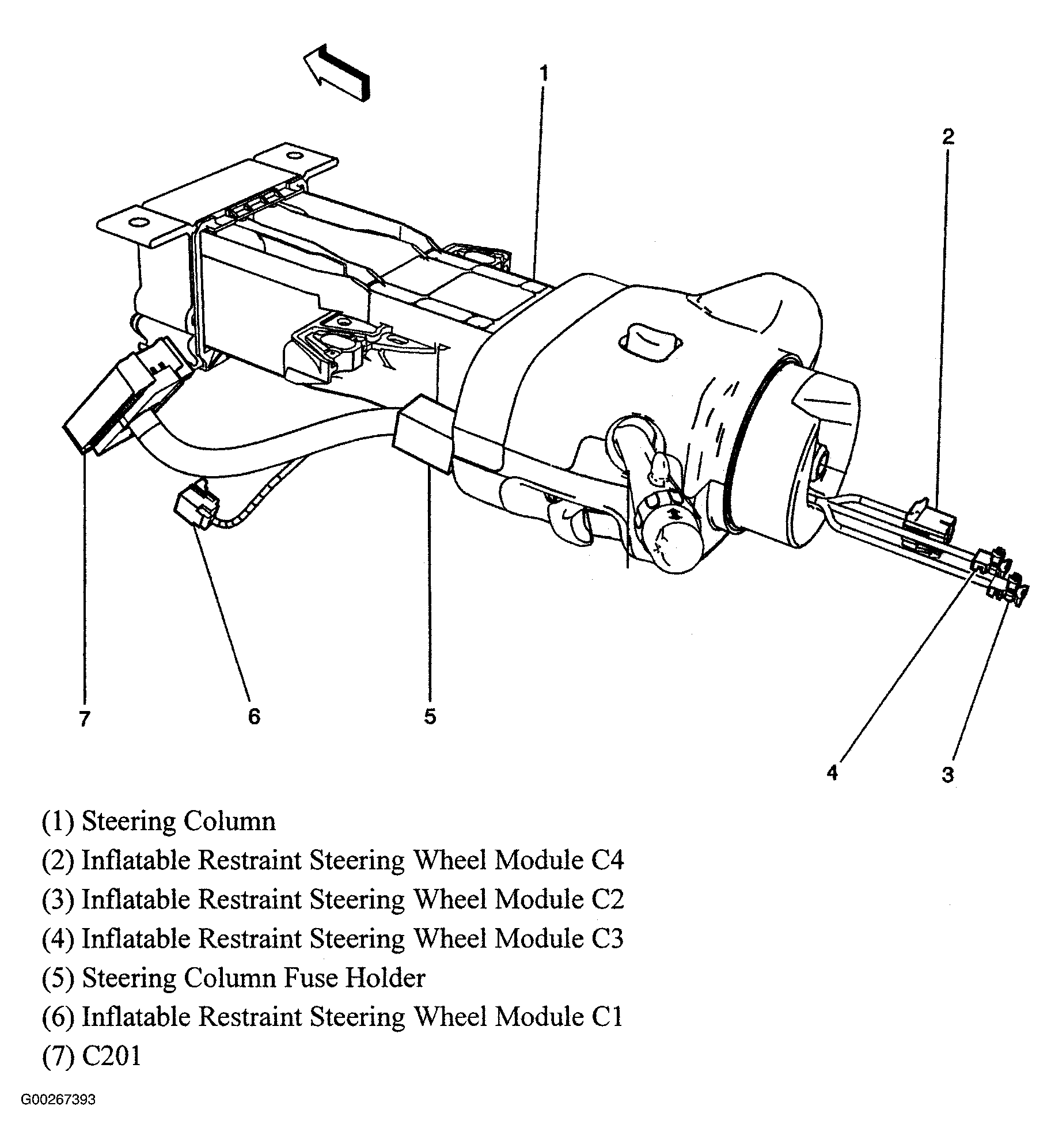

Steering Column Fuse Holder Near top right of steering column. See Figure .

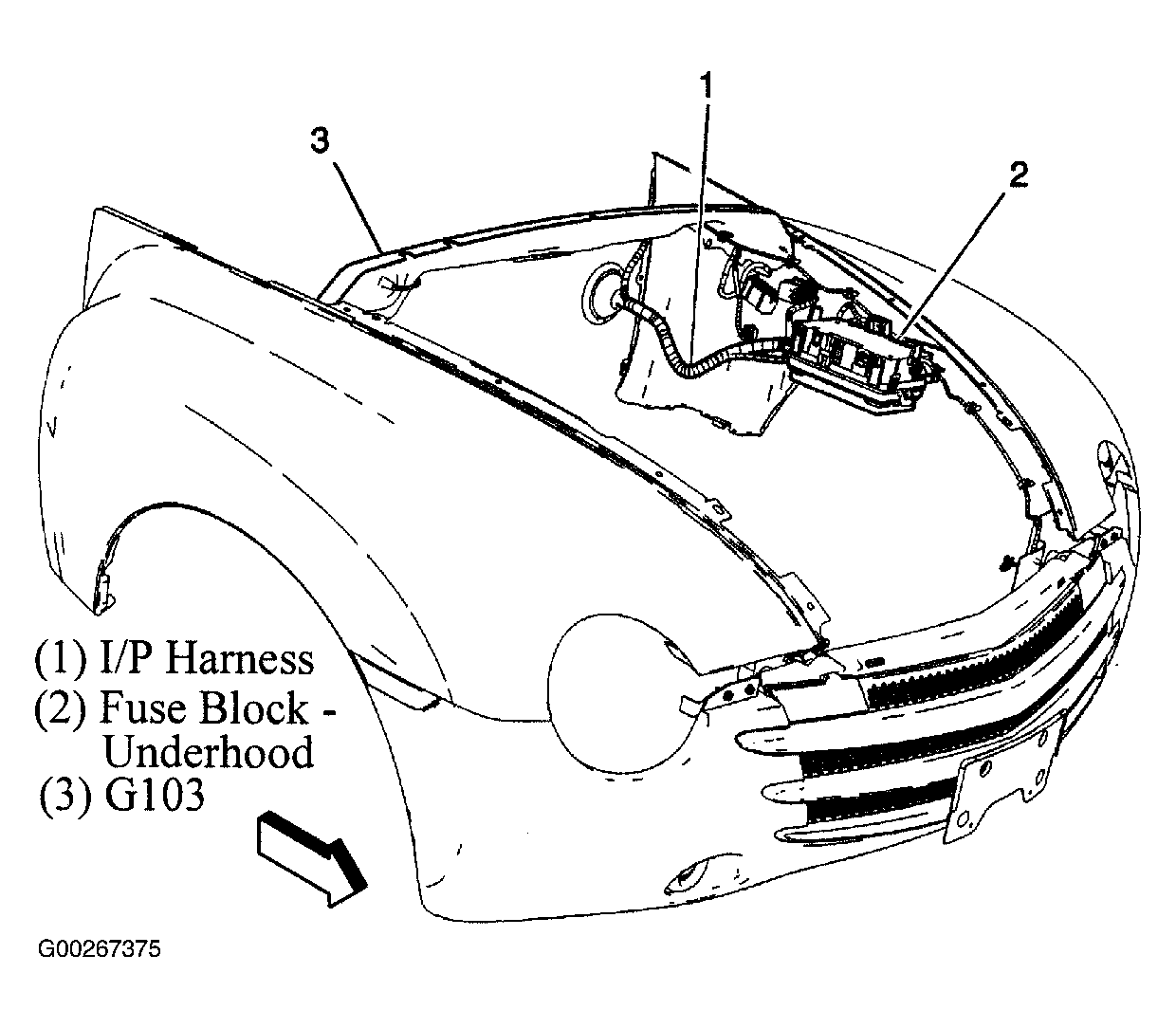

Underhood Fuse Block On left side of engine compartment. See Figure .
