Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

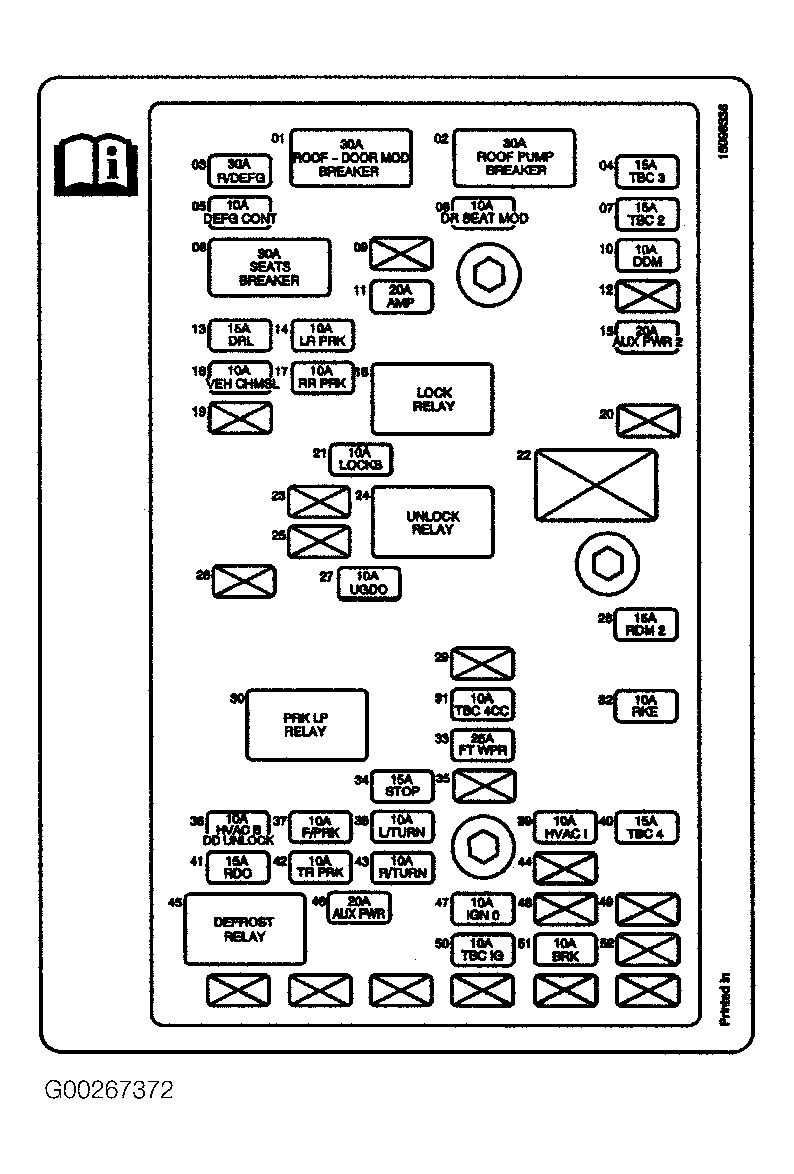

Fig 2: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

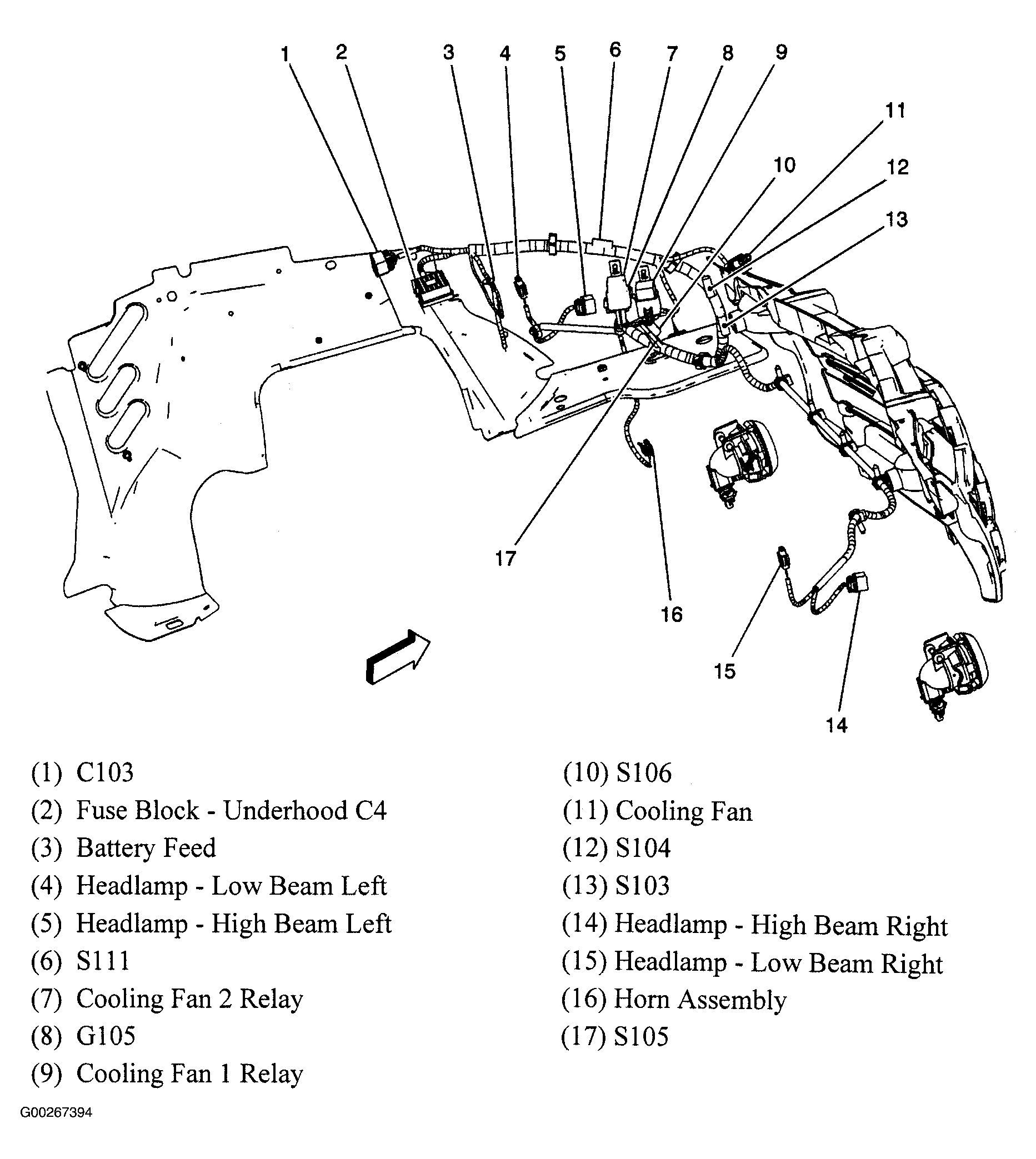

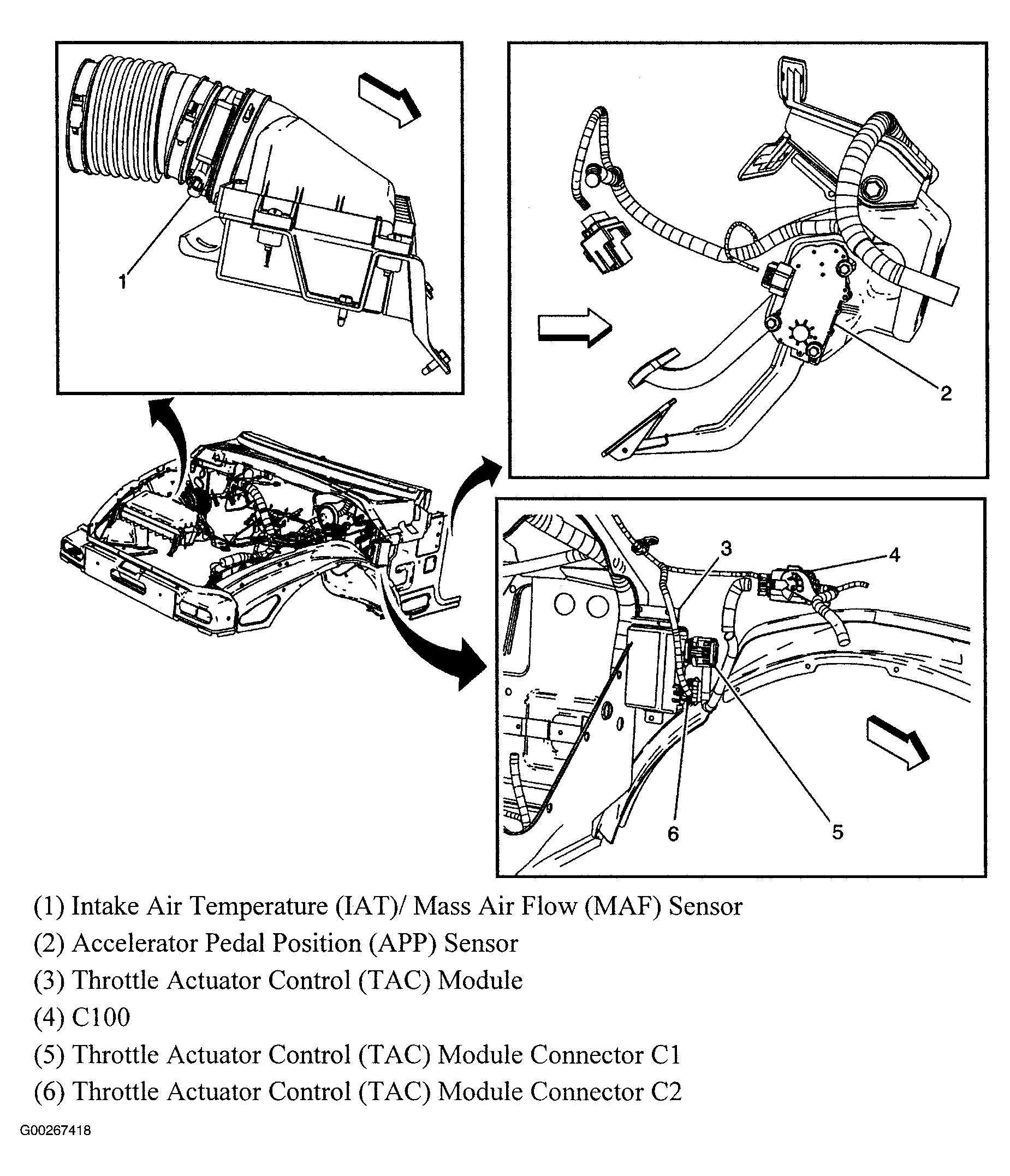

Fig 3: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

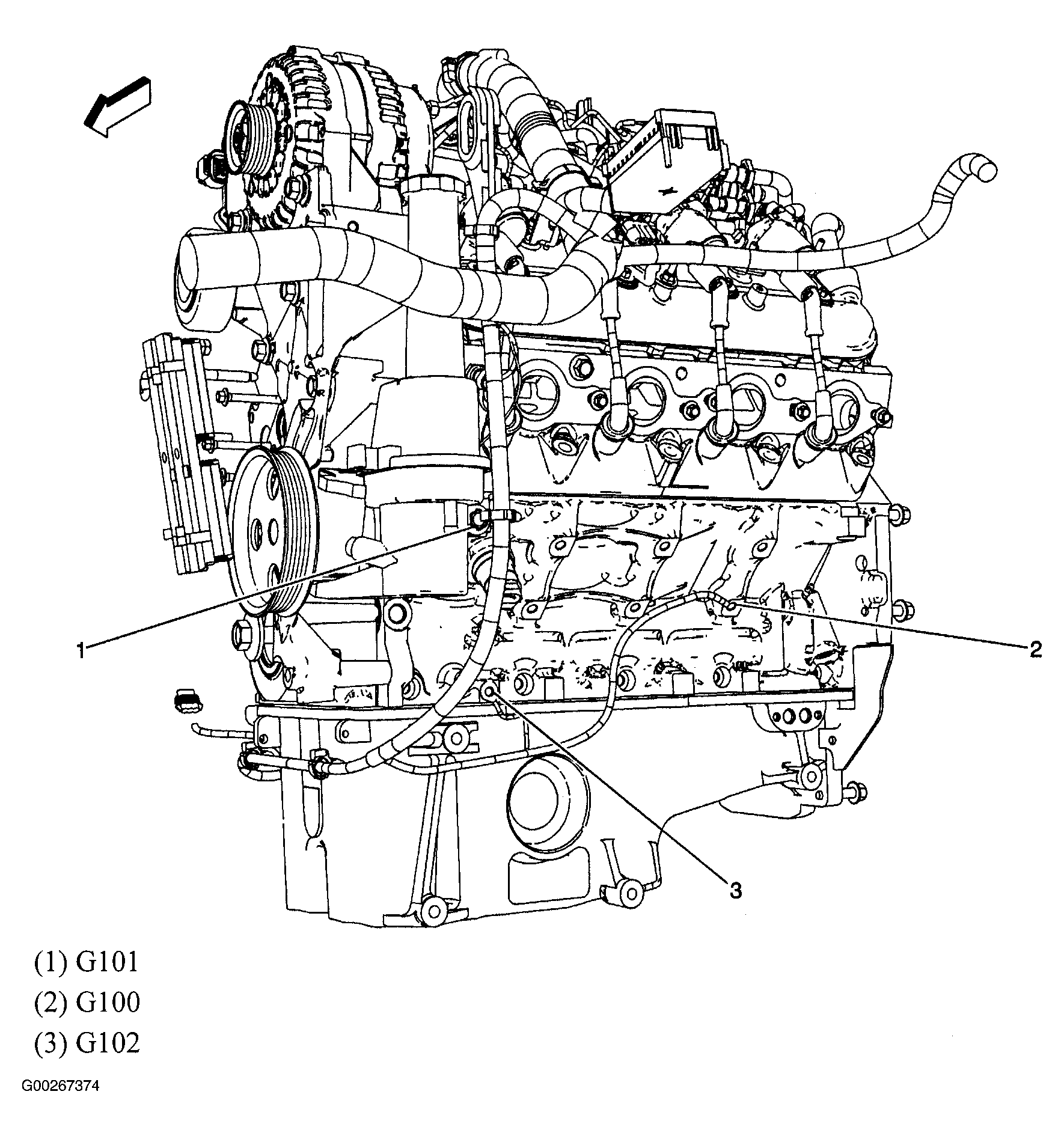

Fig 4: Engine Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

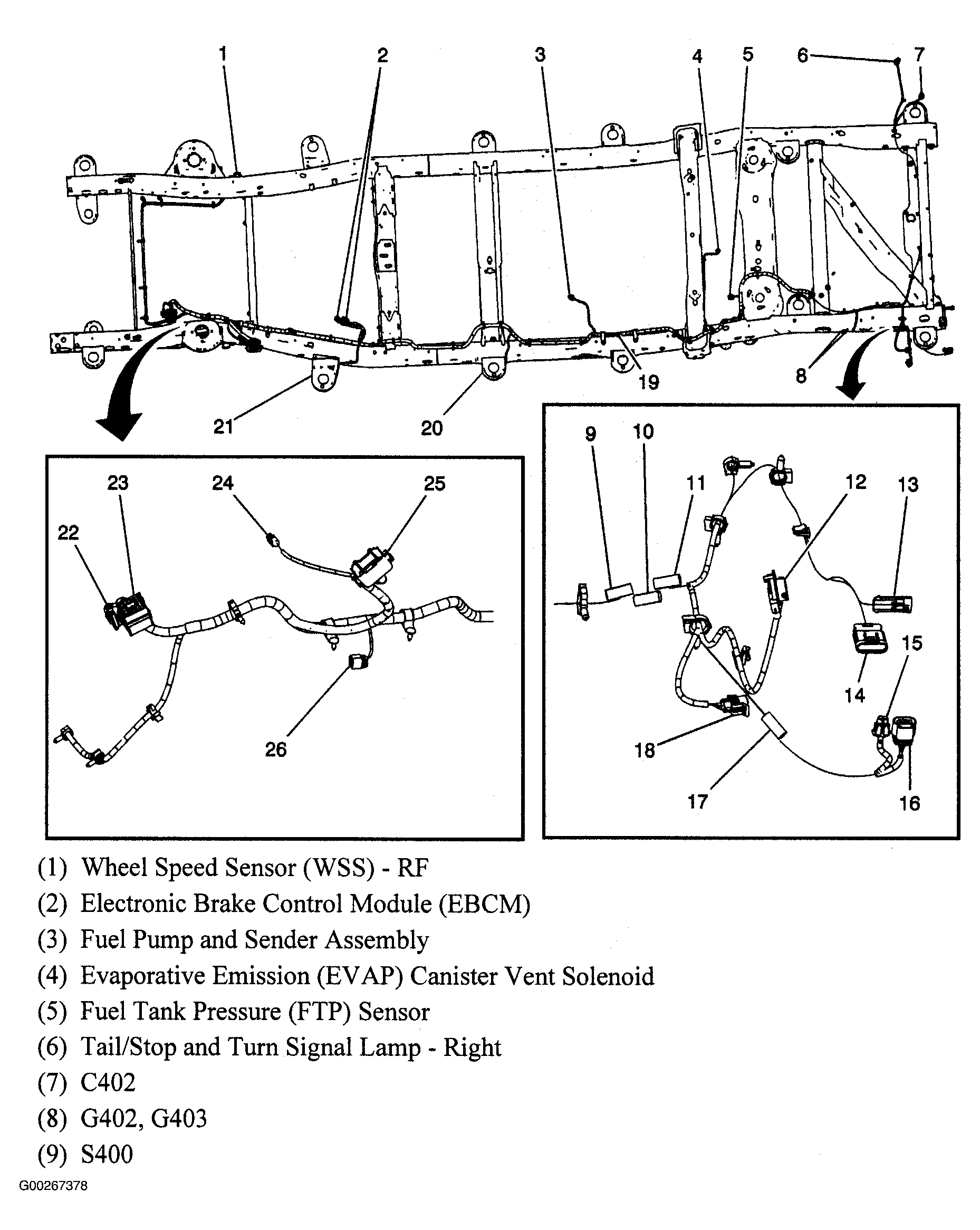

Fig 6: Chassis Harness Routing (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Chassis Harness Routing (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Header Harness Routing
Courtesy of GENERAL MOTORS CORP.

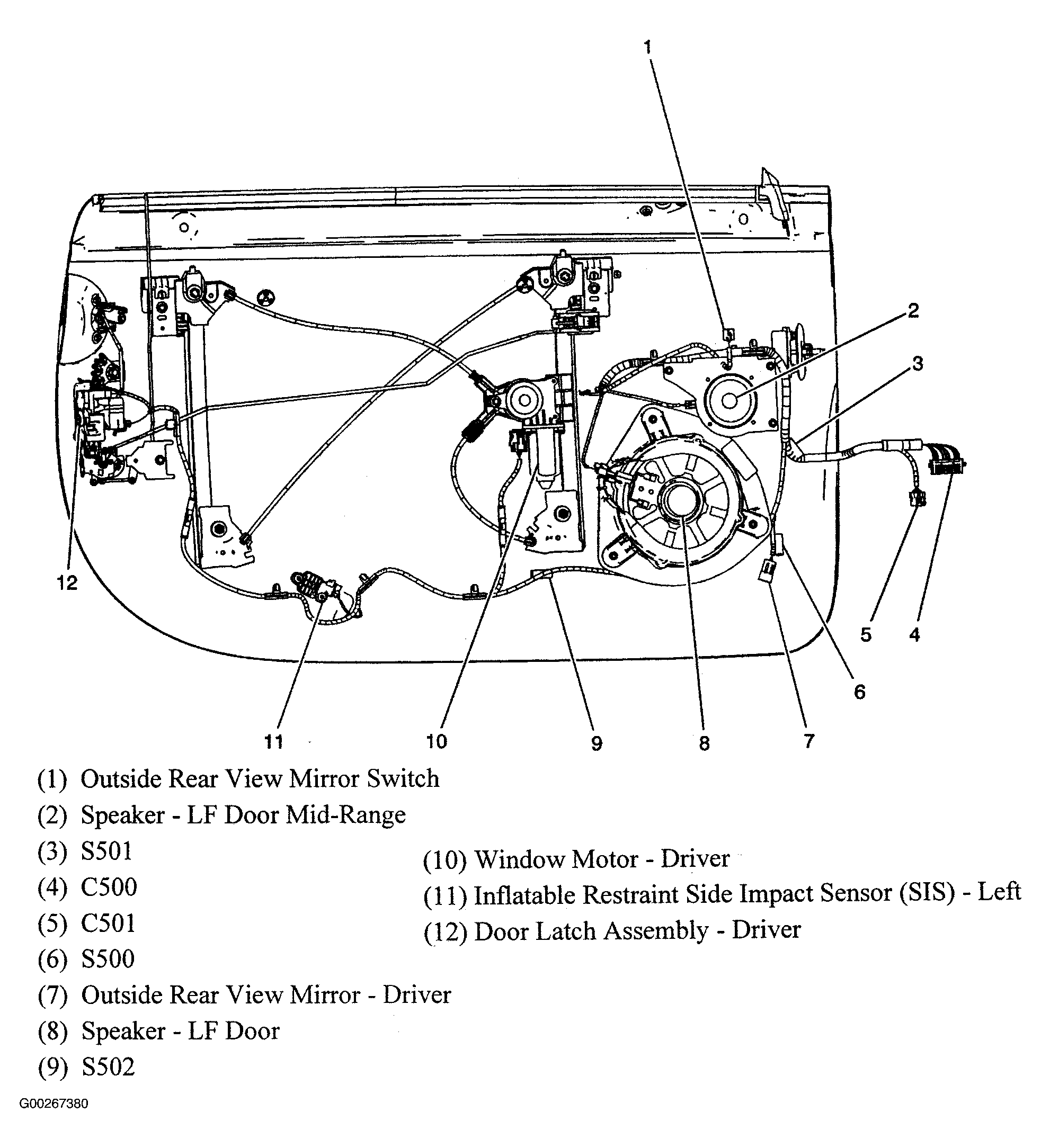

Fig 9: Driver Door
Courtesy of GENERAL MOTORS CORP.

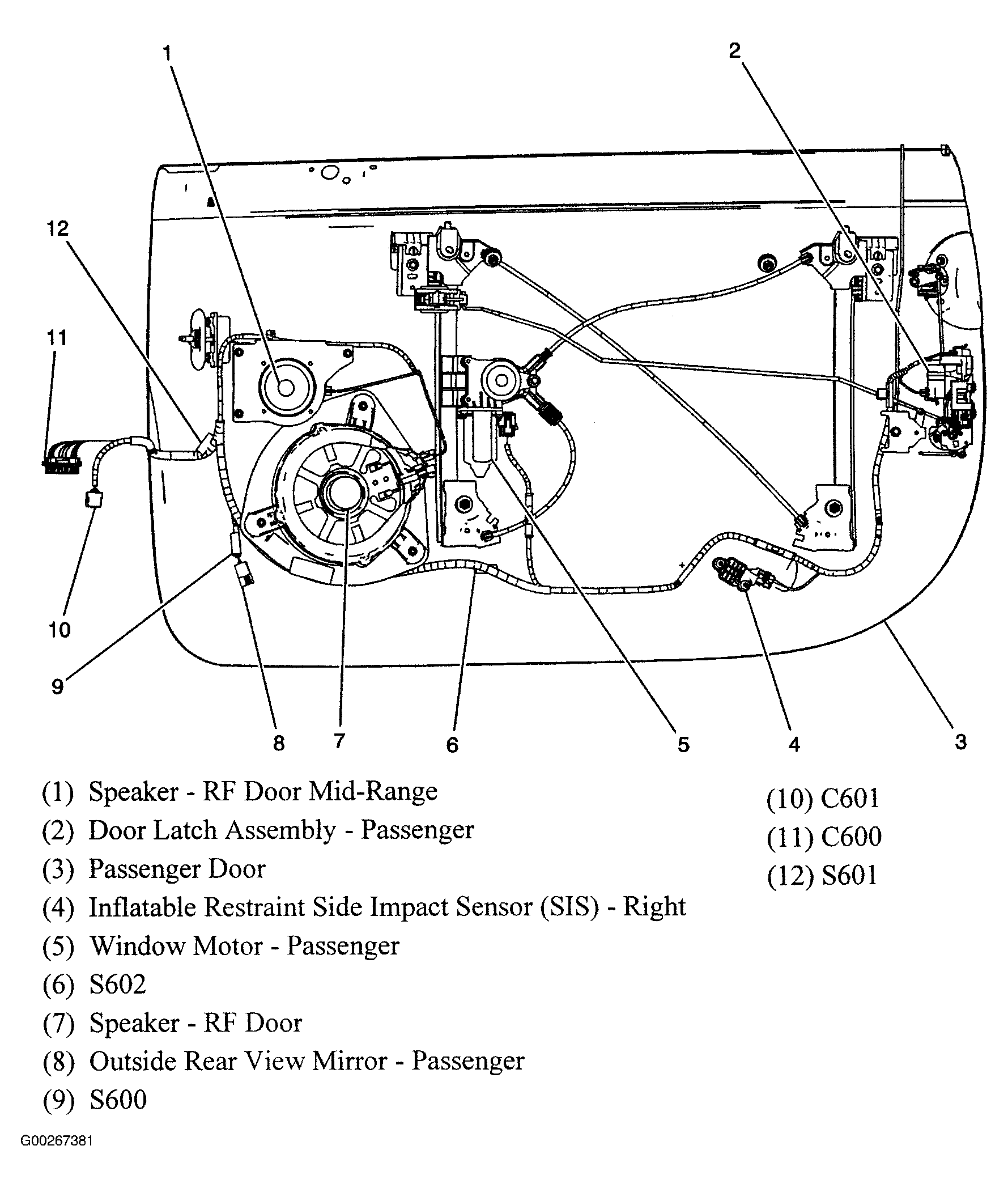

Fig 10: Passenger Door
Courtesy of GENERAL MOTORS CORP.

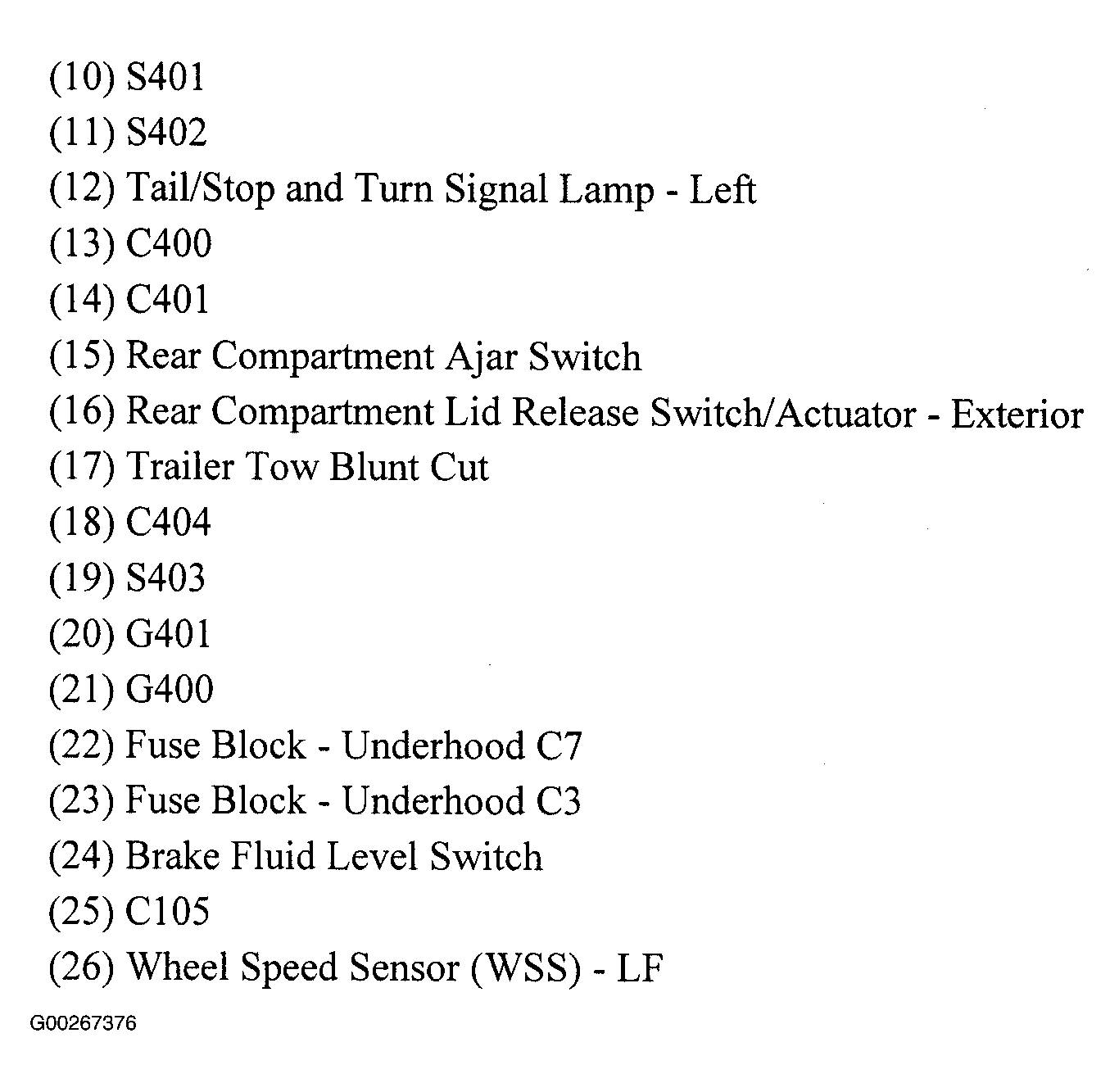

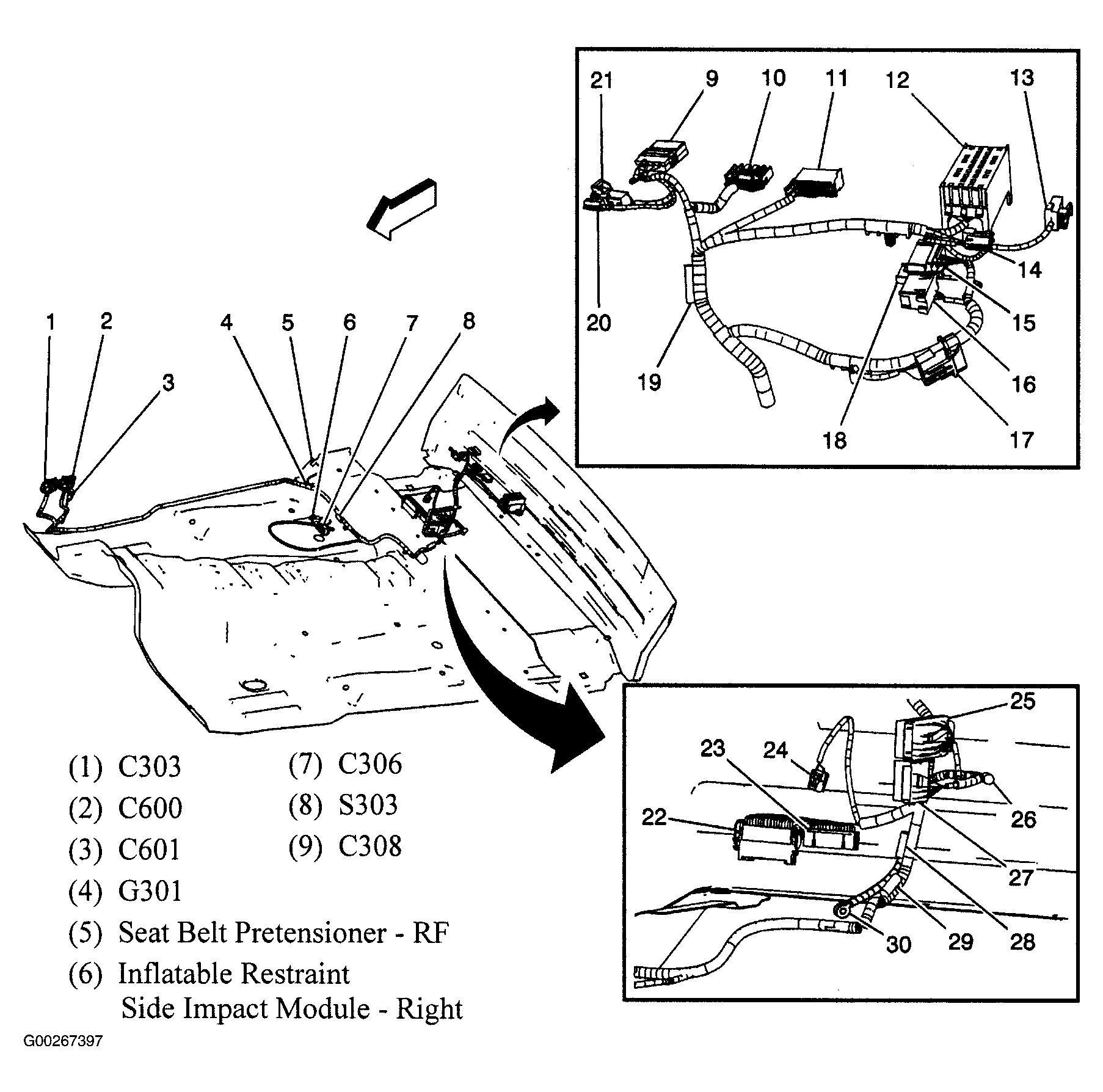

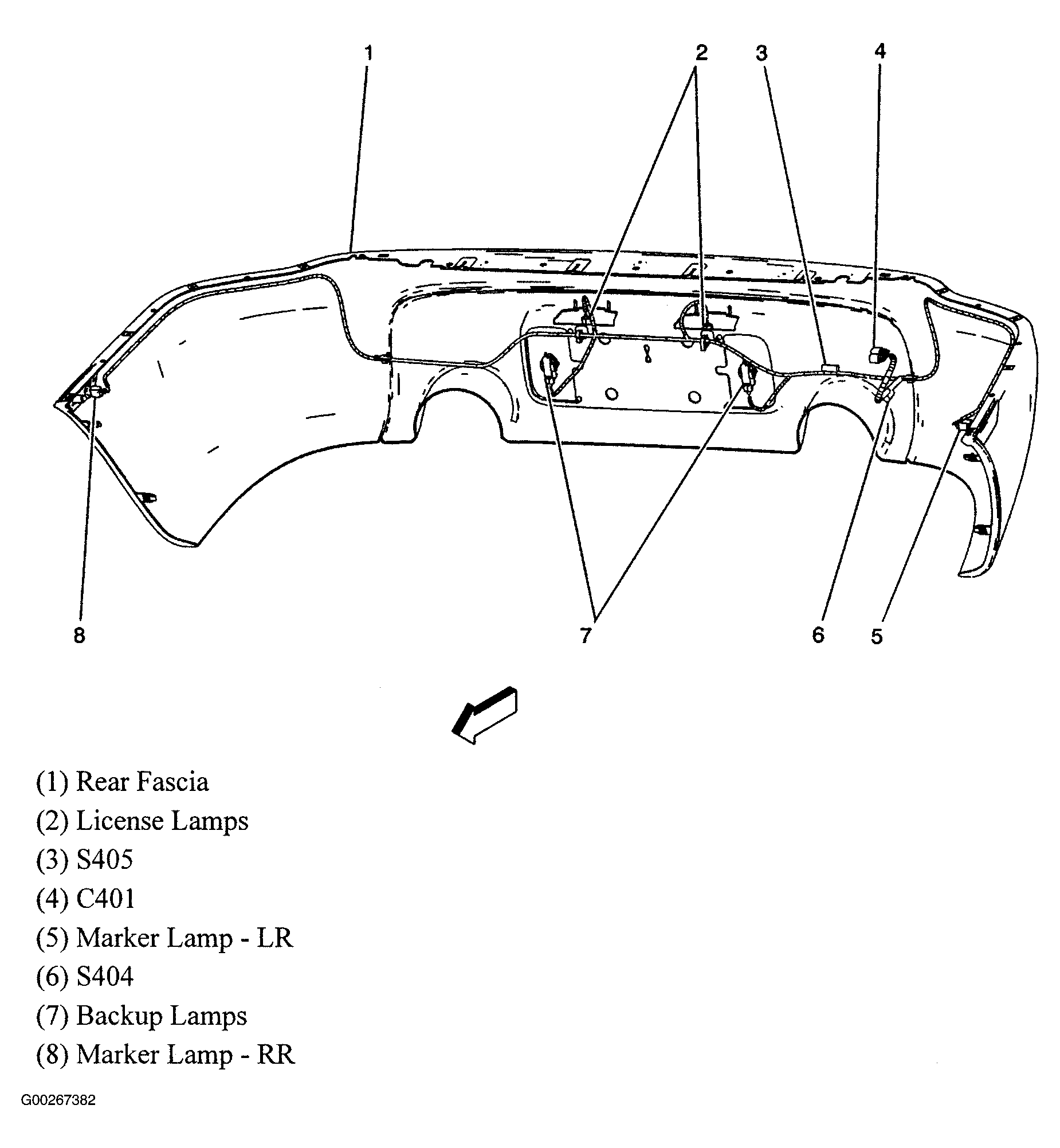

Fig 11: Rear Harness
Courtesy of GENERAL MOTORS CORP.

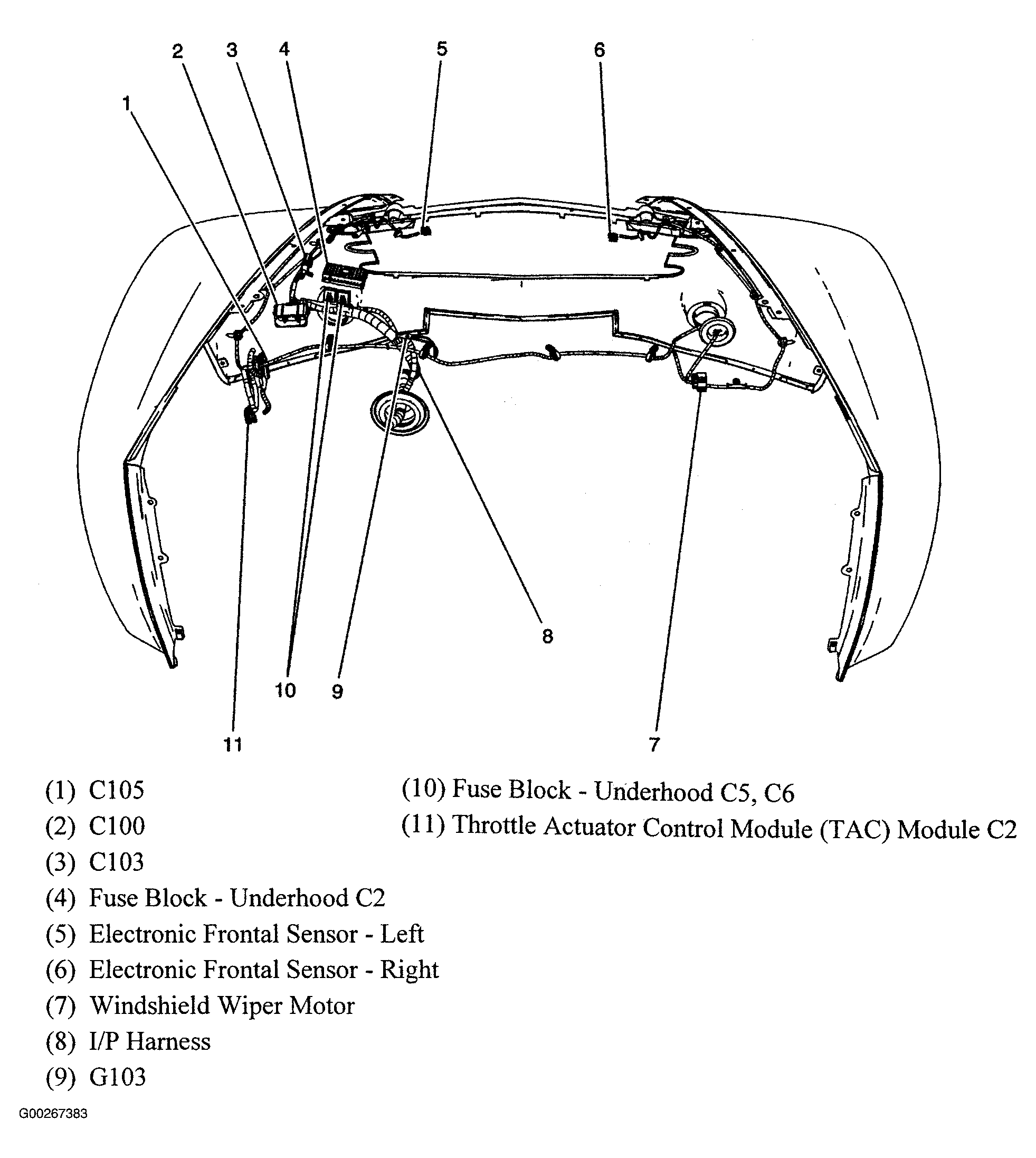

Fig 12: Front Engine Compartment Harness
Courtesy of GENERAL MOTORS CORP.
Fig 13: Dash Harness (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Dash Harness (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

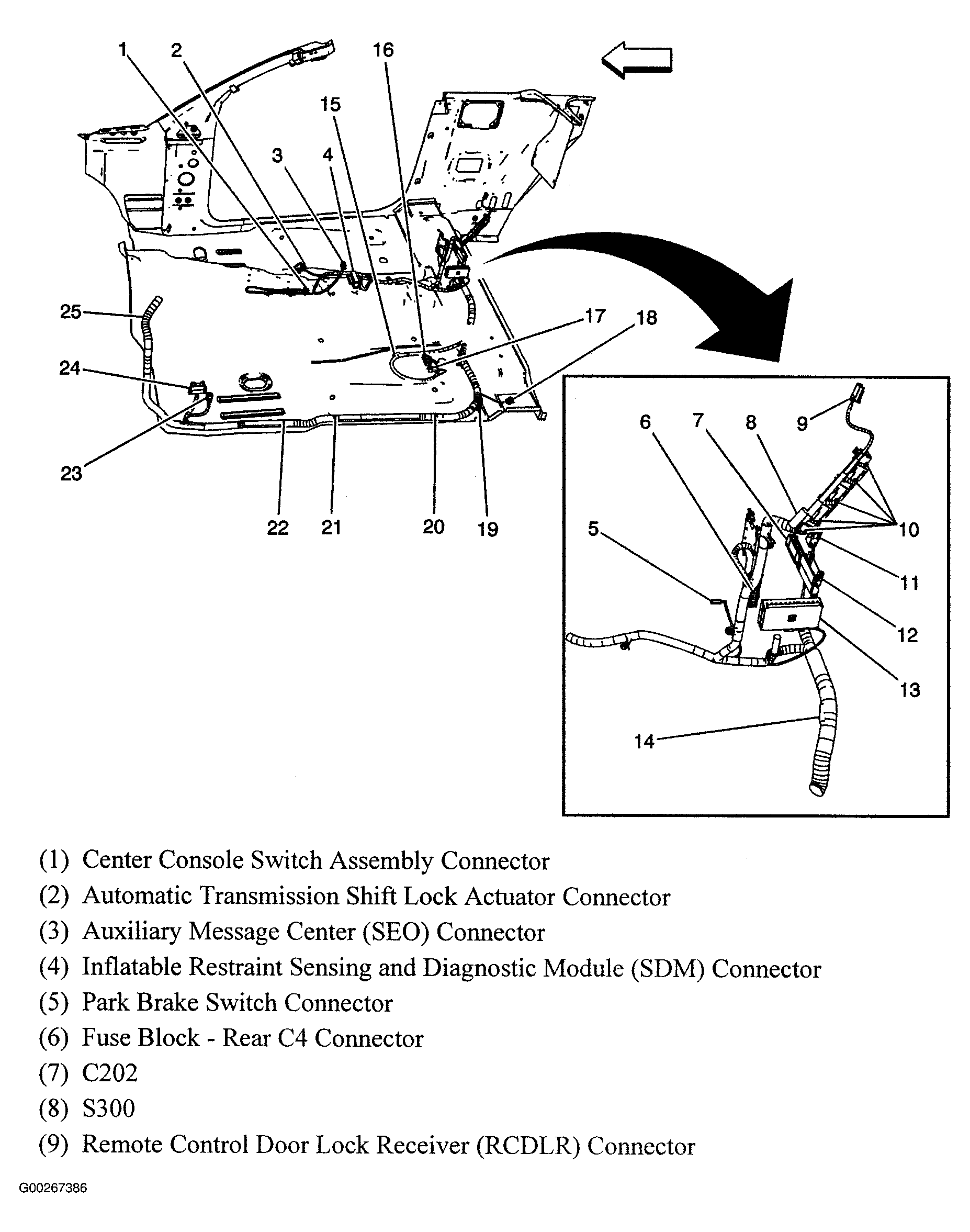

Fig 15: Passenger Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

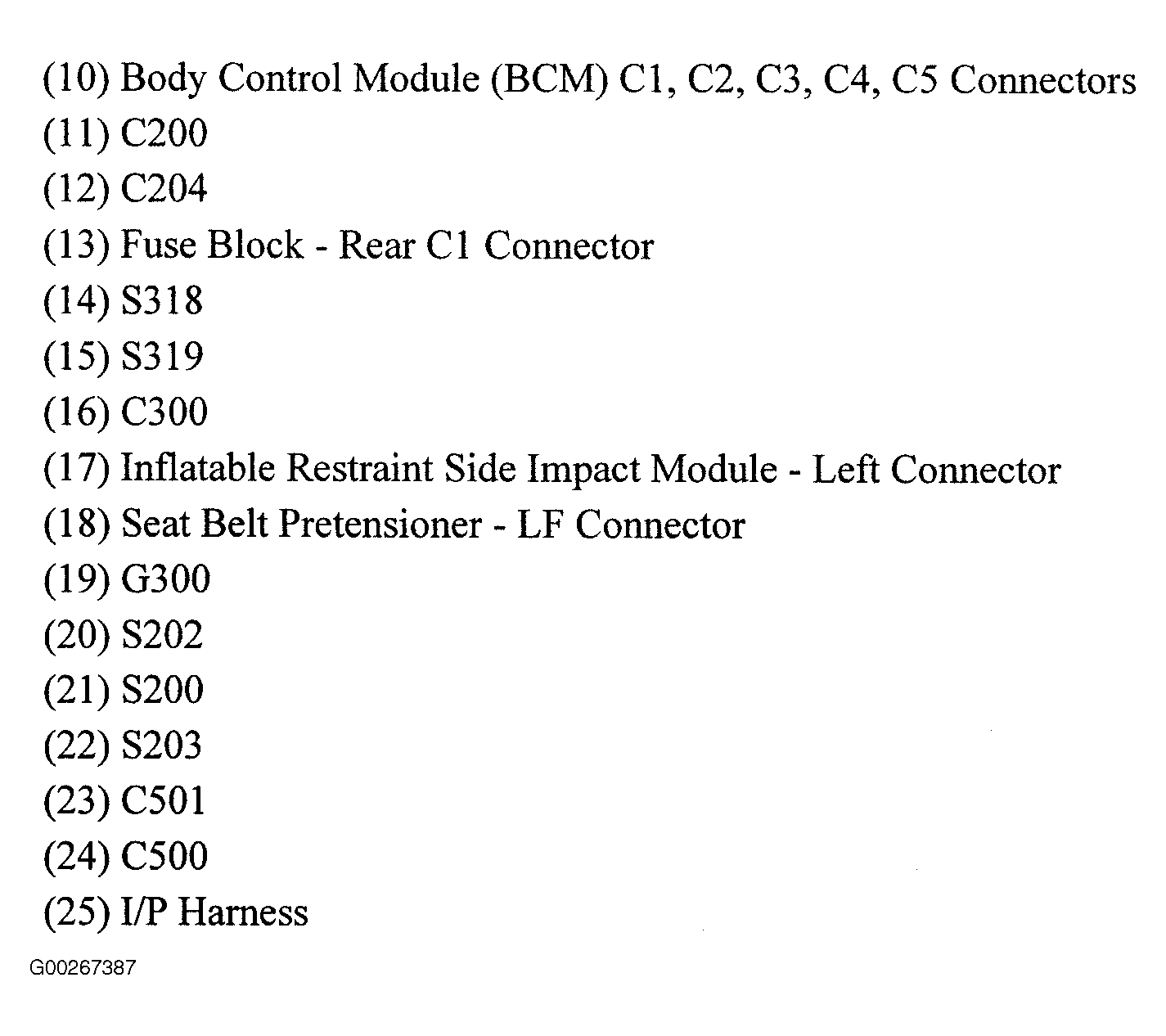

Fig 16: Passenger Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Driver Seat (Up-Level)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Driver Seat (Up-Level)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Passenger Seat
Courtesy of GENERAL MOTORS CORP.

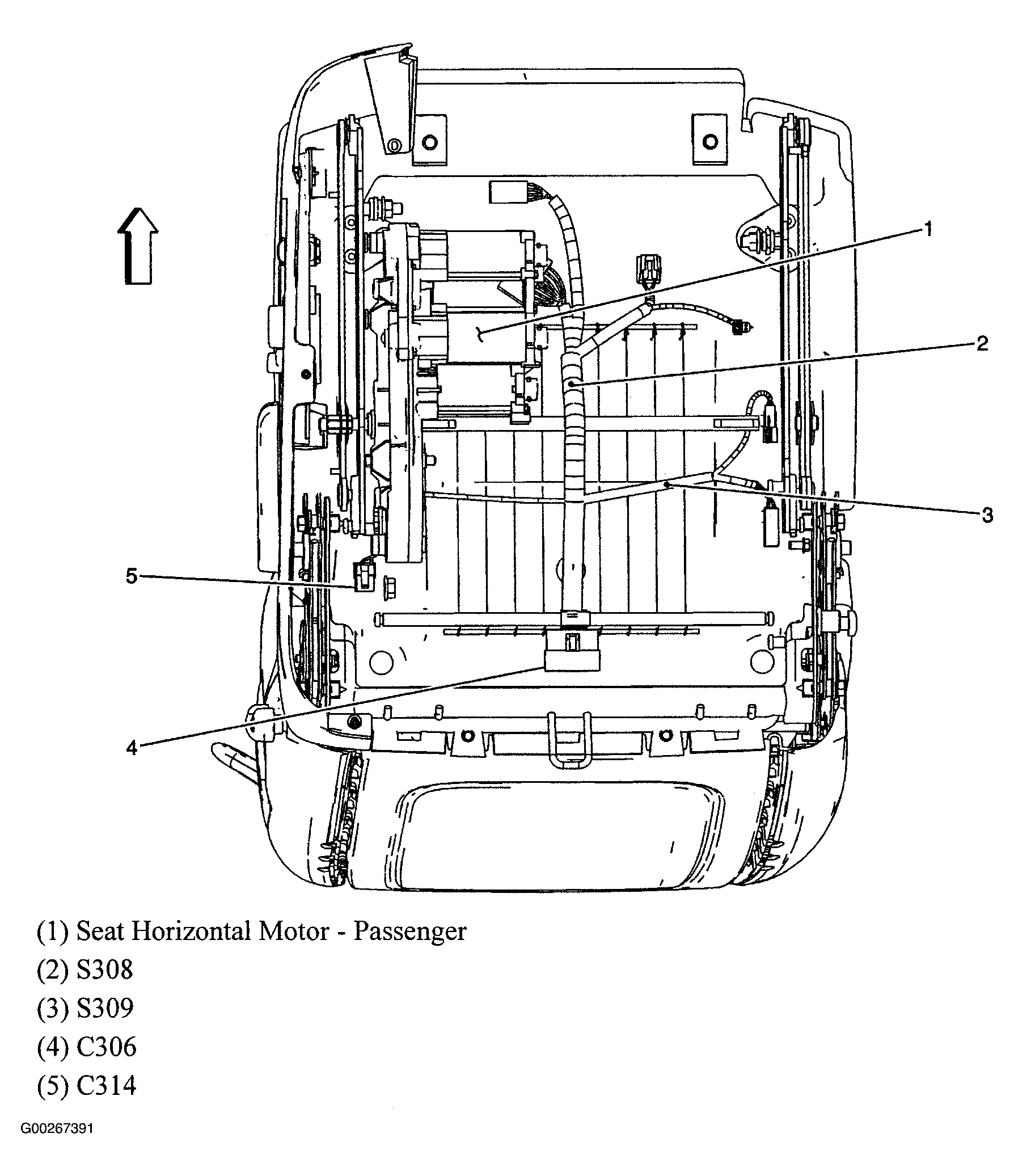

Fig 20: Passenger Seat
Courtesy of GENERAL MOTORS CORP.

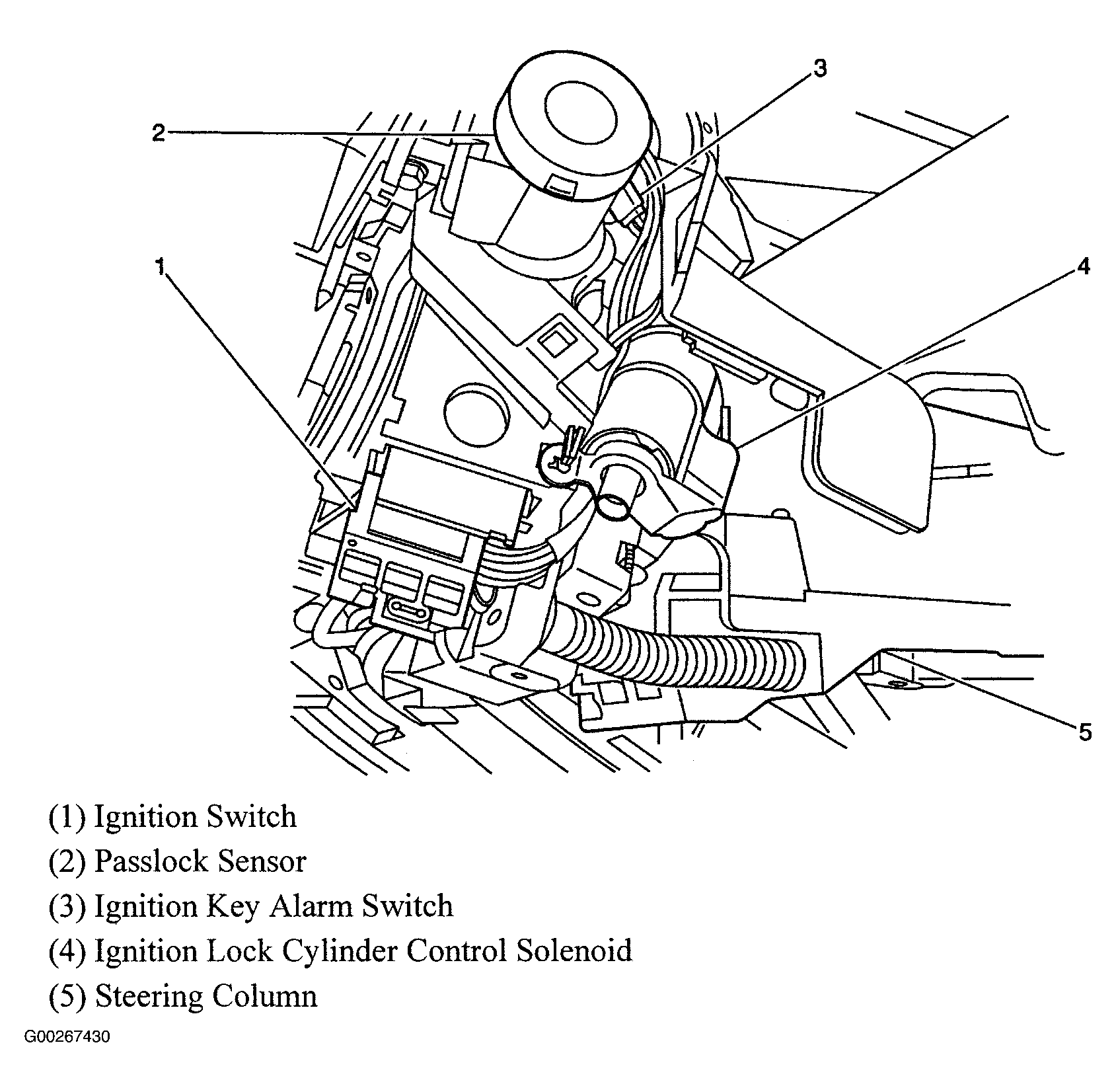

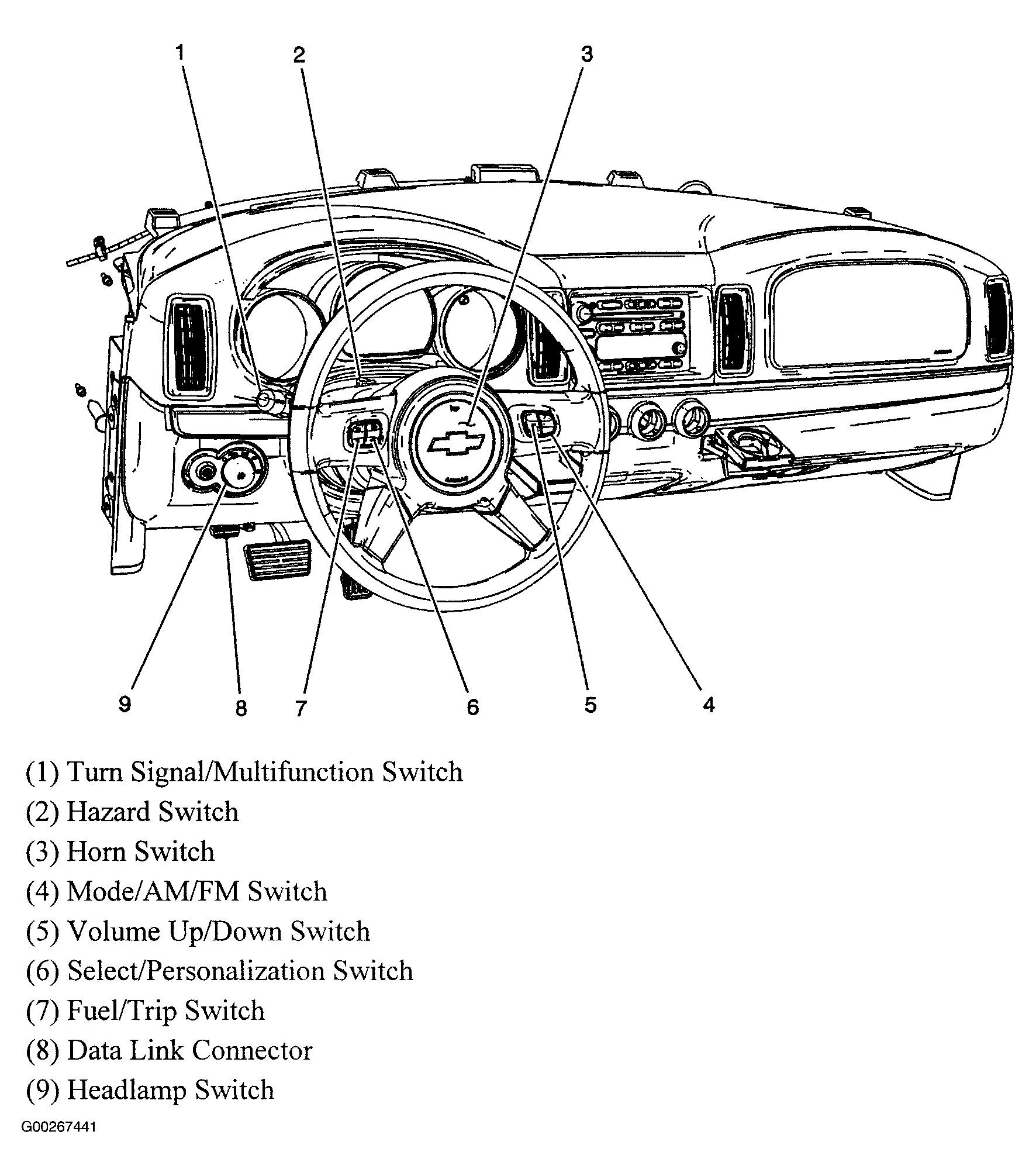

Fig 21: Steering Column
Courtesy of GENERAL MOTORS CORP.

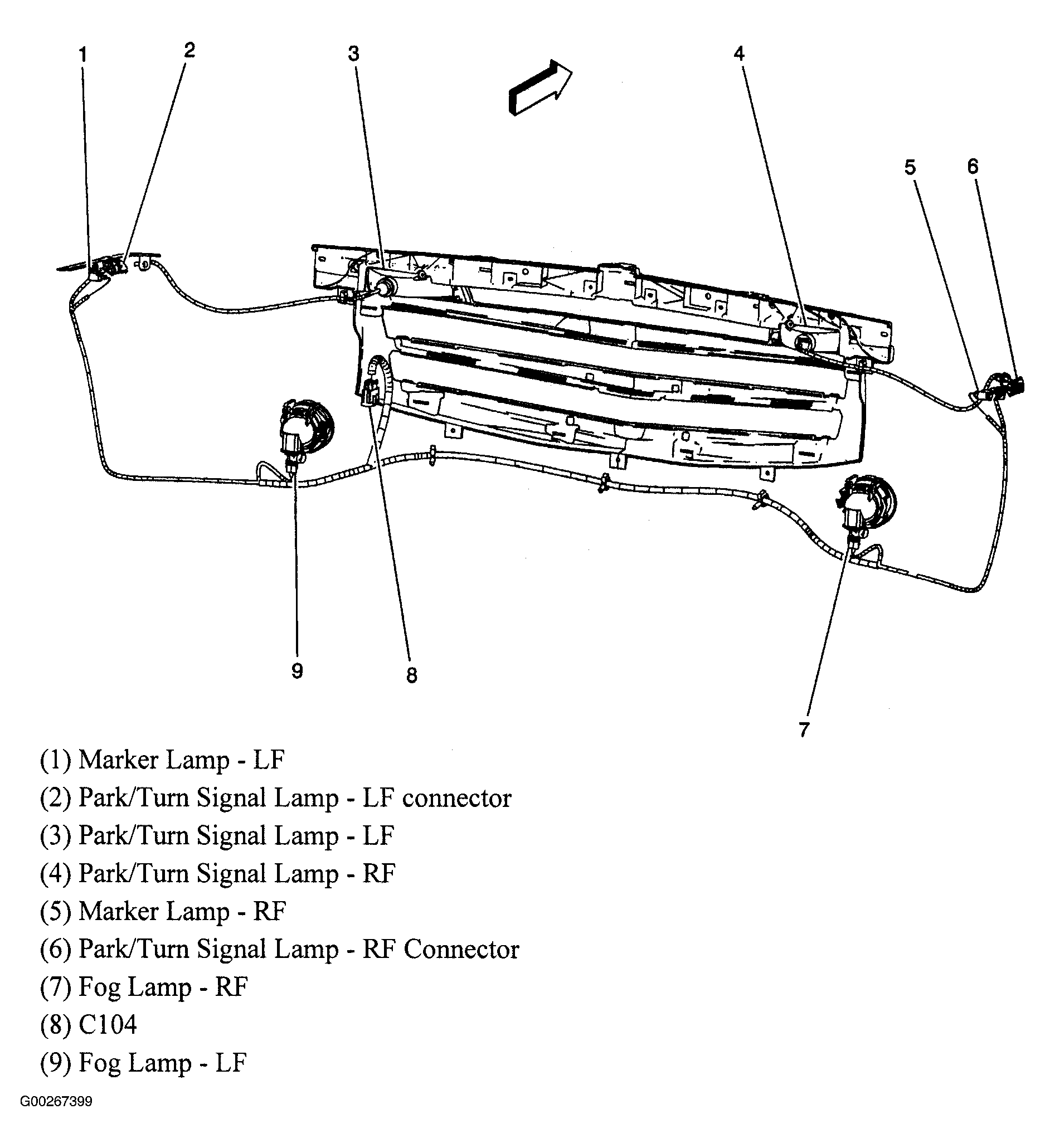

Fig 22: Forward Lamp Harness
Courtesy of GENERAL MOTORS CORP.

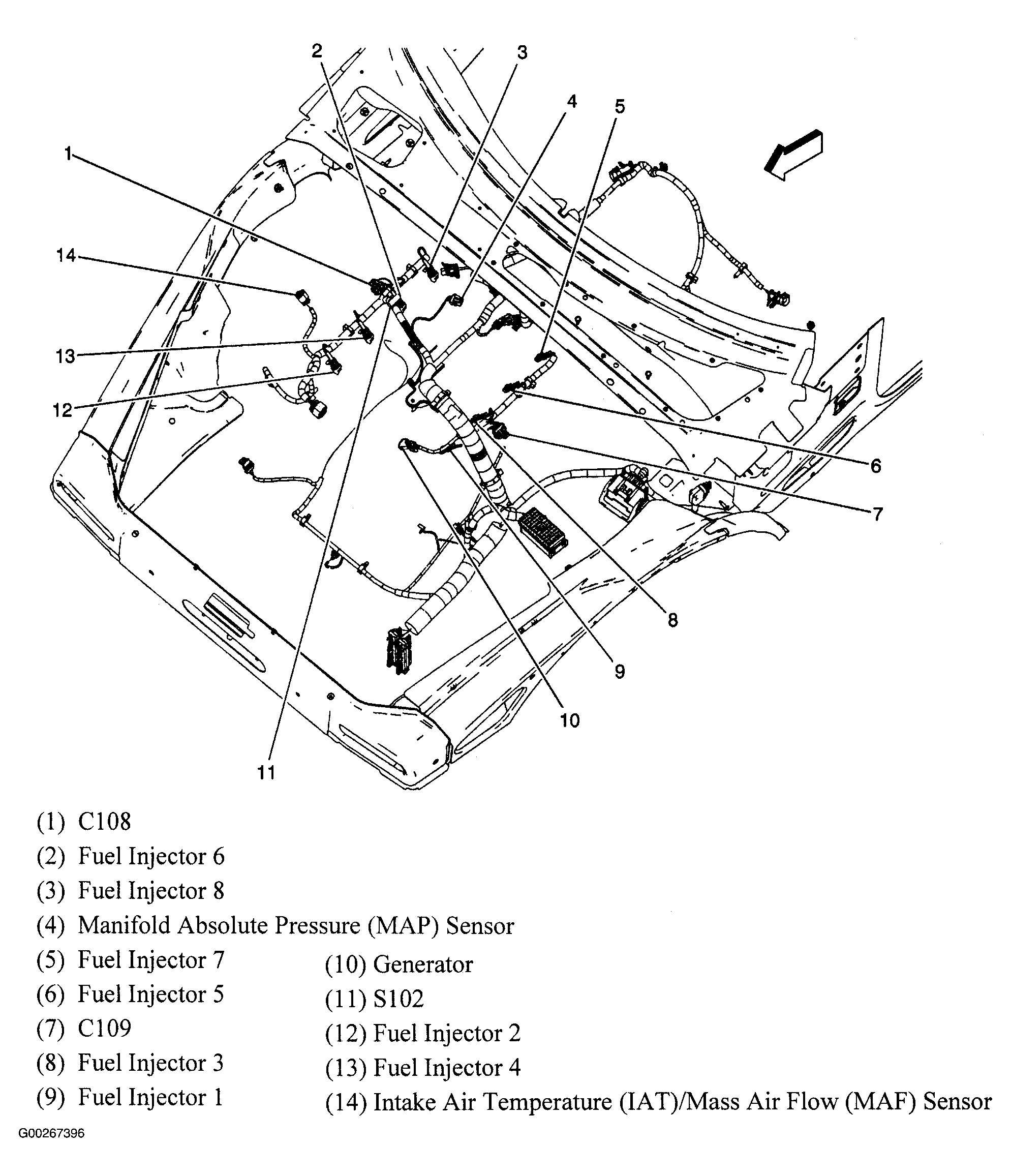

Fig 23: Engine Harness
Courtesy of GENERAL MOTORS CORP.
Fig 24: Engine Harness
Courtesy of GENERAL MOTORS CORP.
Fig 25: Passenger Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Passenger Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Front Harness
Courtesy of GENERAL MOTORS CORP.

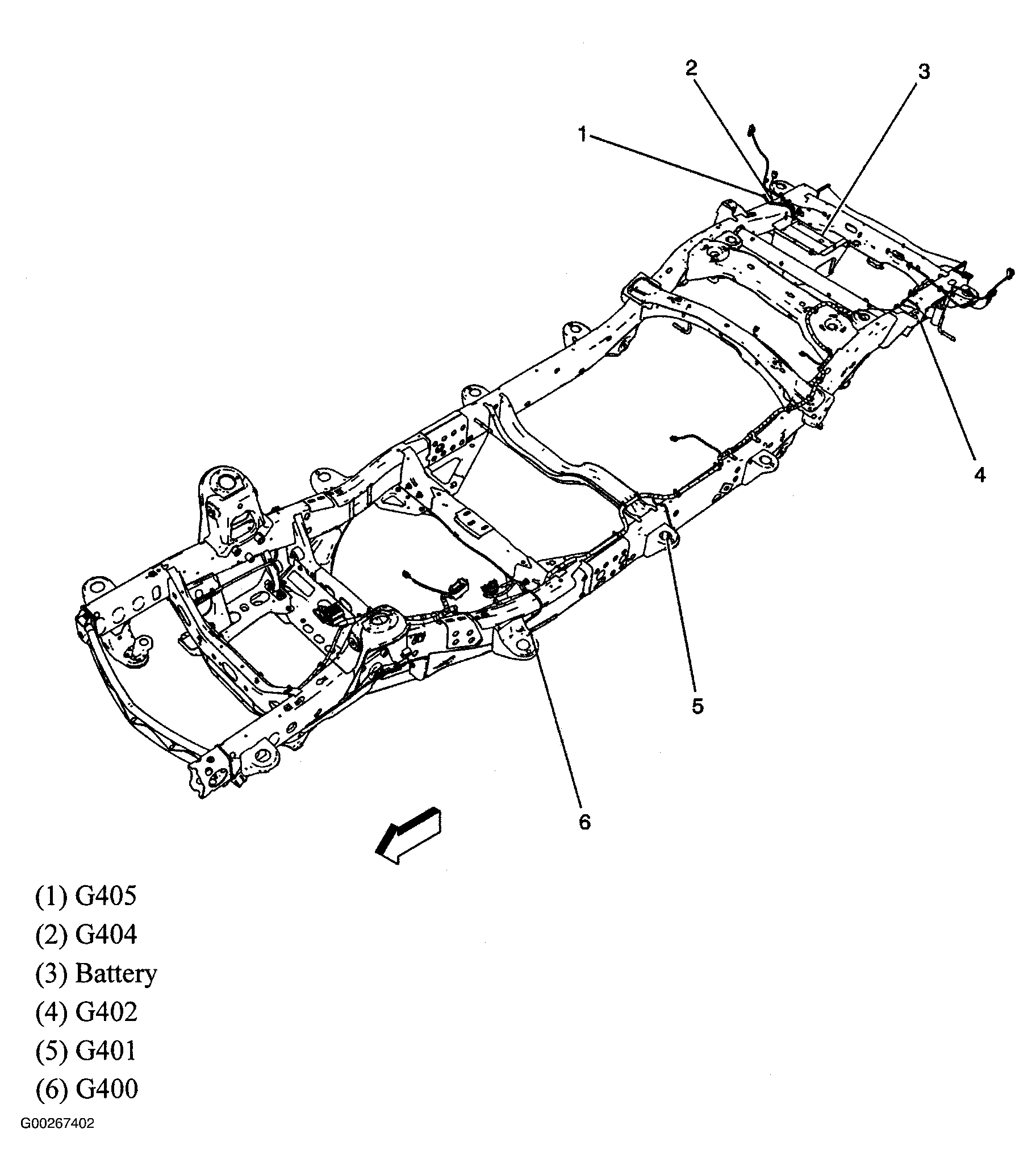

Fig 28: Chassis Grounds
Courtesy of GENERAL MOTORS CORP.

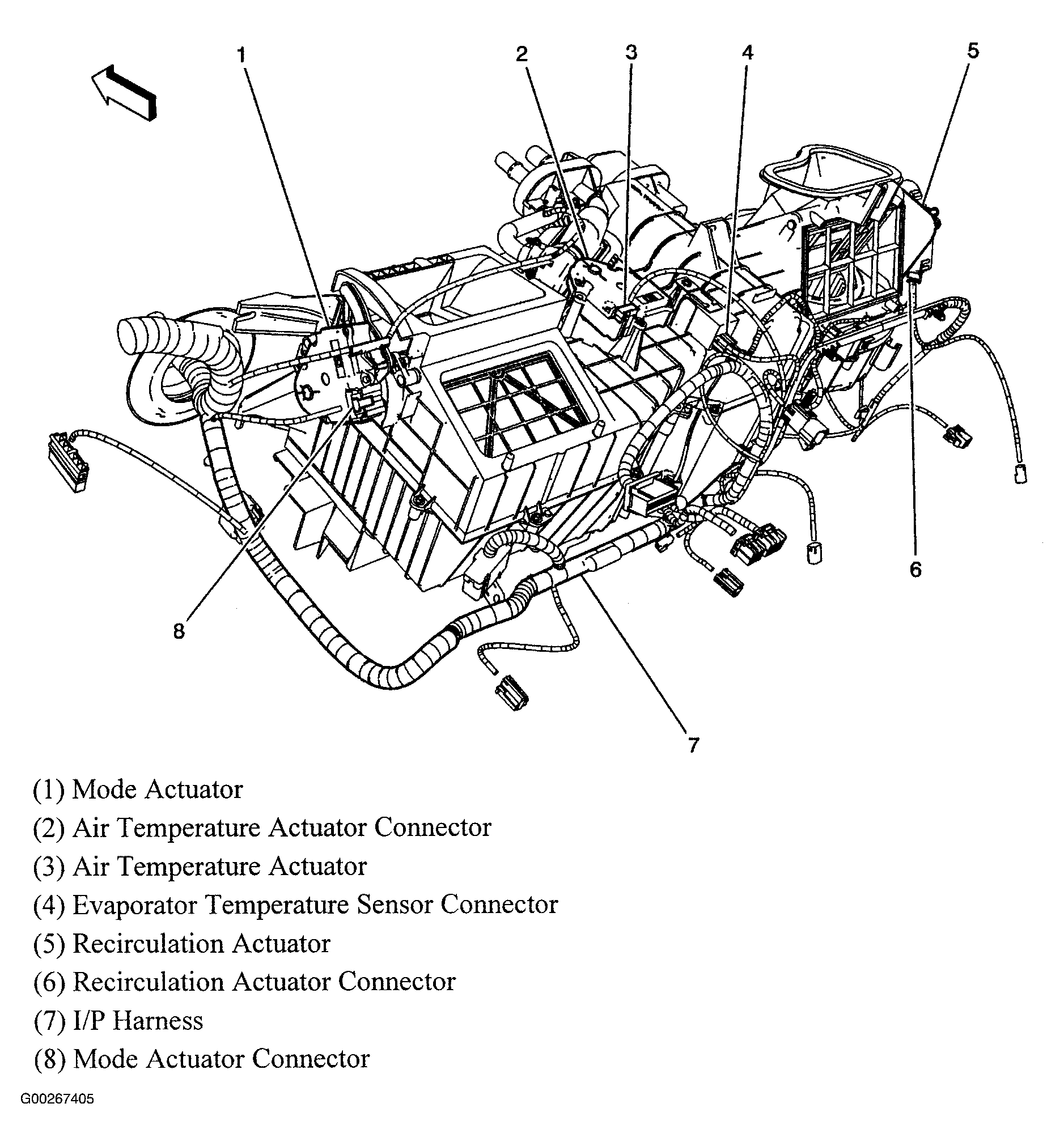

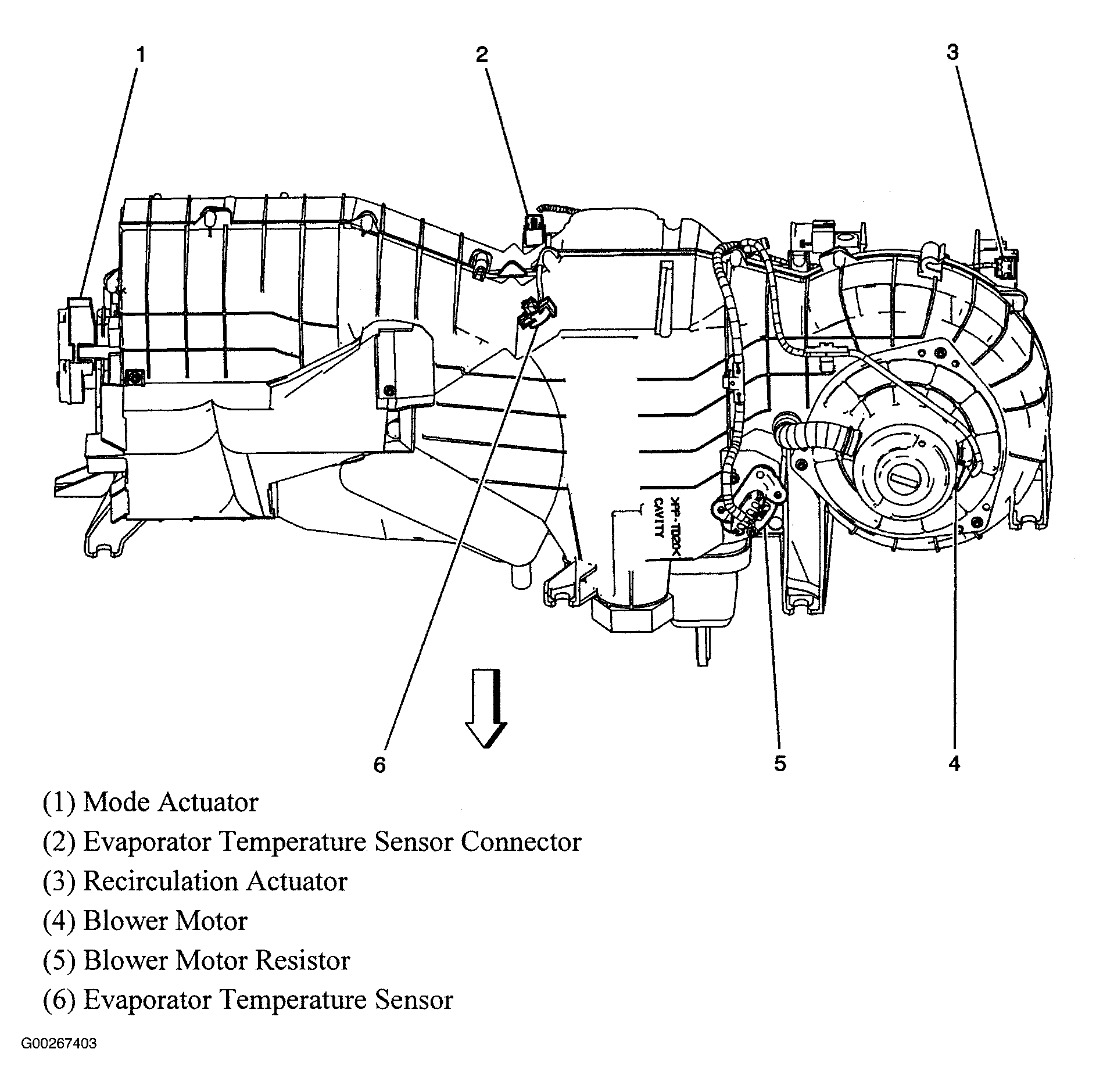

Fig 29: A/C System (Under Dash)
Courtesy of GENERAL MOTORS CORP.

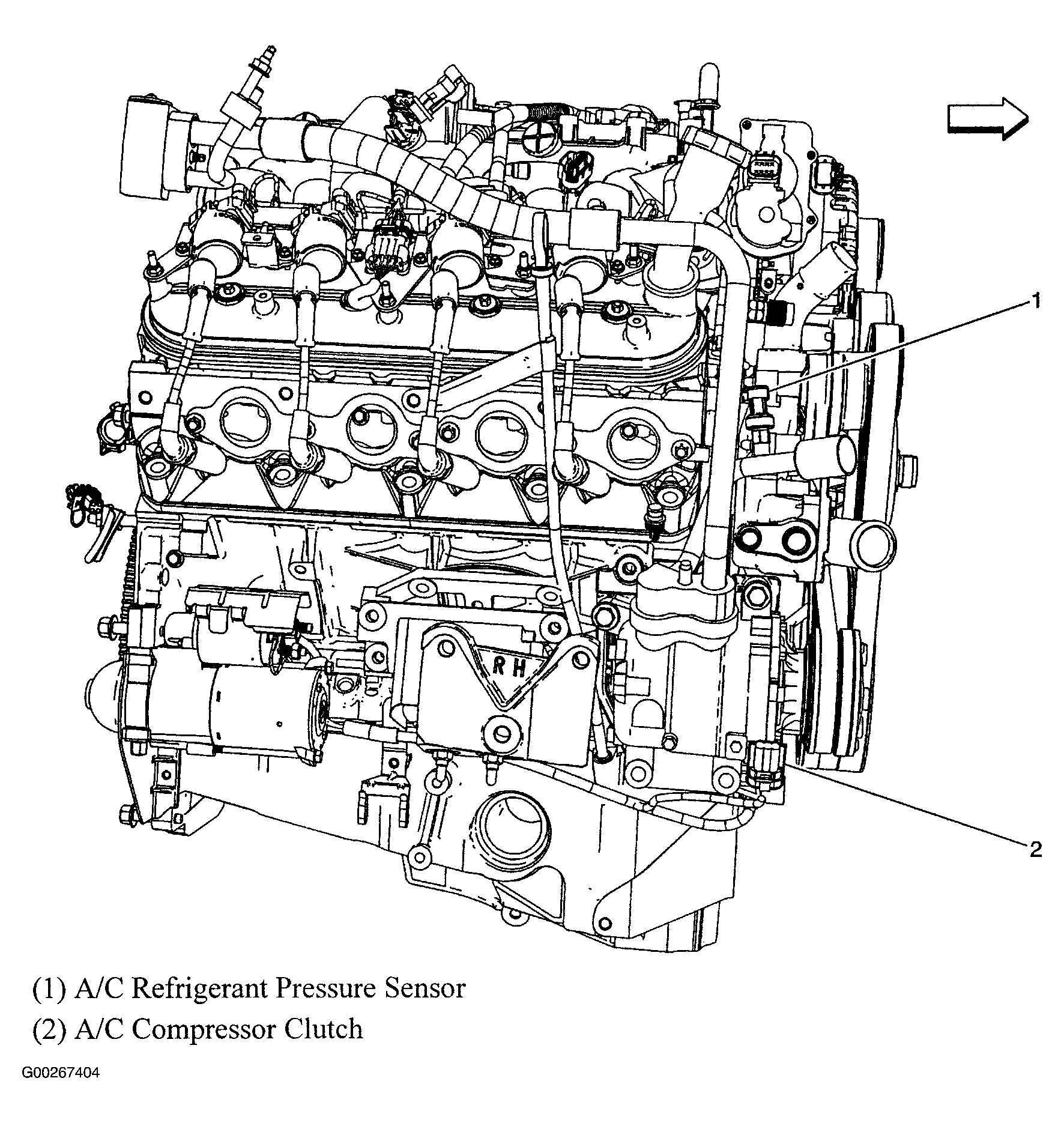

Fig 30: A/C System (Engine)
Courtesy of GENERAL MOTORS CORP.
Fig 31: A/C System (Under Dash)
Courtesy of GENERAL MOTORS CORP.

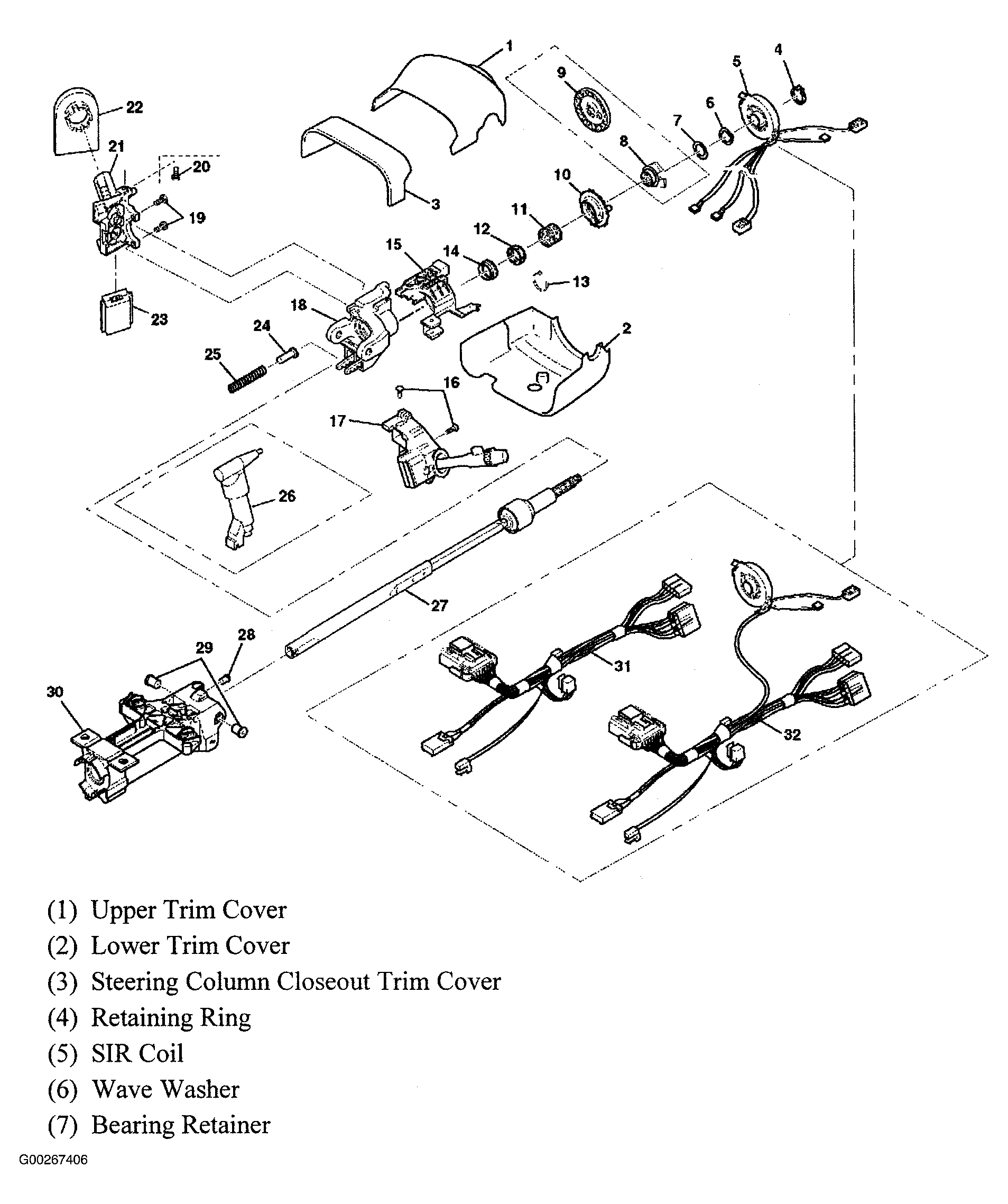

Fig 32: Steering Column (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Steering Column (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 35: ABS System Overview
Courtesy of GENERAL MOTORS CORP.

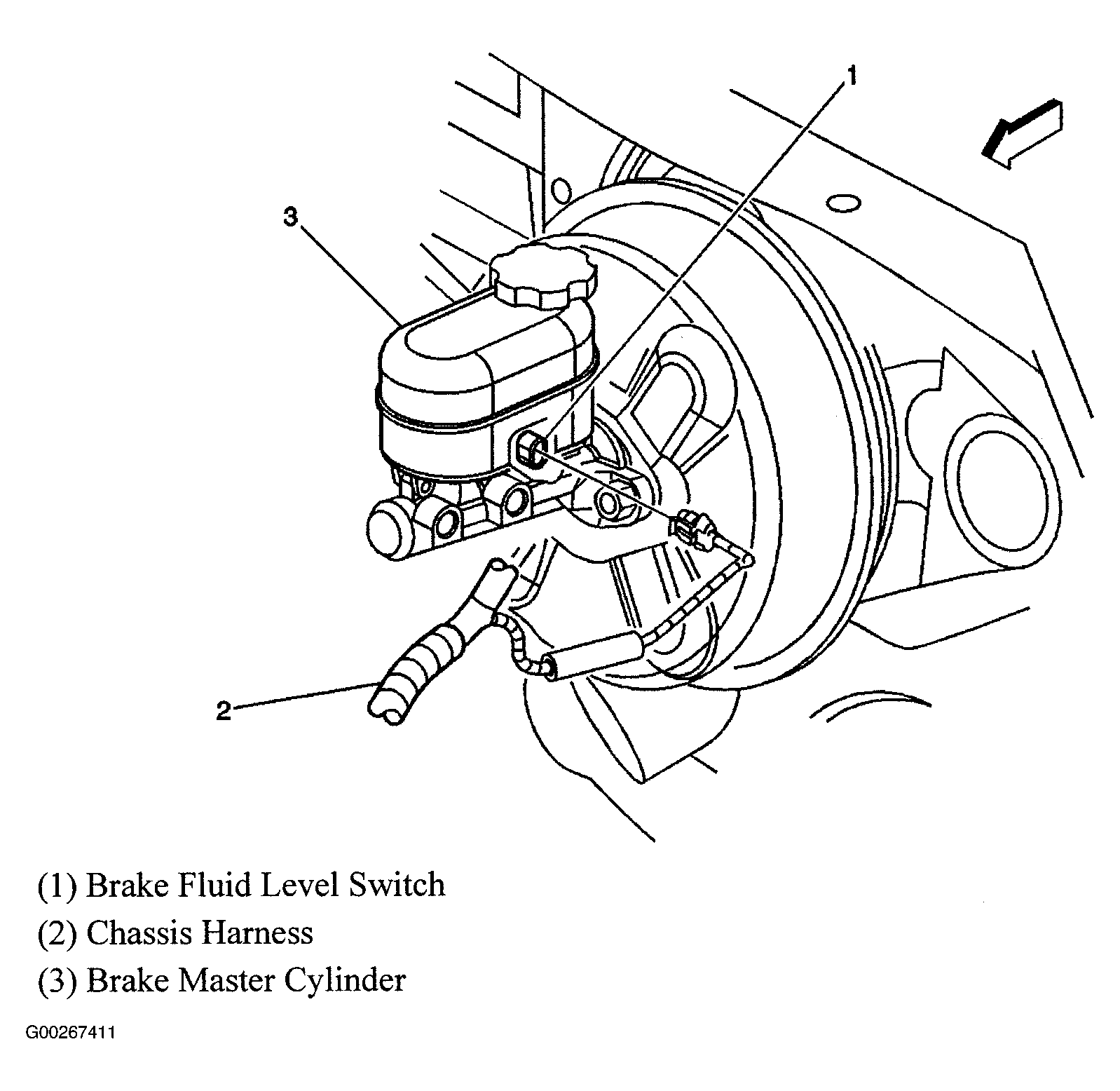

Fig 36: Brake Fluid Level Switch
Courtesy of GENERAL MOTORS CORP.

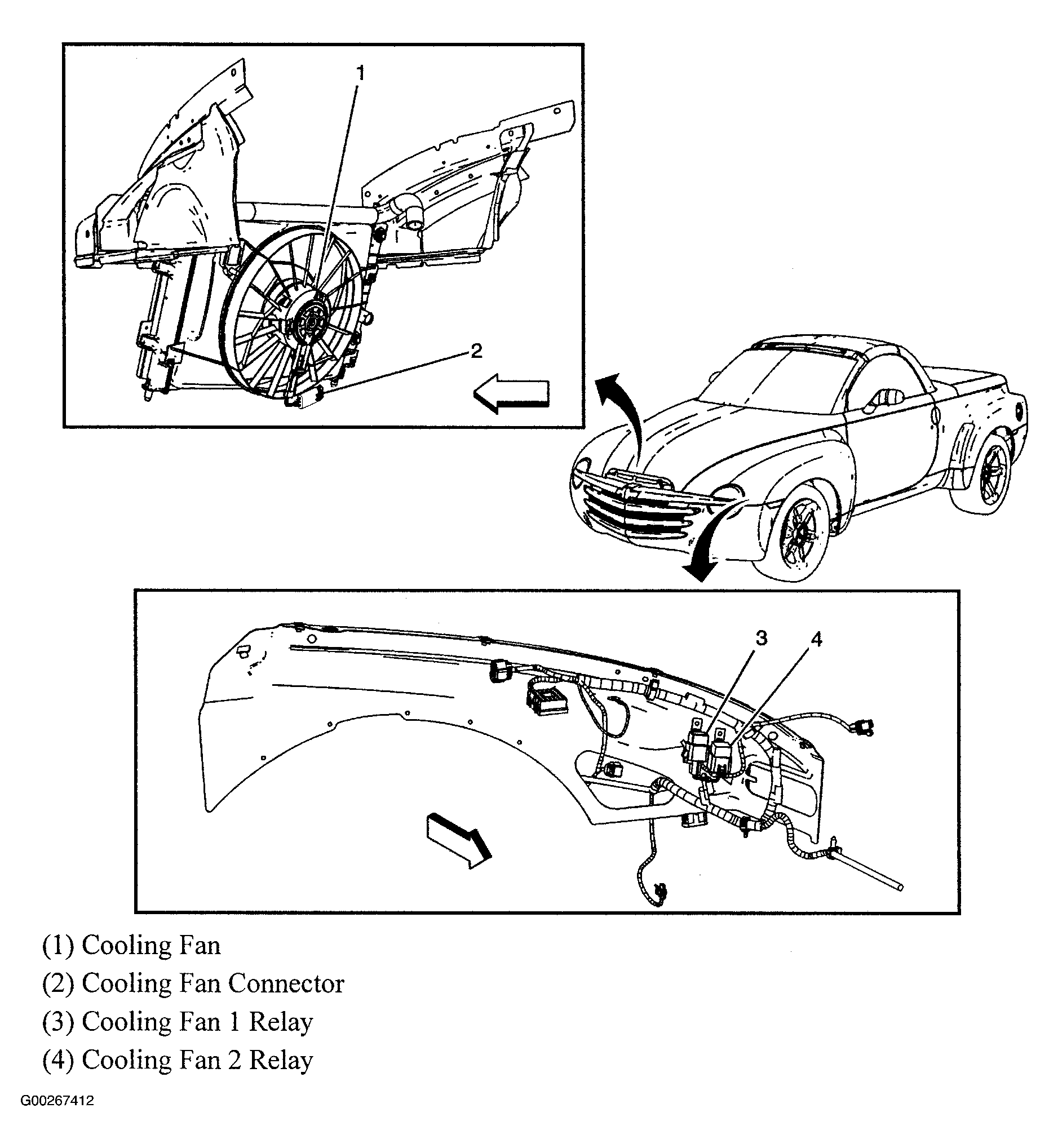

Fig 37: Cooling System Overview
Courtesy of GENERAL MOTORS CORP.

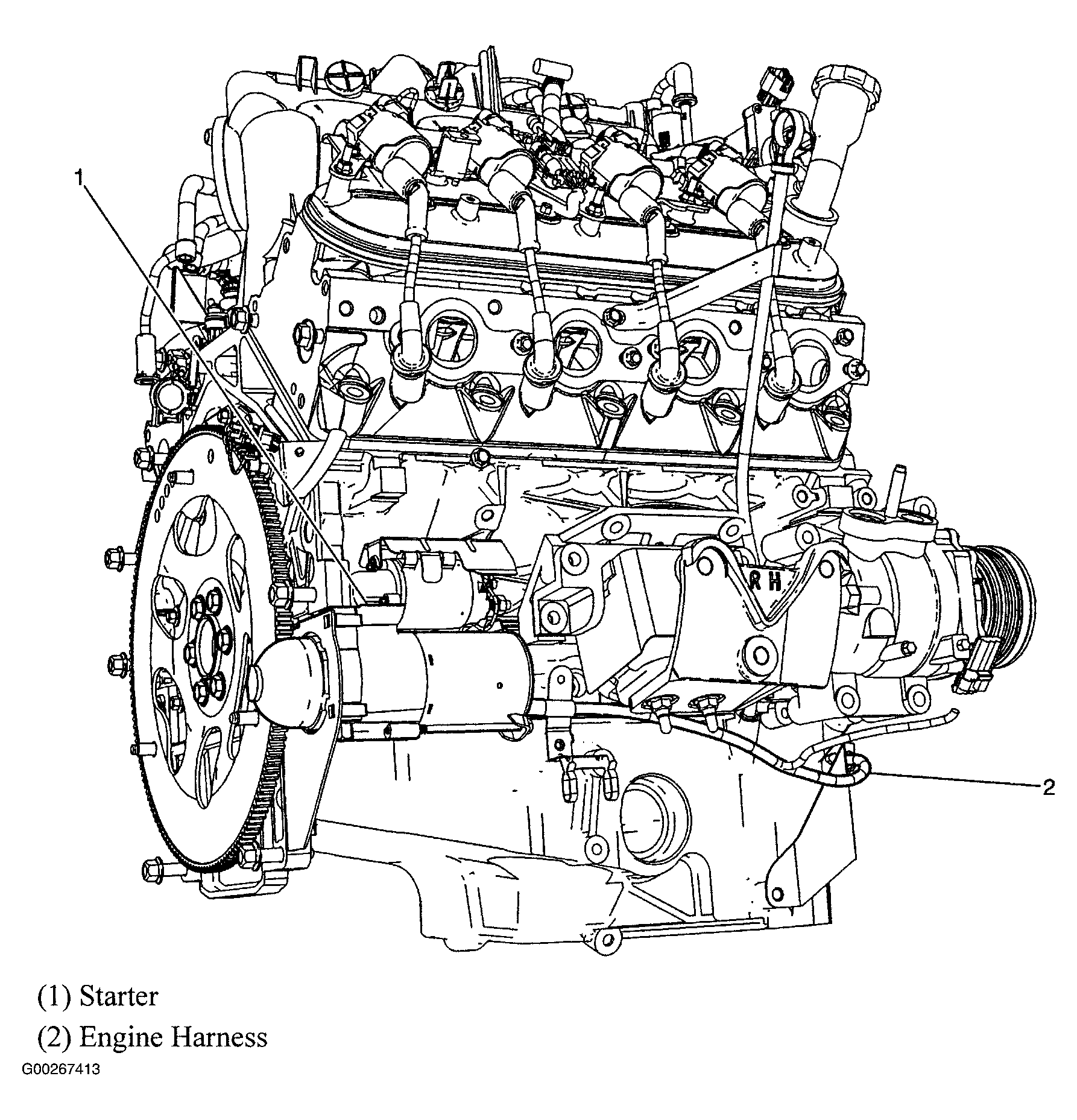

Fig 38: Starter
Courtesy of GENERAL MOTORS CORP.

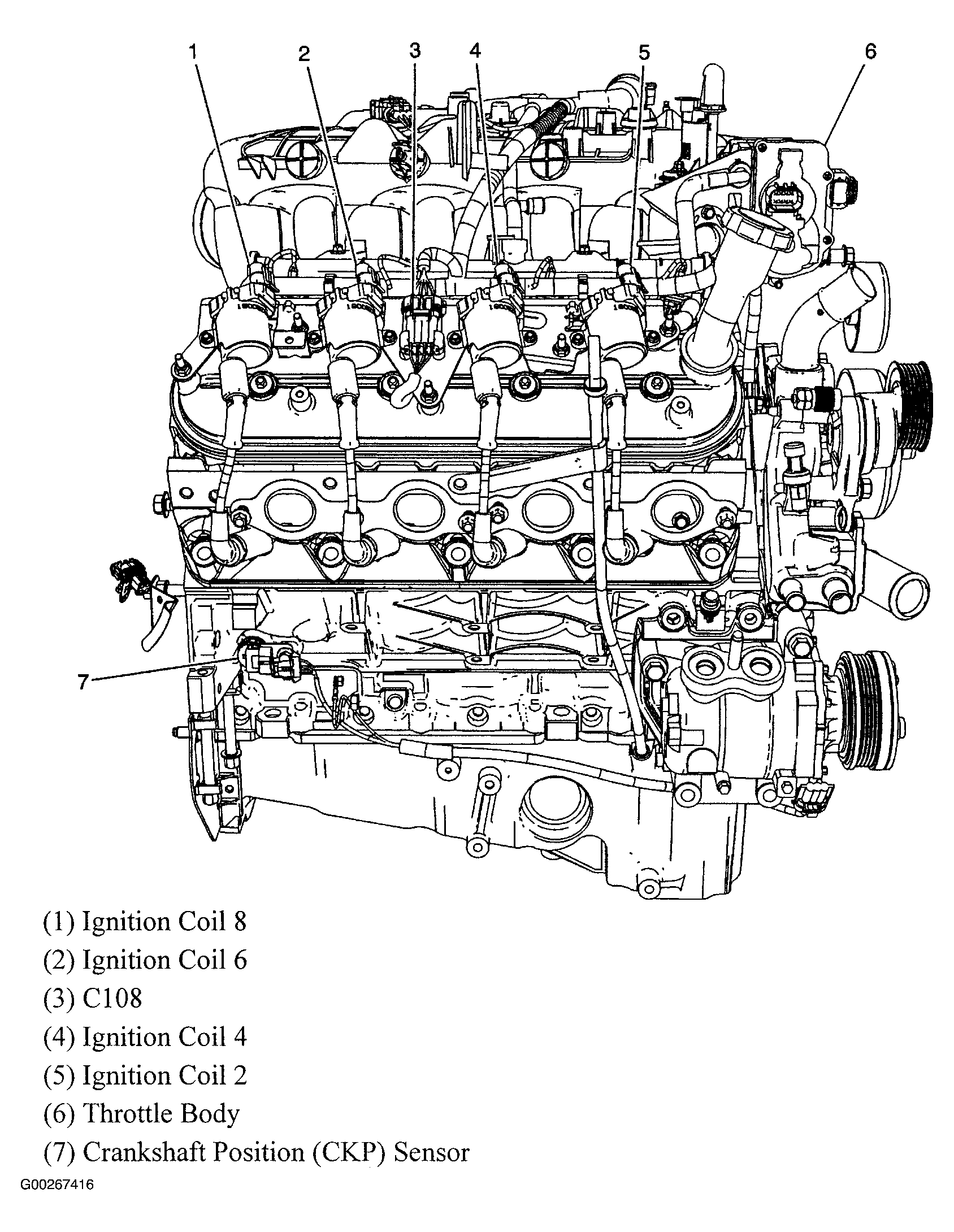

Fig 39: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

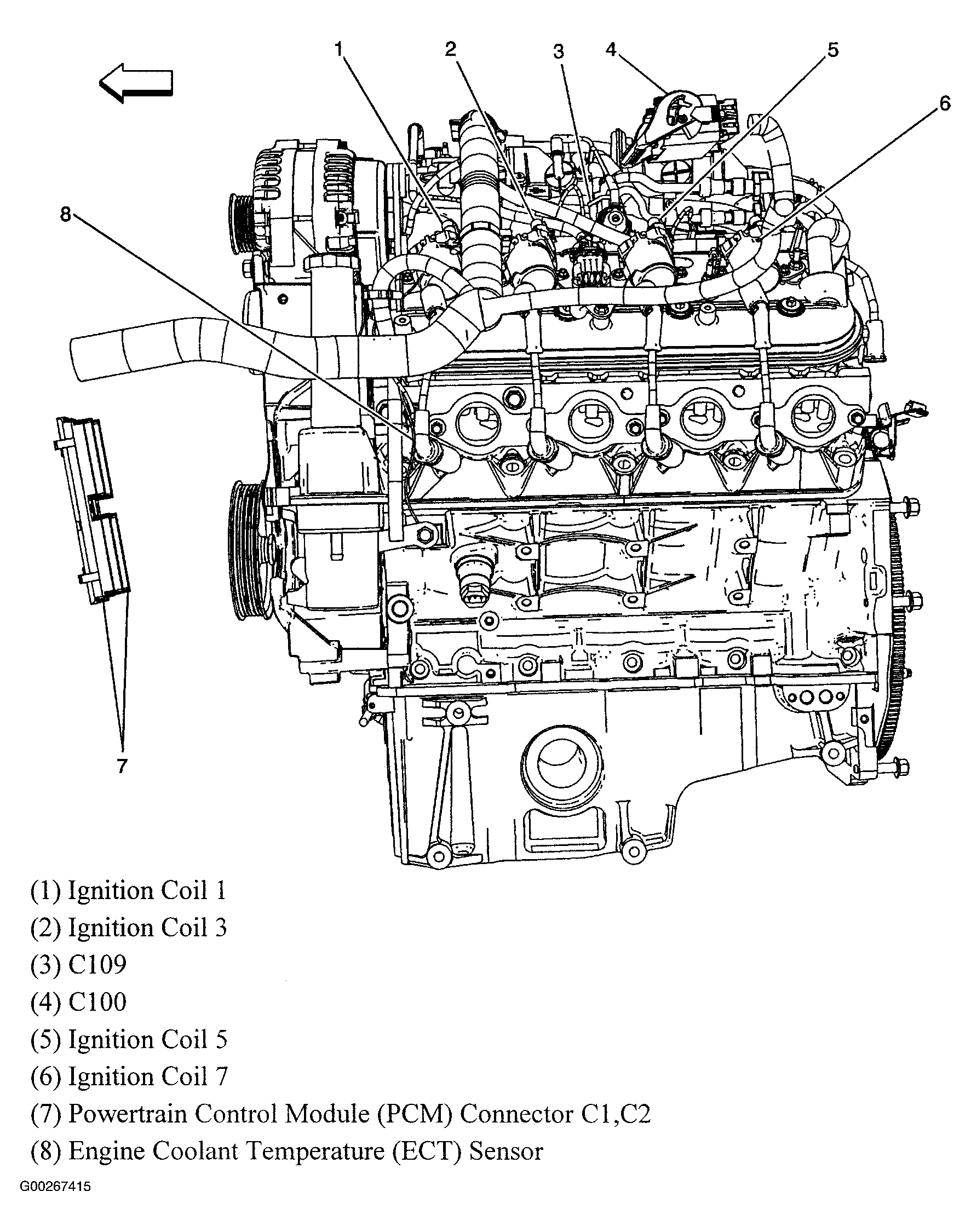

Fig 40: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 41: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

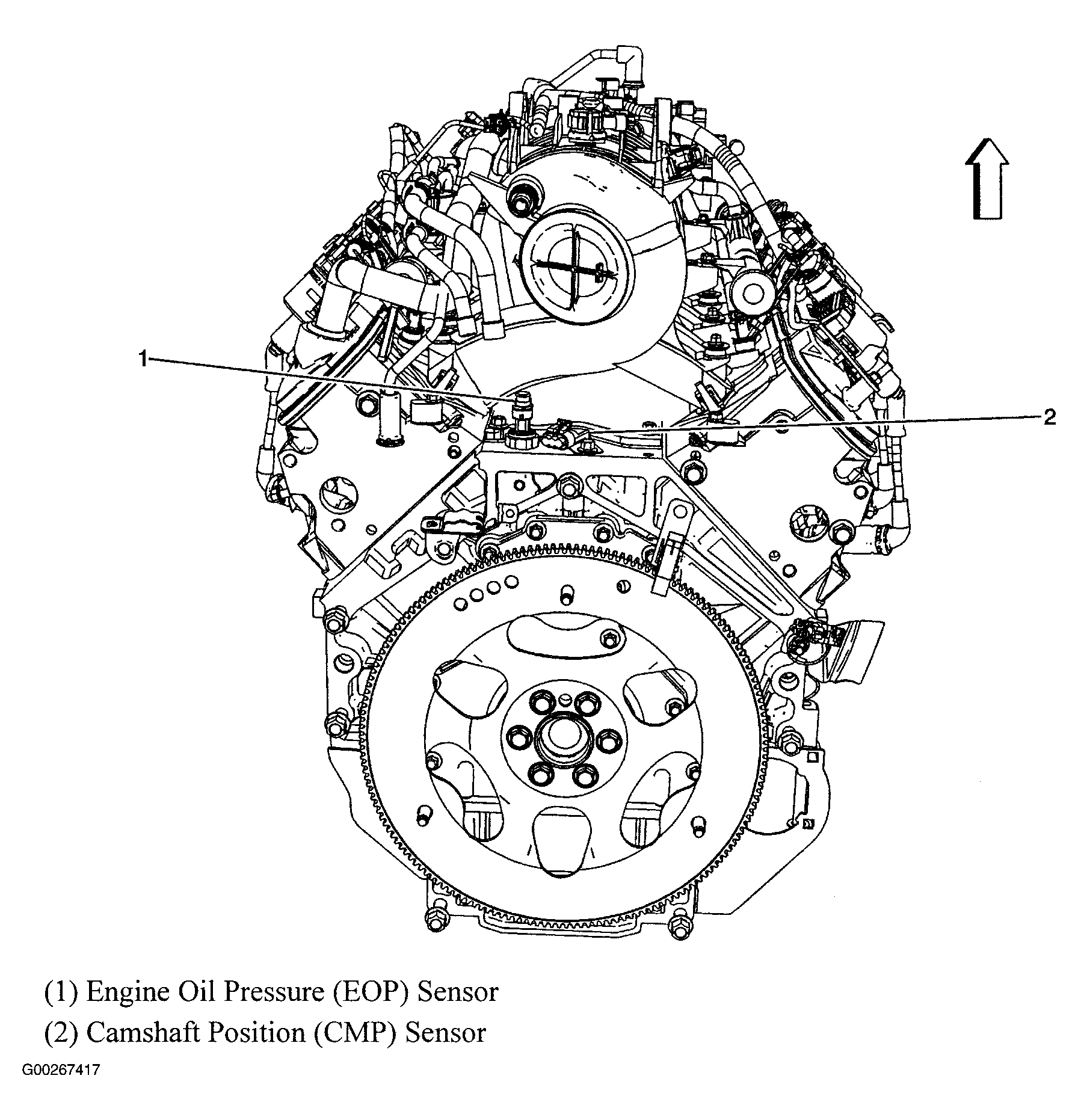

Fig 42: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

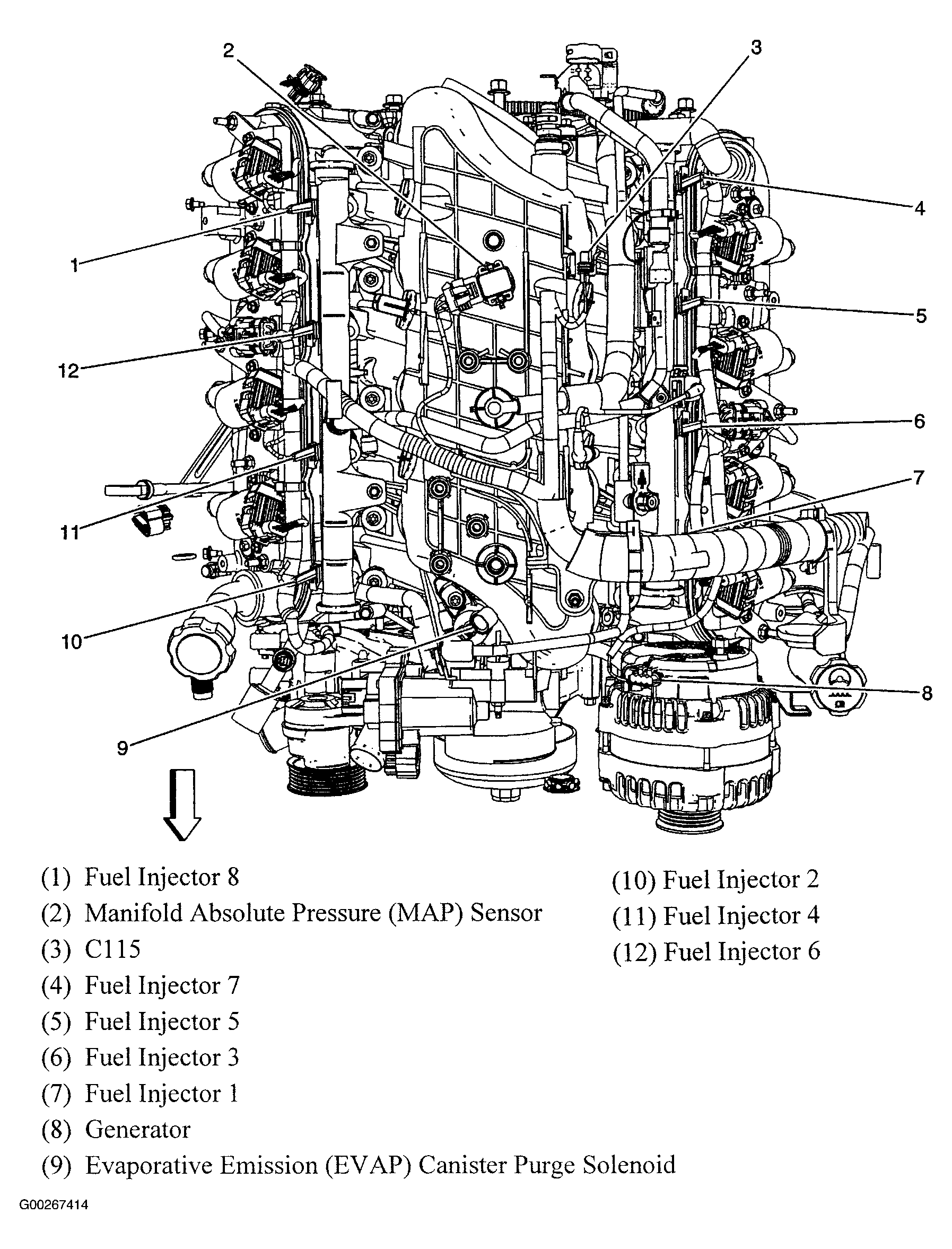

Fig 43: Engine Overview
Courtesy of GENERAL MOTORS CORP.

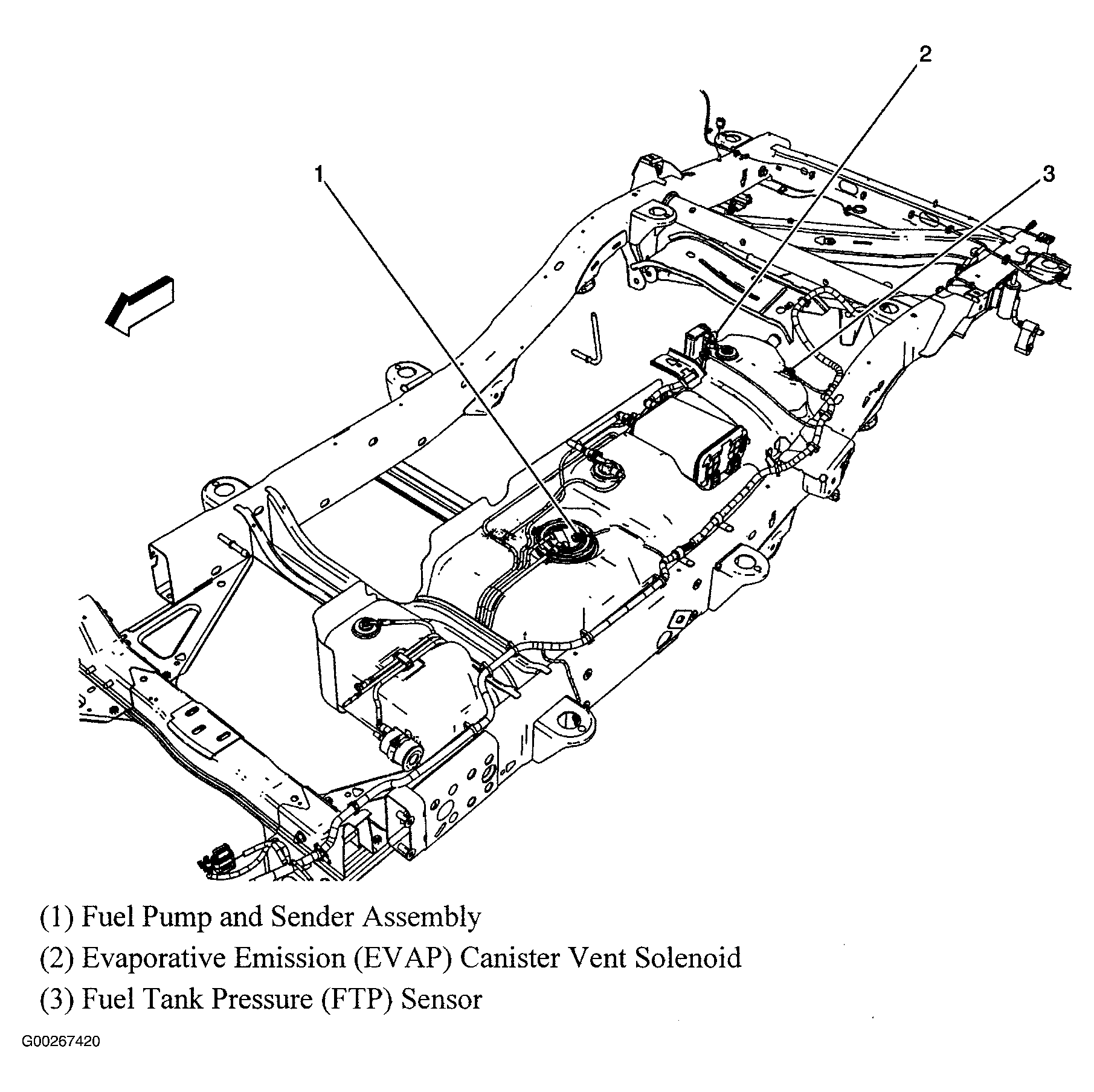

Fig 44: Fuel System
Courtesy of GENERAL MOTORS CORP.

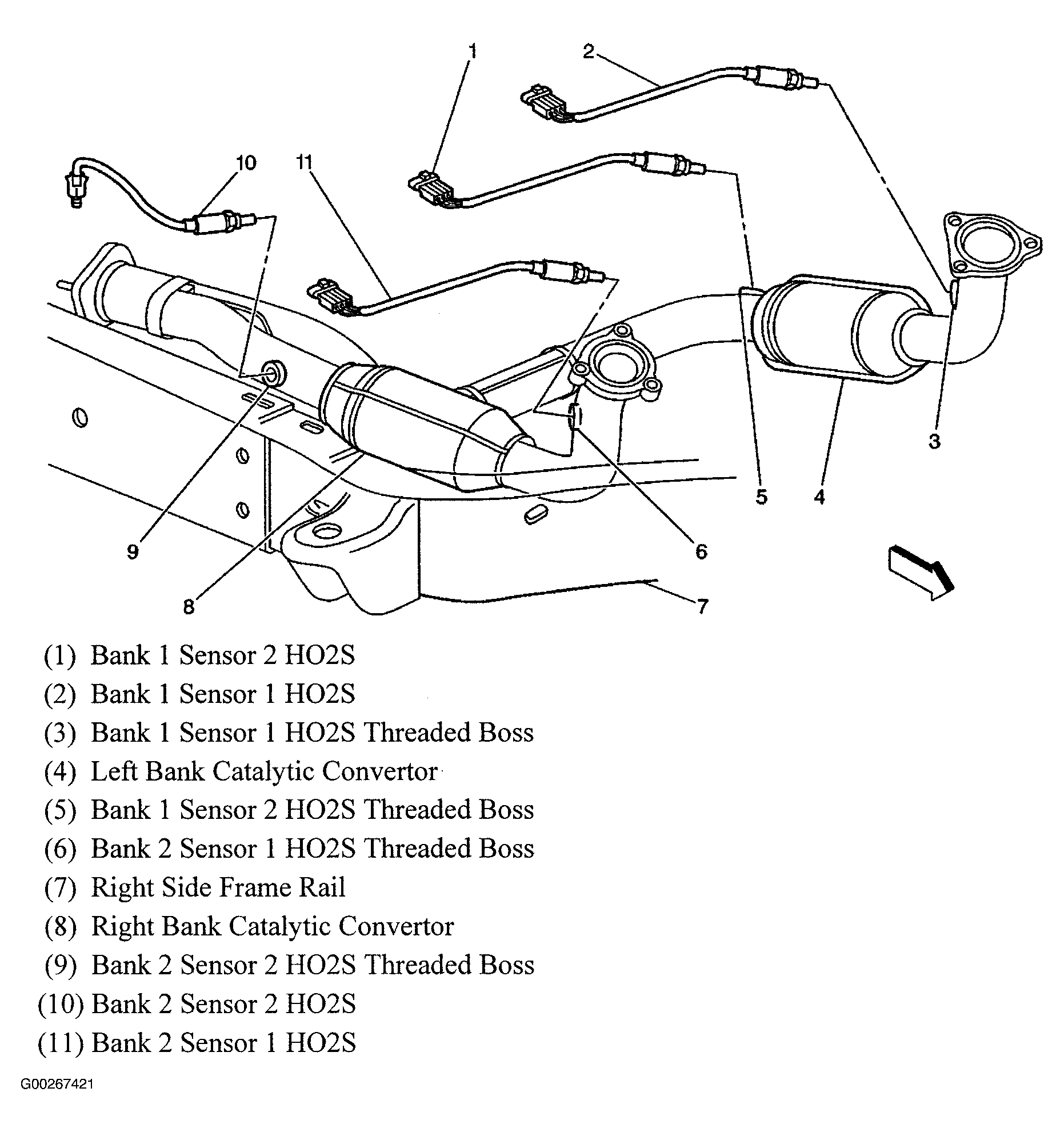

Fig 45: Exhaust System
Courtesy of GENERAL MOTORS CORP.

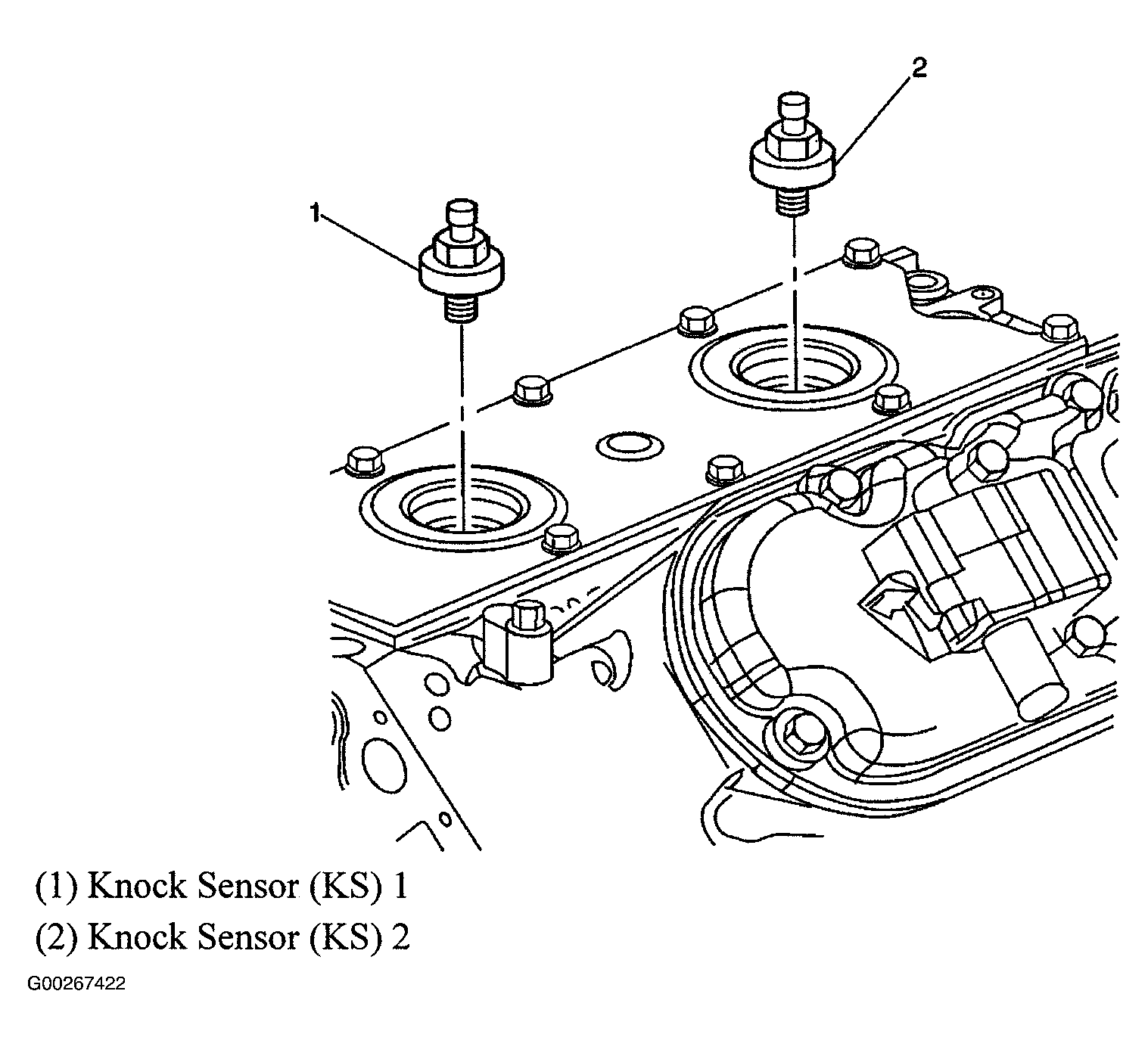

Fig 46: Knock Sensors
Courtesy of GENERAL MOTORS CORP.

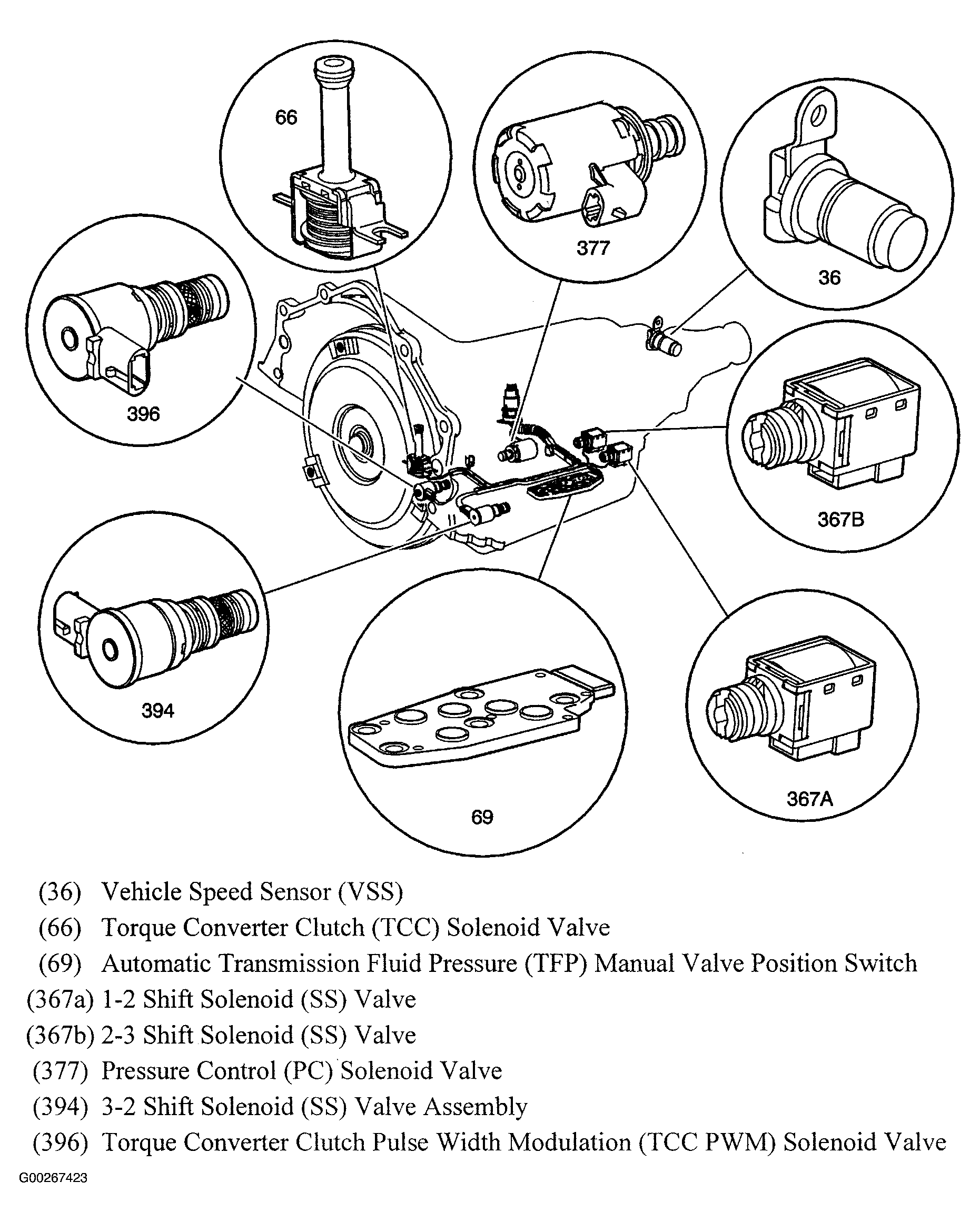

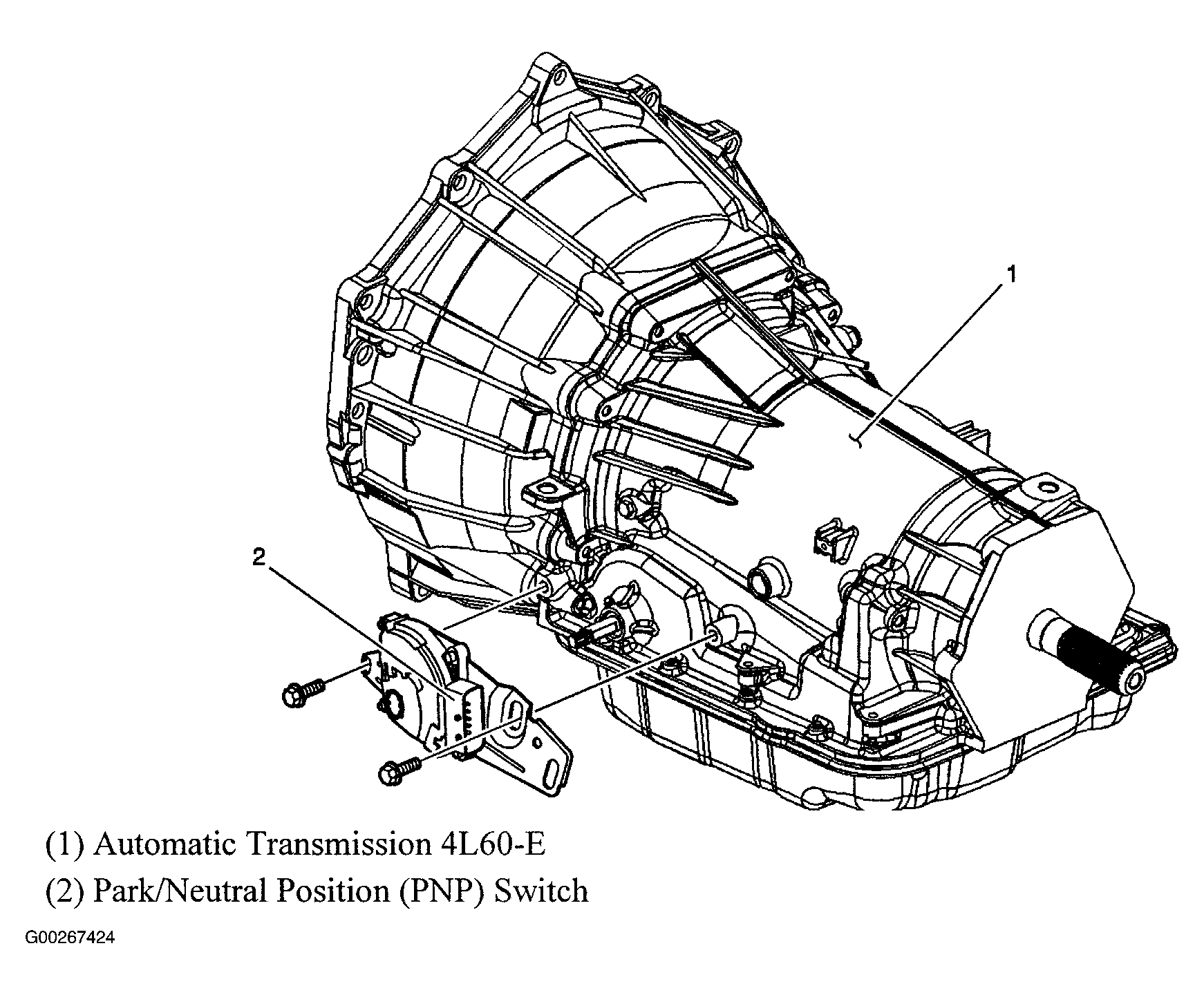

Fig 47: Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.

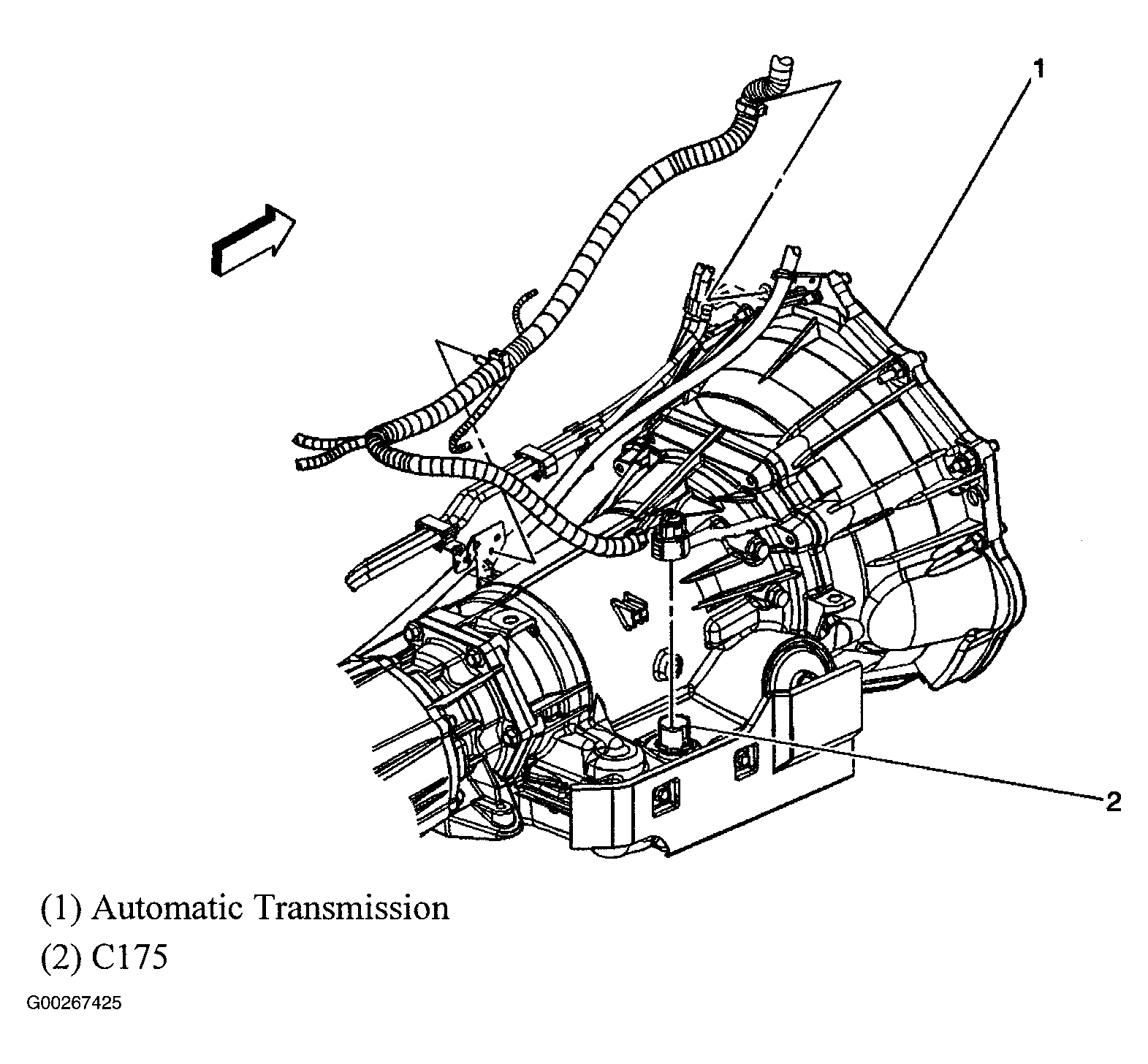

Fig 48: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 49: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

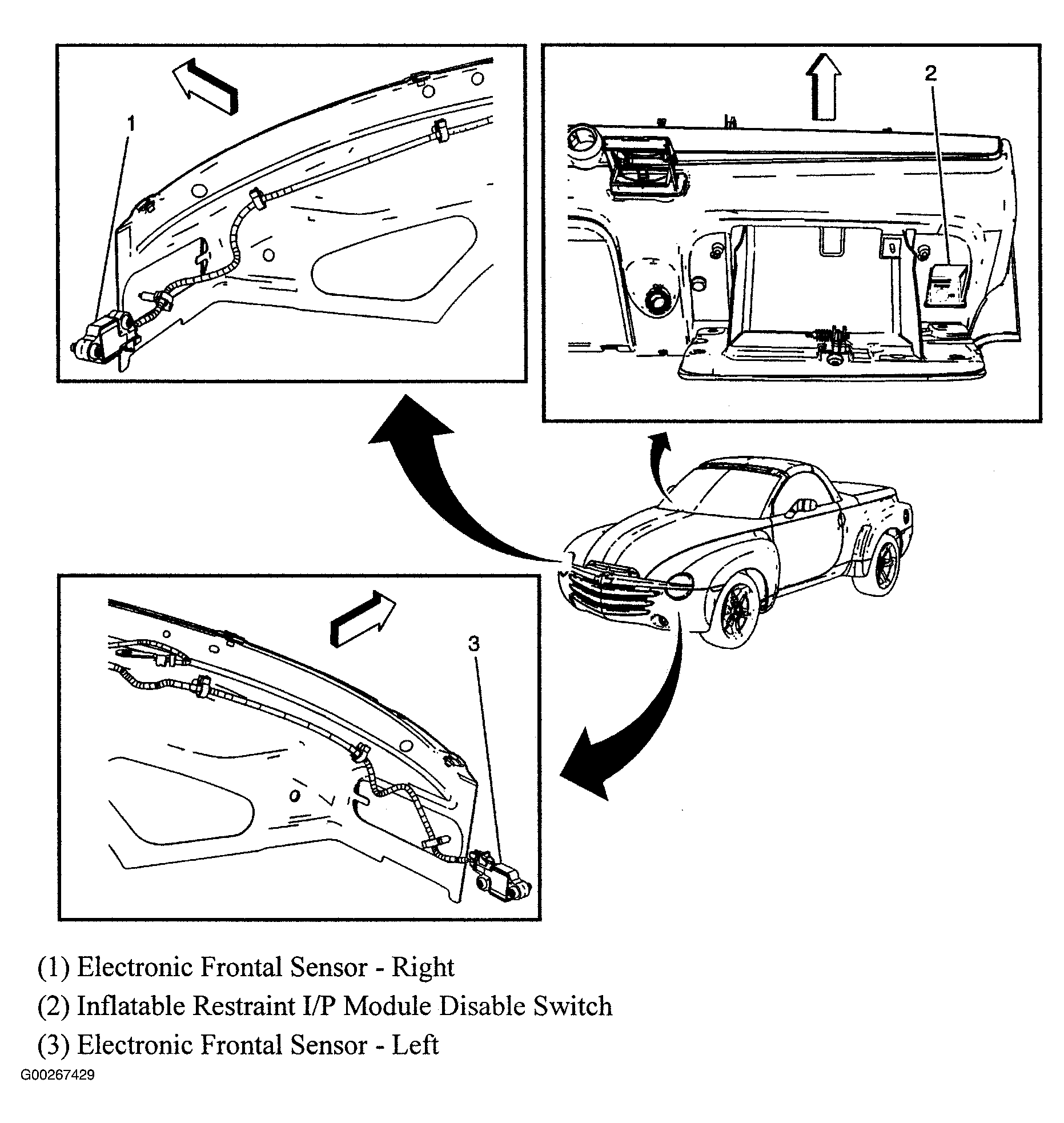

Fig 50: Inflatable Restraint System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 51: Inflatable Restraint System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 52: Anti-Theft System
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Side Of Dash & Rear Compartment Components
Courtesy of GENERAL MOTORS CORP.
Fig 54: Roof/Door Module & Rear Relay Block
Courtesy of GENERAL MOTORS CORP.

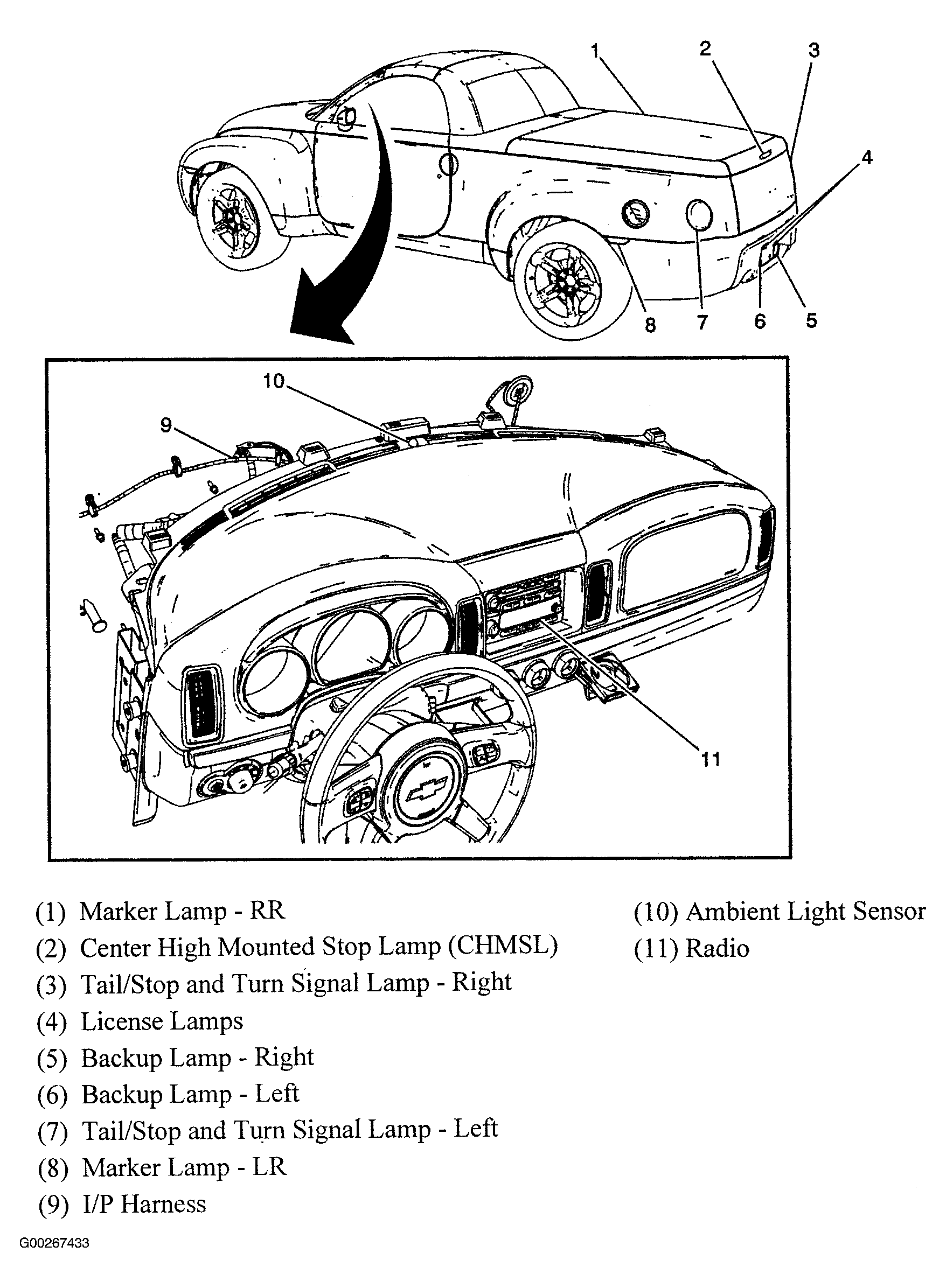

Fig 55: Lighting System
Courtesy of GENERAL MOTORS CORP.

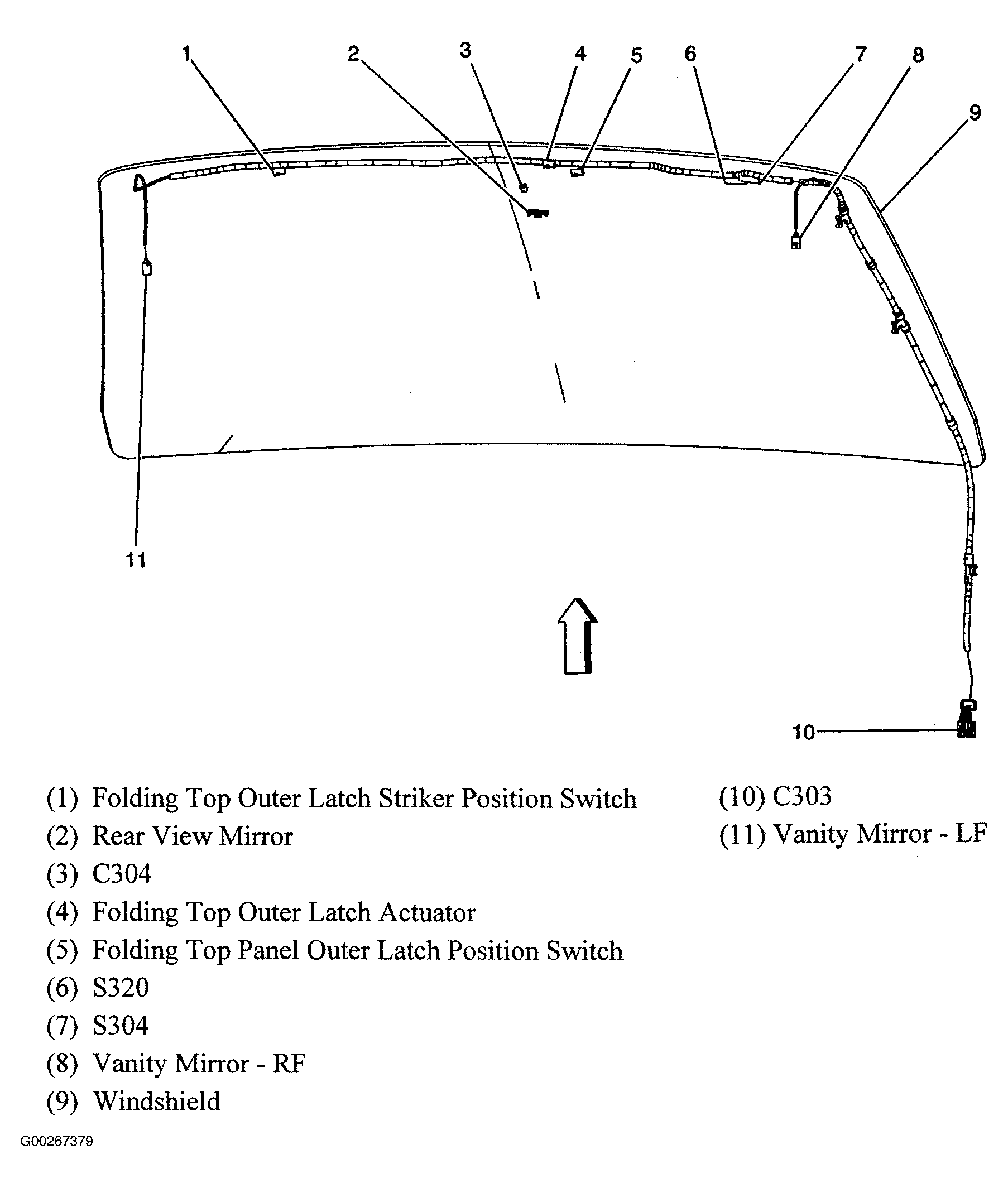

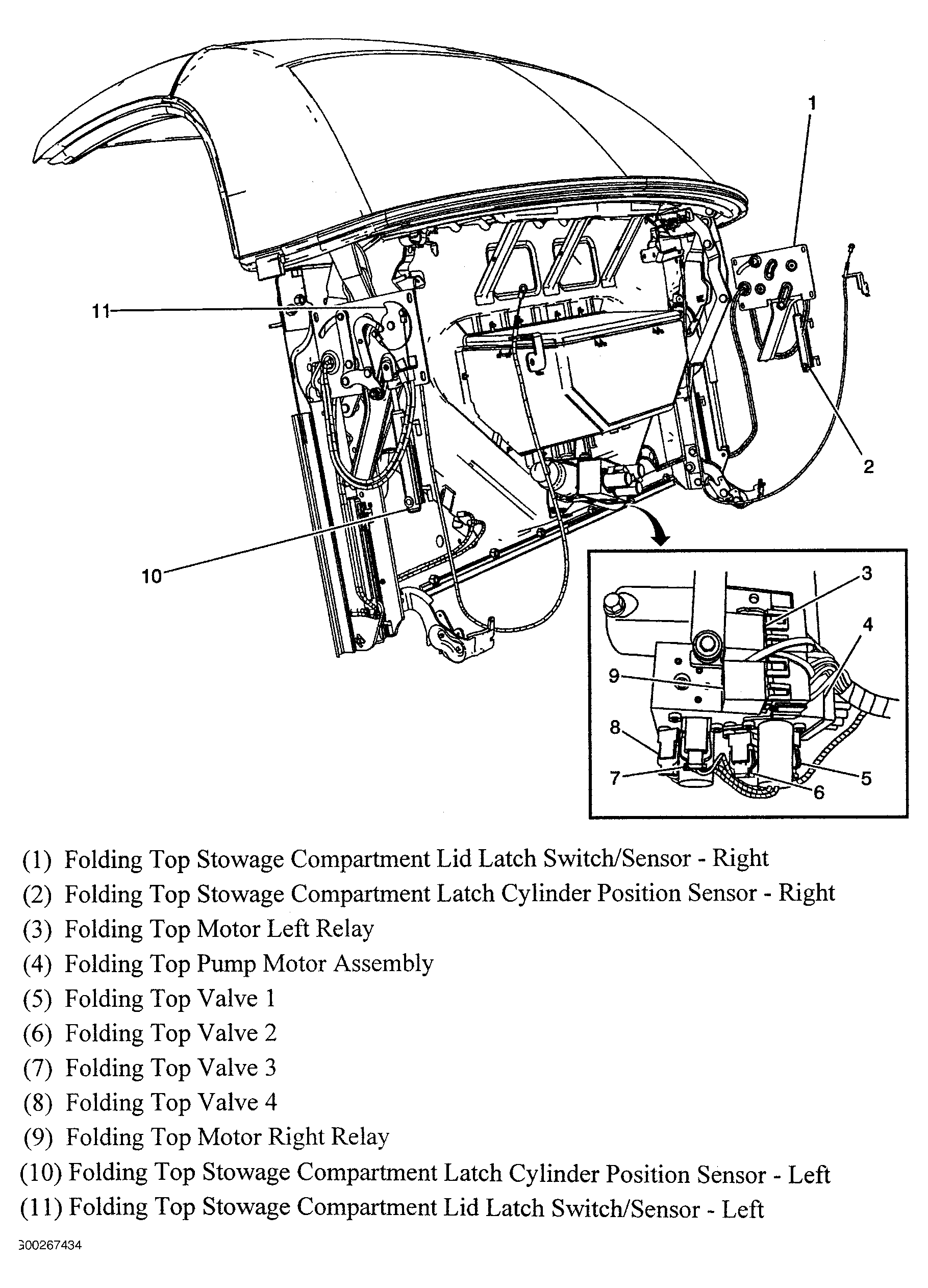

Fig 56: Folding Top
Courtesy of GENERAL MOTORS CORP.

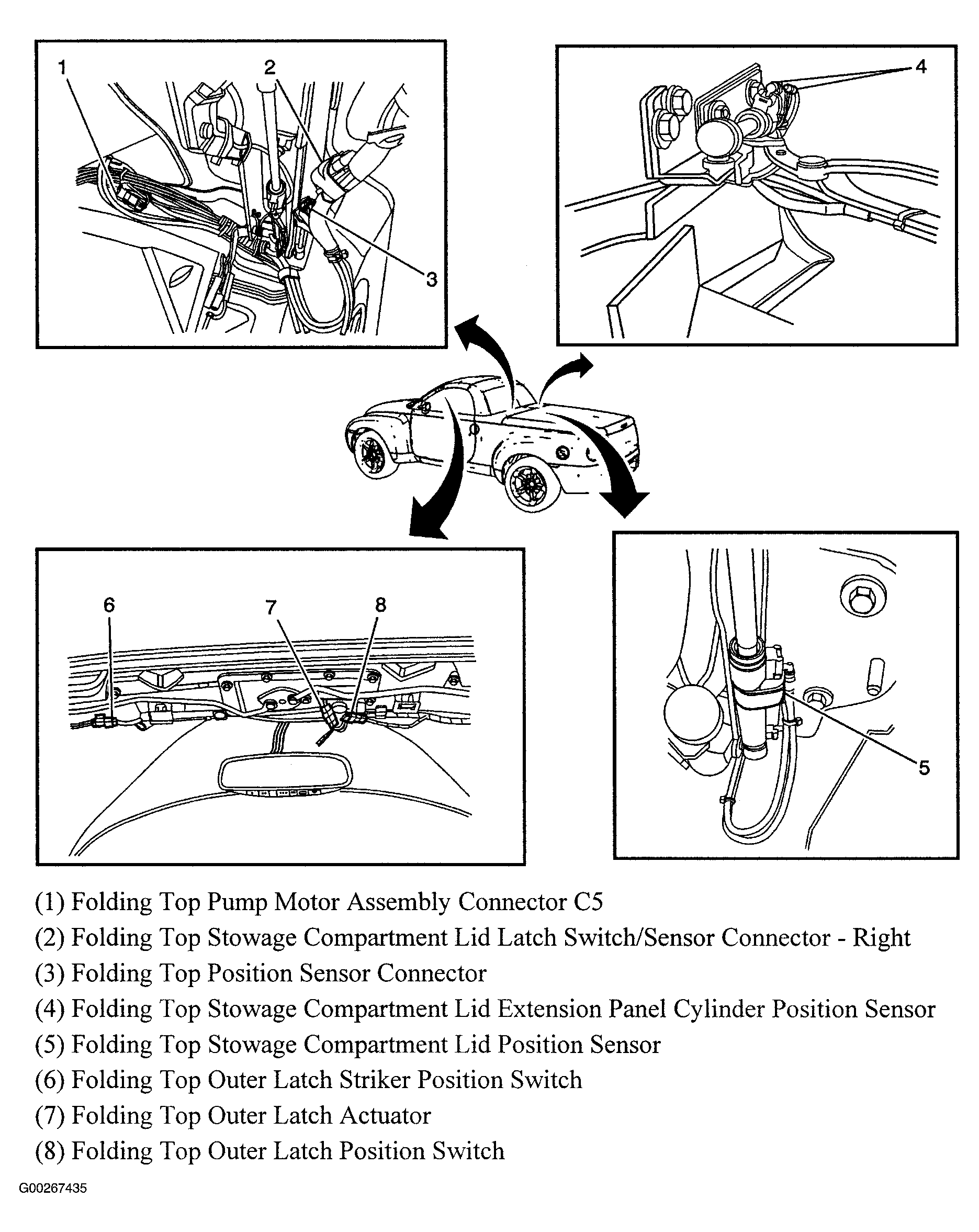

Fig 57: Folding Top Overview
Courtesy of GENERAL MOTORS CORP.

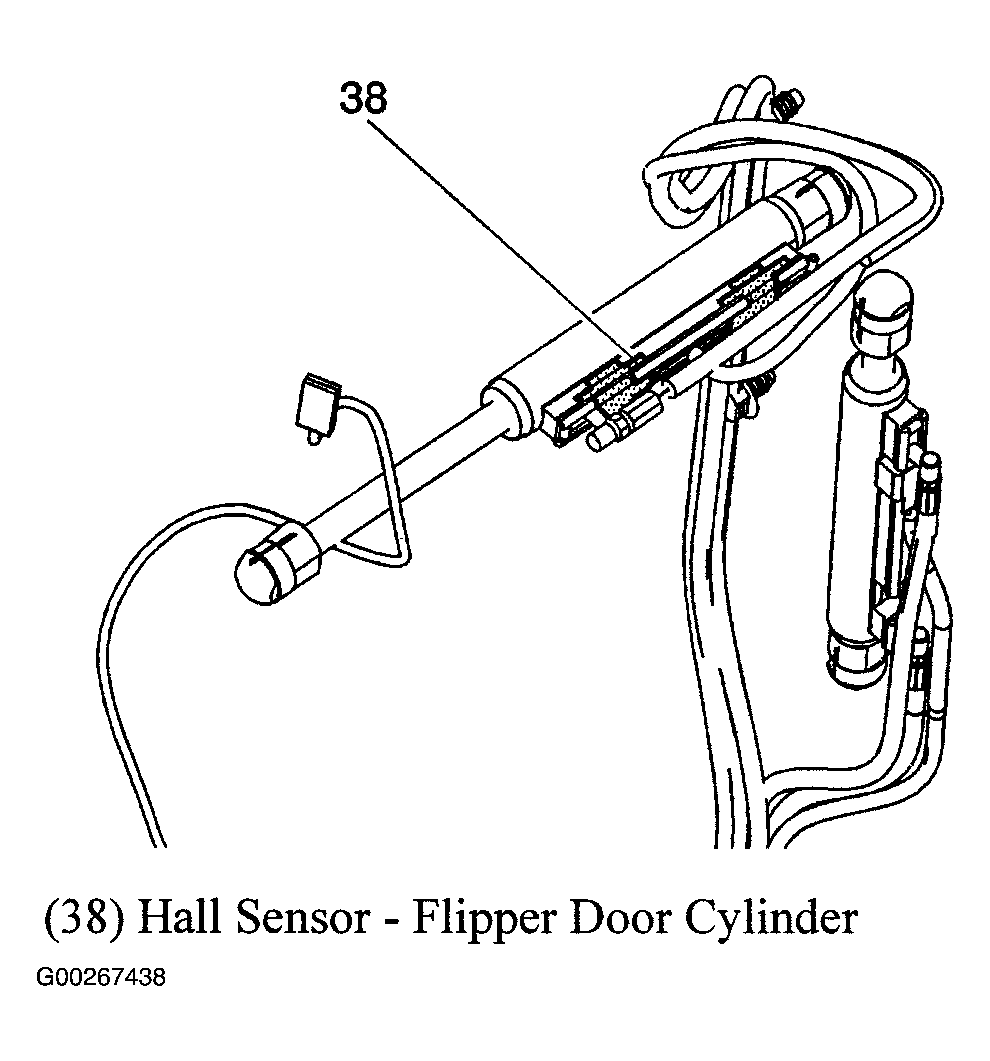

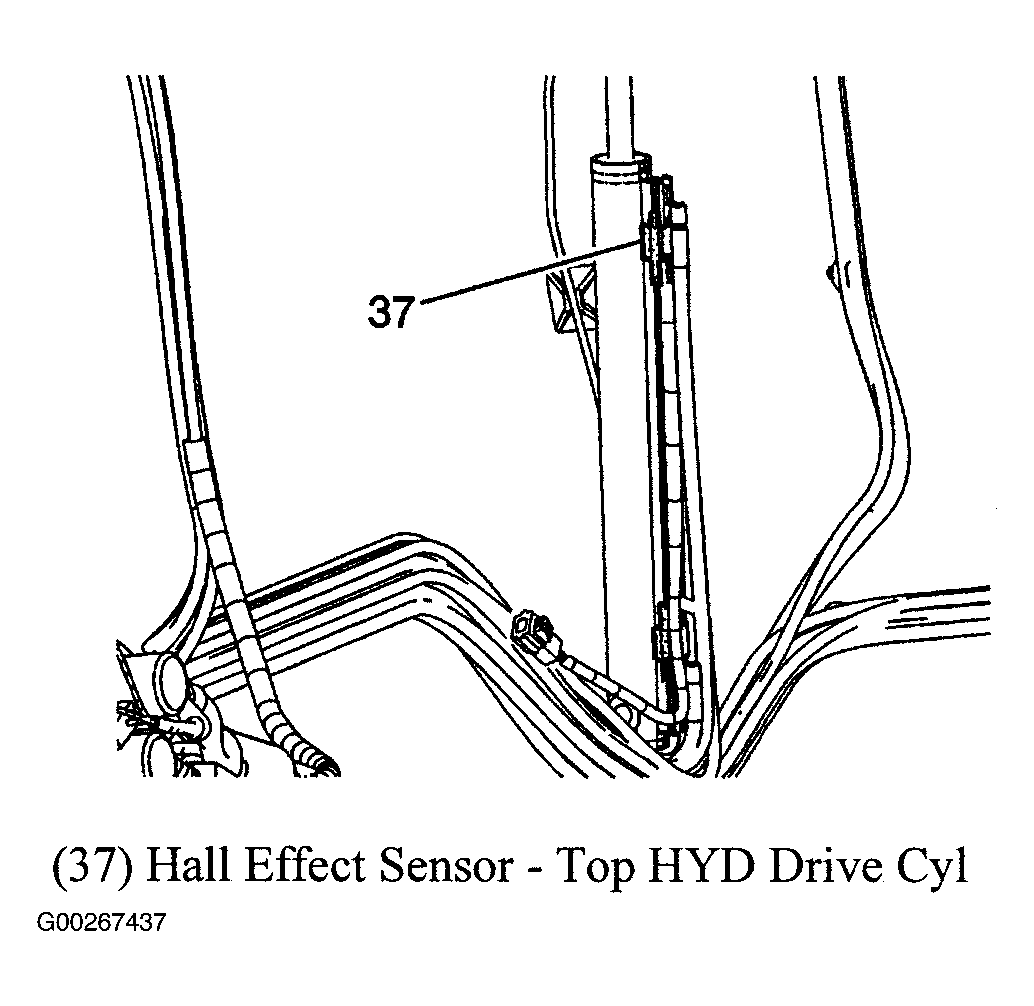

Fig 58: Main Lift Cylinder
Courtesy of GENERAL MOTORS CORP.
Fig 59: Stowage Lid Extension
Courtesy of GENERAL MOTORS CORP.

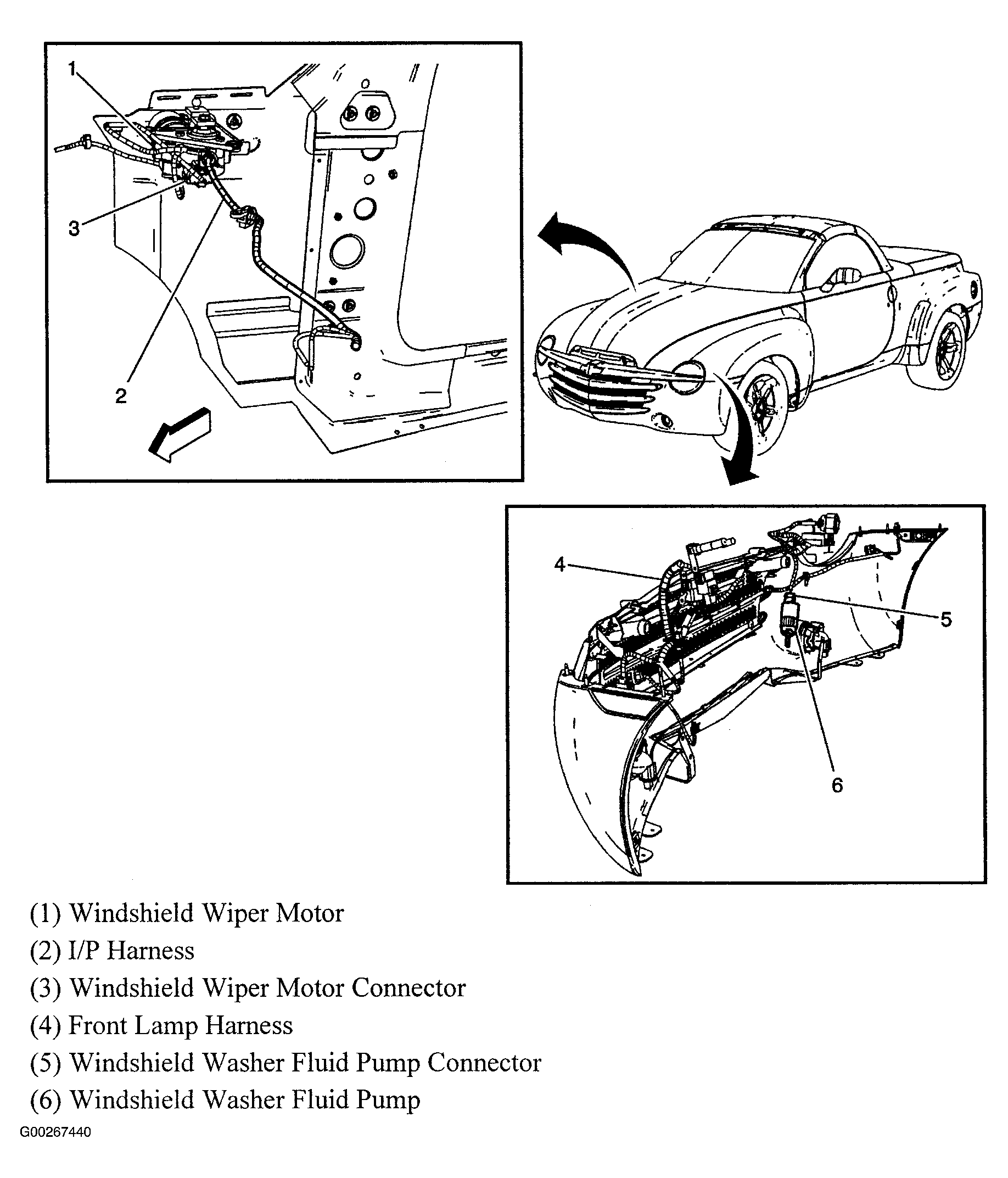

Fig 60: Wiper/Washer Overview
Courtesy of GENERAL MOTORS CORP.

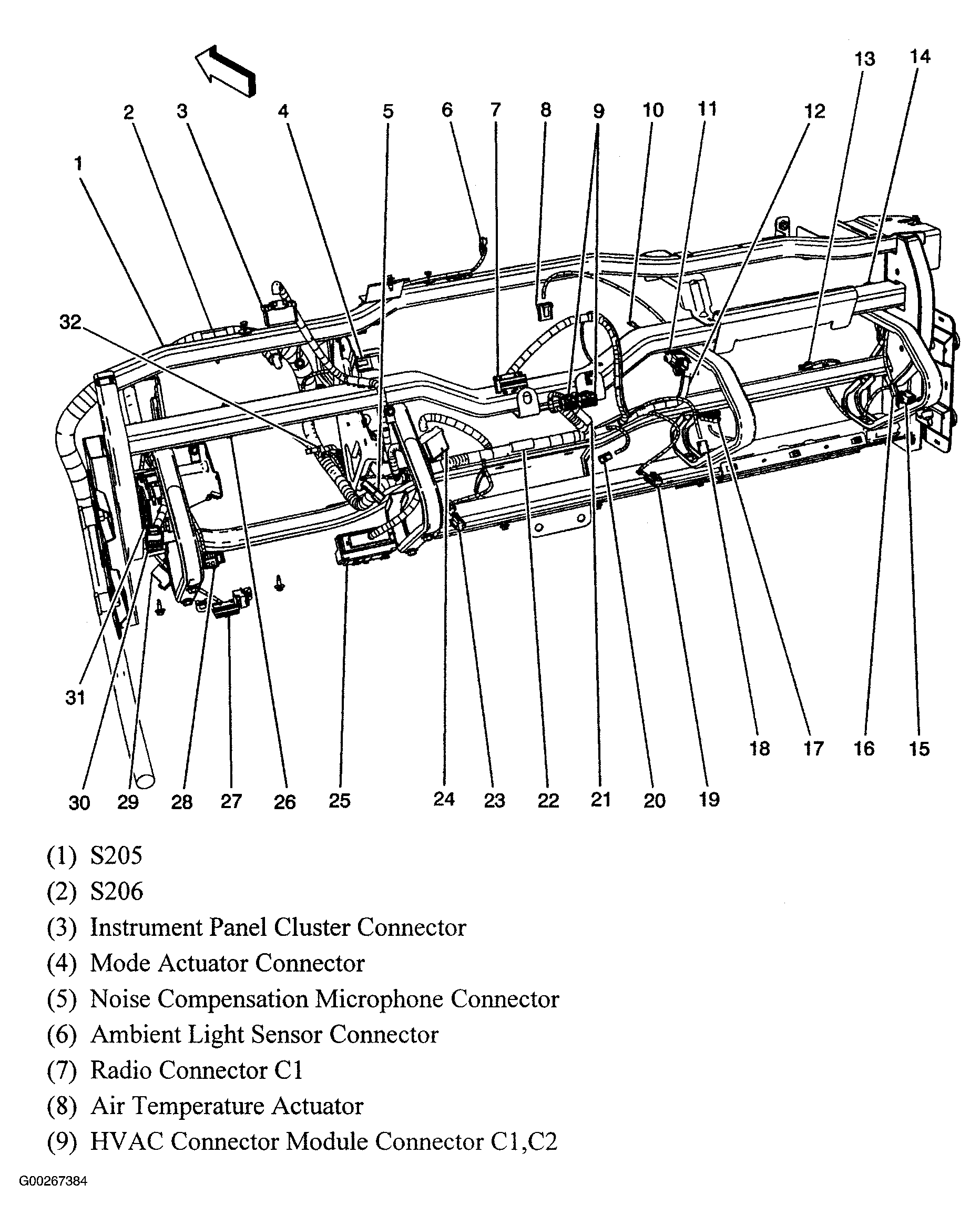

Fig 61: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 62: Inflatable Restraint Modules
Courtesy of GENERAL MOTORS CORP.
