Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

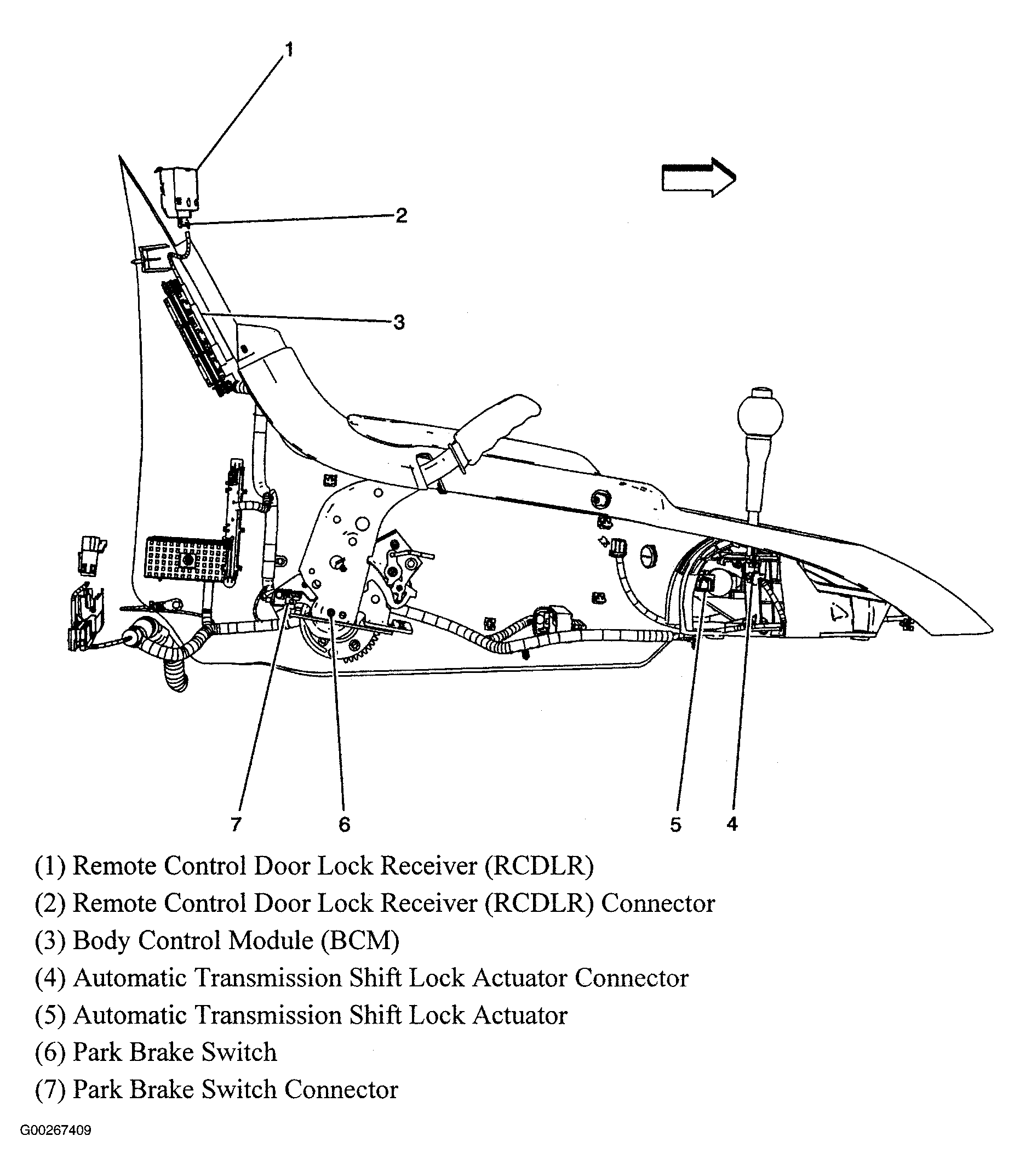

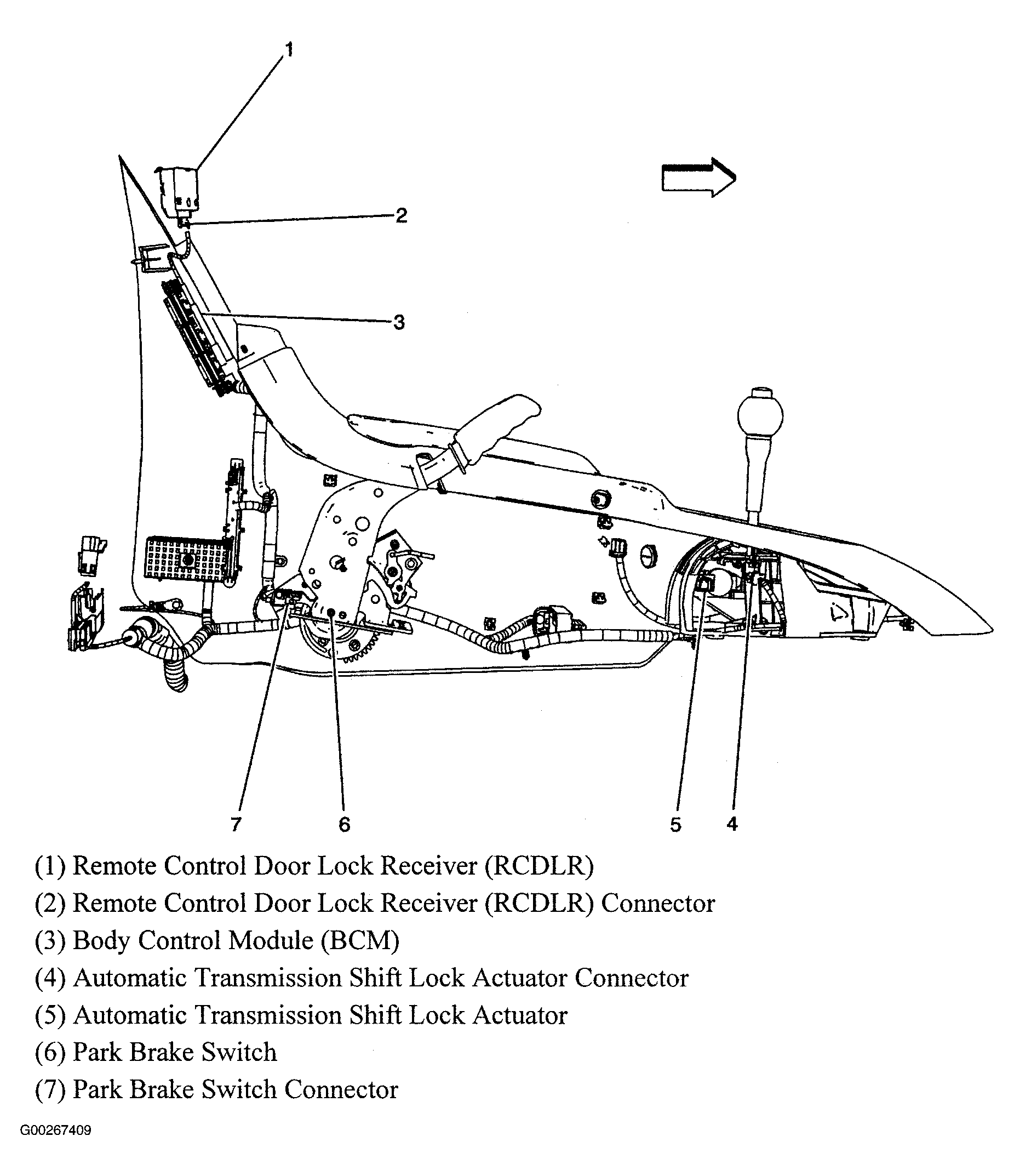

| Body Control Module (BCM) | Rear center of passenger compartment, near rear relay block. See Figure . |

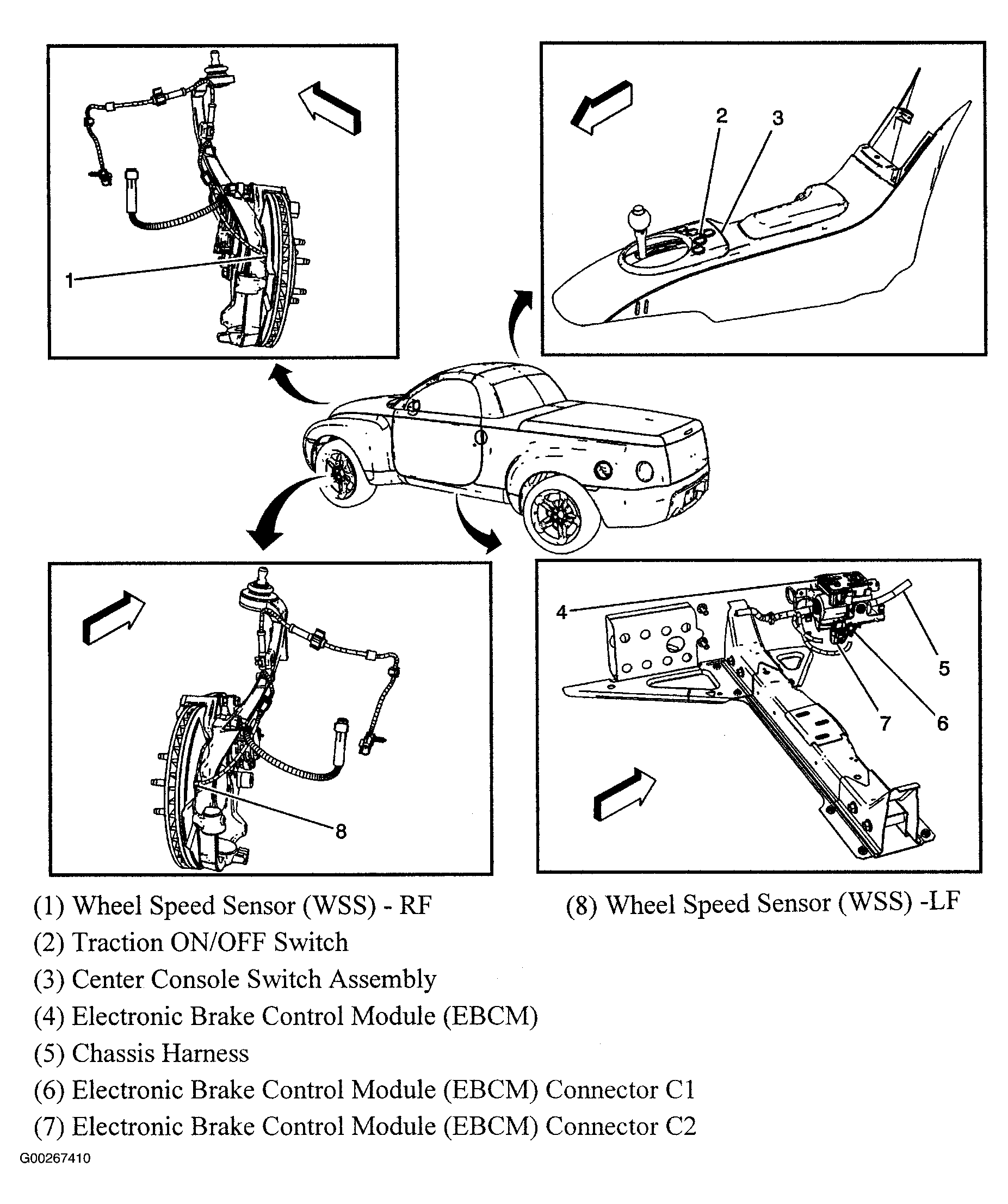

| Electronic Brake Control Module (EBCM) | Left side of inner frame rail. See Figure . |

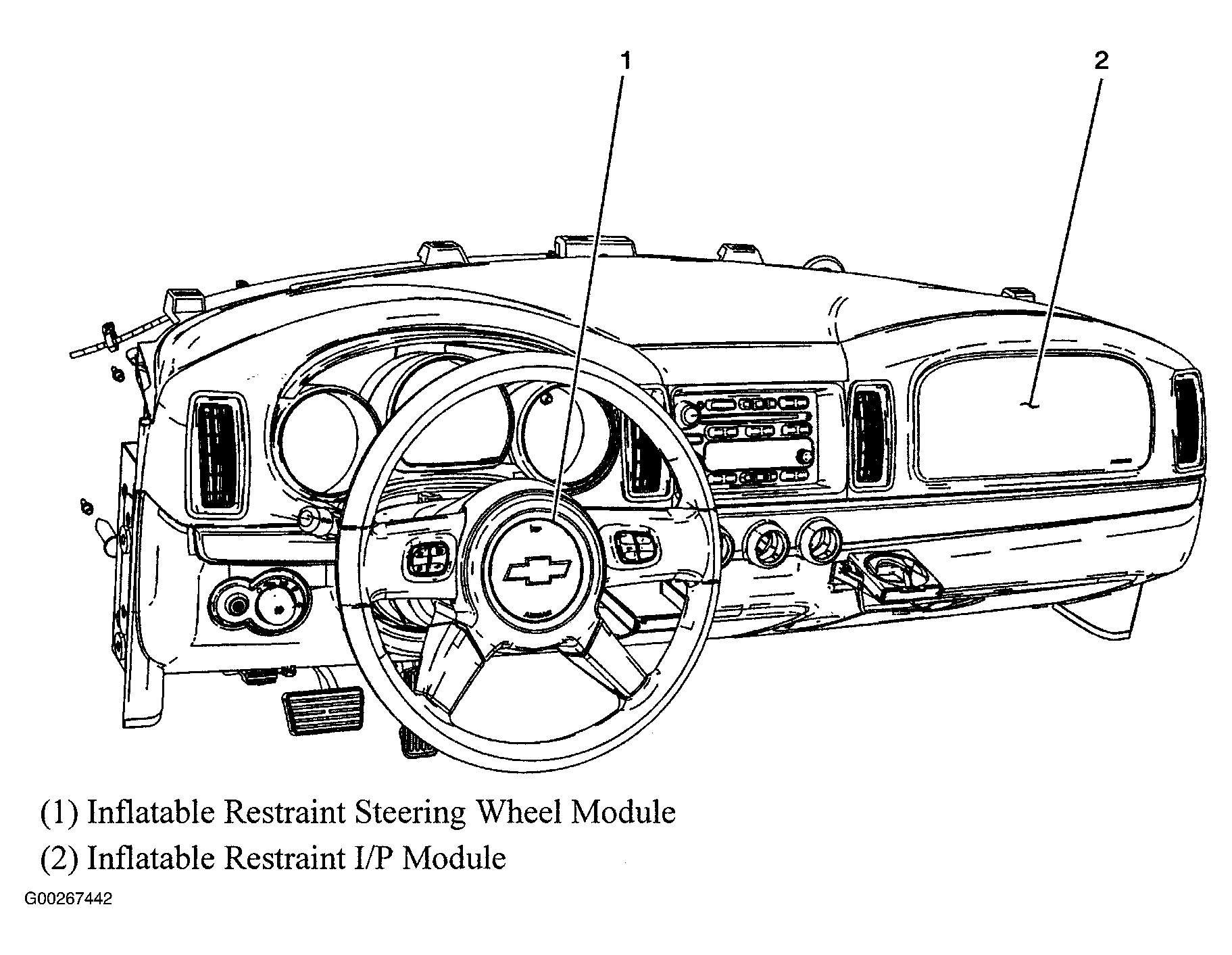

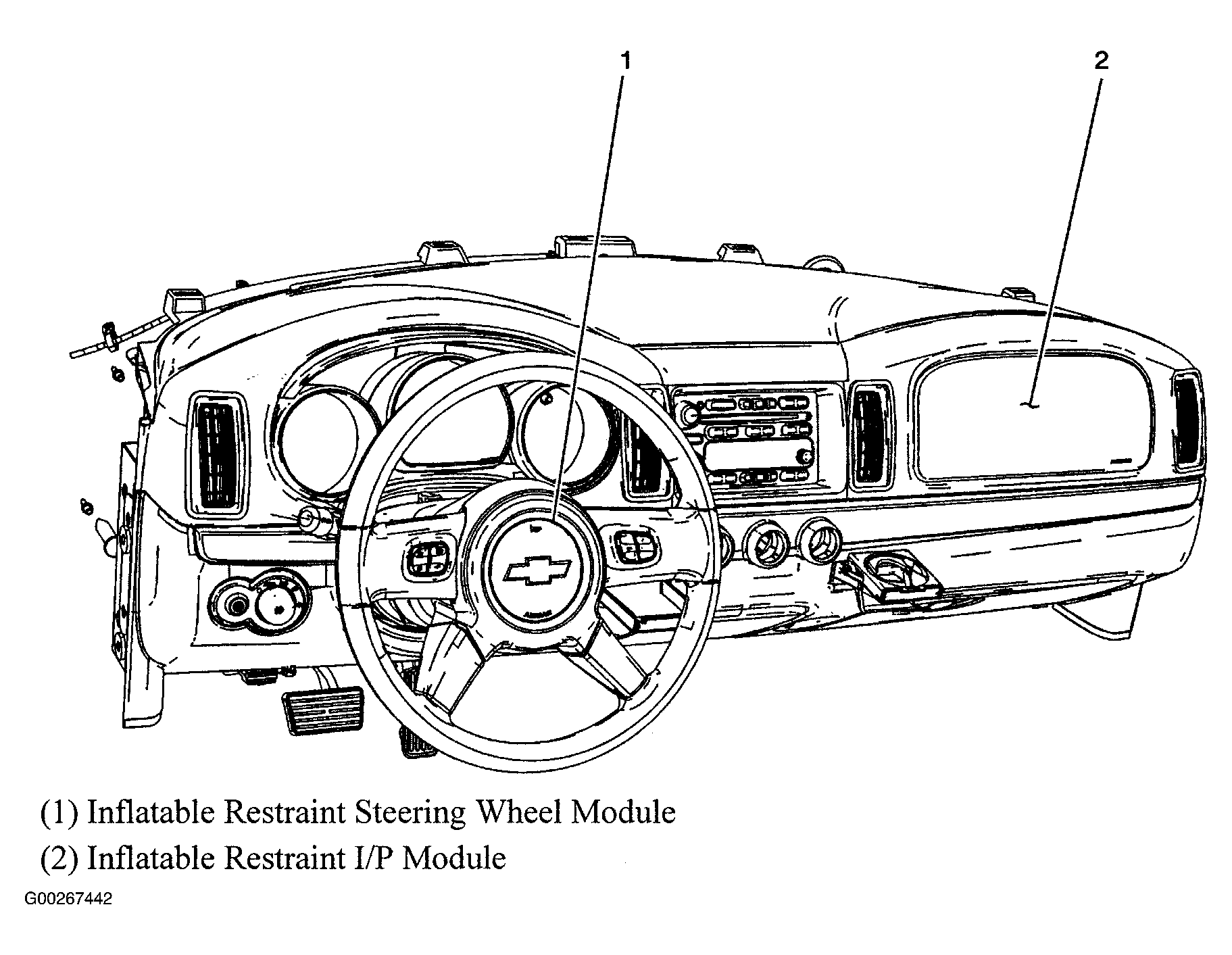

| Inflatable Restraint I/P Module | Right side of dash. See Figure . |

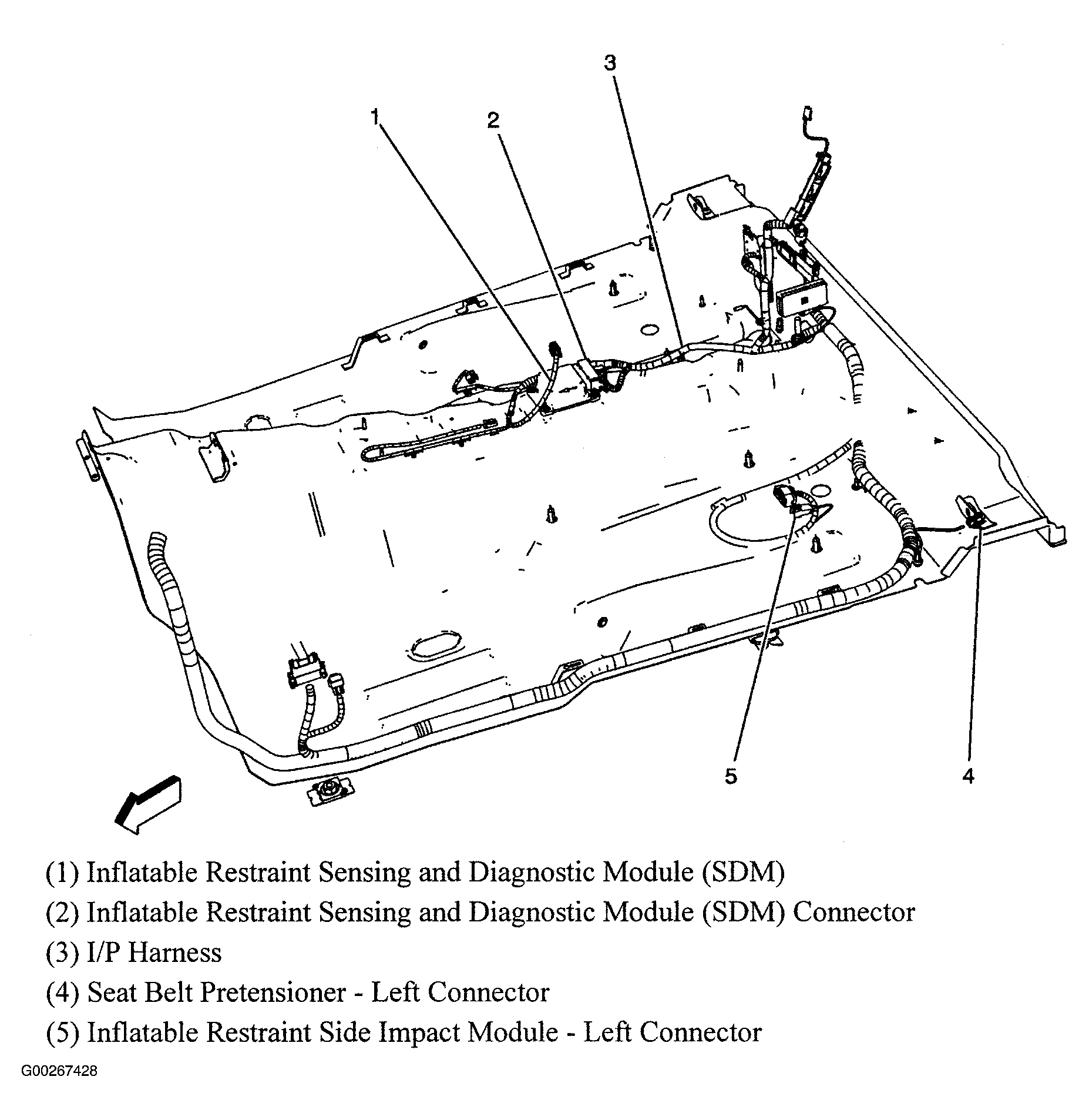

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below center console. See Figure . |

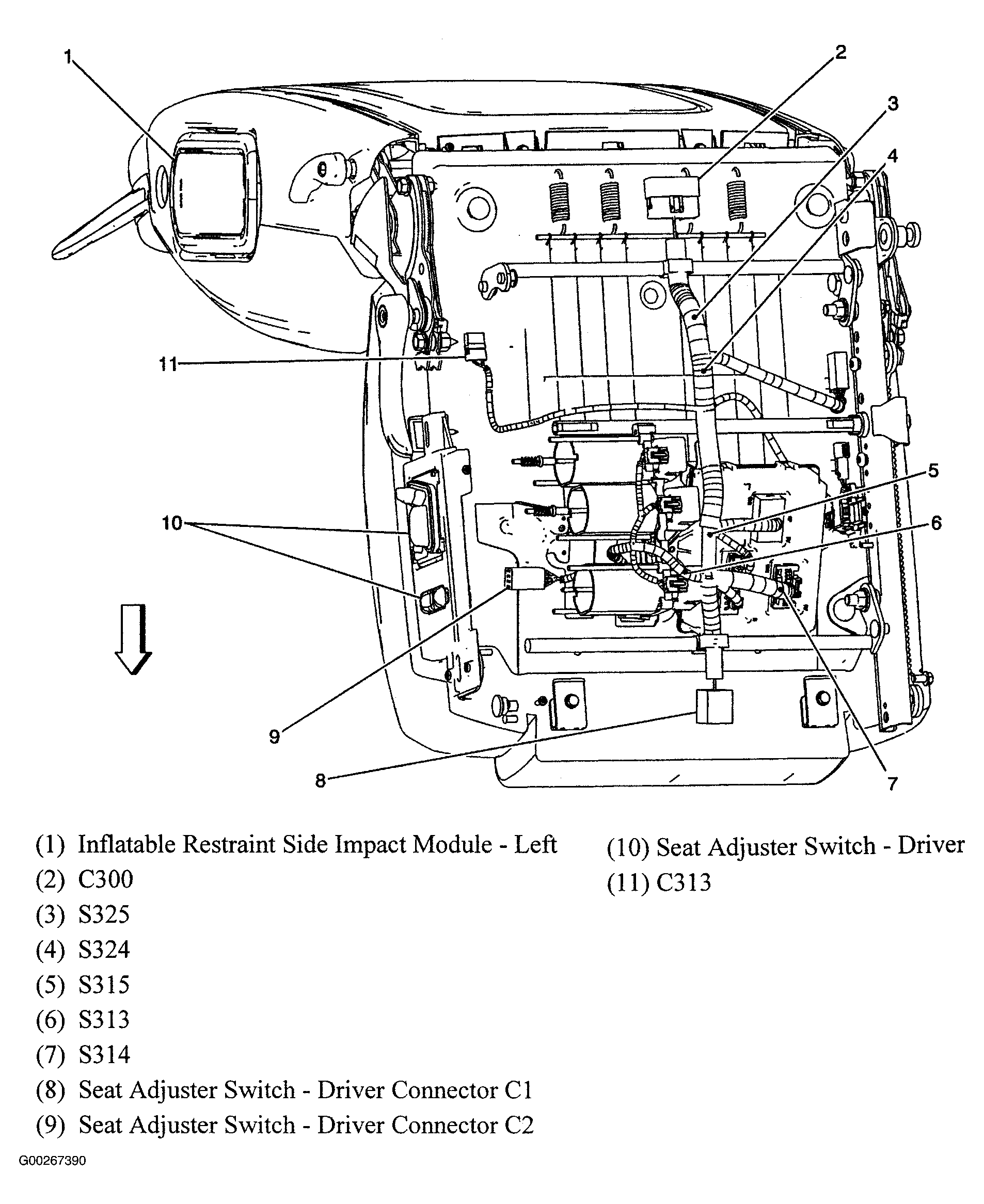

| Inflatable Restraint Side Impact Module (Left) | Left side of driver seat back. See Figure . |

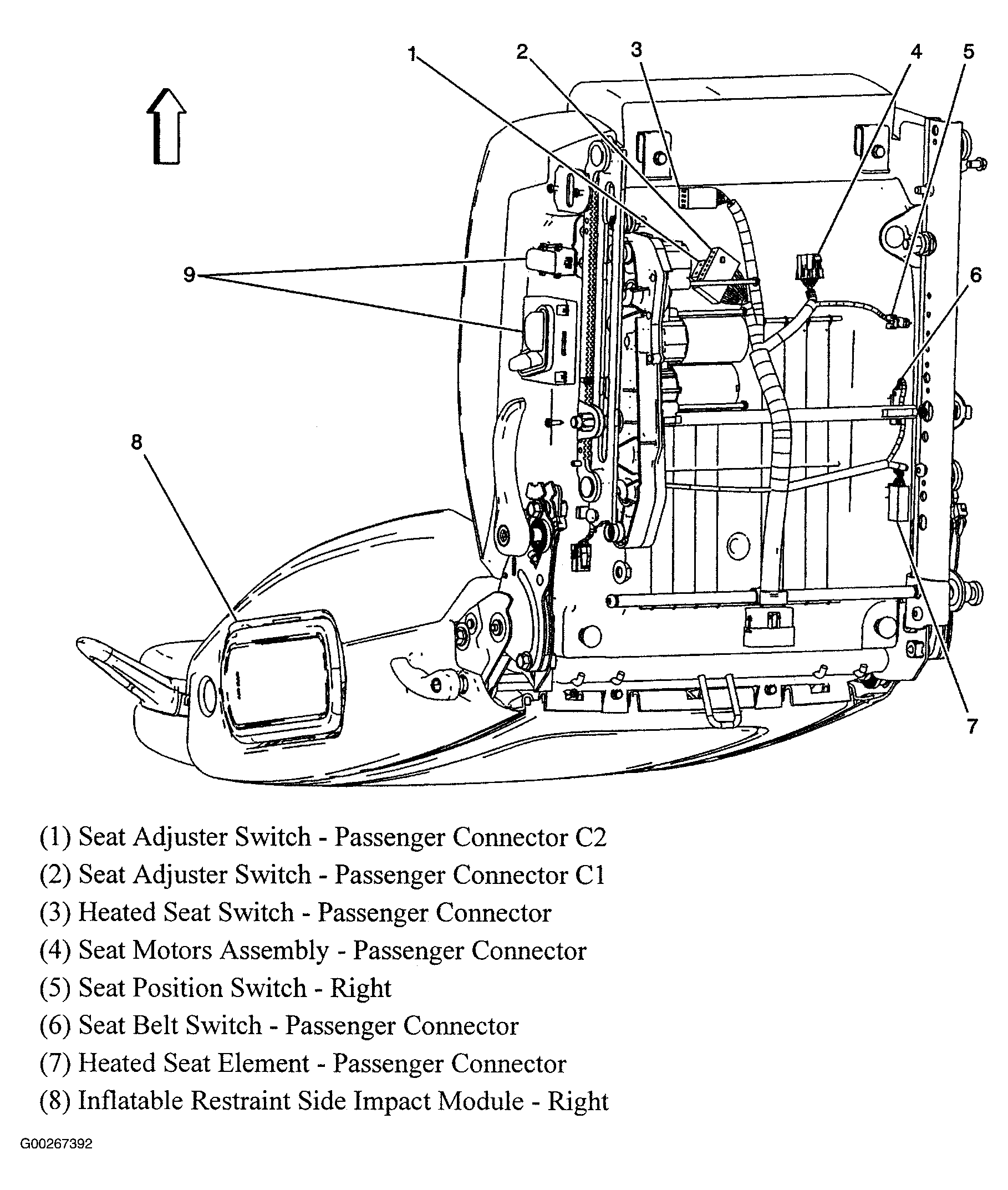

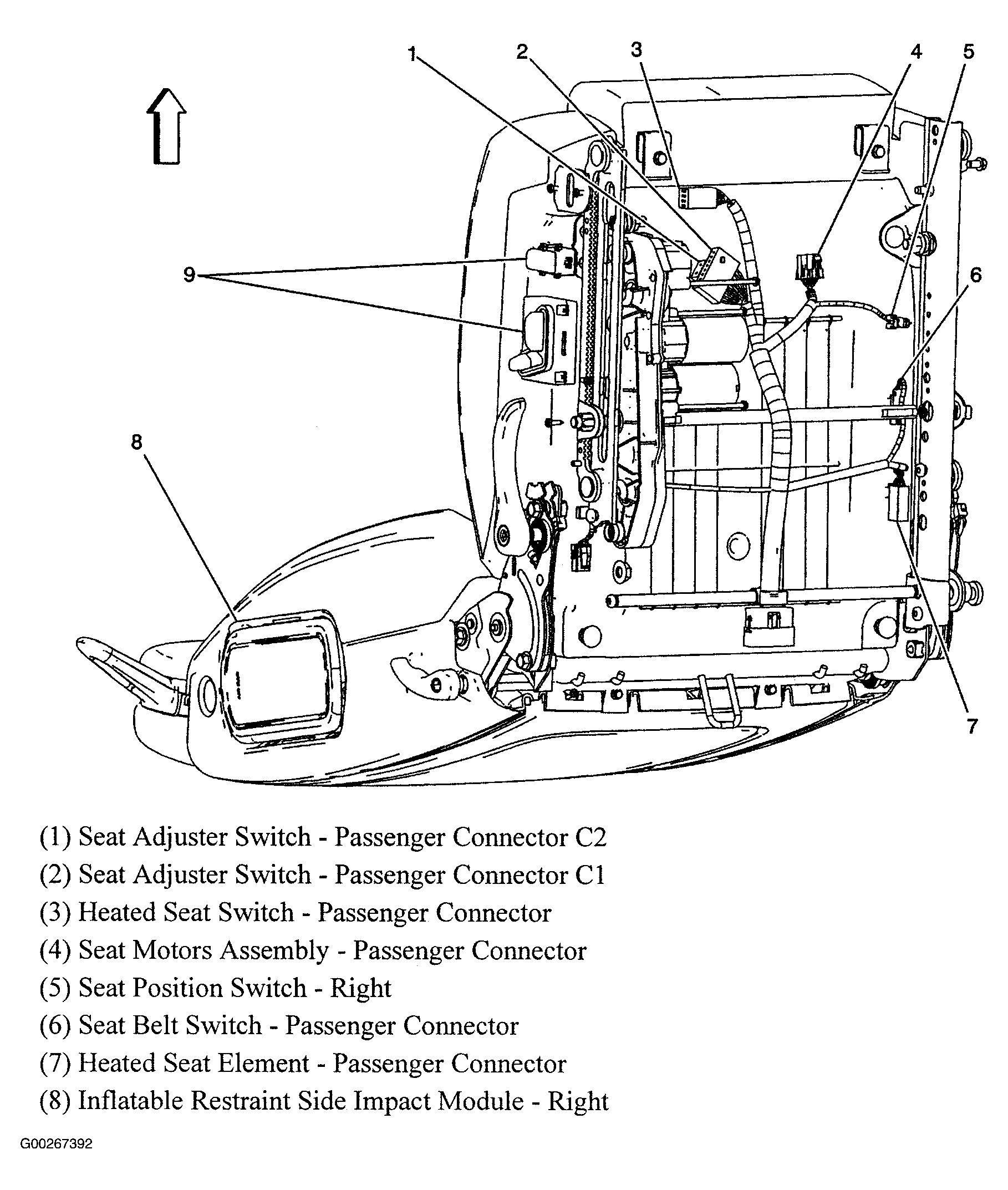

| Inflatable Restraint Side Impact Module (Right) | Right side of passenger seat back. See Figure . |
| Inflatable Restraint Steering Wheel Module | In steering wheel. See Figure . |

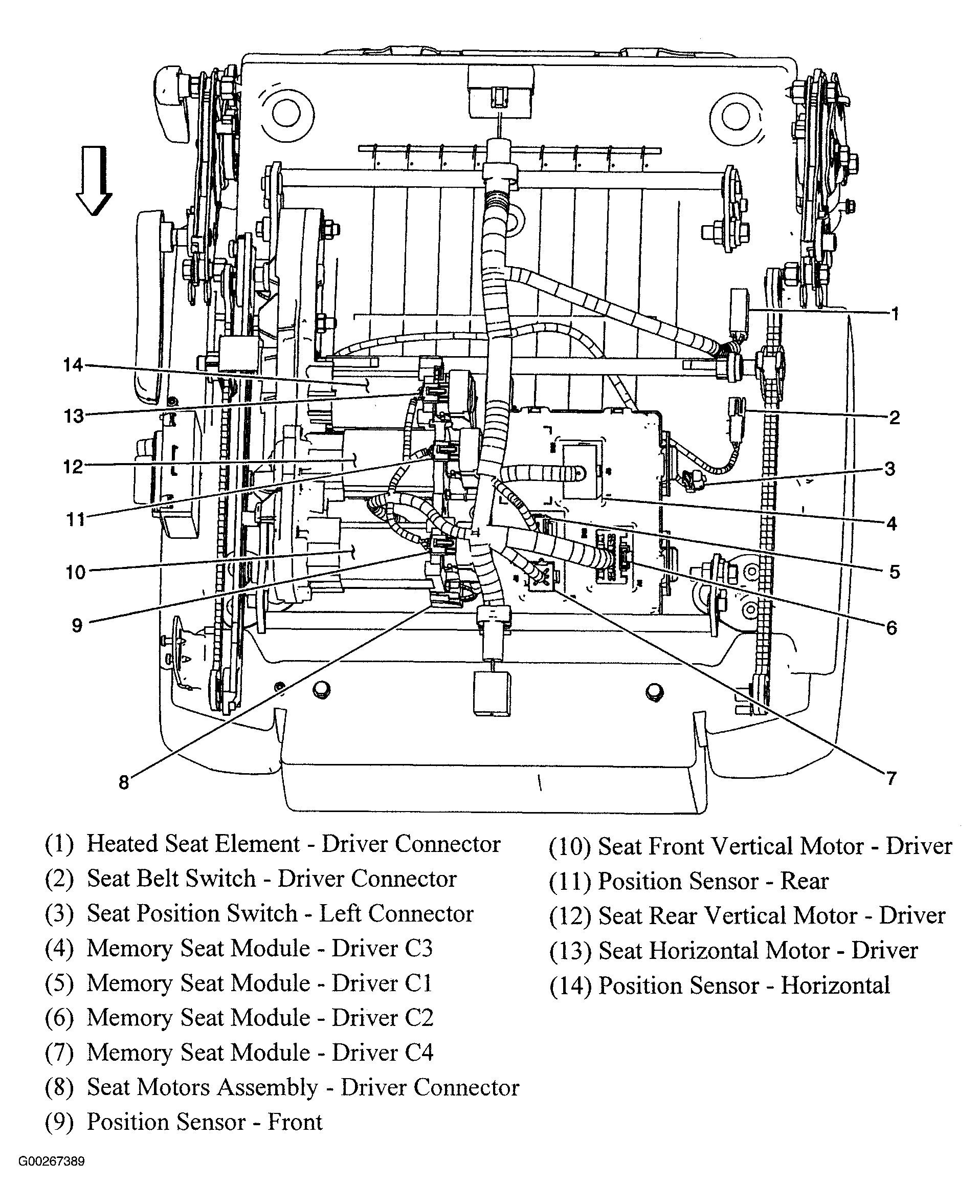

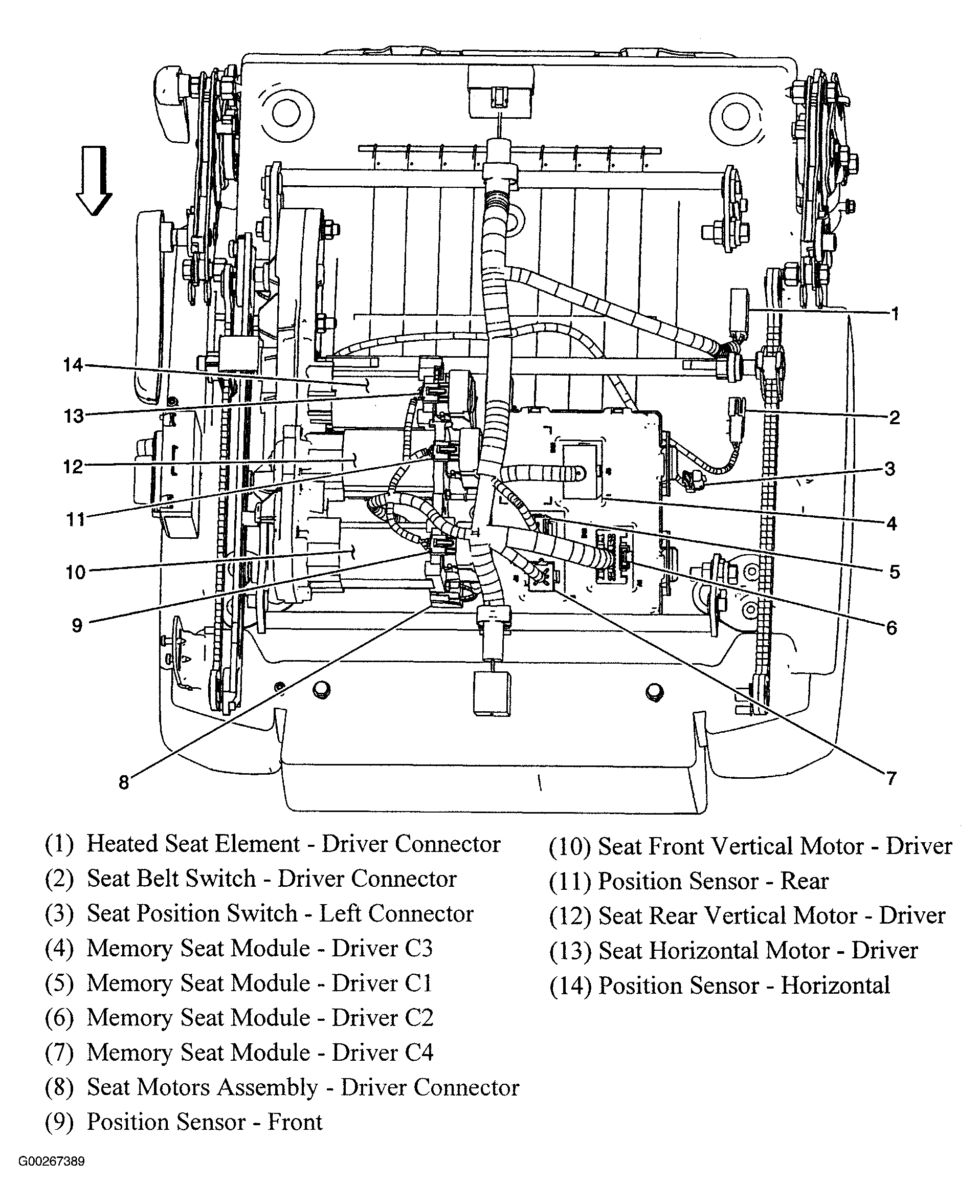

| Memory Seat Module | Below left front seat. See Figure . |

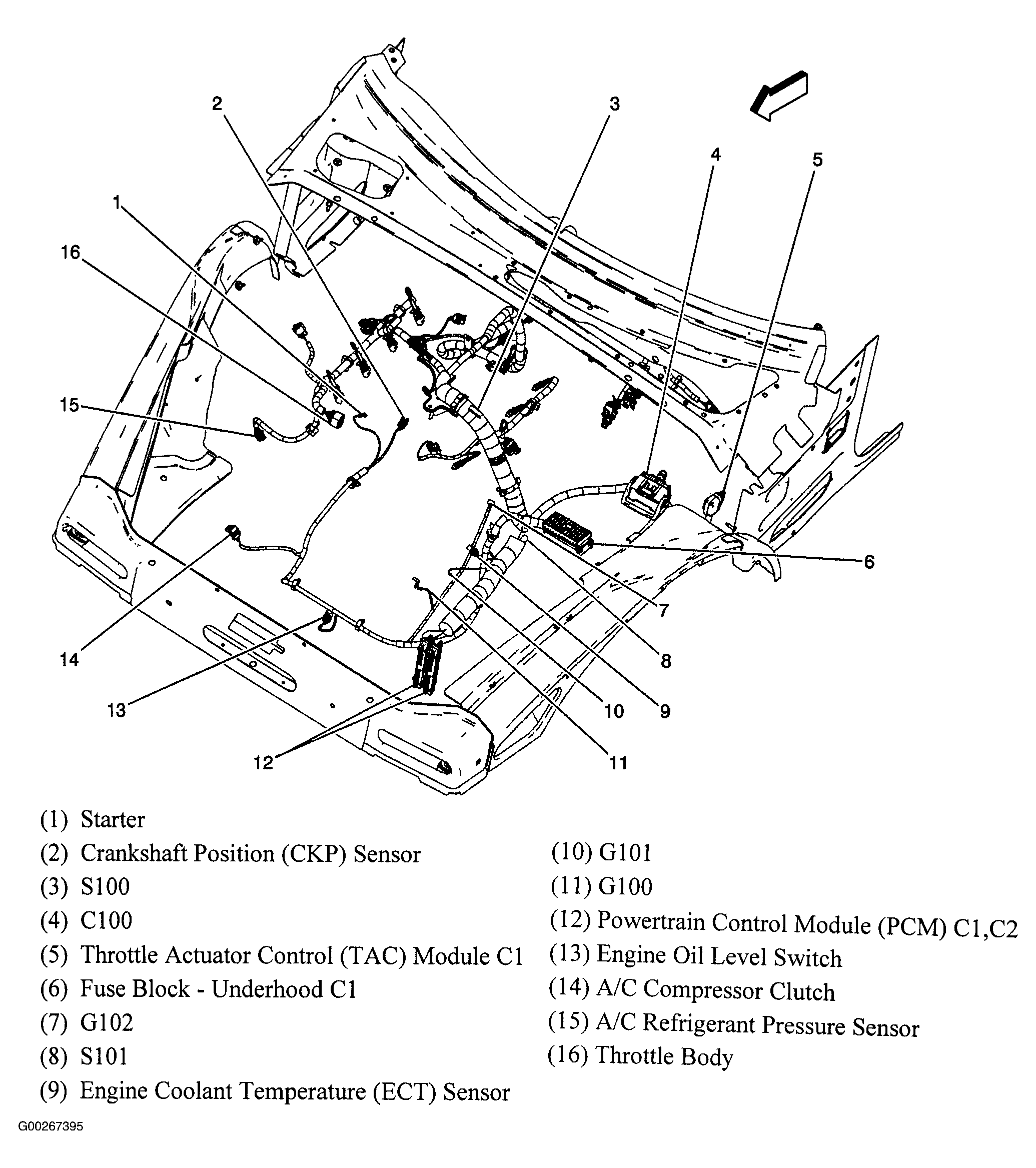

| Powertrain Control Module (PCM) | Left front side of engine compartment. See Figure . |
| Radio Antenna Module | Top center of windshield right visor. |
| Remote Control Door Lock Receiver (RCDLR) | Rear center of passenger compartment. See Figure . |

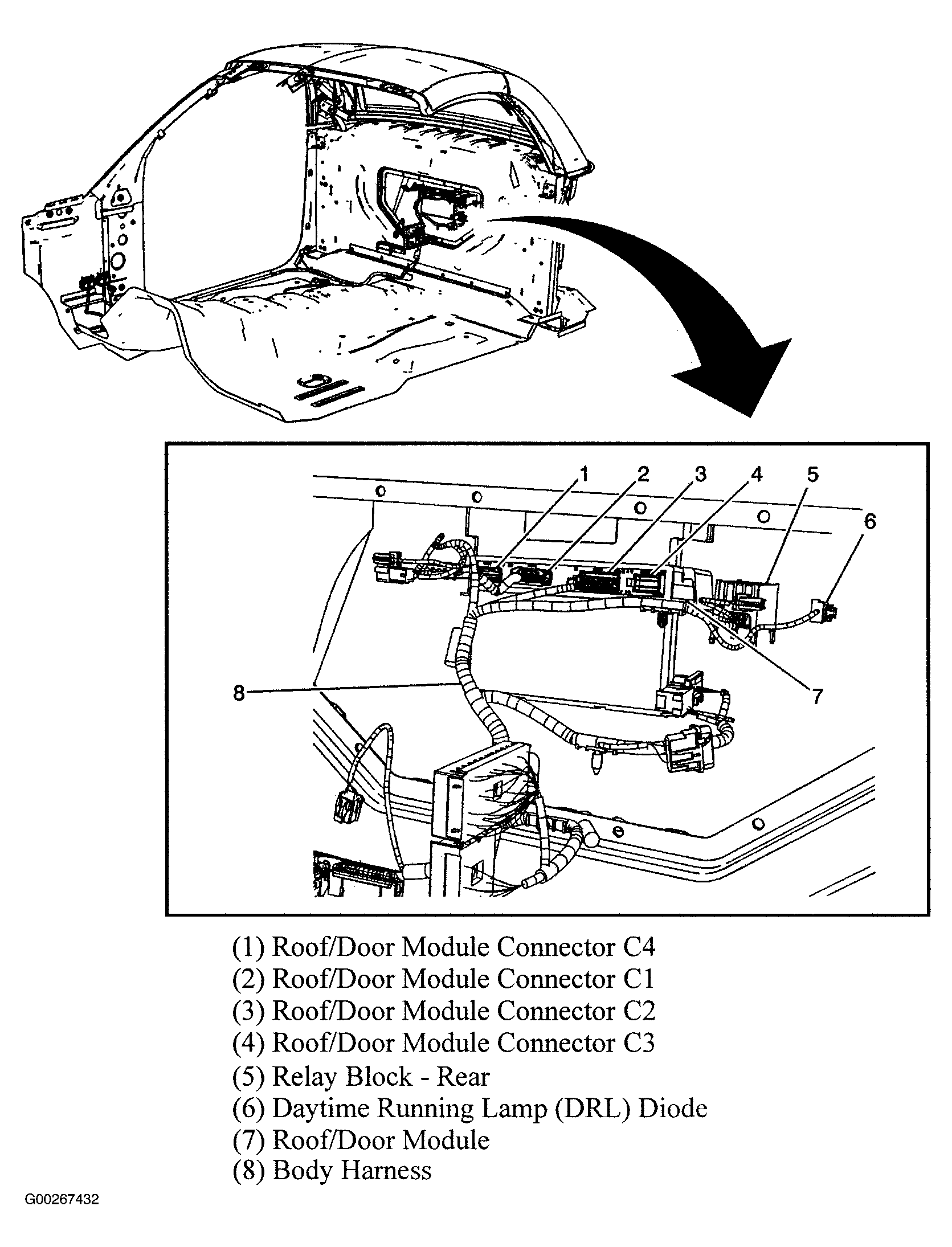

| Roof/Door Module | Rear center of passenger compartment. See Figure . |

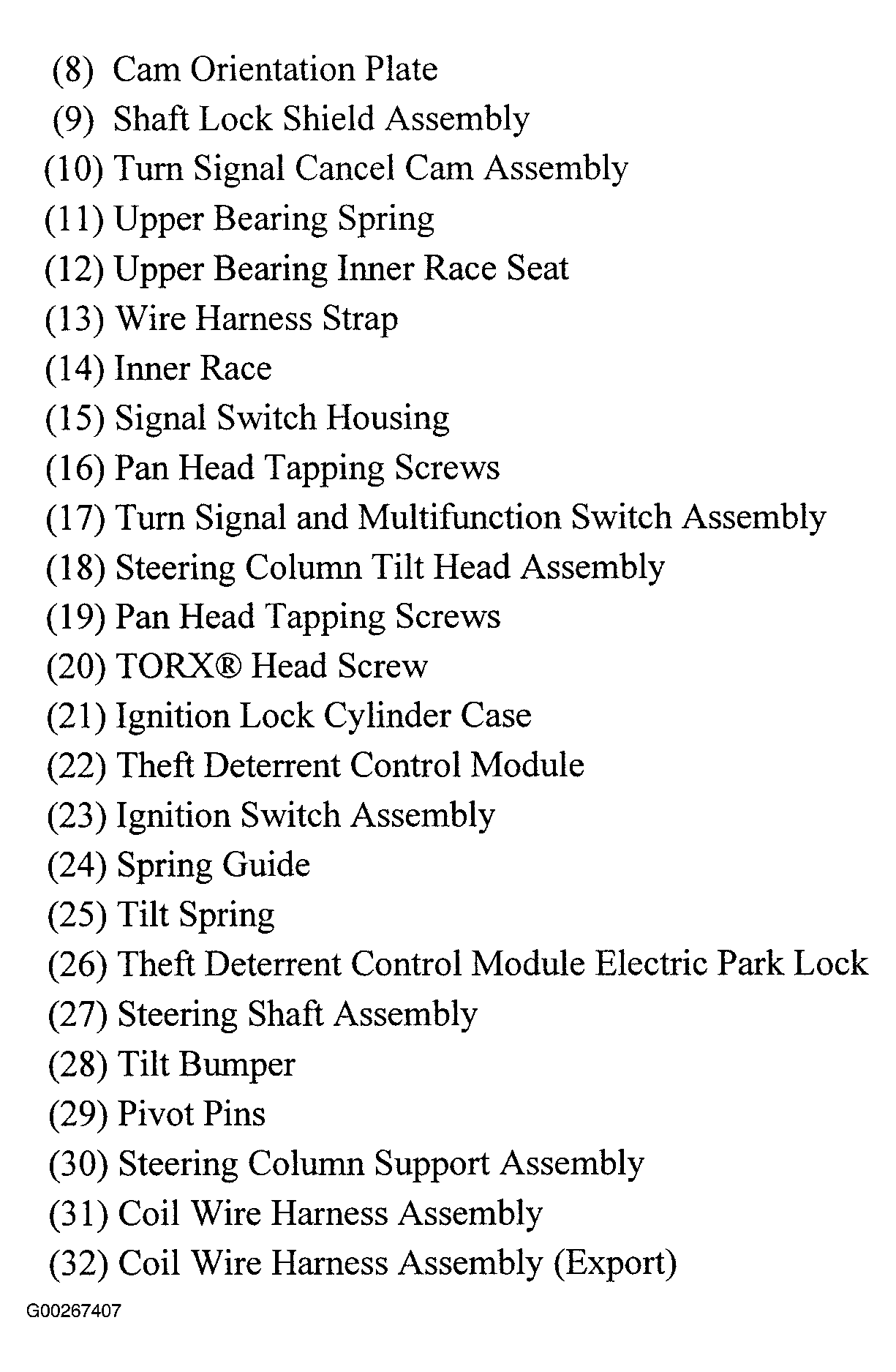

| Theft Deterrent Control Module | On steering column. See Figure . |
| Theft Deterrent Control Module Electric Park Lock | On steering column. See Figure . |

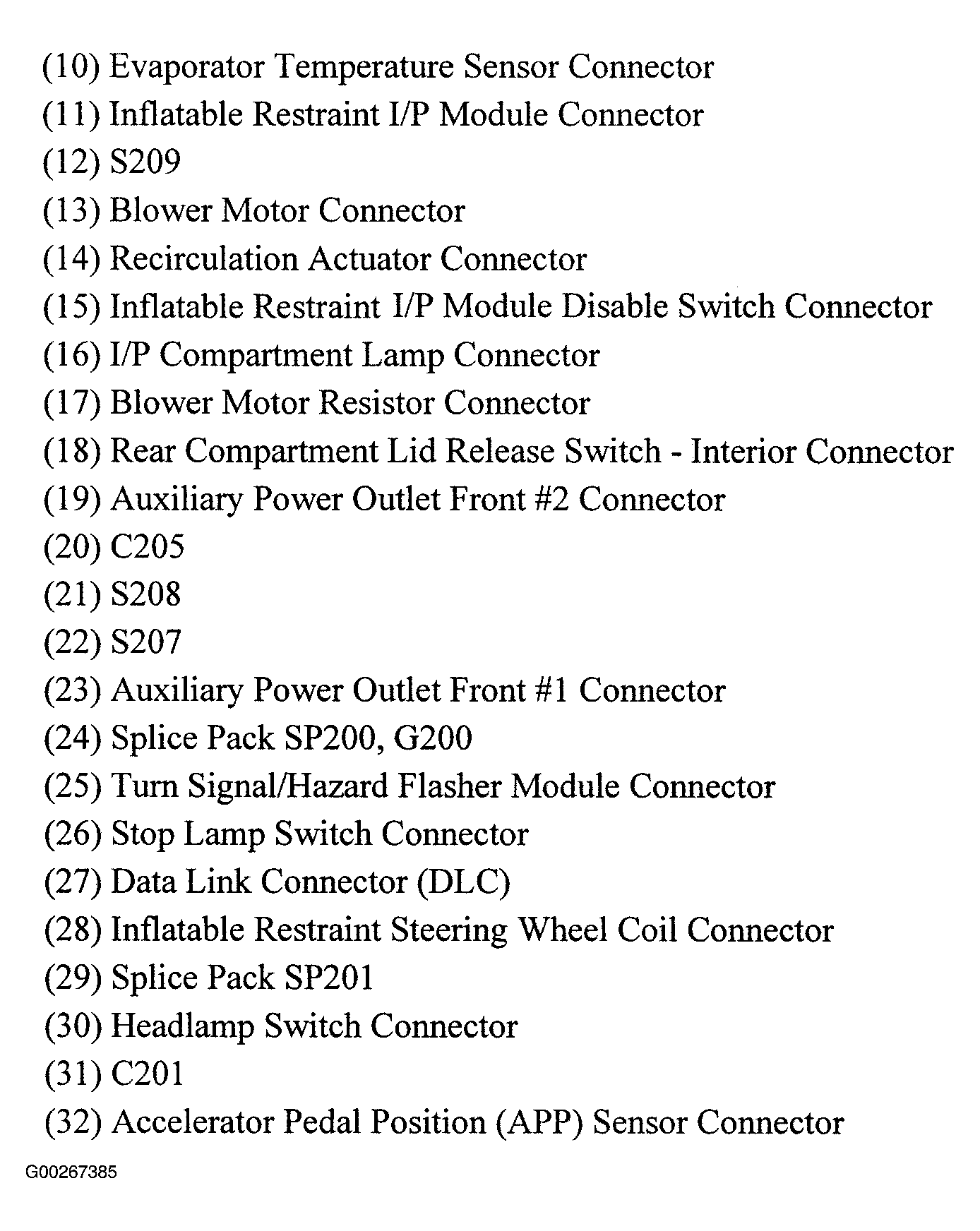

| Turn Signal/Hazard Flasher Module Connector | Behind lower left side of dash. See Figure . |
