Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower fan shroud to the retaining clips on the radiator and firmly push down.
  2. If equipped with the engine oil cooler, Install the oil cooler hose clip to the lower fan shroud.
  3. Install the cooling fan. Refer to FAN REPLACEMENT  .

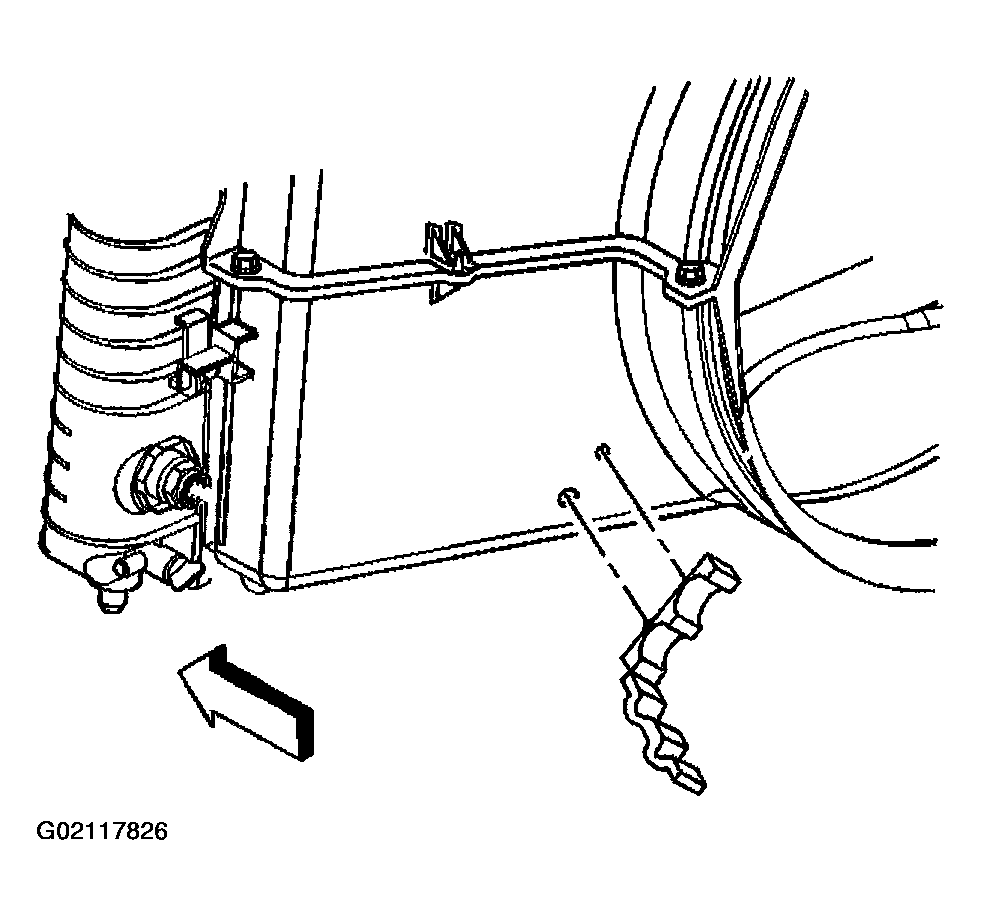

    Fig 1: Installing Lower Fan Shroud
    G02117826Courtesy of GENERAL MOTORS CORP.
