Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cooling fan. Refer to FAN REPLACEMENT .
If equipped with engine oil cooler, remove the oil cooler hose clip from the lower fan shroud.
Lift the lower fan shroud up in order to disengage the fan shroud from the retaining clips on the radiator.

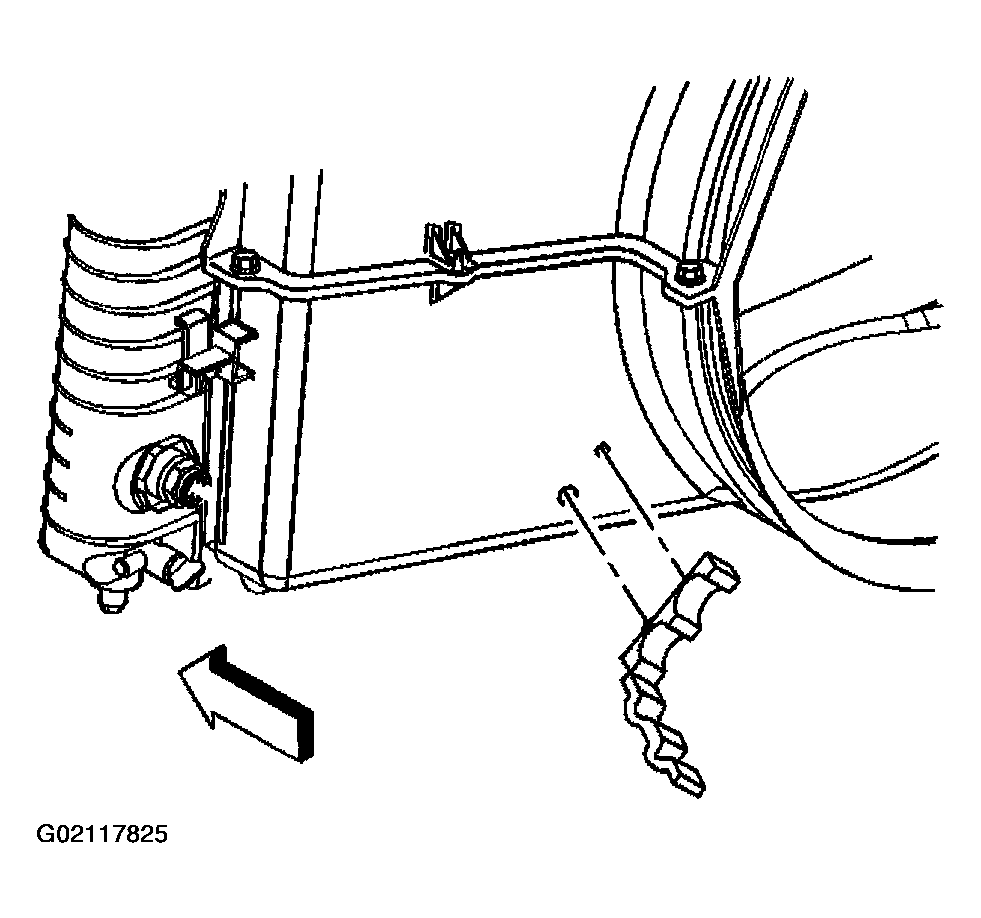

Fig 1: Removing Lower Fan Shroud
Courtesy of GENERAL MOTORS CORP.
