Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Using a bent-tip screwdriver or equivalent, pull on one of the open ends of the retaining ring in order to rotate the retaining ring.
Rotate the retaining ring (3) around the quick connector until the retaining ring is out of position and can be completely removed.
Remove the radiator outlet hose (2) from the quick connector fitting at the radiator (1).

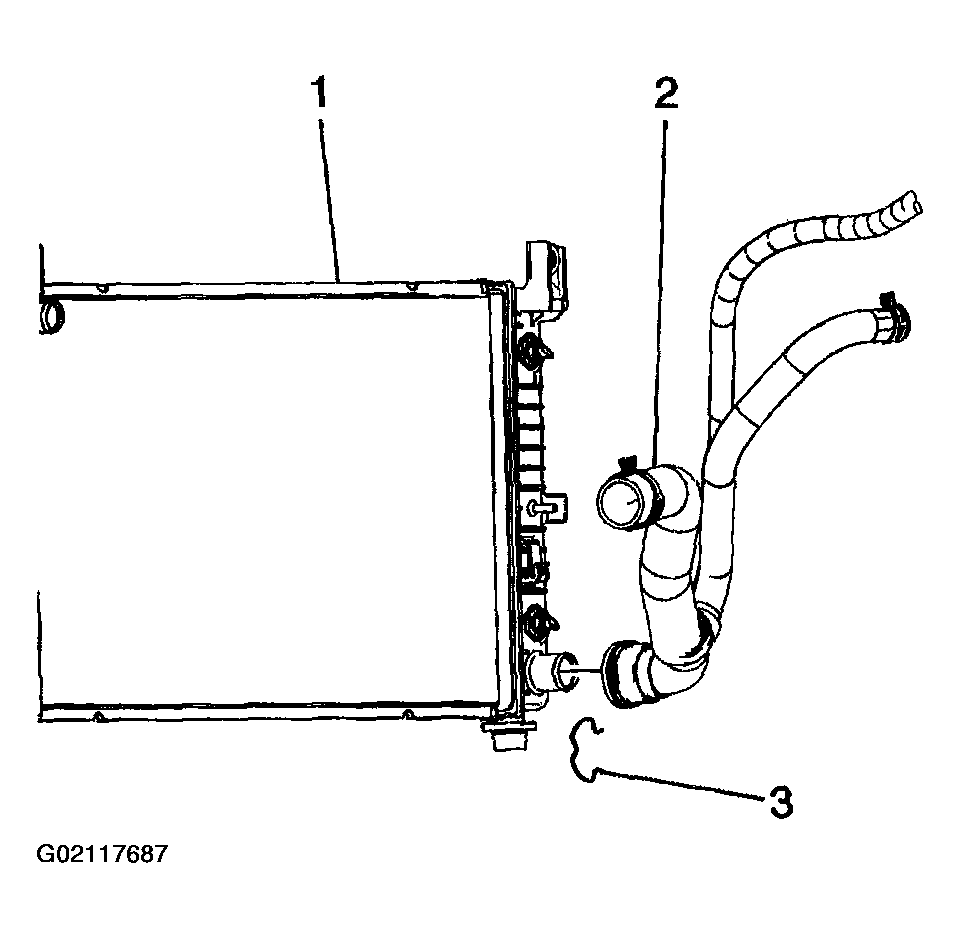

Fig 1: Removing Radiator Hose Quick Connect Fitting
Courtesy of GENERAL MOTORS CORP.
