Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

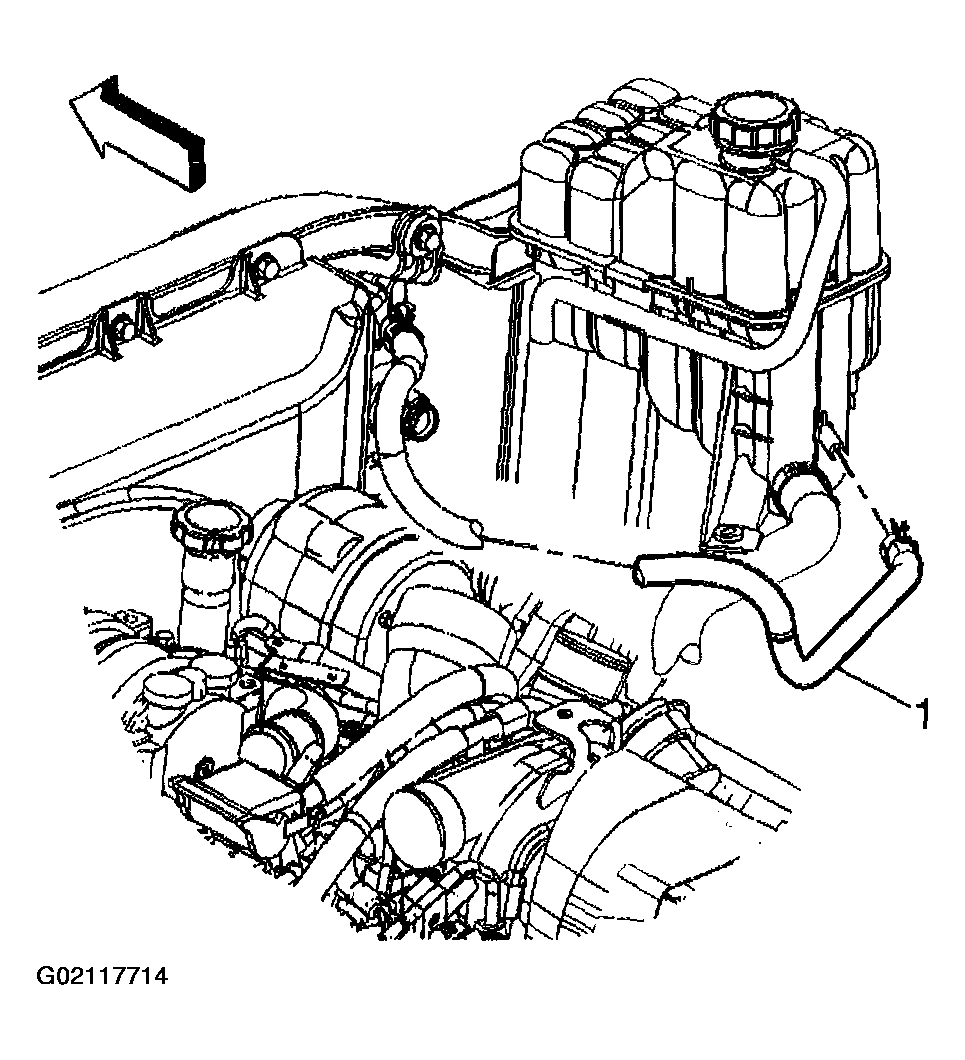

- Install the vent inlet hose to the surge tank.
- Reposition the vent inlet hose clamp to the surge tank.
- Install the vent inlet hose to the radiator.
- Reposition the vent inlet hose clamp to the radiator.
- Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
