Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place NEW water pump gaskets into place.
  2. Install the water pump.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the water pump bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

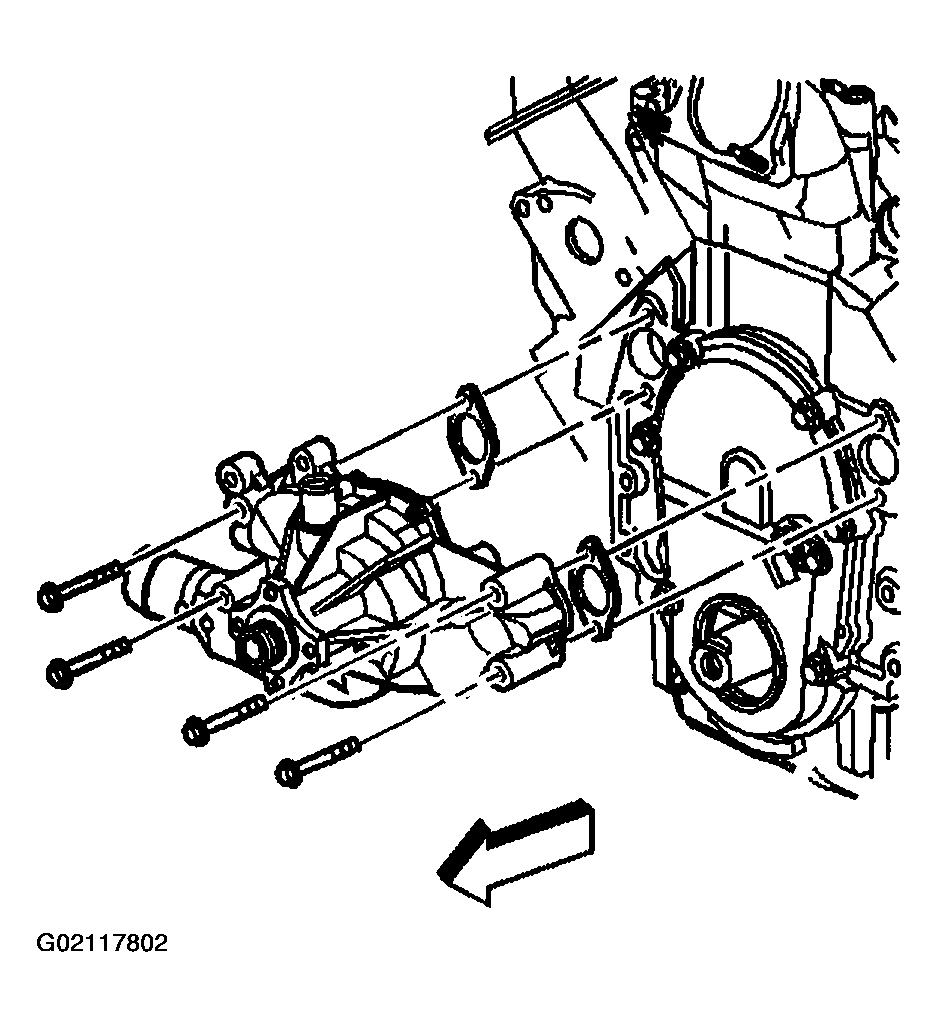

    Fig 1: Installing Water Pump
    G02117802Courtesy of GENERAL MOTORS CORP.
  4. Install the bypass hose.
  5. Position the bypass hose clamps at the water pump and water crossover.

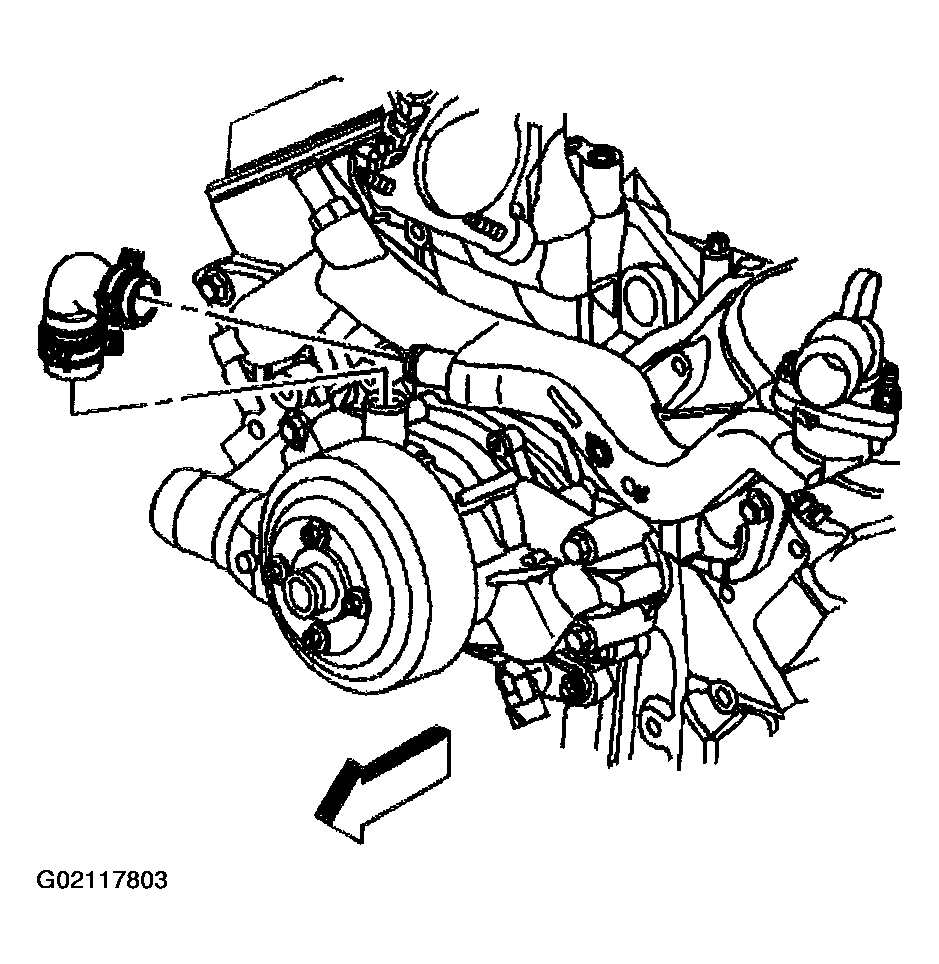

    Fig 2: Installing Bypass Hose
    G02117803Courtesy of GENERAL MOTORS CORP.
  6. Install the outlet hose to the water pump.
  7. Position the outlet hose clamp at the water pump.
  8. Install the fan clutch. Refer to FAN CLUTCH REPLACEMENT  .
  9. Install the drive belt. Refer to DRIVE BELT REPLACEMENT -- ACCESSORY in Engine Mechanical - 8.1 L.
  10. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .

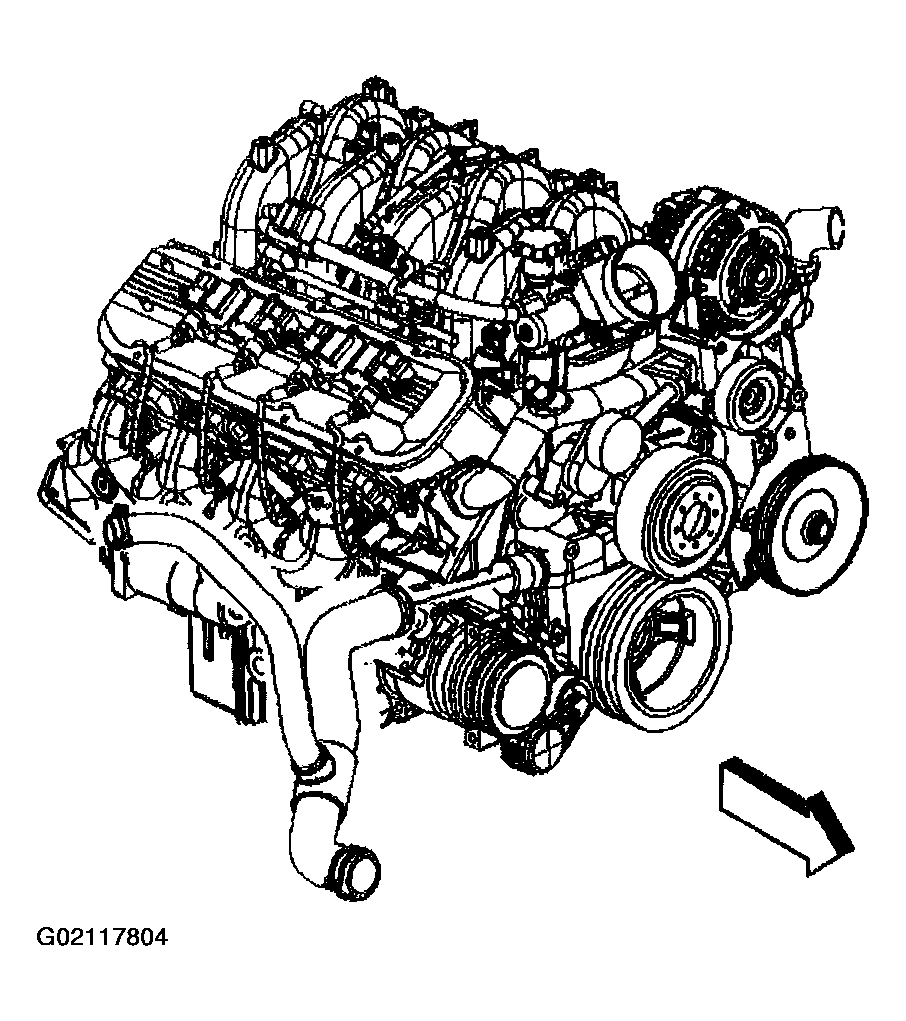

    Fig 3: Installing Outlet Hose To Water Pump
    G02117804Courtesy of GENERAL MOTORS CORP.
