Wheel Alignment Specifications: Specifications

Use illustration for wheel alignment specifications. See Fig 1 .

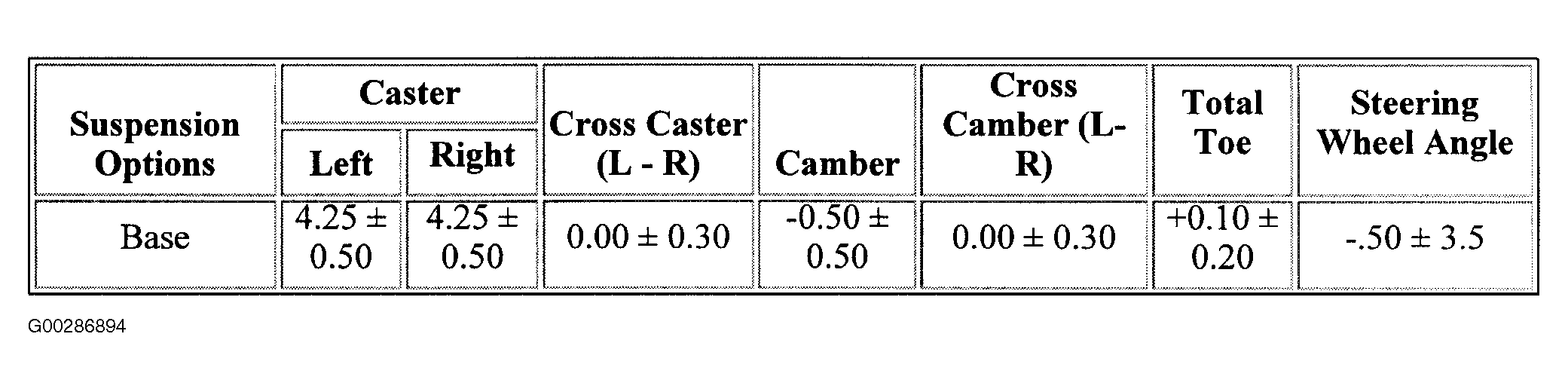

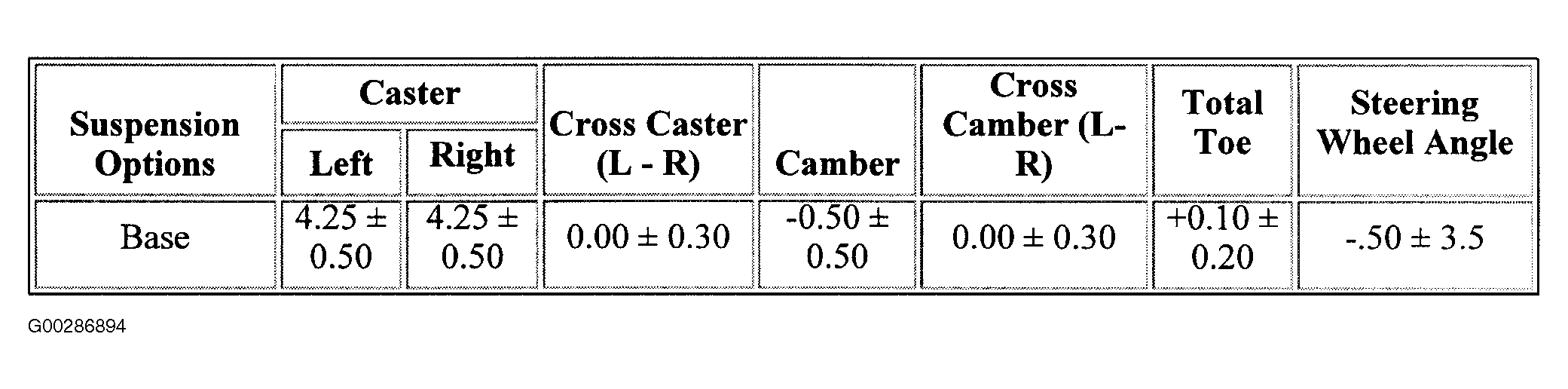

Fig 1: Wheel Alignment Specifications
G00286894Courtesy of GENERAL MOTORS CORP.
